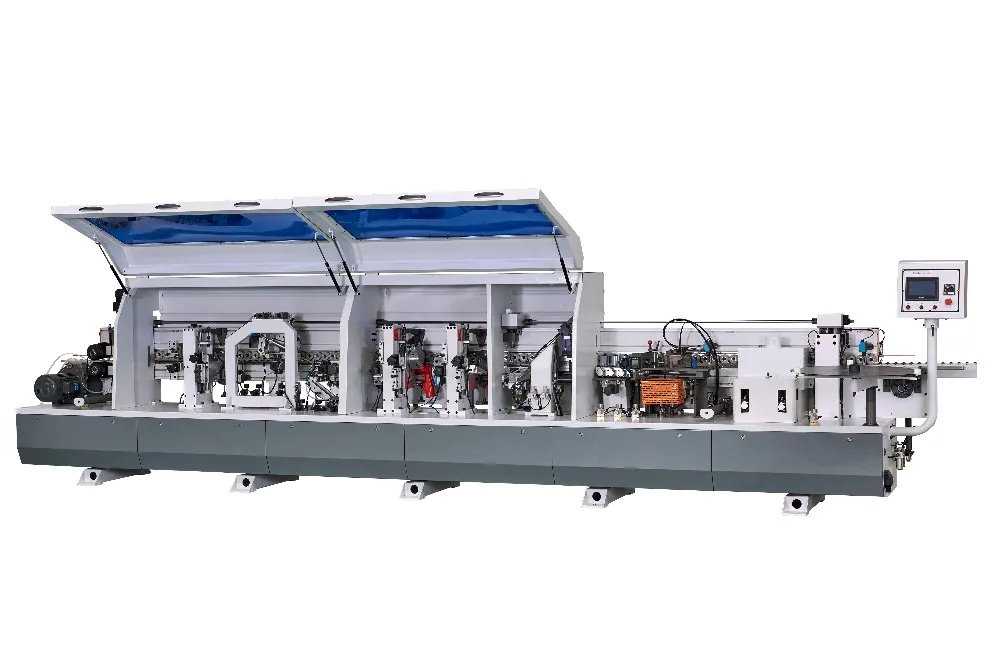

PUR Edge Banding Machine T-600GYP has 3 different type,different PUR glue system price is different.It's good for wood, MDF, plywood edge band work. The edge bander material can be PVC, Acrylic and ABS. Wood and veneer belt is also optional!
currently PUR glue is widely used in the edge banding of decorative panels, the quality and product performance of PUR glue seal are better than that of EVA glue
It's idea selection with useful functions ,and is automatic edge banding machine.It very popular with European customer.
Edge Banding Machine T-600GYP Specification
Model No.
T600GYP
Motor Power
16.5Kw
Overall size
6100*1000*1600mm
Feeding Speed
16-18-20mm/min
Panel Thickness
8-60mm
Edge banding tape thickness
0.4-3mm
Panel Width
≥80mm
Working air pressure
0.6Mpa
Weight
2000kgs
Main Features of Edge Banding Machine
1. Delta frequency controller, insured the duration and precision of our wood edge banding machine. 2. PLC use Delta brand, air cylinder use Airtac,Honeywell limitation switch, all key parts we choose market tested best brands to try to guarantee our machine performance and let our customers enjoy to use our machines. 3. Independent lifting up and down system, simple and convenient. 4. Precise encoder control, high speed. 5. Special polishing structure, motor angle can be universal adjusted, make the PVC/Acrylic/ABS band polishing and buffing to the best. 6. Glue spray clean system is optional, it's good to remove the glue and dirty on MDF/Wood during edge banding process.

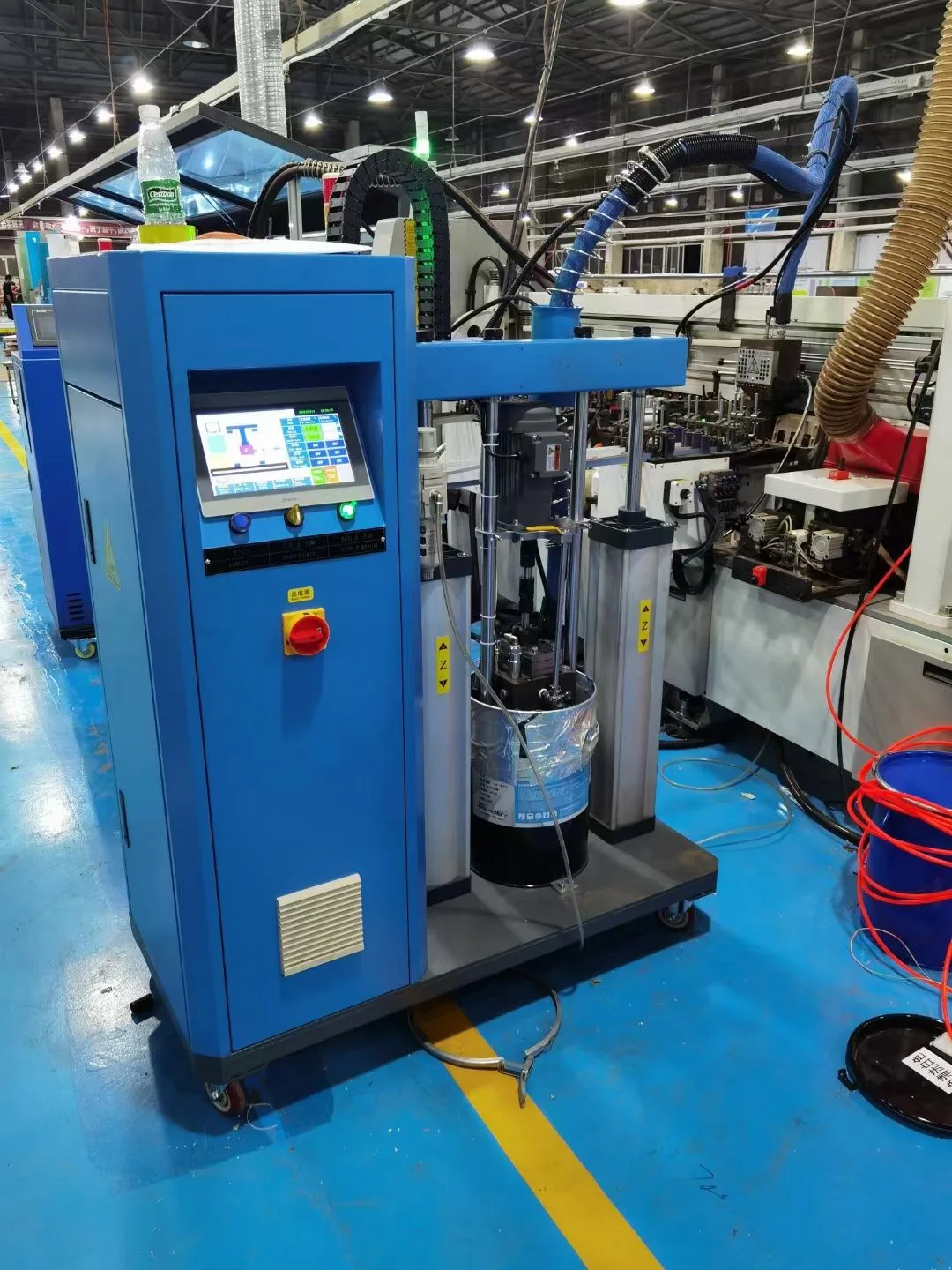

7. 3 PUR gluing systems are optional to give you more durable, no gap banding experience!You can select according to your production requirements.Welcome to contact us to enquiry about 3 different PUR gluing systems detail.
Funtions:Spray cleaning- Pre-milling / PUR Gluing / End Trim/ Rough Trim / Fine Trim / Corner rounding/Scraping / Flat Scraping/Spray cleaning-Buffing
Certifications
Detailed Images

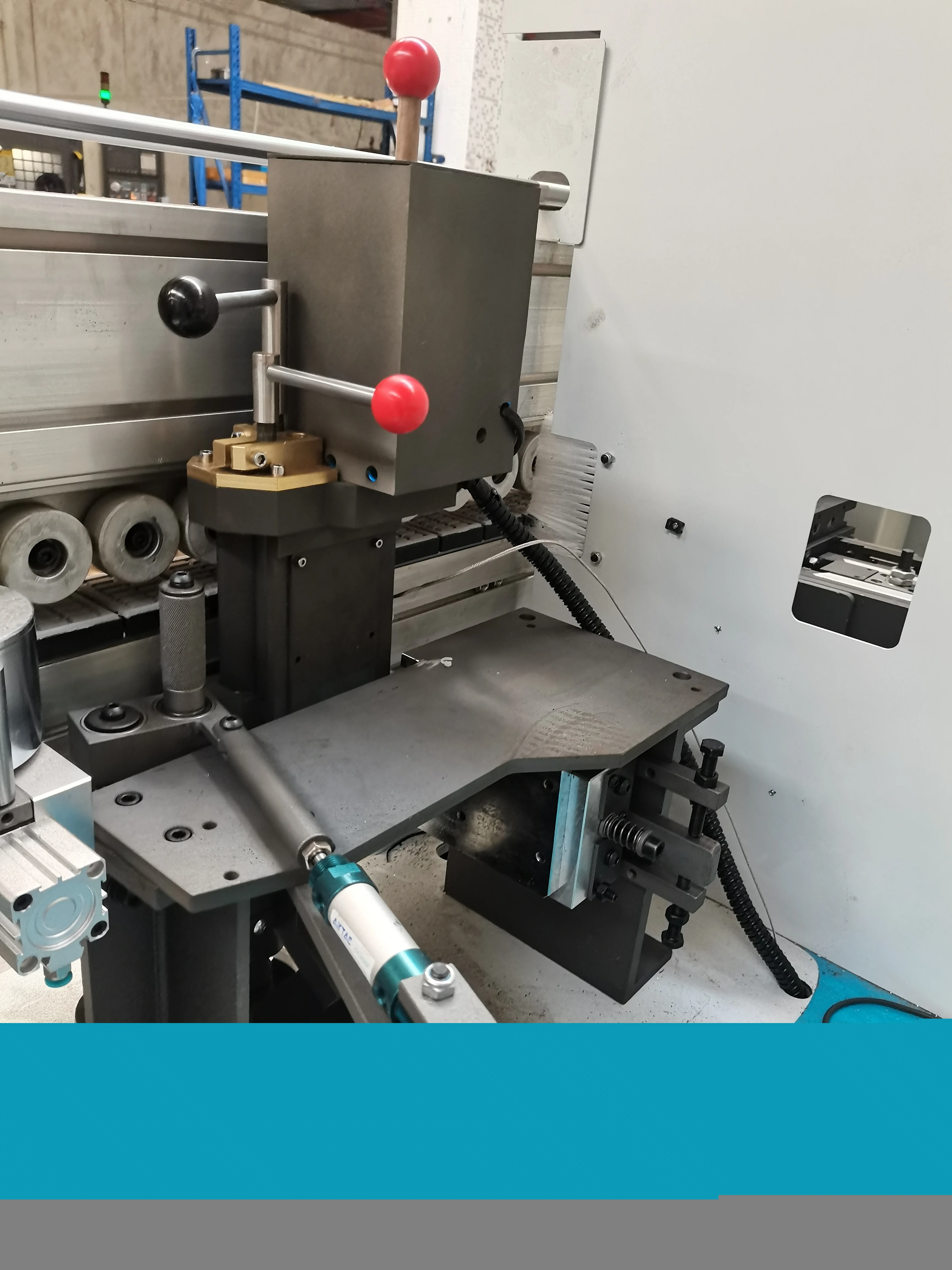

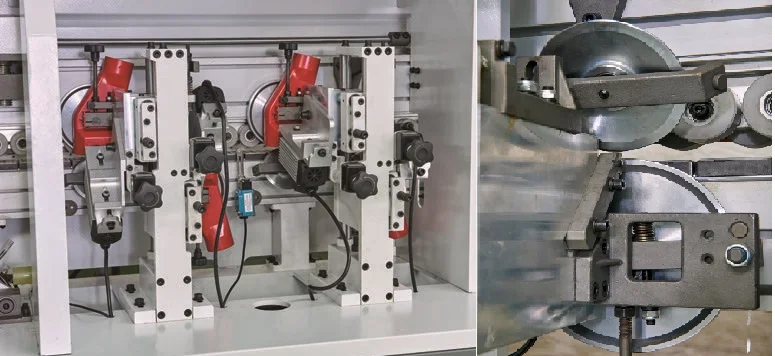

Pre-milling and End Trim
Equipped with double diamond blades, remove the possible waving texture on edge to achieve better edge banding affection.
End trim running through precise liner track, automatically tracked with mould and fast cut with high frequency high speed motor, guaranteed the plain and complete of cutting side.

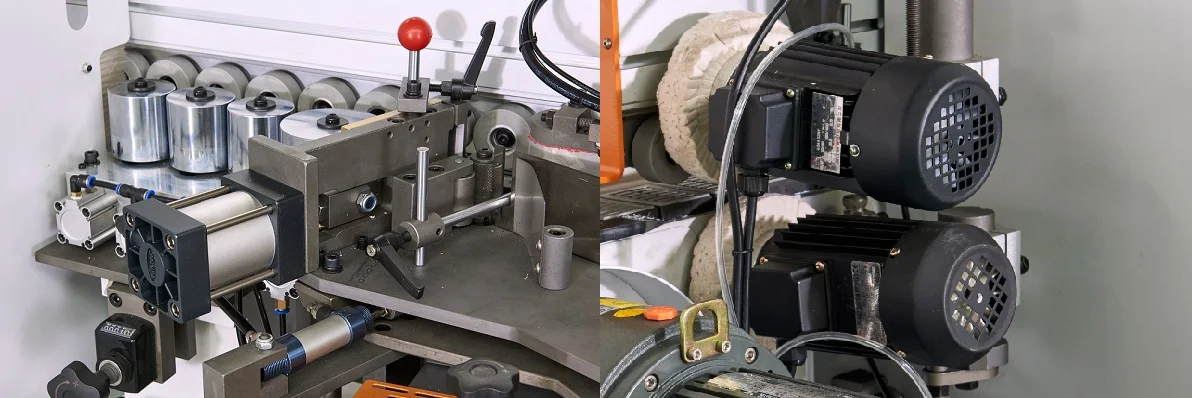

Buffing and Gluing
The buffing device adopts cotton material polishing wheel to sand the finished edge band more smoothly.
Gluing facilities use special structure to evenly spread the glue on both banding panel and band, ensure a more solid adhesion force.

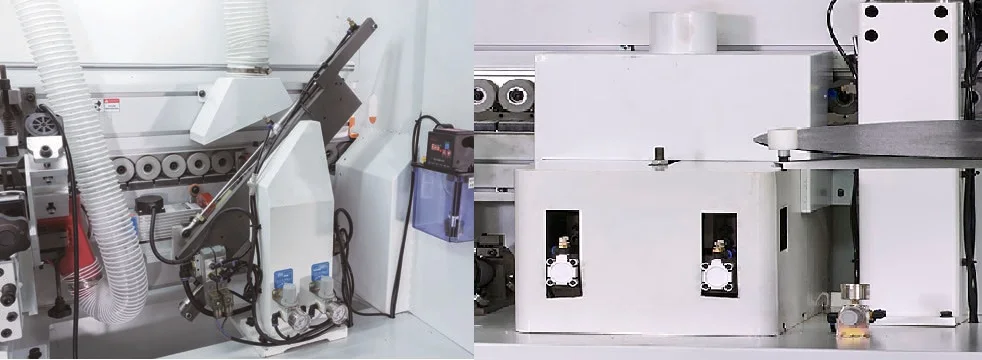

Fine Trim / Rough Trim and Scrapping
Fine and rough trim facilities are used to remove the extra material on band, it adopts mould automatically track and high frequency high speed motor, ensure the plain and smooth of work piece top and bottom parts.
Scraping units used to remove the texture which might happened during trim processing, guarantee the band to be smooth and plain.

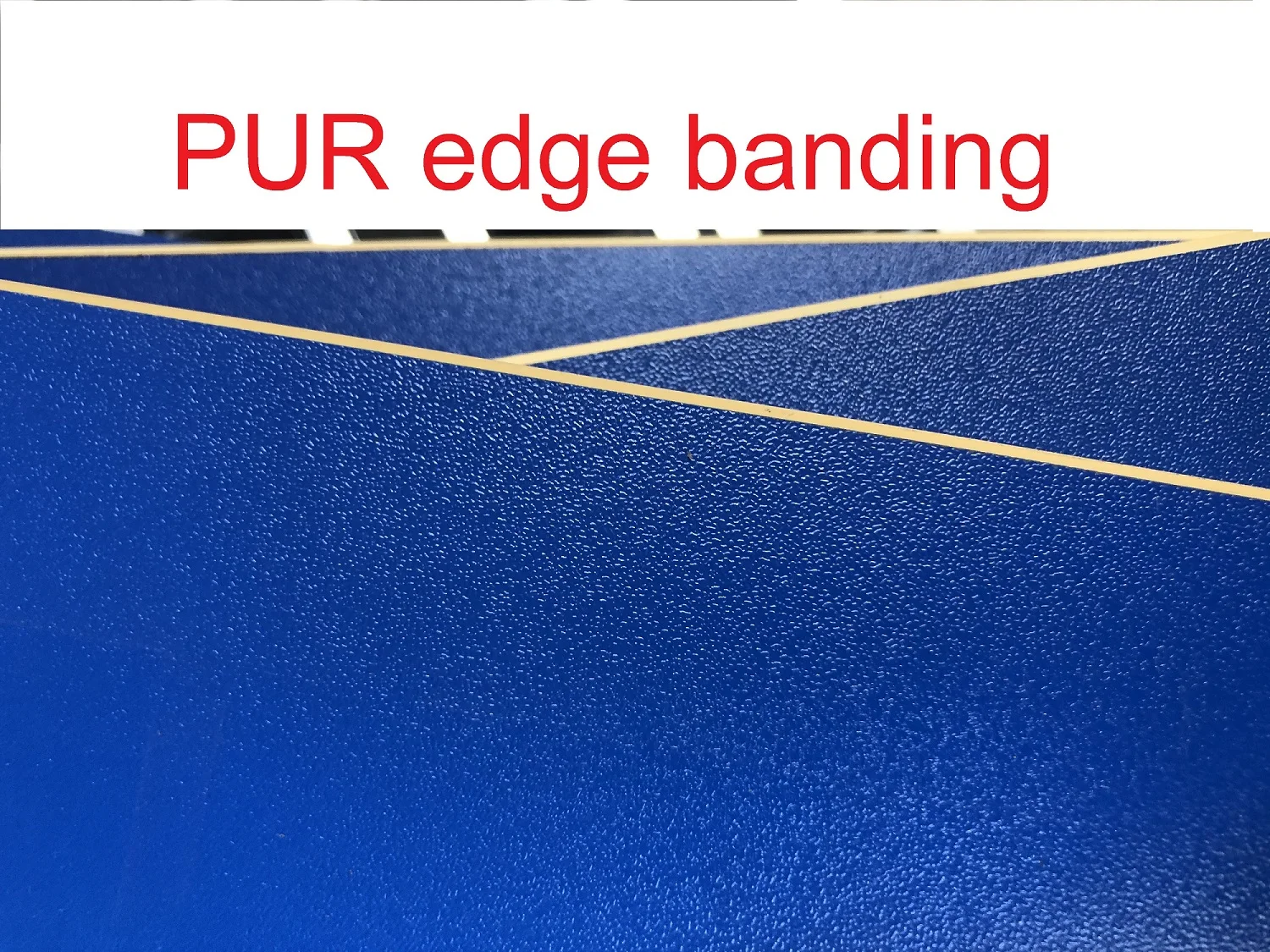

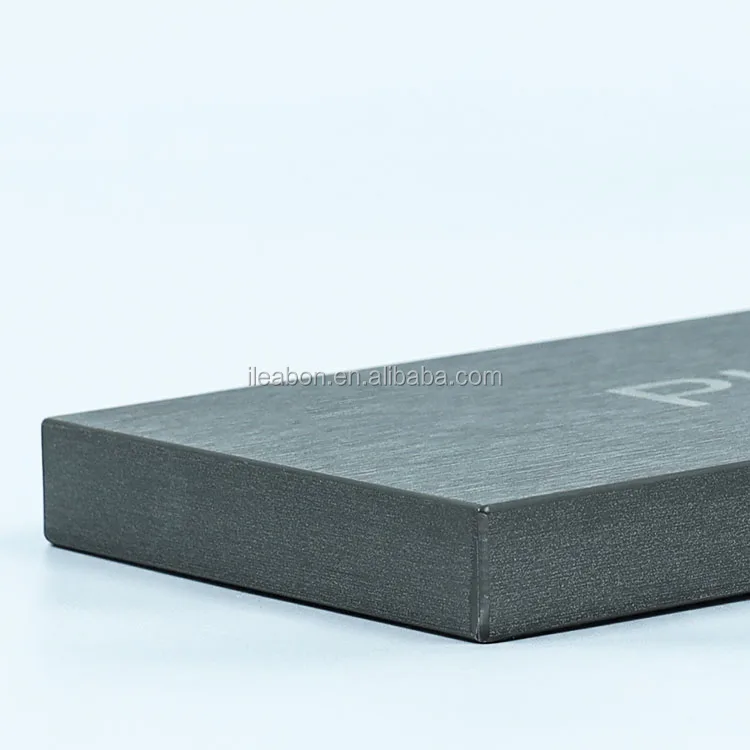

PUR Banding Effects
1.PUR edge banding effect is better than EVA. No gap banding experience.
2.And PUR hot melt adhesive, easy to operate. The two adhesives can be fixed in a short time without drying, which improves work efficiency and saves time. 3. PUR hot melt adhesive has excellent heat resistance, cold resistance, water vapor resistance, chemical resistance and solvent resistance. Due to the irreversible characteristics of PUR glue once it is reacted (that is, it will not melt after being heated), the coated wire board can remain stable at -40°C to 150°C, and the product quality is more stable, which is more suitable for processing exporting products.
