Full complete Plywood Product Line Automatic plywood Pressing Line

Full complete Plywood Product Line Automatic plywood Pressing Line

Category: Wood Based Panels Machinery >>>
Supplier: Weihai,Hanvy,Plywood,Machinery,Manufacturing,Co.,Ltd.

Price:$100,000.00

Price in USD:Details

Quantity:

Product Overview

Description

Gluing&Pressing line

A complete plywood press line consists of three main machines, glue spreader + plywood cold press + plywood hot press.

We could customize machines according to plywood size and plywood capacity.

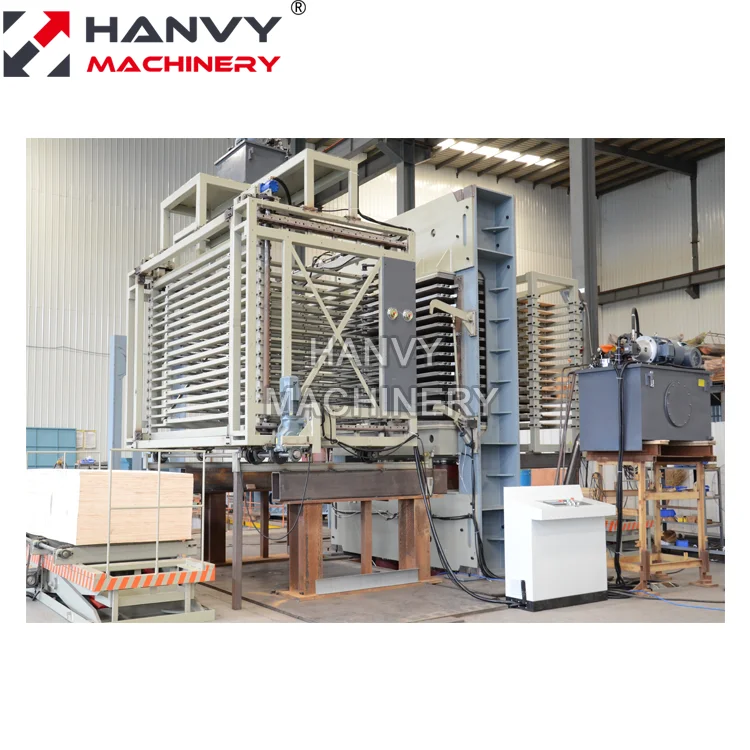

Plywood hot press will decide plywood capacity , so , semi-automatic plywood hot press and full automatic plywood hot press for your choice.And, we could also make more openings, such as 20 layers, 30 layers and 40 layers.

Besides these 3 main machines, some other auxiliary equipment, such as ground roller, x lift etc.

Product Description

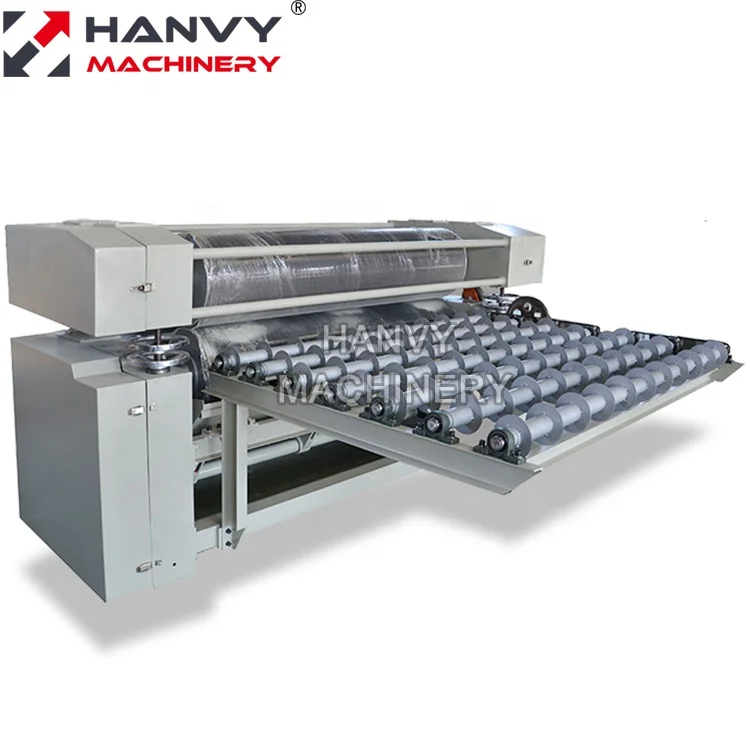

GLUE SPREADER

Our glue spreader is a double sides gluing machines,is widely demanded in plywood industries to apply glue on different types and
thickness of Plywood.
Our offered range is used in various industries such as Plywood industry, Veneer industry.
With sturdy metal plate, Gear transmission, automatic out feeding conveyor and high quality electric components.

COLD PRESS

Cold press is also called pre-press,it is a necessary equipment for processing plywood,suitable for 3'x7',4'x8' plywood production.
Before hot press,cold press could press the core veneer together to ensure veneer surface flat and quick-remove.
Compress with a certain pressure,time and temperature to harden adhesive.
Our factory could provide 400 ton, 500 ton , customized pressure is available.

Model:	HYY814X8/5B	Net opening	300-1300mm
Pressure	500T	Cylinder dia.and quantity	Dia.3602pcs,Dia.802pcs
Worling table size	2700X1370mm	Motor power	17.2kw
Stroke	1000mm	weight	17000kg

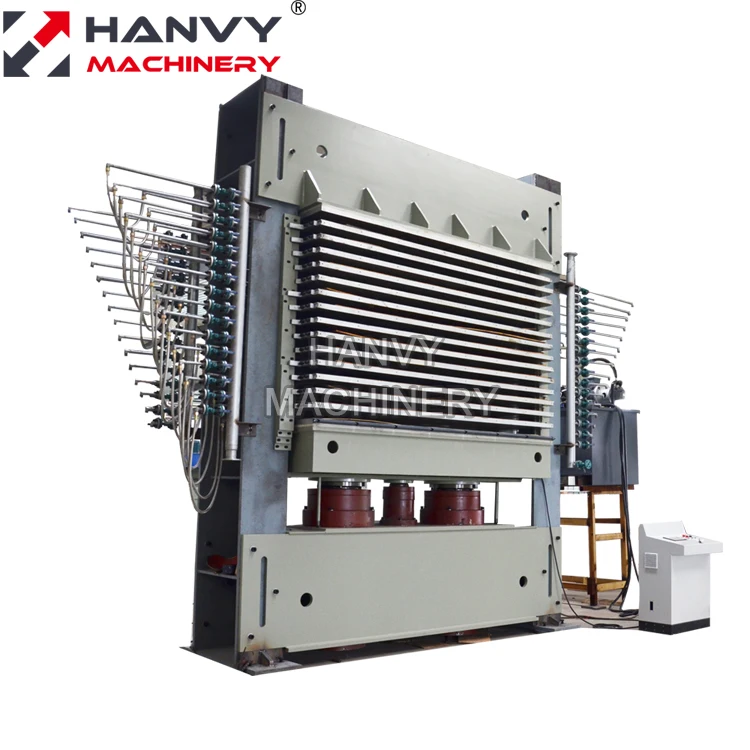

HOT PRESS

Plywood hot press machine is the most important and necessary machine of plywood product line.It will decide the plywood capacity.
Medium: thermal oil or steam.
Pressure :500tons, 600tons,800tons
Plate size : 1370x2700x42 mm, or customized sizes.

Model	HY214*8/6A-15	Cylinder	Dia.380mm*2pcs	Dia.180mm*1pc
Pressure	600ton	Max.workingpressure	25Mpa
Hot platen	2700x1300x42mm	Motor power	26kw
Opening	70mm	Overall dimension	5000x1446x5395mm
Layer number	15 / 20 / 30 / 40	Weight	38000kg

OTHER AUXILIARY- Plywood Press Machine for Making Plywood

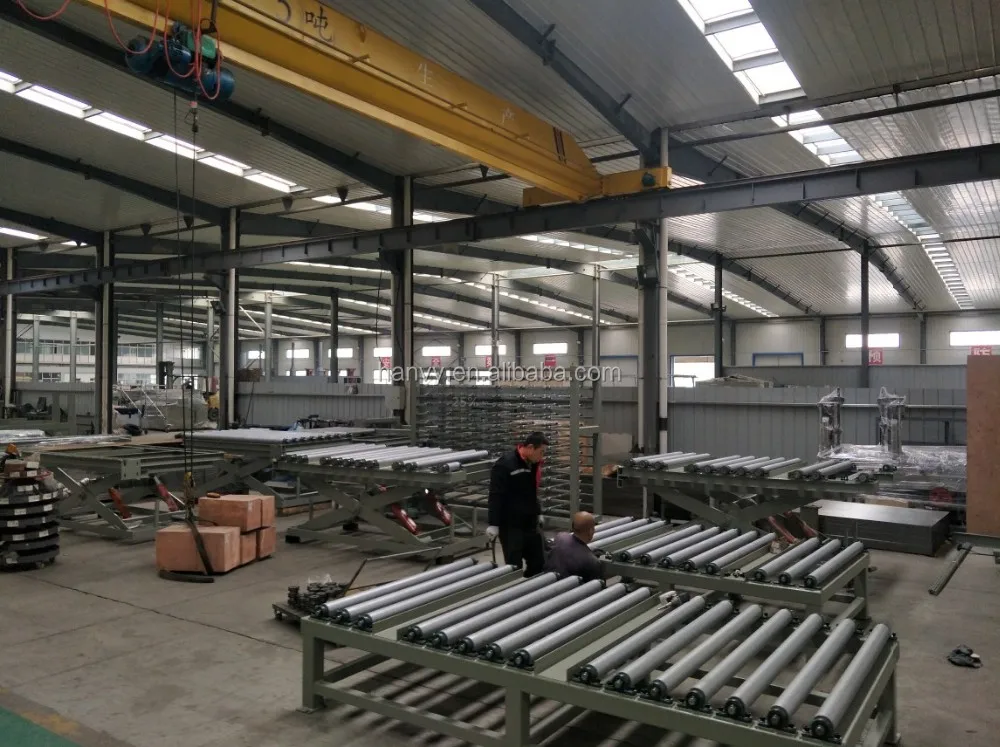

Table lifter and Roller Conveyor

Certifications

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Glue spreader work video

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

About Us

Hanvy is a machinery company serving the wood products industry worldwide, located in Weihai CIty, ShanDong province,China.Our entire range comprises machines like, log debarking machine, veneer peeling machine, veneer dryer,glue spreader,cold press,hot
press,plywood DD saw etc.
We have buyers in USA, Russia, Turkey,Poland,Ukraine,Ethiopia,Ghana ,Egypt,Indonesia,Vietnam and Malaysia etc.Most of them are plywood manufacturers.We have plenty of experience in this area,and we shall be glad to share our successful cases with you.

Packing & Delivery
