Product Overview
Description
Economically Automatic Edge Banding Machine

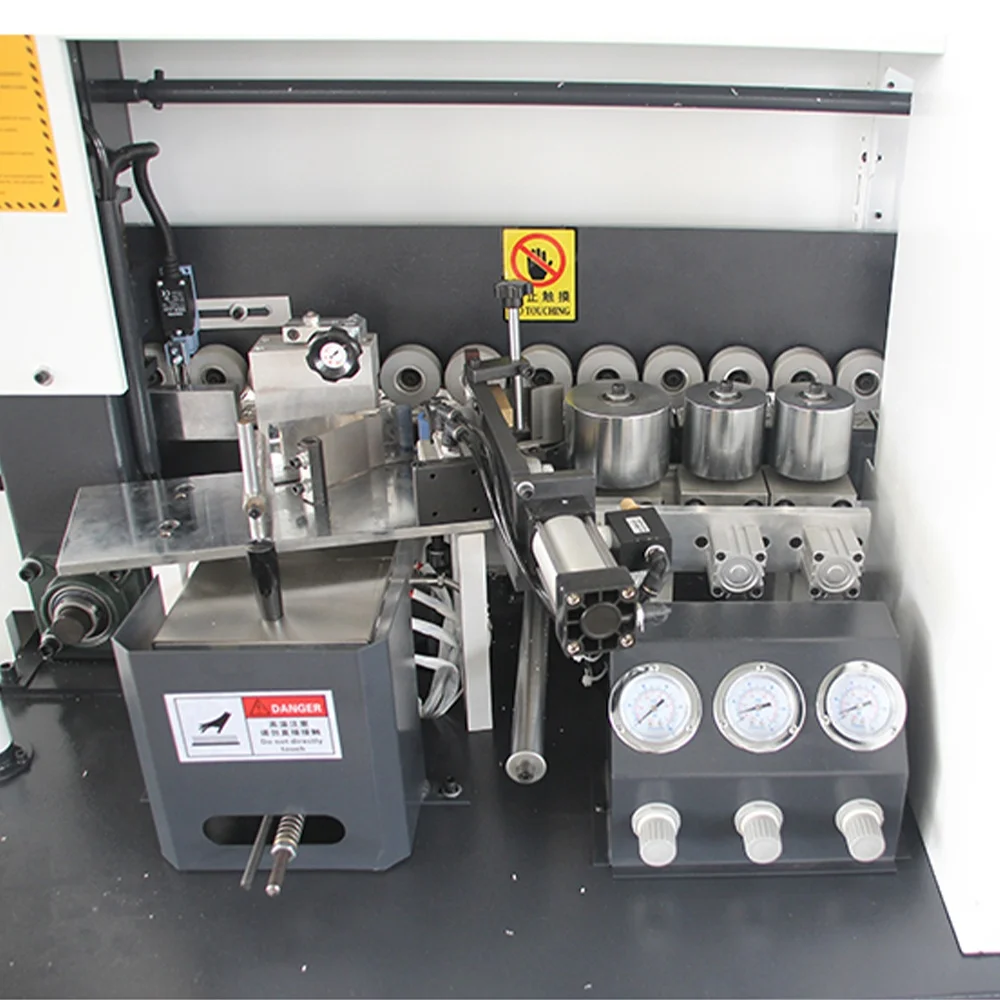

Inner structure
Gluing
The glue mechanism adopt a special structure to glue the panels and
coating materials uniformly, ensure a more tight conglutination.
End trimming
mechanism through a precise guide track movement, adopt fast cutting structure of automatic tracking and high-frequency of motor to ensure the cutting surface smoothly.
Rough trimming
Rough trimming use flat knife which can prevent the thin veneer cracked. Besides rough trimming can be the first banding process of PVC and acrylic. This can reduce the cutting forces and wear of fine trimming cutter.
Fine trimming
Fine trimming unit using automatic tracking contour wheels and high-speed motors ensure edges of panels smooth when trimming.
Scraping
Scraping unit for a perfect finished of the applied edge.
Buffing
The buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface.
Product Paramenters
Model | HSH-505 | HSH-506 | HSH507C |
working panel length | 3-60mm | 3-60mm | 3-60mm |
working panel width | 50mm | 50mm | 50mm |
working panel thickness | 3-55mm； | 3-55mm； | 3-55mm； |
Edge band thickness | 0.4-3mm | 0.4-3mm | 0.4-3mm |
Feed speed | 16m/min | 16m/min | 16/18/22 m/min |
Total power | 9.57kw | 10kw | 15kw |
Product Size | 3800*900*1500 mm | 4200*900*1500 mm | 5600*900*1500 mm |
Net weight | 900kg | 1000kg | 1500kg |
SIMILAR PRODUCTS
Samples After Processing
The round edge is processed by R type trimming cutter.
The beautiful corner is processed by Corner trimming unit.
The grooves have side, top, bottom for choice.
Workshop showing
After sale service
Pre-sale service.
(1) Provide the free consultation of equipment.
(2) Provide the standard device and the flow chart.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
(4)Welcome to visit our factory.
Service during the sales.
(1) Inspect the machine before leaving the factory.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
After sales service.
(1) 24 hours online service.
(2) Provide the VIDEO with install and debug the equipment.
(3) Provide technical exchanging.
