WODWIN High Quality 20X 30X Optical Zoom Lens Joystick Controller Live Streaming HD SDI PTZ Camera Video System Group
- Category: >>>
- Supplier: World Win Technology (shenzhen) Co. Ltd.
Share on (1600292239930):
Product Overview
Description
Tip:

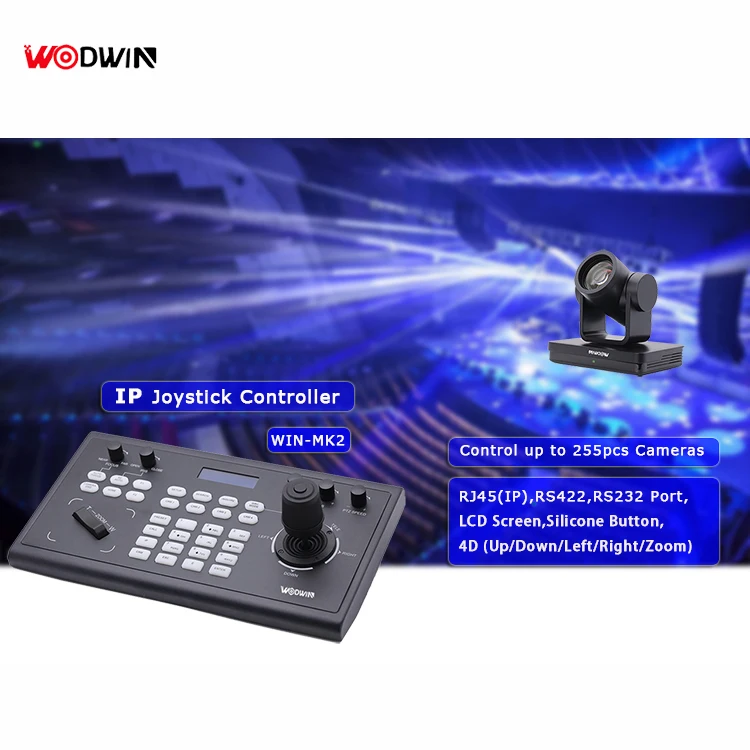

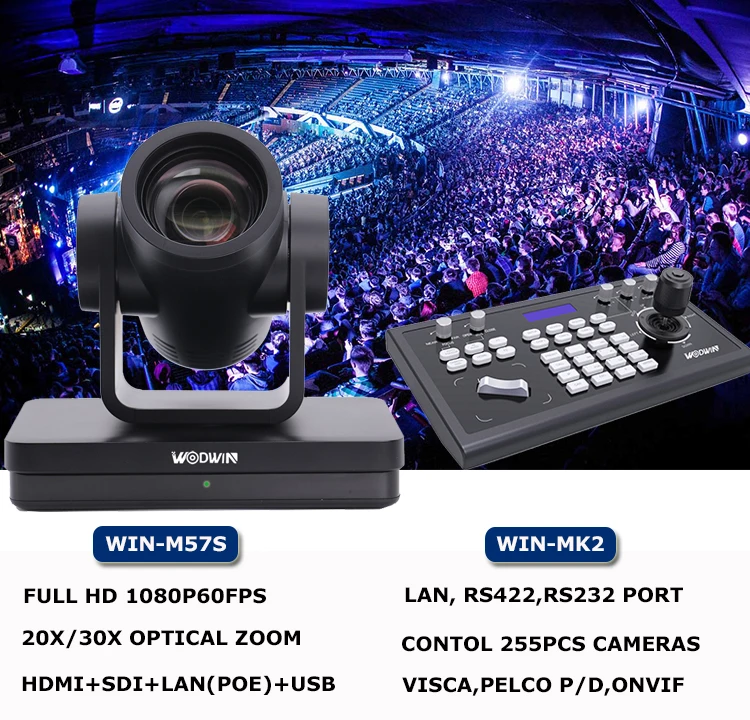

1.Contact us for more discount,price only for camera,joystick controller contact us or press here WIN-MK2;
2.OEM/ODM are also welcome；
3.Excellent quality and better Price.
3.Excellent quality and better Price.
Products Description

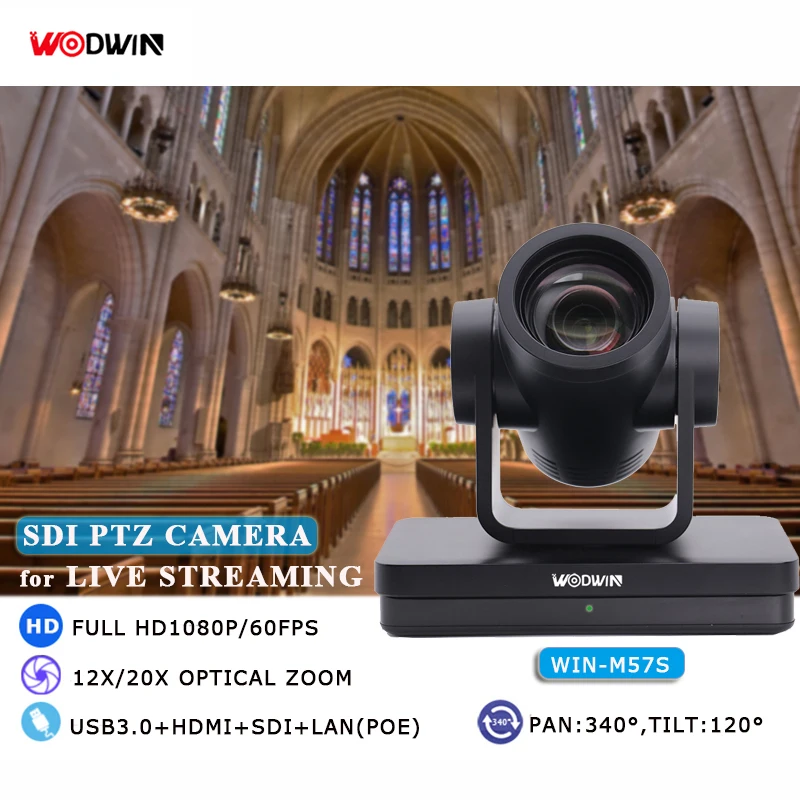

WODWIN High Quality 20X 30X Optical Zoom Lens Joystick Controller Live Streaming HD SDI PTZ Camera Video System Group
WIN-M57S-MK2
WIN-M57S-MK2 Video System Group Selling Points:
1. FULL HD 1080P@60fps
2. Lens:12X/20X/30X Optical zoom

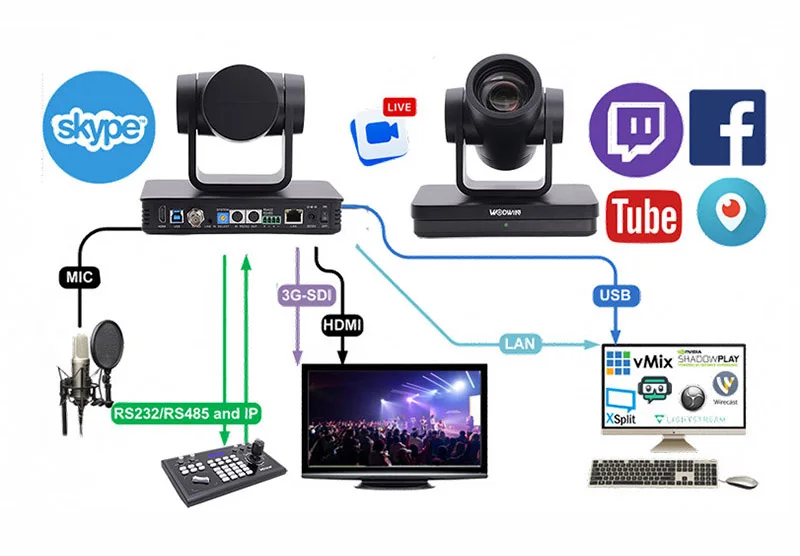

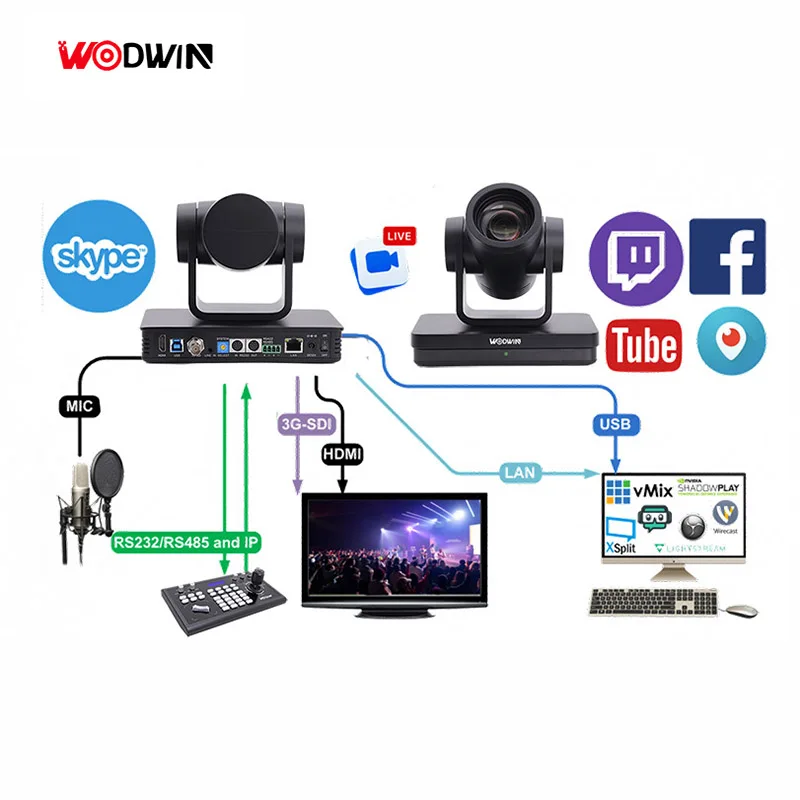

3. Multi Outputs:
USB3.0+SDI+HDMI+LAN(NDI/POE optional)
4. H264/H265 Video Compression Format
5. Multiple preset:Up to 255 presets (10 presets for remote control).
6. Wall mounting, desktop or ceiling mounting
3. Multi Outputs:
USB3.0+SDI+HDMI+LAN(NDI/POE optional)
4. H264/H265 Video Compression Format
5. Multiple preset:Up to 255 presets (10 presets for remote control).
6. Wall mounting, desktop or ceiling mounting
7. Suitable for video conferencing or live broadcasting
8.Supporting ONVIF, VISCA, Serial port VISCA, PELCO-D/P protocols and etc.
9.RS422, RS232 control interfaces; Control up to 255 Cameras.
9.RS422, RS232 control interfaces; Control up to 255 Cameras.

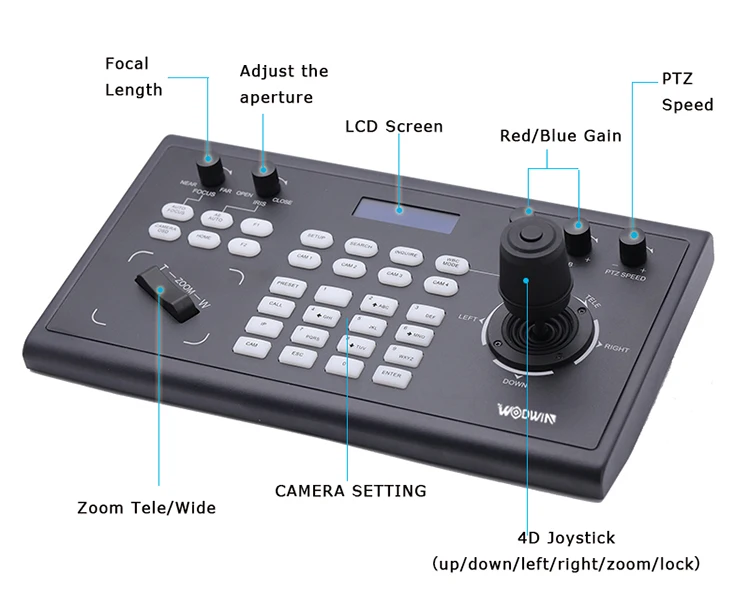

10.LCD display, keypad sound prompt, real-time display decoder and matrix working status.

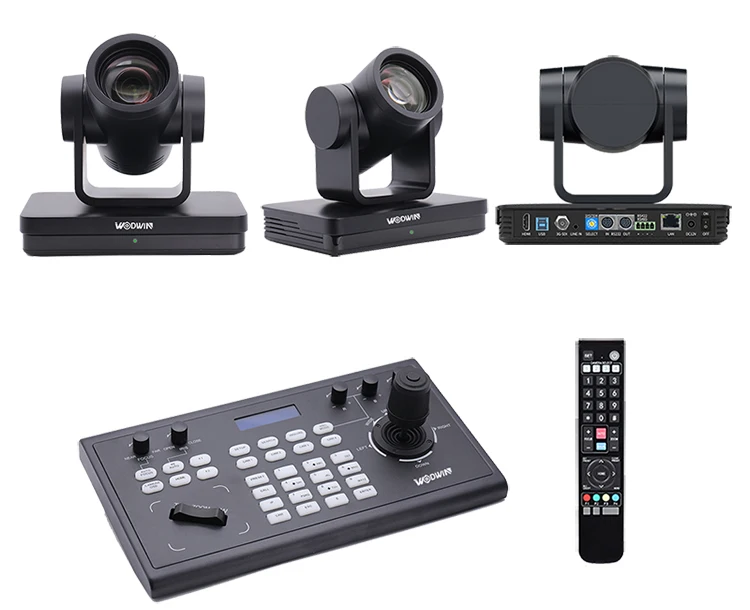

Details Images
Product Paramenters
Product Name | Video System Group | ||
Item No. | WIN-M57S-MK2 | WIN-J31UB-10X | |
Image Sensor | 1/2.8 inch high quality HD CMOS sensor | 10X optical zoom | |
Effective Pixels | 2.07 Megapixels (16:9) | 60.9°(W)～6.43°(T) | |

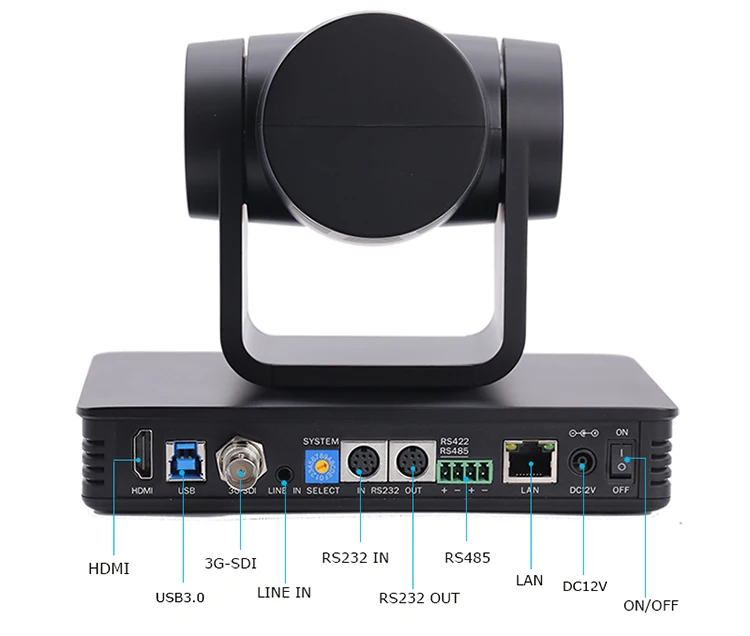

Video Output | HDMI, SDI, LAN(POE), RS232-IN/OUT, RS422 & RS485, A-IN, USB3.0(type B compatible with USB2.0), DC12V, power switch | ||
Lens | 12X /20X/30X OPTICAL ZOOM | ||
Horizontal View Angle | 12X:6.3°（tele）,72.5°（wide）;20X:3.2°（tele）,56°（wide）;30X:2.34°（tele）,65°（wide） | ||
Video Compression | LAN: H.264, H.265 USB 3.0: MJPG, H264, YUY2, NV12 | ||
Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, NDI(Optional) Support remote upgrade, reboot and reset | ||
Serial Protocol | VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/38400/9600/4800/2400bps | ||

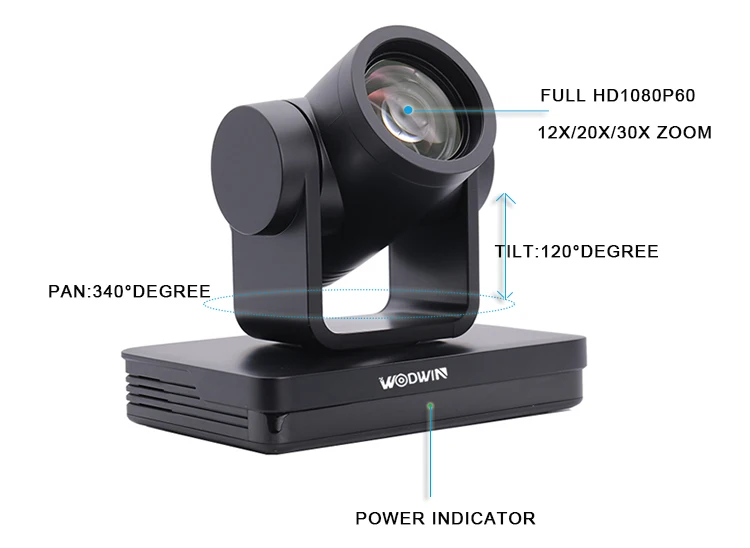

Pan Rotation | -170°～+170° | ||
Tilt Rotation | -30°～+90° | ||
Dimension | 181mmX115mmX149mm | ||
Standard | Power Supply, RS232 control cable, USB3.0 connection cable, Remote Control, User Manual | ||
Power | 12V DC | ||
Product packaging
Recommend Products
WIN-M57SN
NDI PTZ CAMERA
12X OR 20X ZOOM
WIN-J40AS
SDI PORT
20X Zoom
WIN-J91AN
NDI PTZ CAMERA
20X Zoom
Company Profile
FAQ
Q1. Can I have a sample order?
Yes, welcome sample order to test and check quality.
Yes, welcome sample order to test and check quality.
Q2. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT.
It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3. What about the lead time?
Sample needs about 2-3 working days,
Small batch production time needs 5-10 days,
OEM or large order need about 14-25 days.
Q4. Could I put my own logo on products?
Sure, with our R&D department, we can do ODM and OEM.
Q5. What`s your warranty period?
The warranty period is 3 years and start from the purchase date.
Q6. How do you guarantee the quality?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
Yes, surely.We have very professional technical team,and it is our responsibility to help our clients
when meet with any technical problem.
Q8. I'm buying with your company at the first time, how can I trust you?
We totally understand if you have some doubt about us at our first cooperation.
You are welcome to visit our company or our factory anytime you like.
You can also choose trade assurance for your order.
Q9. What's your payment term?
Our payment term is TT in advance before shipment.
