SR 2000/2000EX NDIR Infrared nulti ozone analyzer for O2,H2,CO, CO2, CH4, SO2, NH3, CL2, NOx
- Category: Gas Analyzers >>>
- Supplier: Weifang Huafen Sunrise Analytical Instrument Co. Ltd.
Share on (1600293986512):
Product Overview
Description
SR-2030/2030EX industrial online processing electrochemical
ozone analyzer
-------------------------------------------------------------------------
Introduction:
The oxygen Analyzer SR-2030 is a gas analyzer system which makes use of electrochemical methods to measure continuously the oxygencontent in kinds of mixed gases.
The analyzer uses high-performance sensors with anti-acid gases, anti-interference gas, long life and stable performance.
Based on advanced digital processing technology, the analyzer can automatically indicate the composition, concentration and trend of the detected gas with standard output interface.
Products features:
1. There is no or slight influence on result caused by disturbing gases such as CO2, CO, H2S, NOx, N2, Ar, H2, CH4, CL2, SO2,NH3, HCI, H2O;
2. The sensor has a long life which can be used for more than four years with normal operation.
3. Air pressure and flow rate have little or no influence on the test results.
4. Small gas consumption, minimum 100ml/min.
5. The response time is less than 15s.
6. High accuracy and resolution is 0.001.
7. LCD with wide range of temperature displays the composition, concentration and trend chart of the detected gas.
8. Automatic zero correction, multi-level password protection and no loss of data when power-off.
9. Measuring range can be set arbitrarily.
10. It has RS232/485 interface and can be connected with DCS.
The oxygen Analyzer SR-2030 is a gas analyzer system which makes use of electrochemical methods to measure continuously the oxygencontent in kinds of mixed gases.
The analyzer uses high-performance sensors with anti-acid gases, anti-interference gas, long life and stable performance.
Based on advanced digital processing technology, the analyzer can automatically indicate the composition, concentration and trend of the detected gas with standard output interface.
Products features:
1. There is no or slight influence on result caused by disturbing gases such as CO2, CO, H2S, NOx, N2, Ar, H2, CH4, CL2, SO2,NH3, HCI, H2O;
2. The sensor has a long life which can be used for more than four years with normal operation.
3. Air pressure and flow rate have little or no influence on the test results.
4. Small gas consumption, minimum 100ml/min.
5. The response time is less than 15s.
6. High accuracy and resolution is 0.001.
7. LCD with wide range of temperature displays the composition, concentration and trend chart of the detected gas.
8. Automatic zero correction, multi-level password protection and no loss of data when power-off.
9. Measuring range can be set arbitrarily.
10. It has RS232/485 interface and can be connected with DCS.
Specifications:
Range | 0-100% 0-10000ppm |
Scale interval | 0.001 |
Repeatability | Cv≤1%FS |
Zero drift | ≤±1%FS/7D |
Span drift | ≤±1%FS/7D |
Response time | T90 < 15S |
Sample gas flow rate | 500mL/min |
Preheating time | No need to be preheated |
Signal output | 4-20mA, RS232/485 |
Alarm | High-limit alarm, low-limit alarm |
Temperature and humidity | 0-45°C, 20-80%RH |
Power supply | 100-240VAC, 50/60Hz , adjustable to local frequency |

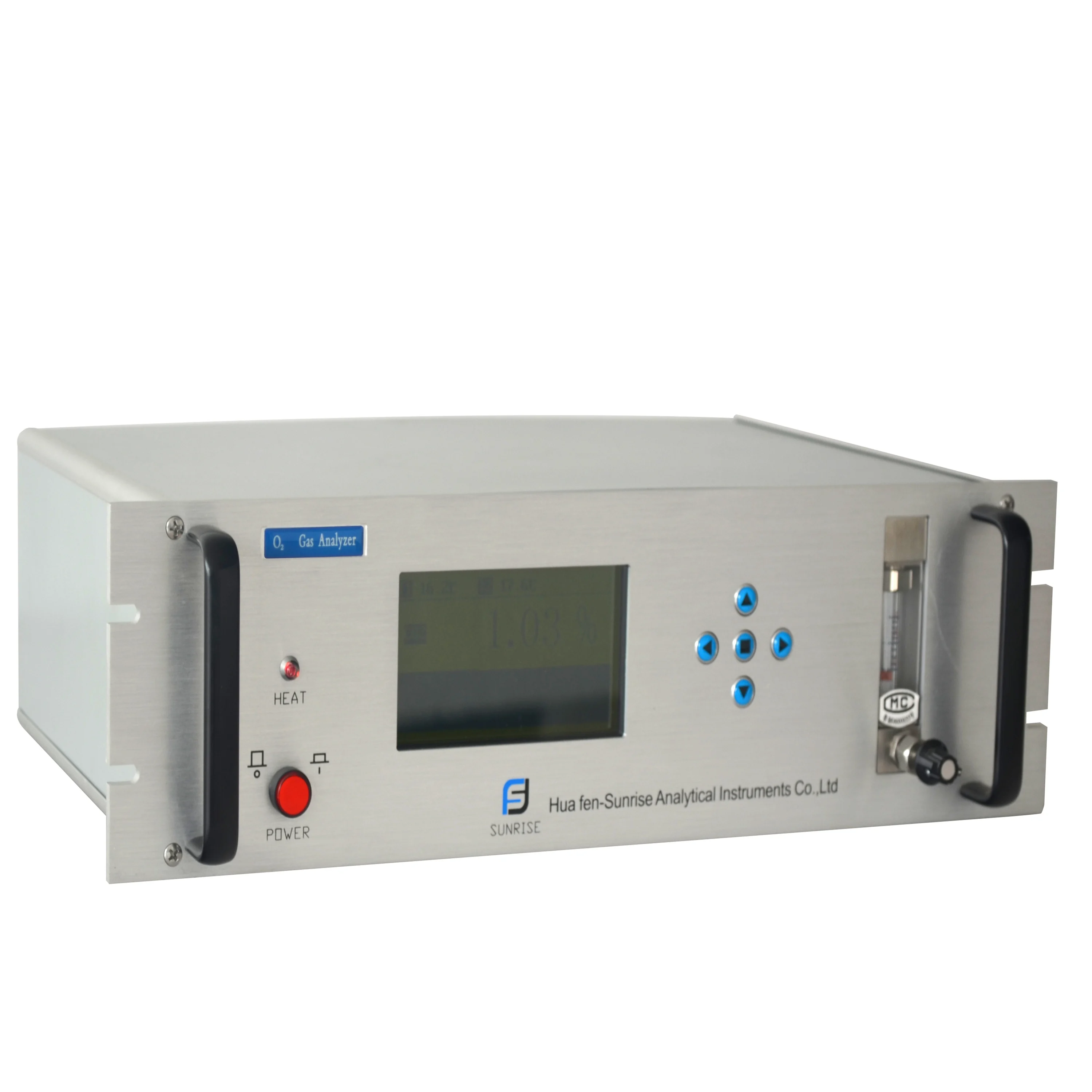

SR-2030 Electrochemical Oxygen gas analyzer

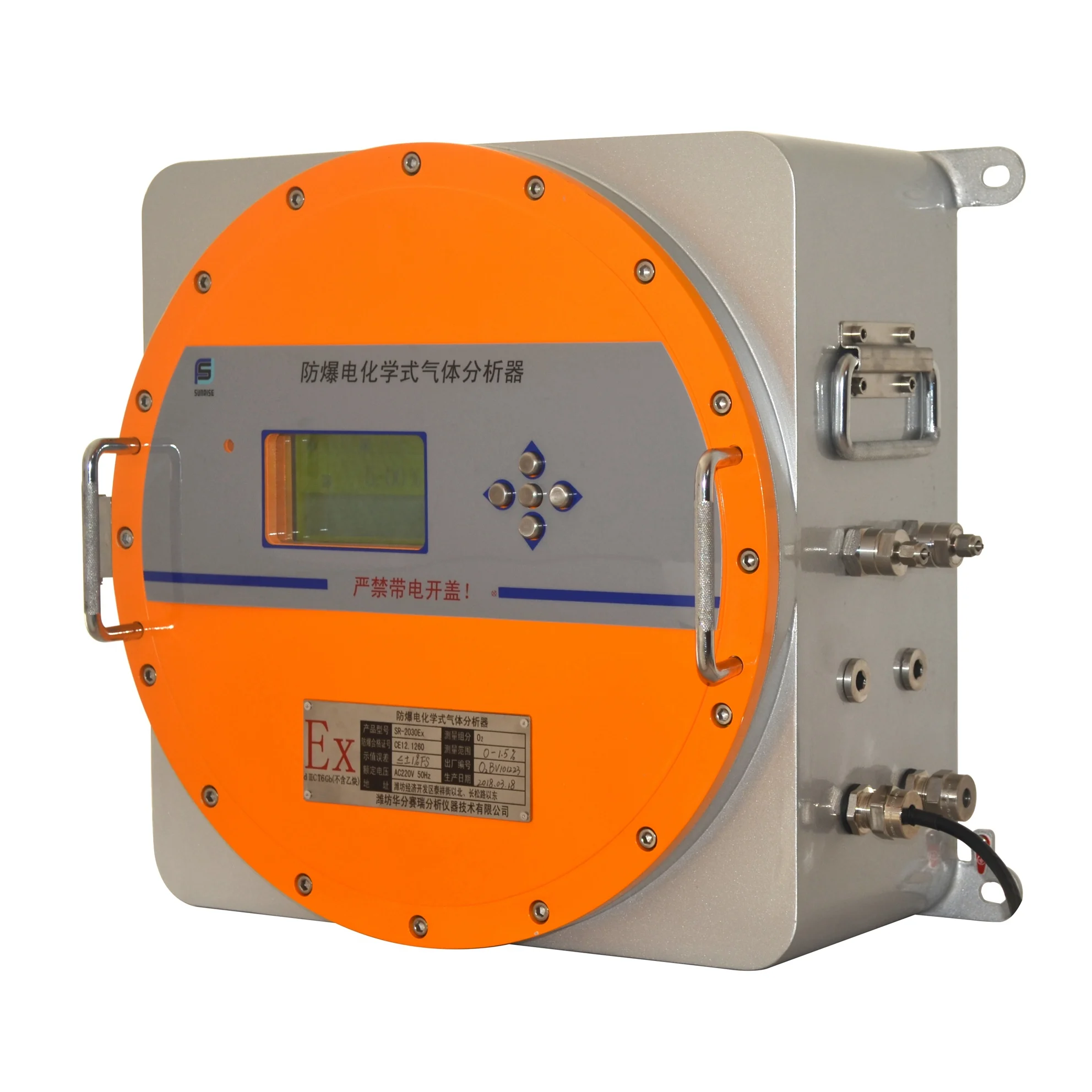

SR-2030 EX oxygen gas analyzer ( explosion proof model)
Explosion proof degree: EX dII CT6 // Protection degree: IP65
SR-S2000 Series gas analyzer with pre-processing system

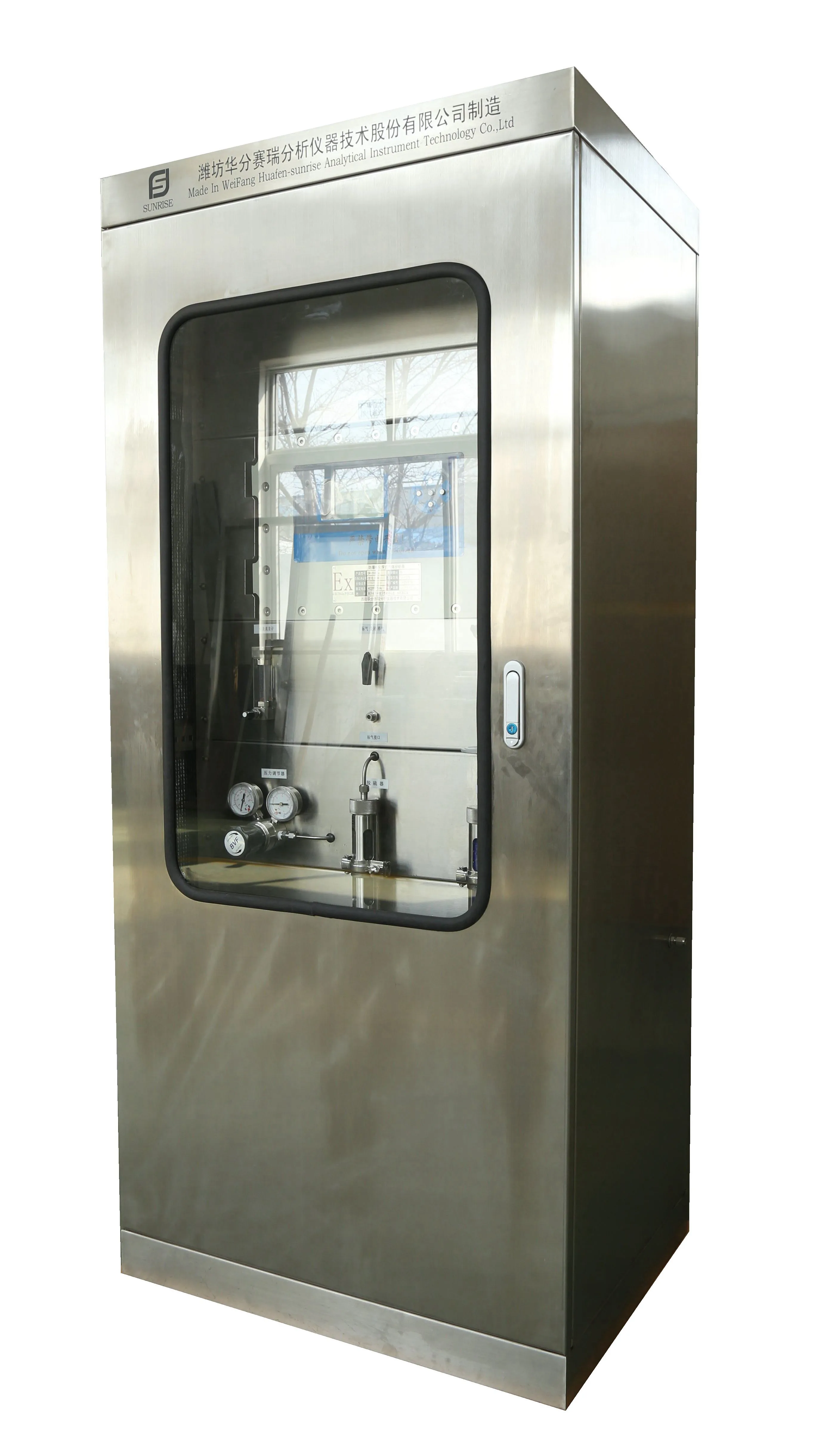

gas analyzer shelter / gas analyzer house

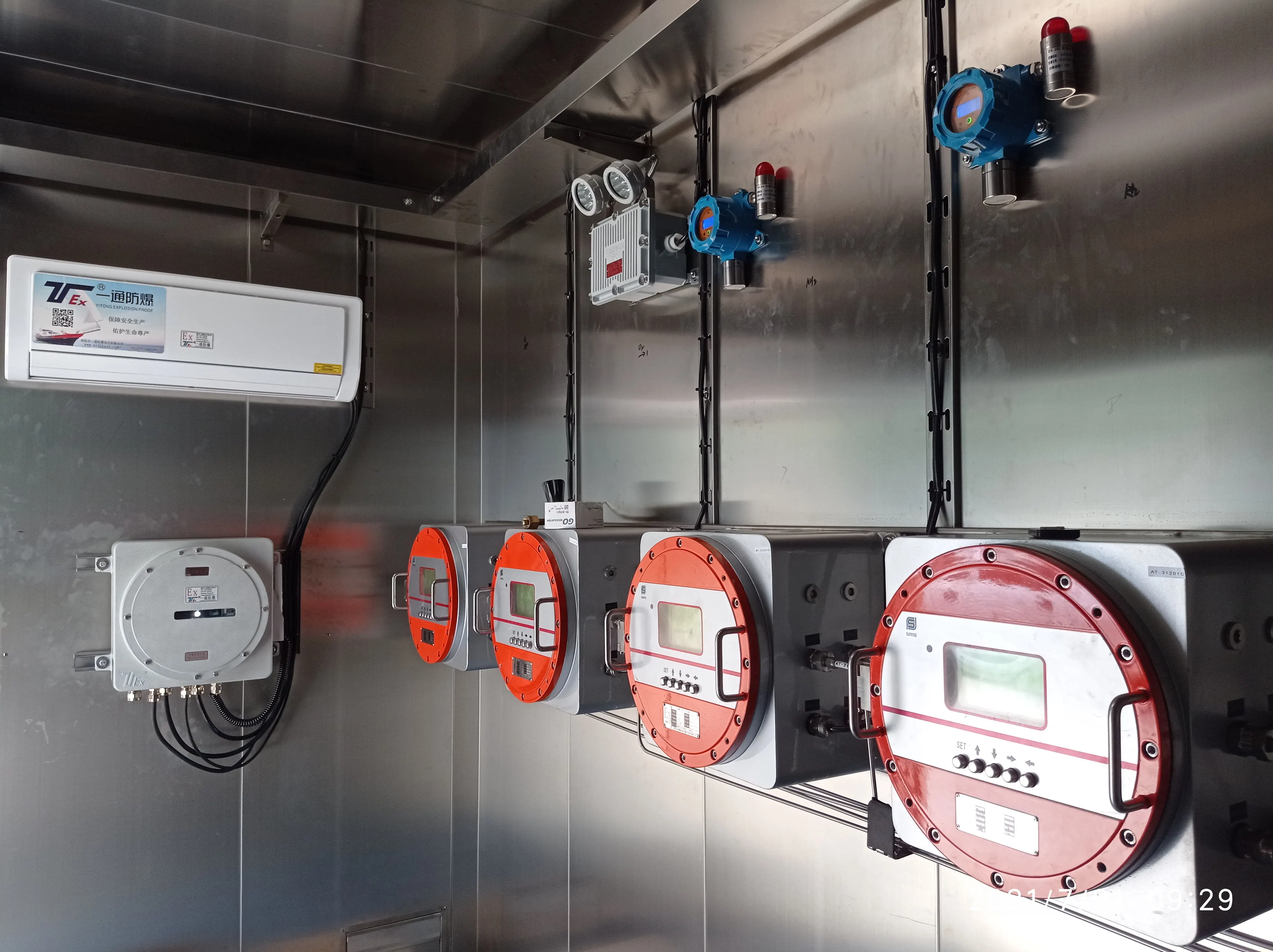

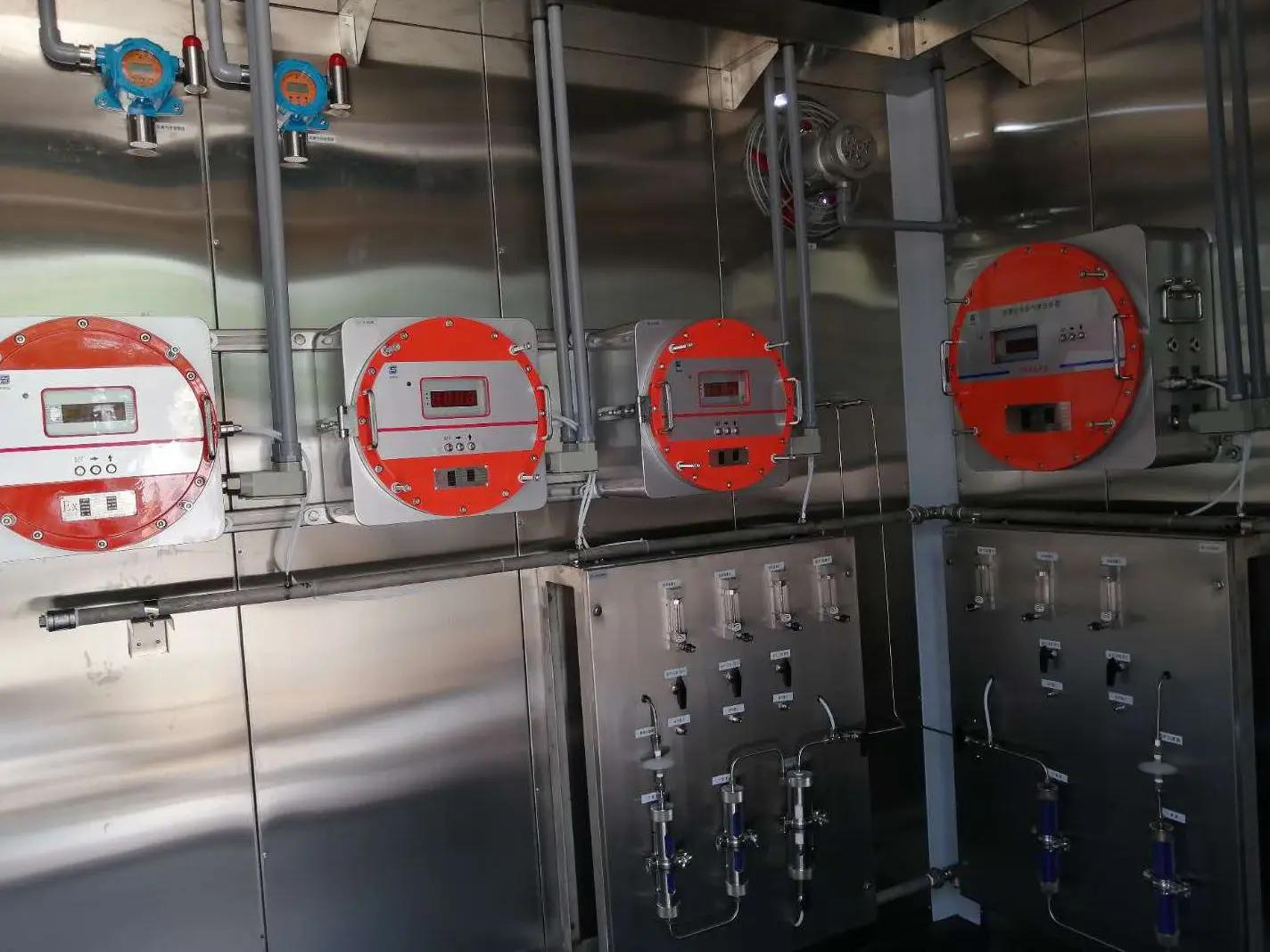

Inside of gas analyzer shelter/house
Production description：
18 years professional experience from 2003
1. R & D 2. Parts production 3，Circuit testing 4. Assemble
5，Destructive test 6. Setting parameters 7. Calibrations （zero & range）8.packaging
（vibration，high temperature）
Application areas
coal chemical industry, petrochemical industry, and chemical fertilizer, metallurgy, building materials, power plants, pharmaceuticals, environmental protection and scientific research fields.
