SR 2050 Industrial Processing Hydrogen measurement Hydrogen Meter H2 Analyzers
- Category: Gas Analyzers >>>
- Supplier: Weifang Huafen Sunrise Analytical Instrument Co. Ltd.
Share on (1600295104682):
Product Overview
Description
SR-2050/2050EX Processing Online Thermal Conductivity
Hydrogen Analyzer Hydrogen Sensor detector：
----------------------------------------------------------------------------------------------------------
The thermal conductivity of hydrogen is the highest of all gases, and the thermal conductivity of mixed gases directly depends on the hydrogen content. The hydrogen levels are measured by measuring the thermal conductivity of the mixed gases, and the accuracy of the analyzer depends on the sensitivity of the temperature sensor. The micro-sensor is fabricated using a micromachining process, and achieves a resolution of 0.001.
Thermal Conductivity Gas Analyzer SR-2050Ex
Products features:
1. Strong shock resistance
2. Strong anti-jamming performance: it is not affected by the change in background gas composition, and has a high stability and reliability.
3. Integrated temperature compensation: it is not affected by environmental temperature changes
4. Response time is less than 5 seconds
5. High sensitivity and high accuracy sensors with the resolution of 0.001
6. Wide temperature range LCD screen displays the composition, concentration, trend chart of the detected gas.
7. Auto to zero and multi-level password protection.
8. Data storage in real time even if there is an instant power-off.
9. Range can be set arbitrarily
10.It has RS232/485 interface and can be connected with DCS.
Specifications: SR-2050
Range | 0-1000ppm, 0-100% |
Scale interval | 0.001 |
Repeatability | ≤±2% FS |
Zero drift | ≤±2% FS/7D |
Span drift | ≤±2% FS/7D |
Response time | T90< 5S |
Sample gas flow rate | 500mL/min |
Preheating time | 15min(Can be operated); 30min(maximum accuracy) |
Signal output | 4-20mA/750Ω, RS485/232 (Optional) |
Alarm | High-limit alarm, low-limit alarm |
Temperature and humidity | 0-45°C, 20-80%RH |
Power supply | 100-240VAC, 50-60Hz, adjustable to local frequency |
SR-2050 thermal conductivity Hydrogen analyzer
Thermal Conductivity Gas Analyzer SR-2050Ex (Flameproof Type)
1. The explosion proof hydrogen analyzer can avoid explosion even if the machine breaks down, or sparks at high temperatures.
2. Explosion proof level: Ex dII CT6
Protection level: IP65
Protection level: IP65

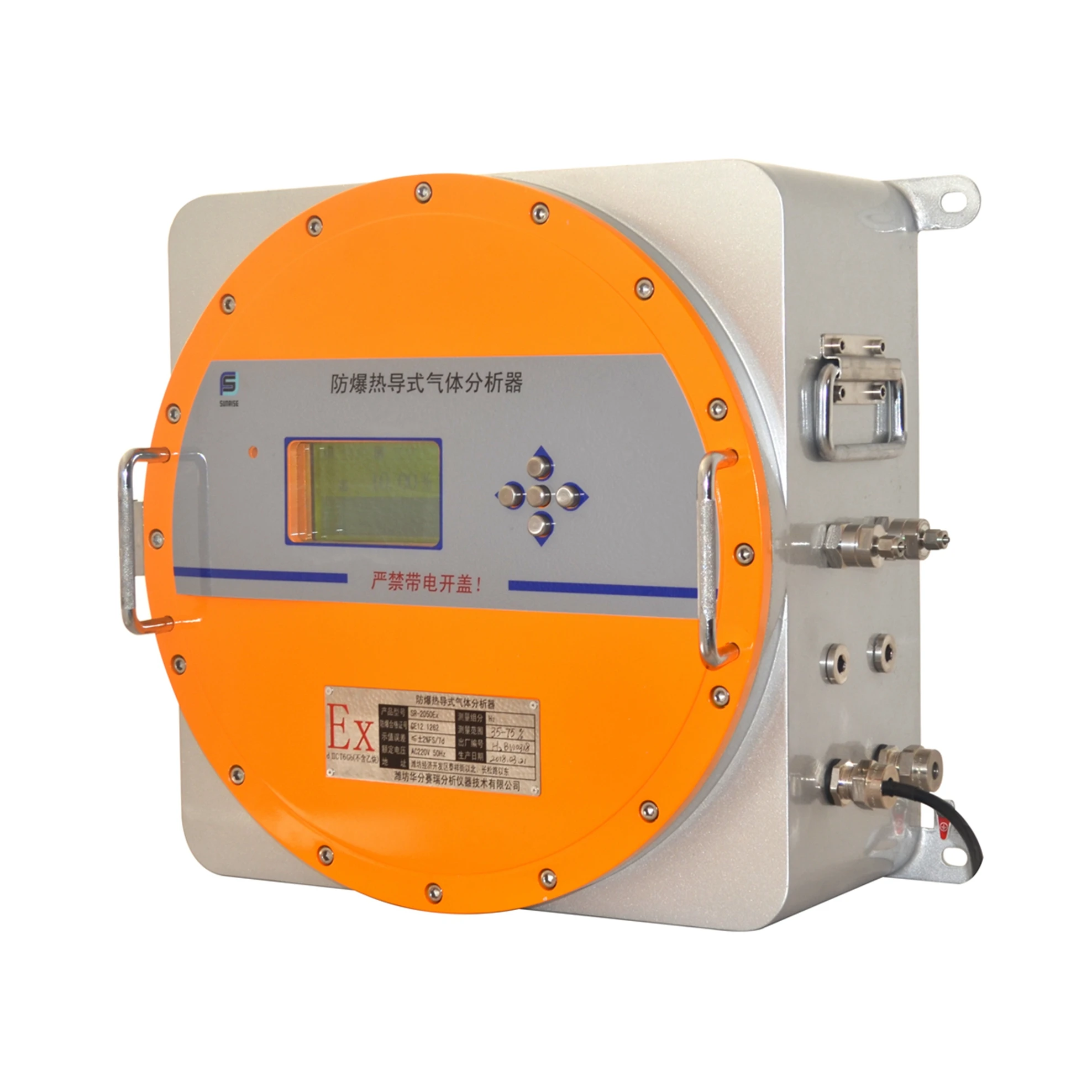

SR-2050EX explosion proof hydrogen analyzer
with pre-processing system
1.This system contains two primary parts: the process analysis instrument, and the sampling pretreatment device.
2.Include 5 parts: sample gas acquisition unit, sample gas pretreatment unit, calibration unit of analytical instrument, process analysis instrument and measurement and control unit.

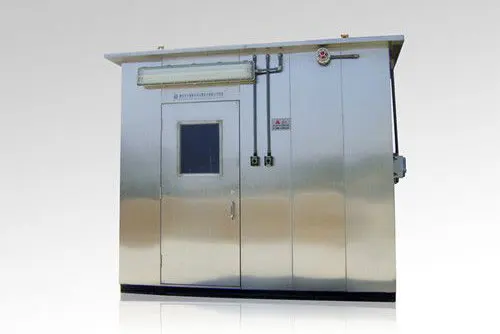

Industrial gas analyzer shelter:
Main components of the system
Explosion resistant outdoor lighting, explosion-resistant sound and light alarm, explosion resistant switch, explosion-proof ventilation fan, flammable, toxic gas alarm. Air conditioning, analytical instruments, workbench, and other components can be adjusted according to customer needs.
Explosion resistant outdoor lighting, explosion-resistant sound and light alarm, explosion resistant switch, explosion-proof ventilation fan, flammable, toxic gas alarm. Air conditioning, analytical instruments, workbench, and other components can be adjusted according to customer needs.
INSIDE OF THE GAS
ANALYZER SHELTER / HOUSE
Production description：
18 years professional experience from 2003
1. R & D 2. Parts production 3，Circuit testing 4. Assemble
5，Destructive test 6. Setting parameters 7. Calibrations （zero & range）8.packaging
（vibration，high temperature）
Application areas
coal chemical industry, petrochemical industry, and chemical fertilizer, metallurgy, building materials, power plants, pharmaceuticals, environmental protection and scientific research fields.
FAQ
A1: We are factory. covers an area of 10000 square meters, with 3 workshops and 1 office building.
Q2: What are your main products?
A2: Online gas analyzer, Oxygen analyzer, Hydrogen analyzer, Gas analyzer with pre-processing system,
Gas analyzer house, gas detector, standard gas.
Q3: What is the delivery term?
A3: FOB,CFR,CIF,EXW, and express: DHL/UPS/TNT/FEDEX etc.
Q4: How about the delivery date?
A4: 5-10 days for normal. special design or large quantity, contact us in advance.
Q5: How about the label and the logo?
A5: Customize label and logo is workable, OEM, ODM.
Q6: How about the MOQ ?
A6: One set.
Q7: How about your after-sales service?
A7: (1) Provide customers with installation and commissioning online instructions.
(2)Well-trained engineers available to overseas service.
(3)Worldwide agents and after service available.
Q8:What's payment term?
A8:T/T, L/C, Cash, Visa, western union, Alipay, escrow etc.
Q9: How about the warranty?
A9: 13 month warranty from leave factory, technical support all the time.
