20 литров 15 л 18 контейнеры для бутылок с водой 5 галлонов машина производства из
- Category: >>>
- Supplier: Taizhou Huangyan Degree Machinery Co. Ltd.
Share on (1600295376119):
Product Overview
Description
Model | DEG-20L (One Blower, One Heater) |
Clamping Force | 220KN |
Clamping Stroke | 450 MM |
Max. Stretching Stroke | 660MM |
Number of Cavities | 1 Cavity |
Theoretical Output | 80-100 BPH(7-25L, 1cav) |
Max. Mold Thickness | 400MM |
Voltage Standard | 380v/3PH/50Hz |
Total Power (Full Loaded) | 20-25KW |
Max. Container Volume | 20L |
Neck Diameter Range | 50-120mm |
Max. Container Diameter | 400mm |
Max. Container Height | 600mm |
Low Air compressor | 10Bar |
High Air compressor | 30-40Bar |
Blow molding machine | 2100*700*1900mm |

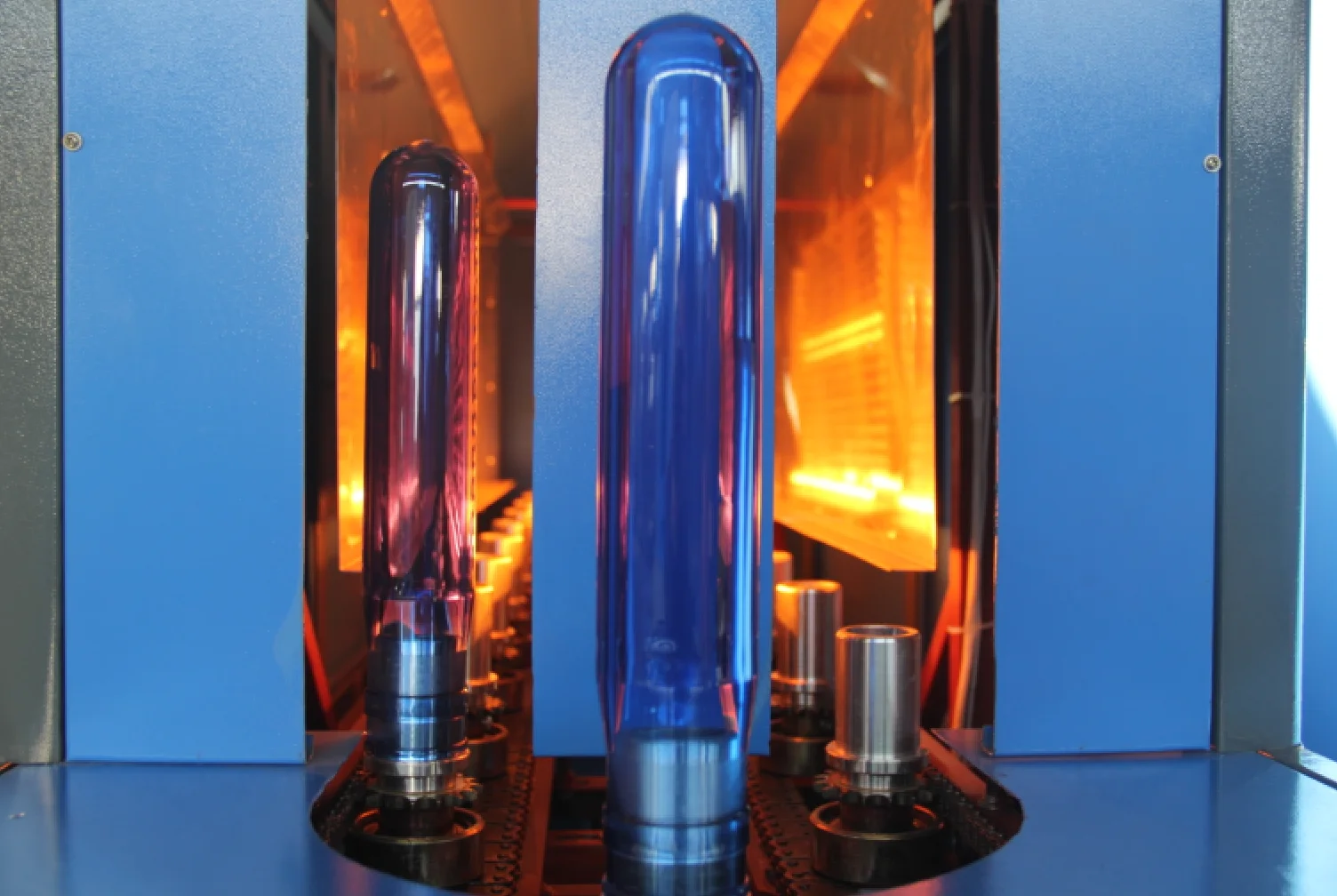

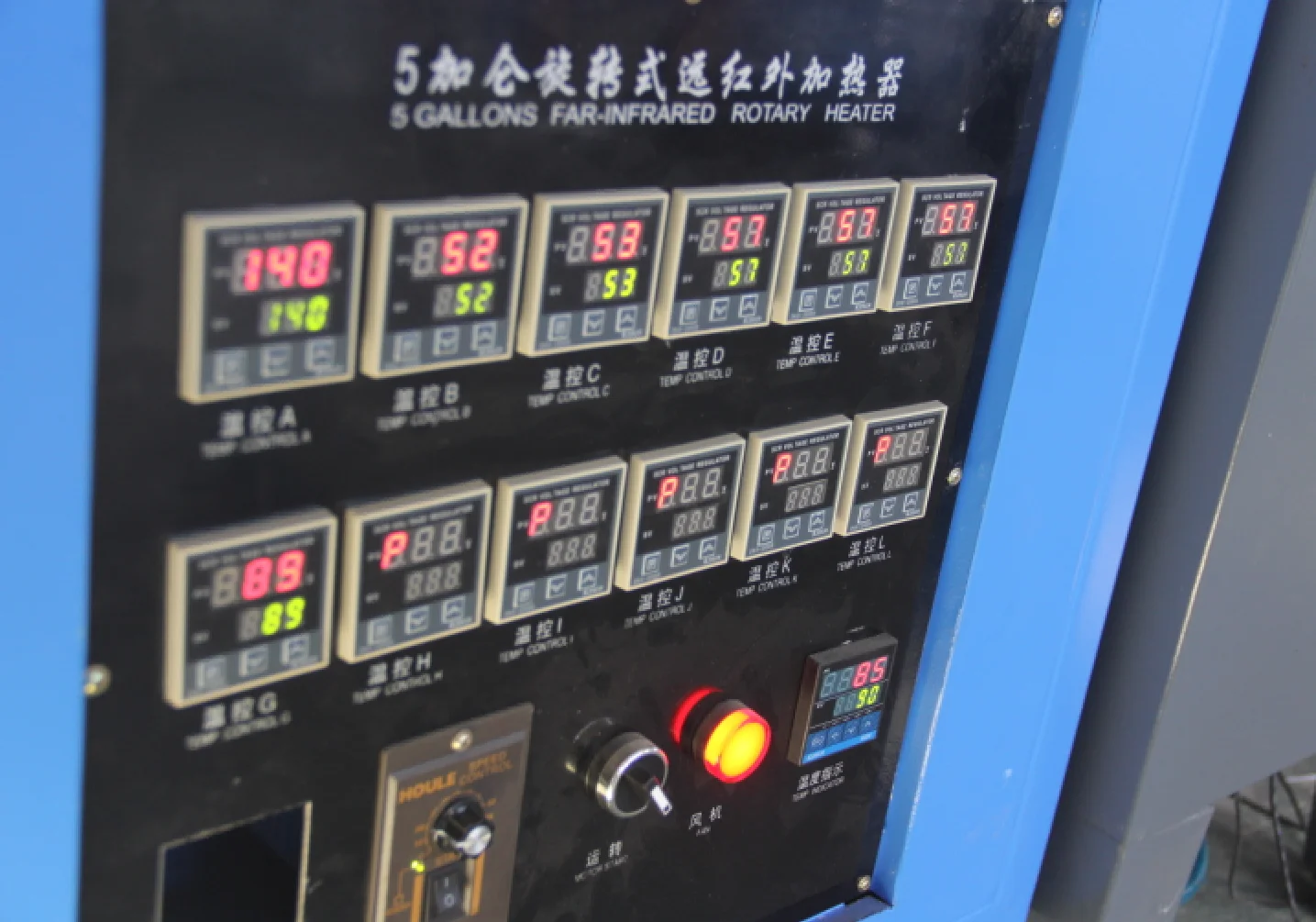

Preform Heater | 2200*700*1600mm |
Net Weight | 2000kgs |
Q1: Are you a factory or trading company?
A: We are factory. Specialed in 5gallon Taizhou Degree Plastic Machinery FactoryPET Bottle Blowing Machine.
Q2: Where is your factory located?

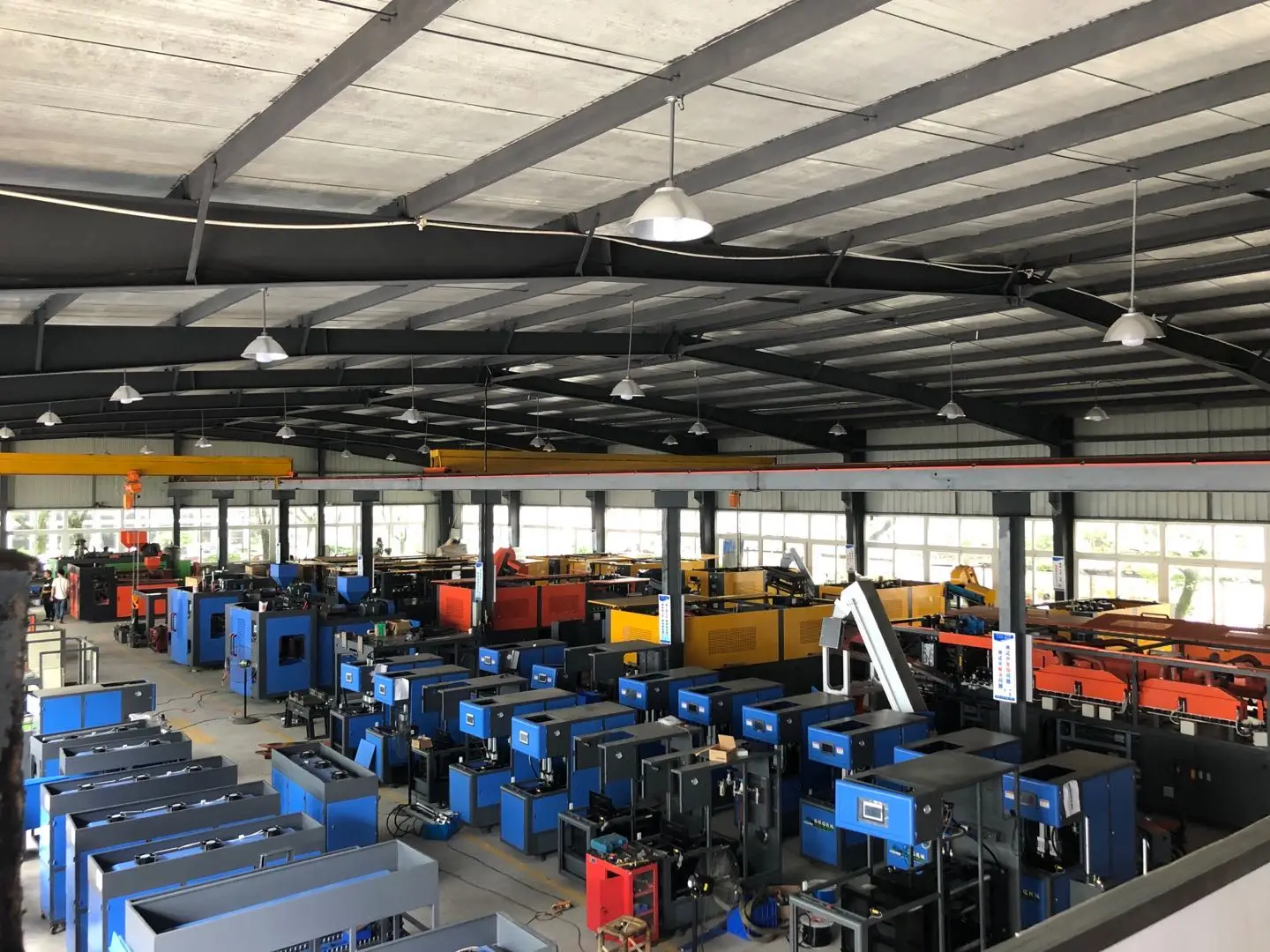

A: Our factory located in Taizhou City, Huangyan Area - “Town of Mold” in China, near Shanghai and Ningbo port. 3hours by train from Shanghai, 2hours by air from Guangzhou.
Q3: How about quality control in your factory?
A: “ Quality is the key point, do what customers needs”
Degree company focus on quality, pay great attention to quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
Q4: How about guarantee for machines and moulds?

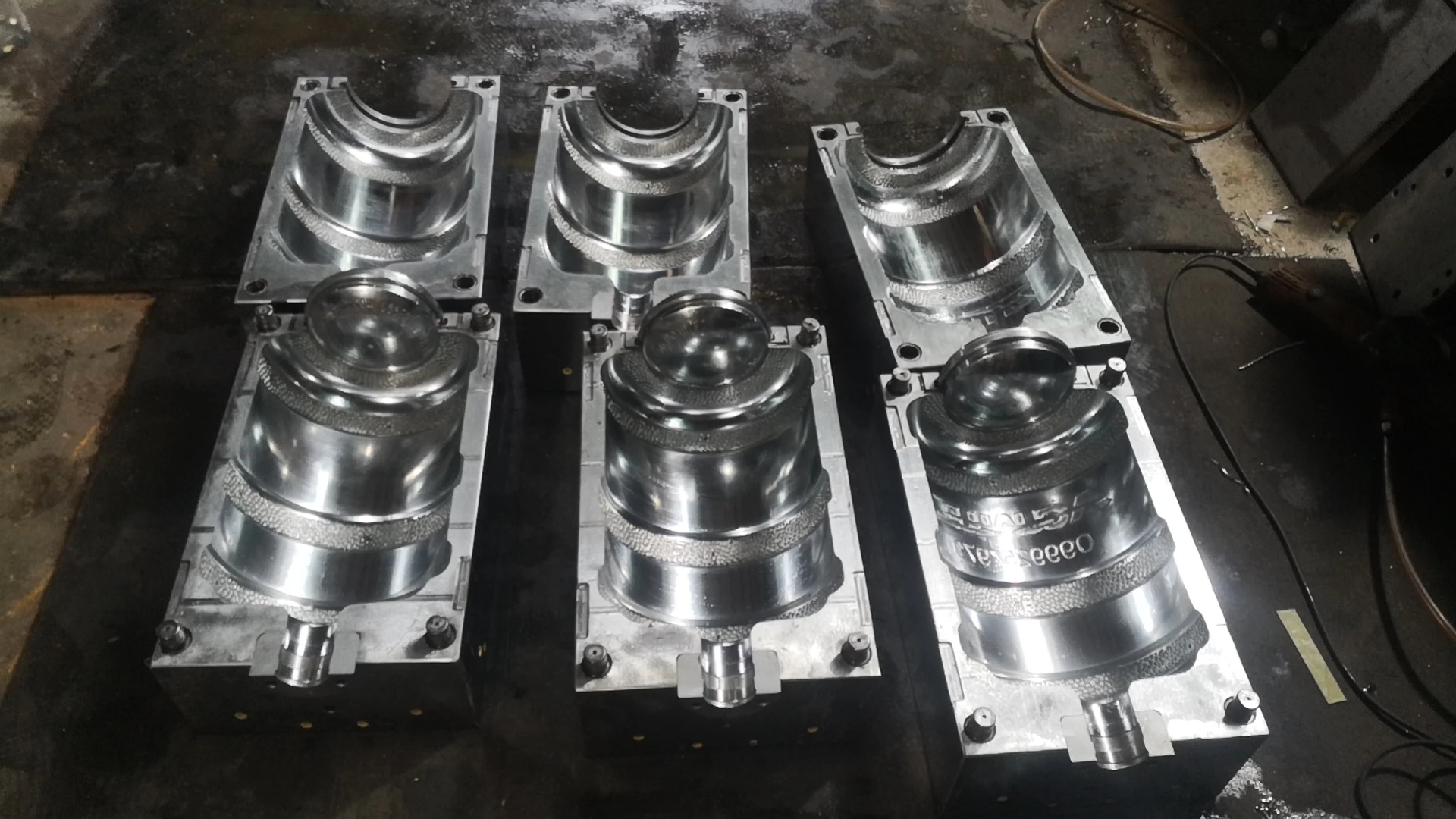

A: For machines offer one year guarantee. For molds we offer one year or 3million short guarantee, based on which comes first.
Q5: Is there complete machine include mould and other accessories ?
A: Yes ,what we are provide is the complete system and you will no need spend a lot to find the suitable air compressor and chiller...etc..
Q6: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English, make sure you will have a easy operation .
Q7: Can you help us with the shipment of this machine ?
A: Yes , with honor ,we have our special shipment company which already cooperate for long time, you can contact us for the freight , we will give you the best price we can. Also you can ask your own shipping forwarder, we help you done other things. Customer satisfy, is our target.
A: We are factory. Specialed in 5gallon Taizhou Degree Plastic Machinery FactoryPET Bottle Blowing Machine.
Q2: Where is your factory located?
A: Our factory located in Taizhou City, Huangyan Area - “Town of Mold” in China, near Shanghai and Ningbo port. 3hours by train from Shanghai, 2hours by air from Guangzhou.
Q3: How about quality control in your factory?
A: “ Quality is the key point, do what customers needs”
Degree company focus on quality, pay great attention to quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
Q4: How about guarantee for machines and moulds?
A: For machines offer one year guarantee. For molds we offer one year or 3million short guarantee, based on which comes first.
Q5: Is there complete machine include mould and other accessories ?
A: Yes ,what we are provide is the complete system and you will no need spend a lot to find the suitable air compressor and chiller...etc..
Q6: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English, make sure you will have a easy operation .
Q7: Can you help us with the shipment of this machine ?
A: Yes , with honor ,we have our special shipment company which already cooperate for long time, you can contact us for the freight , we will give you the best price we can. Also you can ask your own shipping forwarder, we help you done other things. Customer satisfy, is our target.
