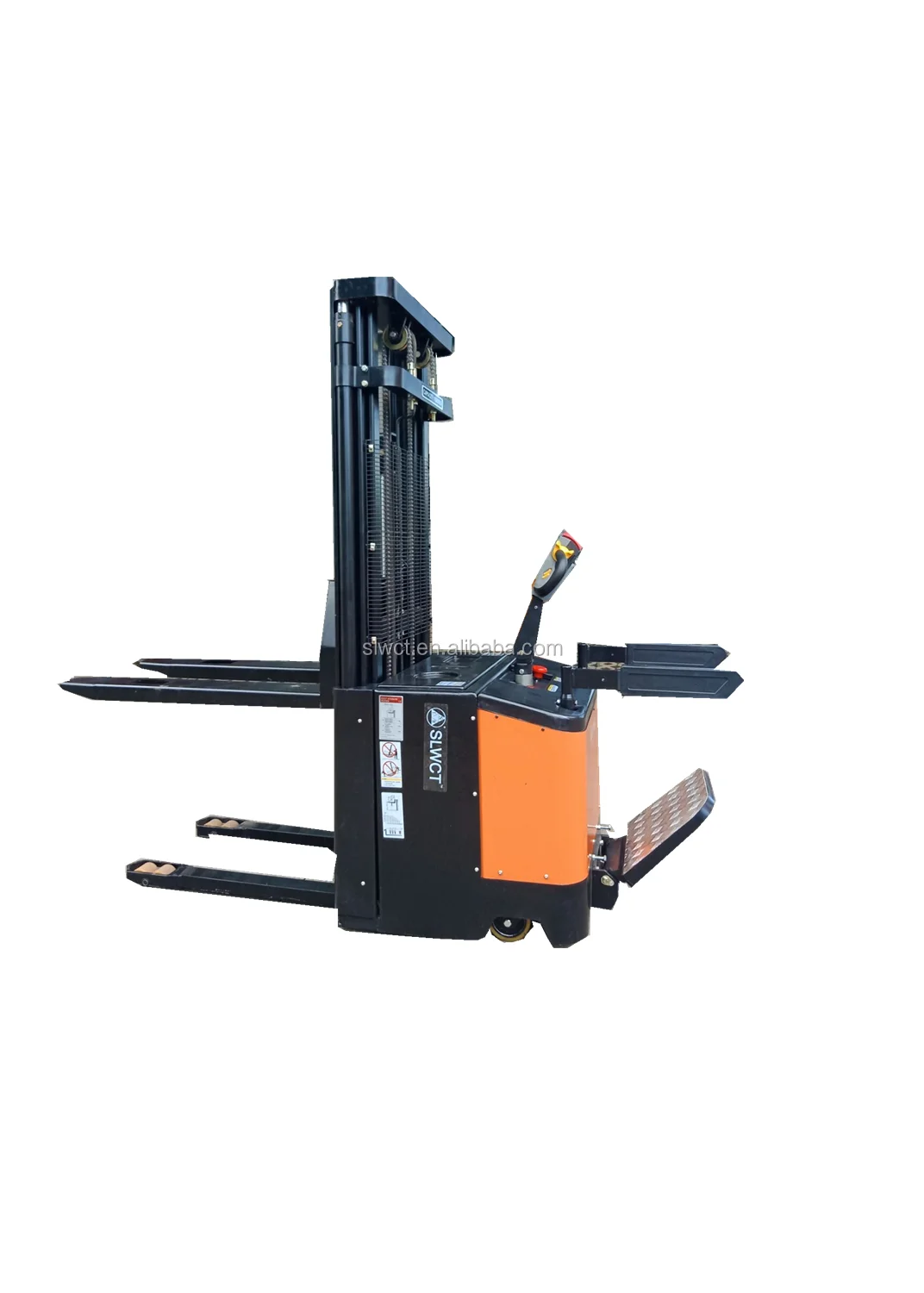

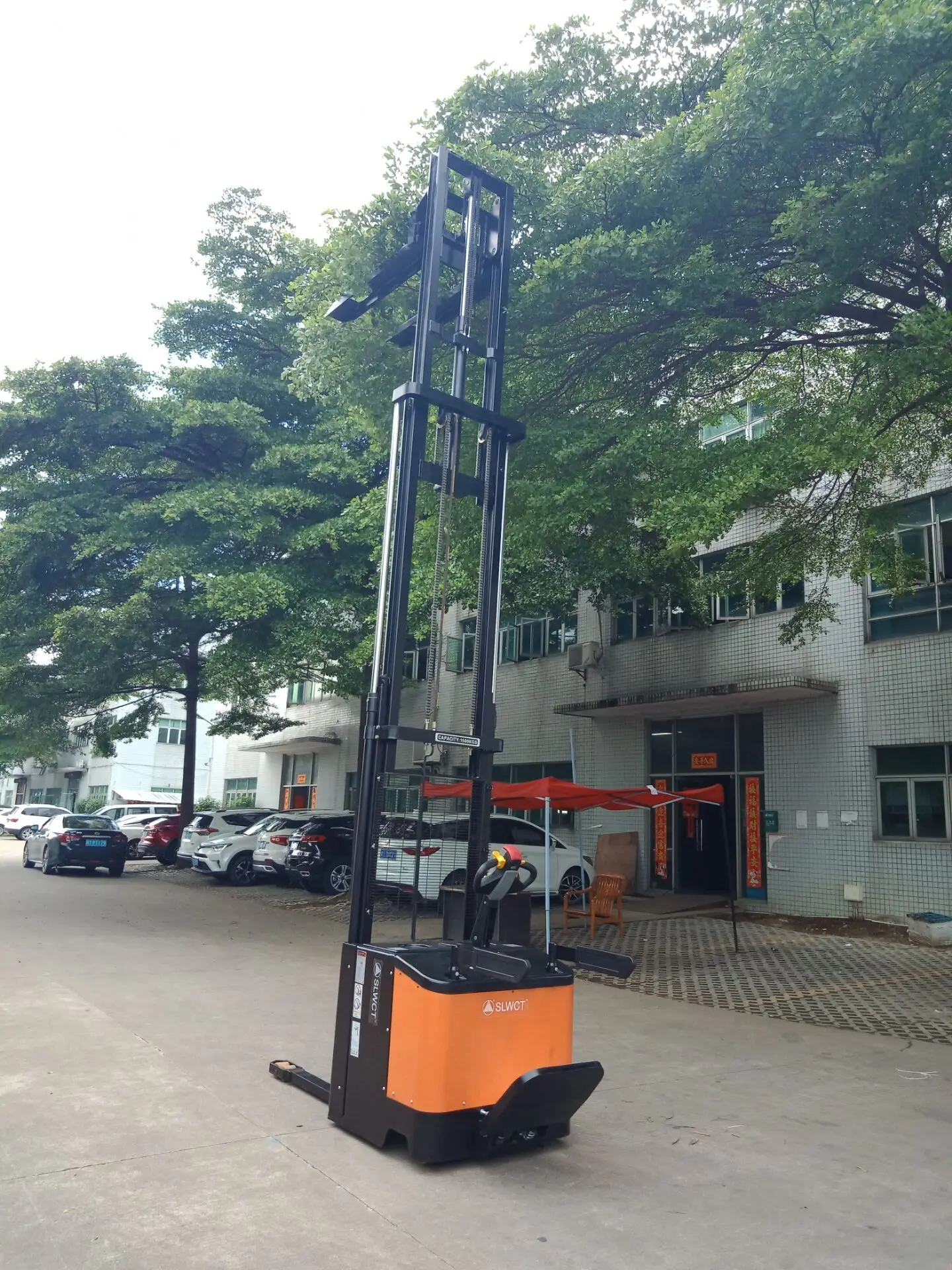

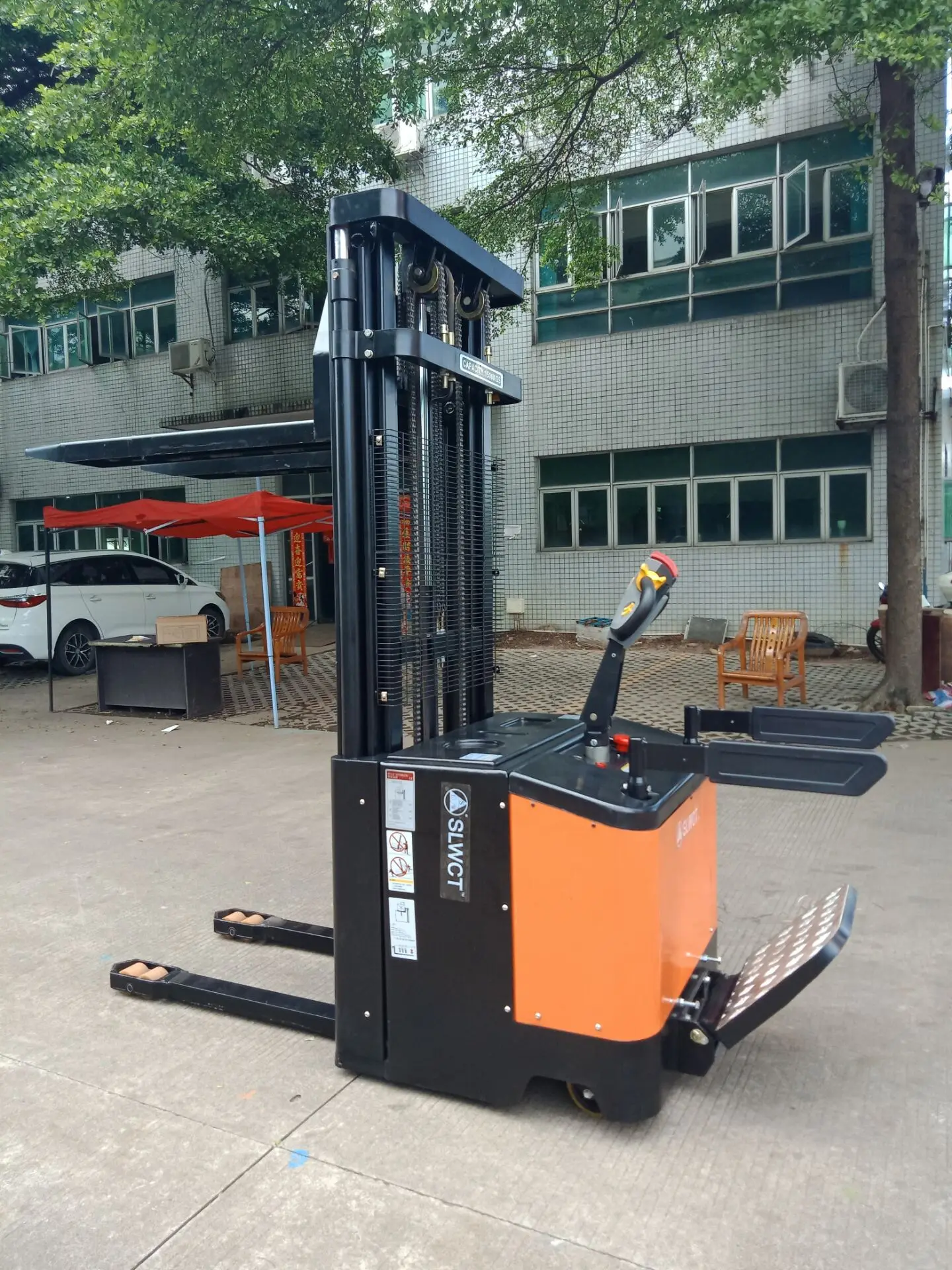

Hydraulic forklift stacker stand up electric stacker

Product Overview

Description

The automatic hydraulic electric pallet stacker has been designed to be as operator friendly as possible with smooth drive, lift and lower control to provide effortless manoeuvrability in the tightest corners of the warehouse or production floor.



Main specifications

Model		ES-1050-A	ES-1045-A	ES-1040-A
power		electric	electric	electric
operator type		rider	rider	rider
load capacity	kg	1000	1000	1000
load center	mm	600	600	600
lift height	mm	5000	4500	4000
lowered height	mm	90	90	90
fork size - th/w/l	mm	56 / 160 / 1150	56 / 160 /1150	56 / 160 /1150
overall fork width	mm	560	560	560
mast collapsed height	mm	2180	1780	1995

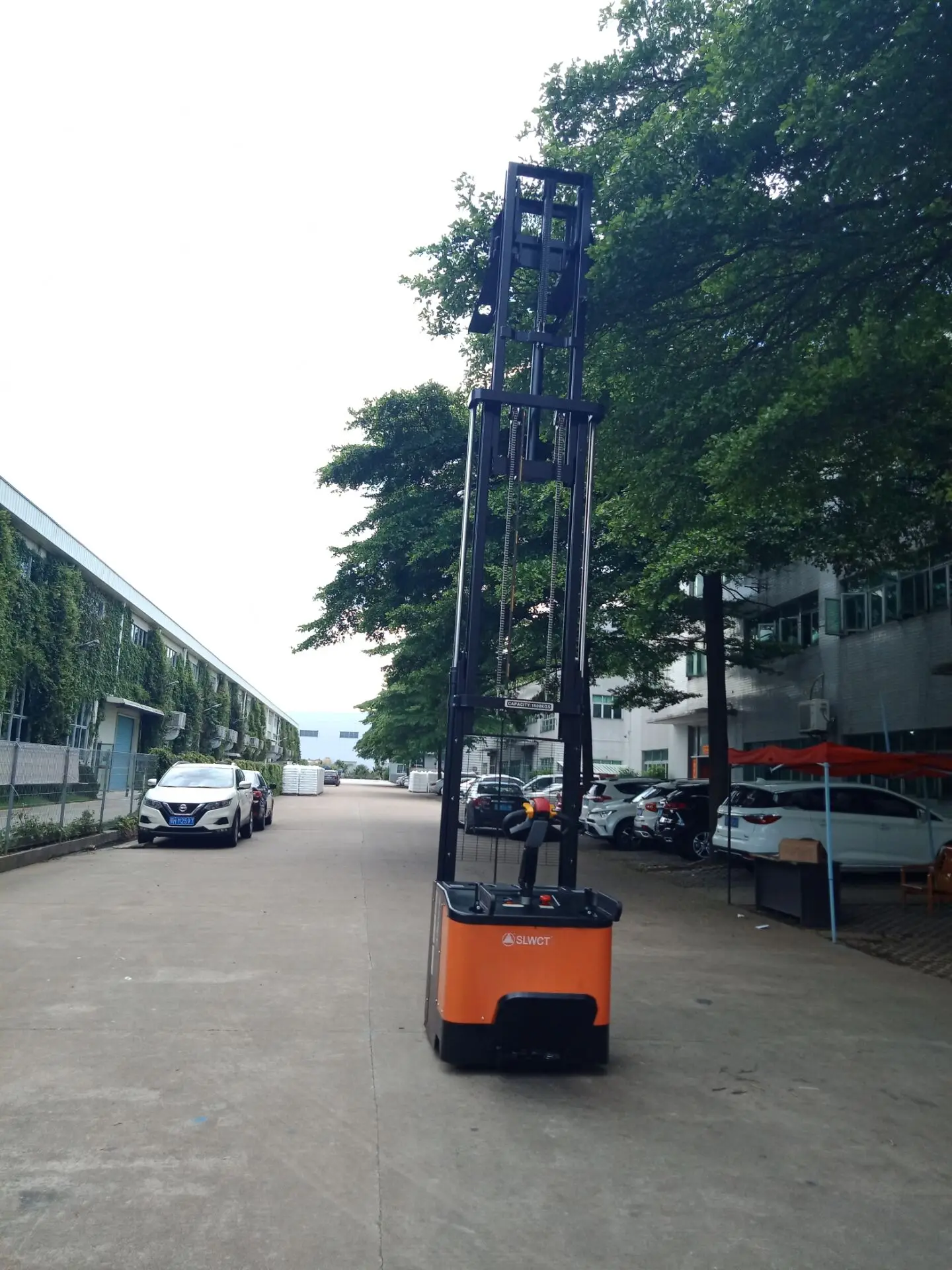

mast extended height	mm	5650	5150	4650
overall length - w. o . platform	mm	2050	2050	2050
overall width	mm	875	875	875
ground clearance	mm	30	30	30
turning radius	mm	1600	1600	1600
work aisle width - 800x1200	mm	2550	2550	2550
battery voltage	V/Ah	24 / 165	24 / 165	24 / 165
traction motor	kW	1.50	1.50	1.50
lift motor	kW	2.00	2.00	2.00
travel speed - w./w.o. load	km/h	4.5 / 5.5	4.5 / 5.5	4.5 / 5.5
weight - less battery	kg	720	760	790





Features and Benefits

• Maintenance-free AC traction motor provides strong acceleration
• Ergonomic safety control handle for one-hand operation of lifting and lowering
• Built-in digital battery level gauge
• Heavy duty H section mast frame for extra strength
• Key-operated On/Off control for safety and security
• Heavy duty tandem load wheels
• Sideways battery charger for rapid charging operation

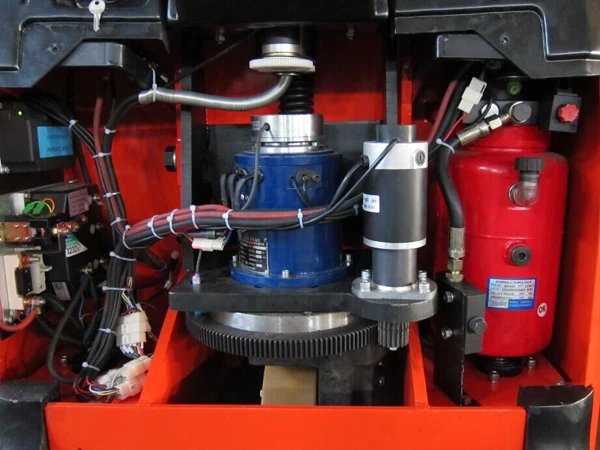

• Standard equipped Electronic Power Steering system
• AC 110V-220V / 50-60Hz battery charger available
• High capacity lead-acid battery
• Straddle-leg model for double-face pallets available

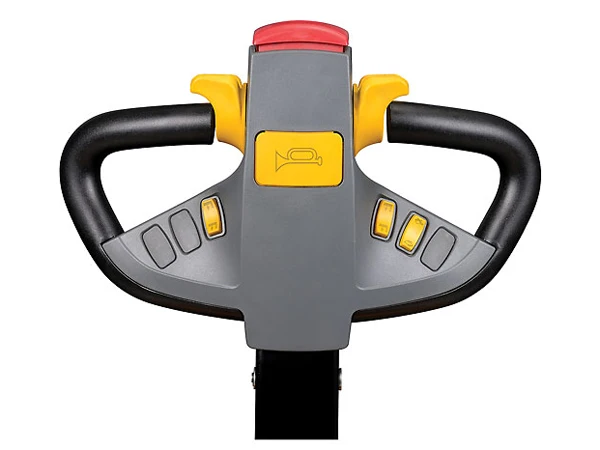

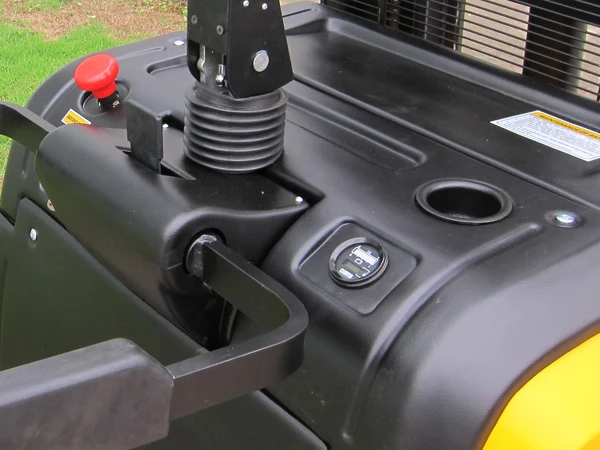

User-friendly control - key switch, Emergency stop and Hour meter.





High capacity lead acid battery.

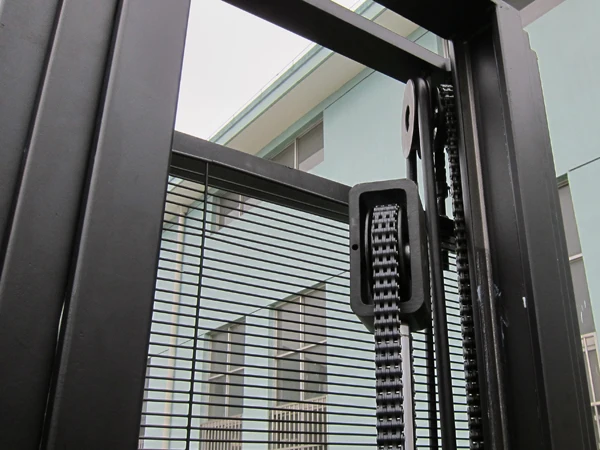

Standard mast with wide field of vision

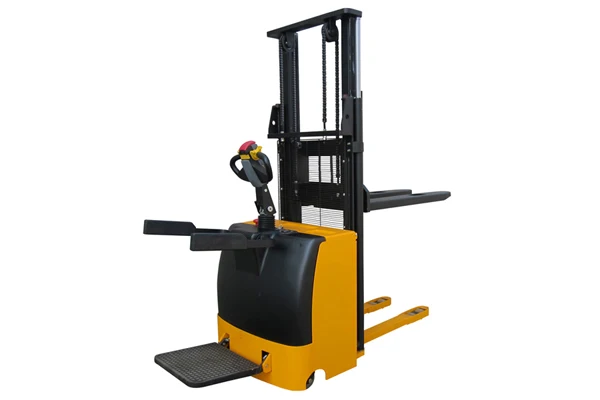

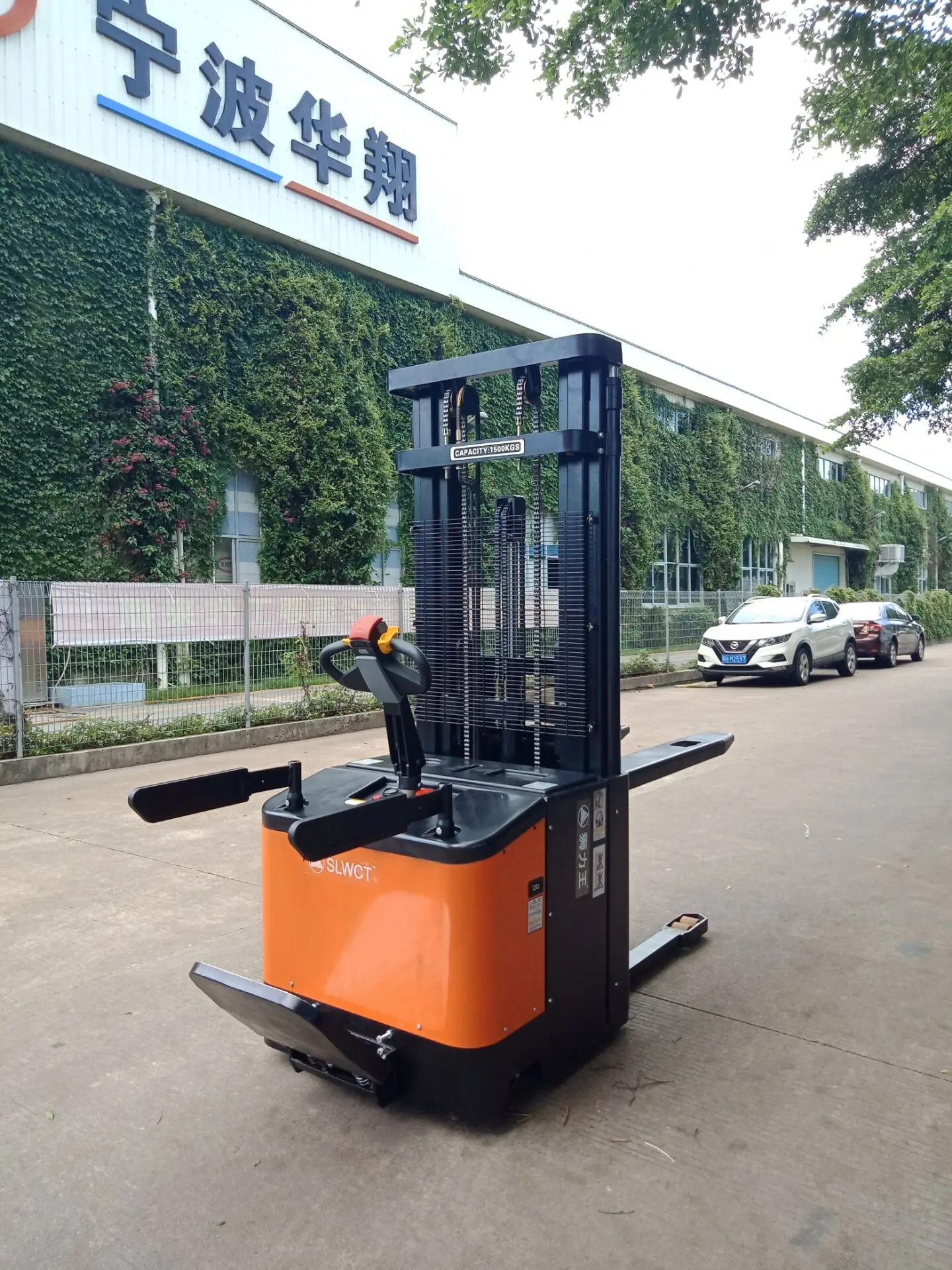

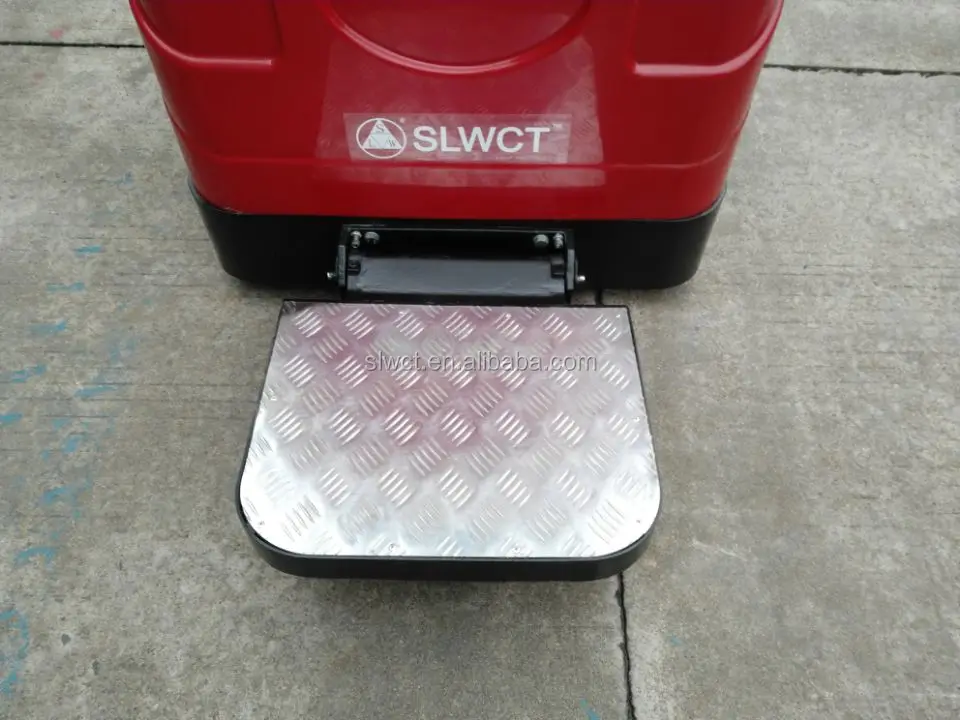

Folding side-restrait and stand-on platform.





Standard equipped Electronic Power Steering system.





Standard model with capacity of 2,000kg, model ES-A



















* heavy-duty fully electric pedestrian stacker - EW-A





* standard rider electric stacker - ES-B






* semi electric pallet stacker - EA-A
