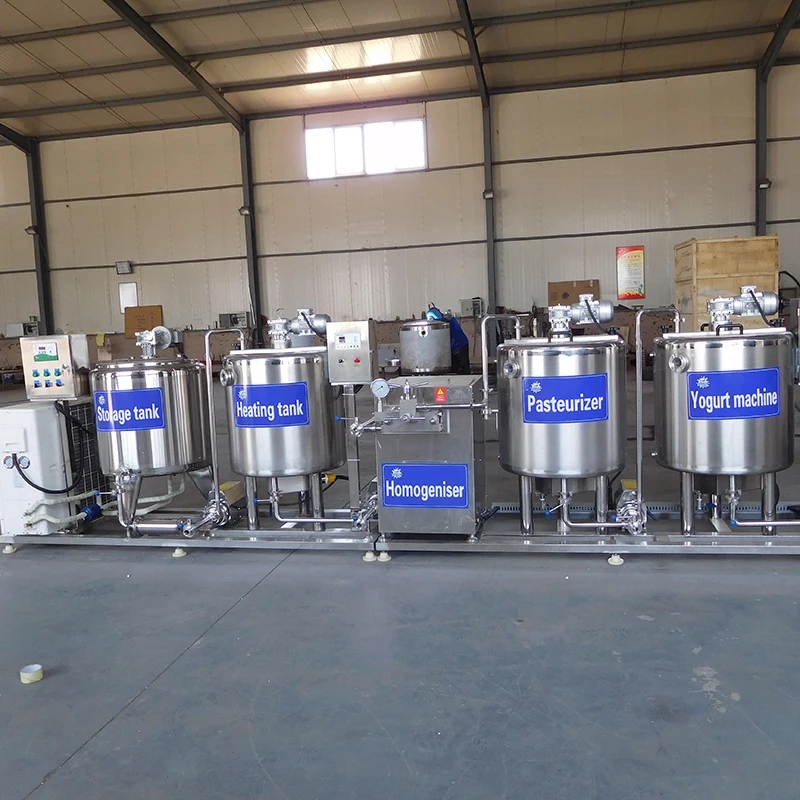

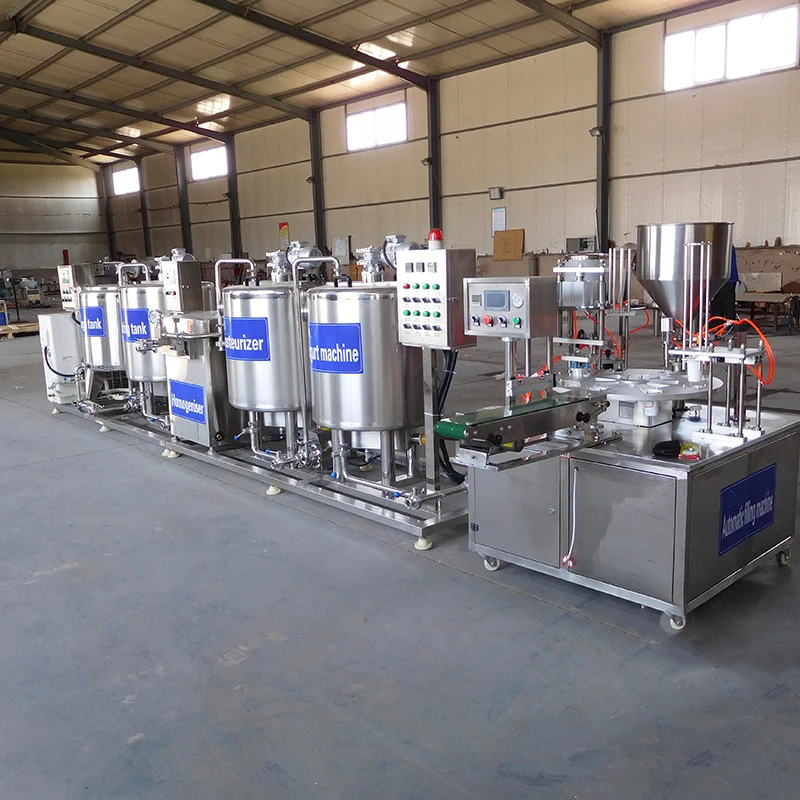

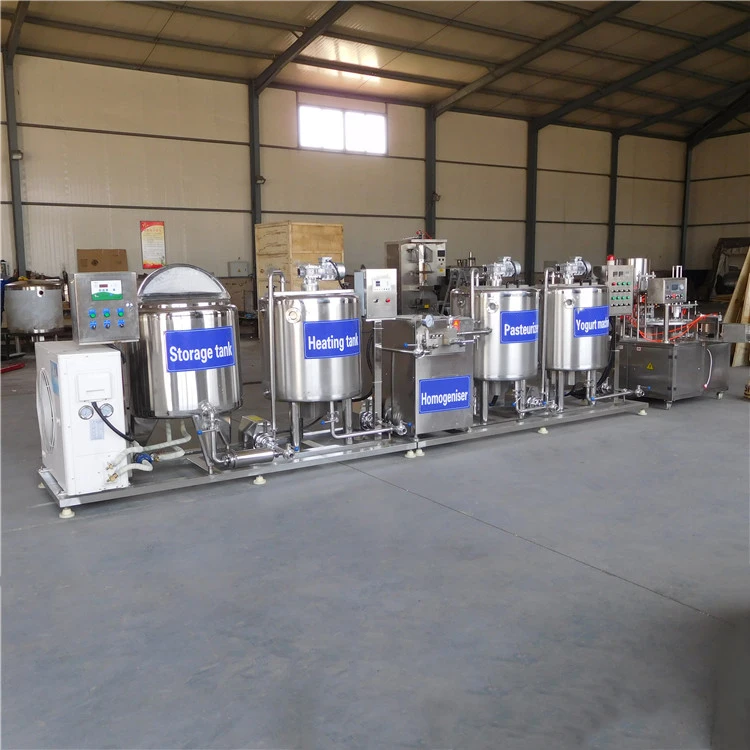

Профессиональная мини линия для молочных продуктов, коммерческая машина для приготовления йогурта
- Category: Dairy Processing Machines >>>
- Supplier: Luohe Orange Mechanical Equipment Co. Ltd.
Share on (1600301653906):
Product Overview
Description
line production of yogurt equipment yogurt machine | ||||||||
Product Description
Cooling Tank
Material: SUS304
Power supply: 380v/50Hz
Total power: 2Kw
Cooling capacity: 5000 kcal/hour Sheet thickness: inner 2mm middle1mm
outer1.2mm
outer1.2mm
Installation size: 1700*1100*1950mm Refrigeration medium: R22 Thermal insulation performance: ≤1℃/3H Compressor:2P
Motor power/quantity: 0.75kw/1 Insulation material/thickness: polyurethane foam/50mm
Motor power/quantity: 0.75kw/1 Insulation material/thickness: polyurethane foam/50mm
Material inlet and outlet diameter: Φ32mm/Φ38mm

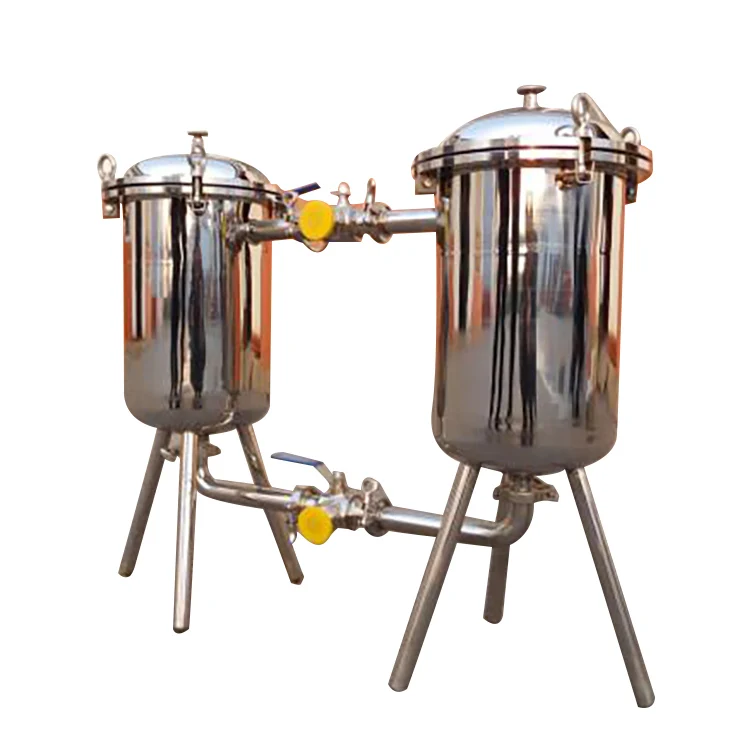

Duplex filter
Filtering capacity: 5t/h Applicable temperature: ≤120℃
Filter aperture: 200 mesh Working pressure: ≤0.2MPa
Filter material: 304stainless steel
Filtration accuracy: 200 (mesh/in)
Preheating tank
Material: SUS304
Power supply: 380v 50Hz
Power: 9kw
Thickness of heavy
plate: inner 2mm middle 2mm outer 1.2mm
Installation size:1020*870*1530mm Power of stirring motor: 0.55kw Stirring speed: 36r/min
Working pressure: 0.09 Mpa Maximum temperature: the boiling point of the liquid at the local pressure
Material inlet and outlet diameter: Φ32mm/Φ38mm

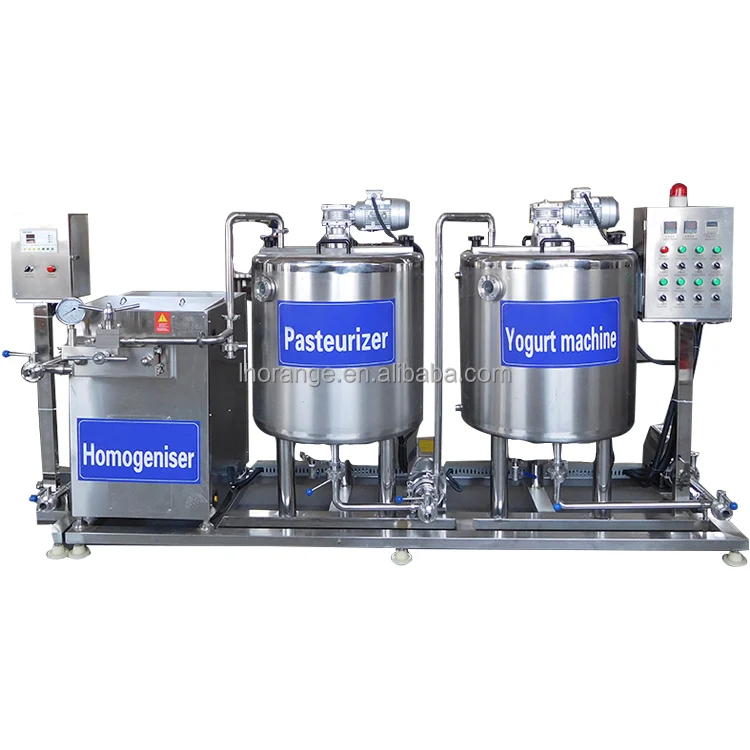

Homogenizer
Output: 200L/H
Maximum pressure: 25Mpa
Motor power: 4kw
Dimensions: 990*600*850mm
Whole machine weight: 600kg
Pump body material: 1Cr18Ni9Ti
Lubrication method: splash lubrication
Gear form: hardened helical gear
Crankshaft material: 45# steel, surface hardened processing
Plunger material: 9Cr18
Plunger diameter and frequency: 20mm, about 210 times/min
Plunger sealing material: V-shaped cloth clip ring
Check valve structure: cone valve
Check valve material: special steel treatment
Homogeneous rod and seat material: special hard alloy
Maximum pressure: 25Mpa
Motor power: 4kw
Dimensions: 990*600*850mm
Whole machine weight: 600kg
Pump body material: 1Cr18Ni9Ti
Lubrication method: splash lubrication
Gear form: hardened helical gear
Crankshaft material: 45# steel, surface hardened processing
Plunger material: 9Cr18
Plunger diameter and frequency: 20mm, about 210 times/min
Plunger sealing material: V-shaped cloth clip ring
Check valve structure: cone valve
Check valve material: special steel treatment
Homogeneous rod and seat material: special hard alloy
Pasteurizer
Material: SUS304
Power supply: 380v 50Hz
Power: 9kw
Thickness of heavy plate: inner 2mm, middle 2mm, outer 1.2mm
Installation size: 1020*870*1530
Stirring motor: 0.55kw
Stirring speed: 36r/min
Working pressure: 0.09 Mpa
Maximum temperature: the boiling point of the liquid at the local pressure
Material inlet and outlet diameter: Φ32mm/Φ38mm
Power supply: 380v 50Hz
Power: 9kw
Thickness of heavy plate: inner 2mm, middle 2mm, outer 1.2mm
Installation size: 1020*870*1530
Stirring motor: 0.55kw
Stirring speed: 36r/min
Working pressure: 0.09 Mpa
Maximum temperature: the boiling point of the liquid at the local pressure
Material inlet and outlet diameter: Φ32mm/Φ38mm
Title goes here.
Material: SUS304
Power supply: 380v 50Hz
Power: 9kw
Thickness of heavy plate: inner 2mm, middle 2mm, outer 1.2mm
Installation size: 1400*1400*1950mm
Stirring motor: 0.55kw
Stirring speed: 36r/min
Working pressure: 0.09 Mpa
Maximum temperature: the boiling point of the liquid at the local pressure
Material inlet and outlet diameter: Φ32mm/Φ38mm
Power supply: 380v 50Hz
Power: 9kw
Thickness of heavy plate: inner 2mm, middle 2mm, outer 1.2mm
Installation size: 1400*1400*1950mm
Stirring motor: 0.55kw
Stirring speed: 36r/min
Working pressure: 0.09 Mpa
Maximum temperature: the boiling point of the liquid at the local pressure
Material inlet and outlet diameter: Φ32mm/Φ38mm
Filling Machine
Material: SUS304
Working method: continuous work
Filling method: automatic filling
Equipment size: 1300*1300*1750mm
Working method: continuous work
Filling method: automatic filling
Equipment size: 1300*1300*1750mm
Air Compressor
Power: 7.5kw
Wooden box size:1240*500*1060mm
Wooden box size:1240*500*1060mm
Acid/Alkali/Water Tank
Water tank capacity: 500L
Alkali tank capacity: 500L
Acid tank capacity: 500L
Pump power: 1.5kw
Equipment weight: 500kg
Dimensions: 4000*900*2300mm
Alkali tank capacity: 500L
Acid tank capacity: 500L
Pump power: 1.5kw
Equipment weight: 500kg
Dimensions: 4000*900*2300mm
Pump
Voltage: 380V/three-phase/50hz
Flow rate: 1T/H
Import and export of materials: Φ38mm
Power: 0.75kw
Flow rate: 1T/H
Import and export of materials: Φ38mm
Power: 0.75kw
Pipe Valve Base
Material:SUS304
Thickness: 2mm
Mirror polished inside and outside
Thickness: 2mm
Mirror polished inside and outside
Final Product
All kinds of yogurt
Company Profile
FAQ
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union or Escrow.
A: We usually accept payment by T/T, L/C, Western Union or Escrow.
Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.
Q4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q5 : Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
Packing & Delivery
Standard export wooden case package:
1.We can load container at: qingdao,shanghai, ningbo, tianjin, guangzhou etc.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept order: Full container cargo load,Less container load
4.Our service: EXW, FOB, CIF ,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.
6.The tracking number will be provided to you once the consignment is shipped.
1.We can load container at: qingdao,shanghai, ningbo, tianjin, guangzhou etc.
2.Orange provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept order: Full container cargo load,Less container load
4.Our service: EXW, FOB, CIF ,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.
6.The tracking number will be provided to you once the consignment is shipped.
