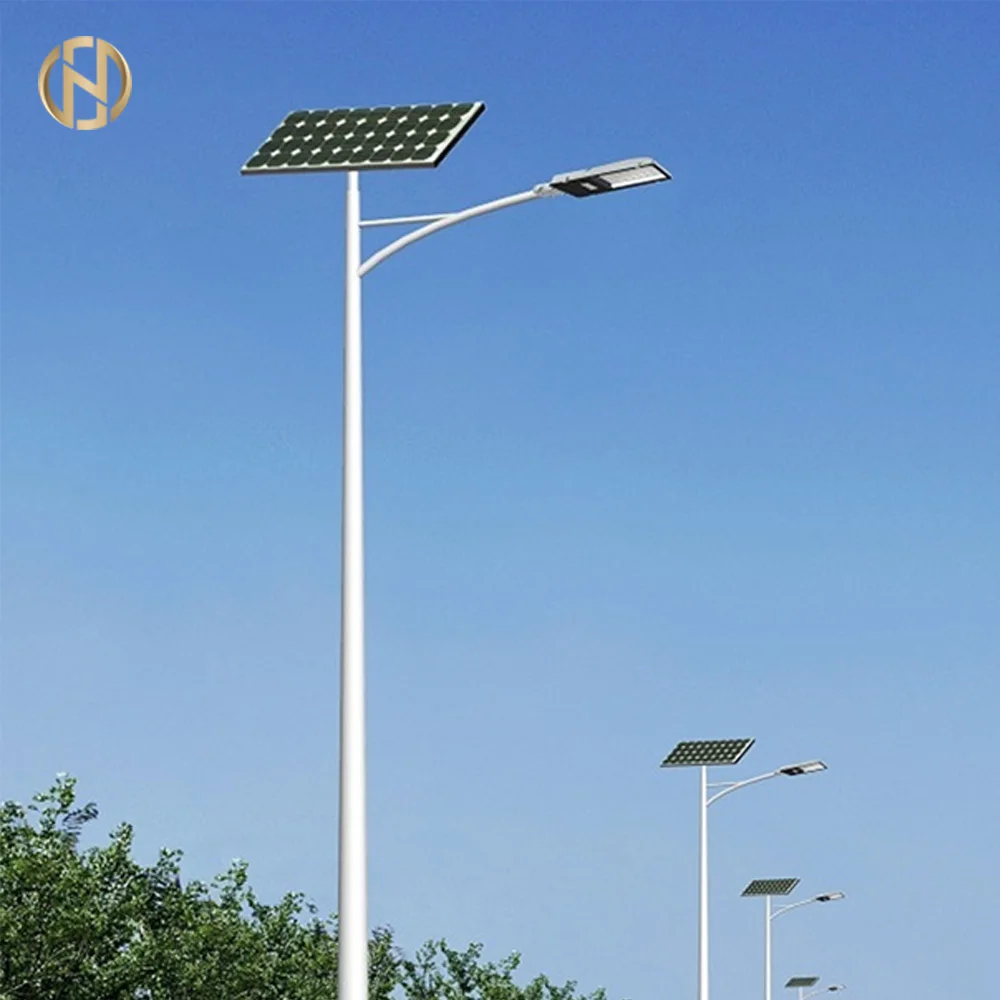

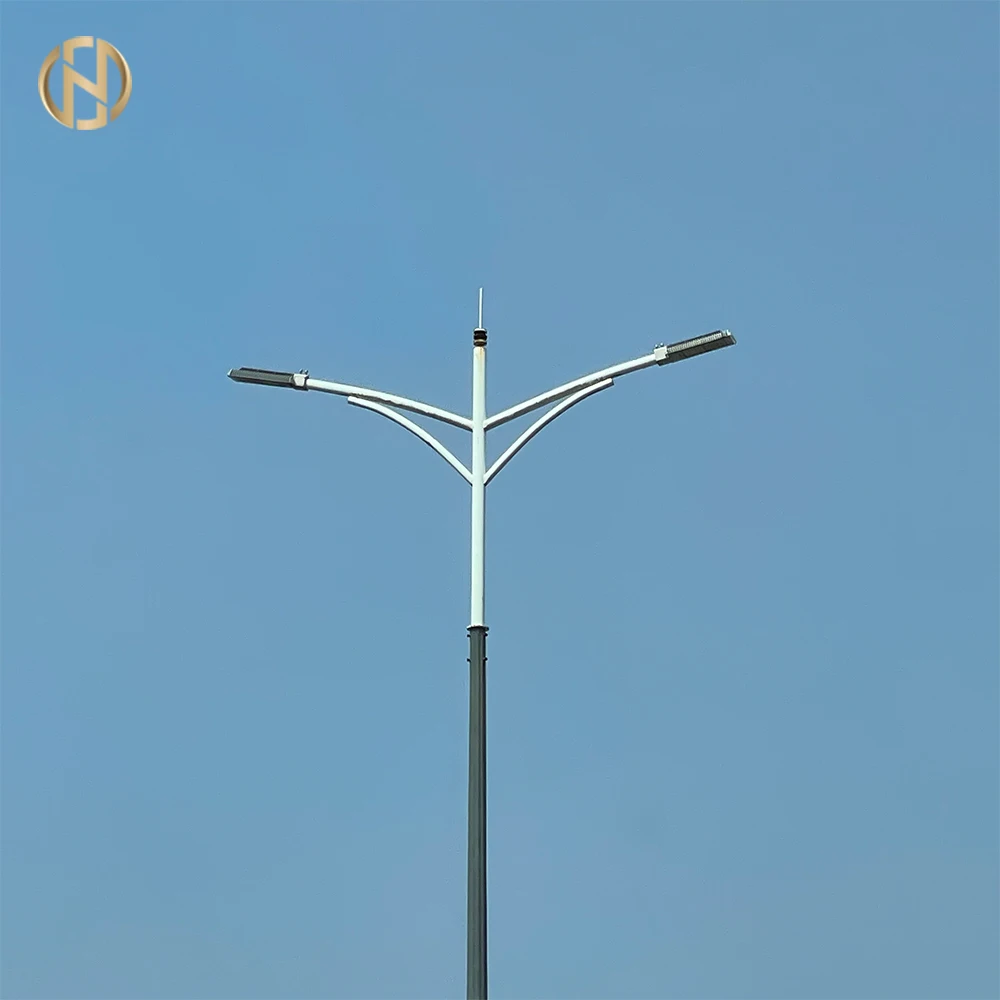

FUTAO Hot Dip Galvanized Street Light Pole Solar Street Light Pole With Integration Of Multiple Functions
- Category: >>>
- Supplier: Yixing Futao Metal Structural Unit Co. Ltd.
Share on (1600302787137):
Product Overview
Description
Street Light Pole
Company information
Detailed Images

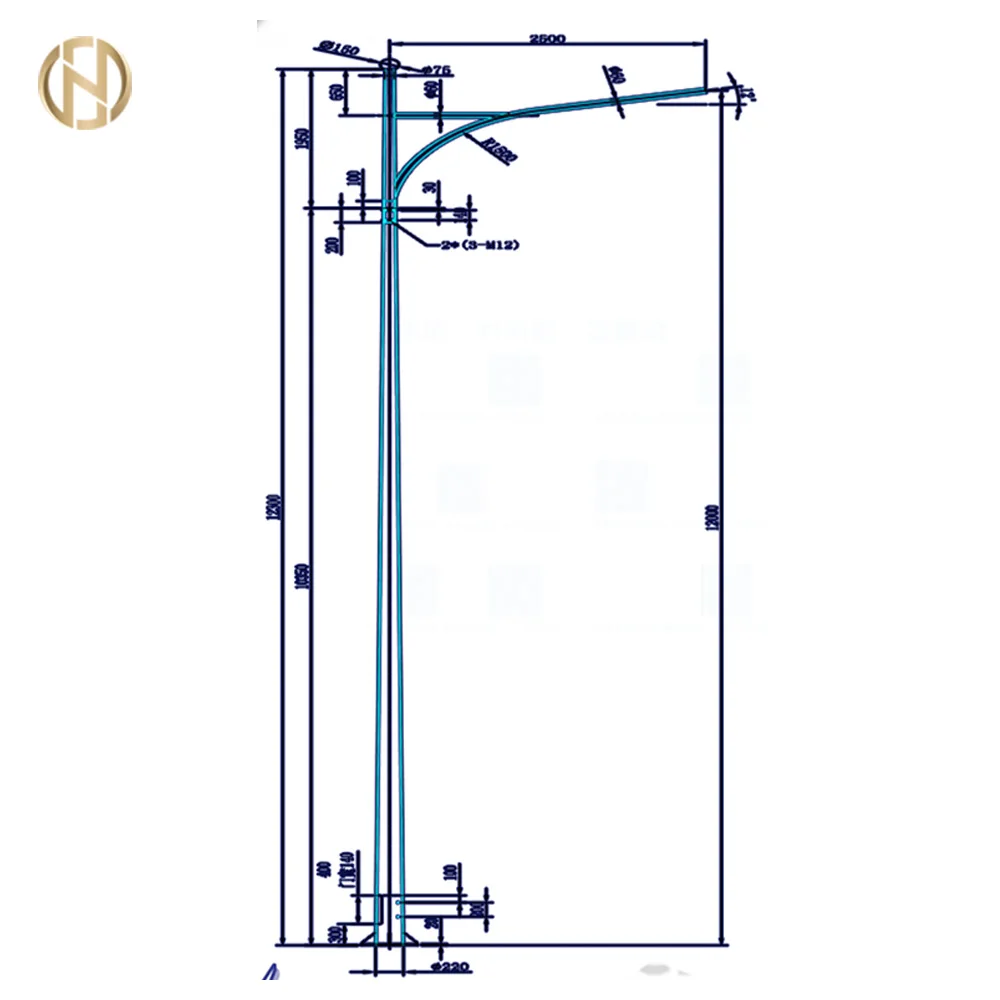

Hot Dip Galvanized 10m Street Light Poles | |||||||
Length | Base Plate | Top | Bottom | Thickness | |||
Diameter | Diameter | ||||||
N. | A(m) | B(m) | Side | Thickness | G(mm) | H(mm) | T(MM) |
(mm) | (mm) | ||||||
1 | 5 | 0.5 | 300 | 14 | 60 | 115 | 3 |
2 | 6 | 0.7 | 300 | 14 | 60 | 126 | 3 |
3 | 7 | 0.7 | 300 | 14 | 60 | 130 | 4 |
4 | 8 | 0.7 | 300 | 14 | 60 | 140 | 4 |
5 | 9 | 0.7 | 300 | 14 | 60 | 159 | 4 |
6 | 10 | 0.7 | 350 | 16 | 60 | 170 | 4 |
7 | 11 | 0.7 | 350 | 18 | 60 | 176 | 4 |
8 | 12 | 0.5 | 350 | 18 | 60 | 180 | 4 |
9 | 7 | 0.7 | 300 | 16 | 76 | 146 | 4 |
10 | 8 | 0.7 | 300 | 16 | 76 | 156 | 4 |
11 | 9 | 0.7 | 350 | 18 | 76 | 166 | 4 |
12 | 10 | 0.7 | 360 | 18 | 76 | 176 | 4 |
13 | 11 | 0.7 | 360 | 18 | 76 | 180 | 4 |
14 | 12 | 0.7 | 360 | 18 | 76 | 196 | 4 |
Height | From 3 m to 25 m |
Suit for | Airport ,seaport,plaza,stadium ,square,highway,street way etc |
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Material | Usually Q345B/A572, Q235B/A36,As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52- |
Lamp power | 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz |
Torlance of the dimenstion | +- 2% |
Optical assembly of lighting fixture | IP 65 |
Electroshock resistant protective grade | Grade one |
The casing anti-corrosion performance | Class two |
Working atmosphere of lighting fixture | -35 °C~+45 °C |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
Design of pole | Against earthquake of 8 grade |
Wind Speed | 160 Km/Hour |
Length of per section | Within 12m once forming without slip joint |
Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
Thickness | 1 mm to 30 mm |
Production Process | Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |

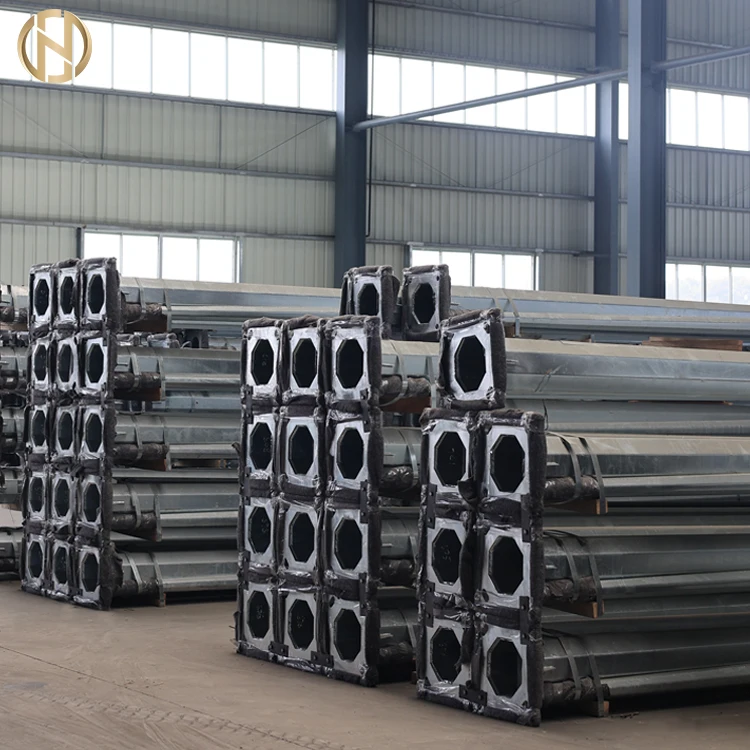

Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.
|
