Efficient Quarry Stone Crushing Machine Cost Rock Hammer Crusher For Sale
Product Description
Introduction of rock hammer crusher
Hammer stone crusher has the advantages of simple structure, large crushing ratio and high production efficiency etc. And can crush in dry & wet way. It is widely used in to crush the medium hardness and brittleness materials in mining, cement, coal, metallurgy, building materials, roads, fuel and other departments. The grate gap of hammer crusher can be adjusted to meet different particle size as requirements.

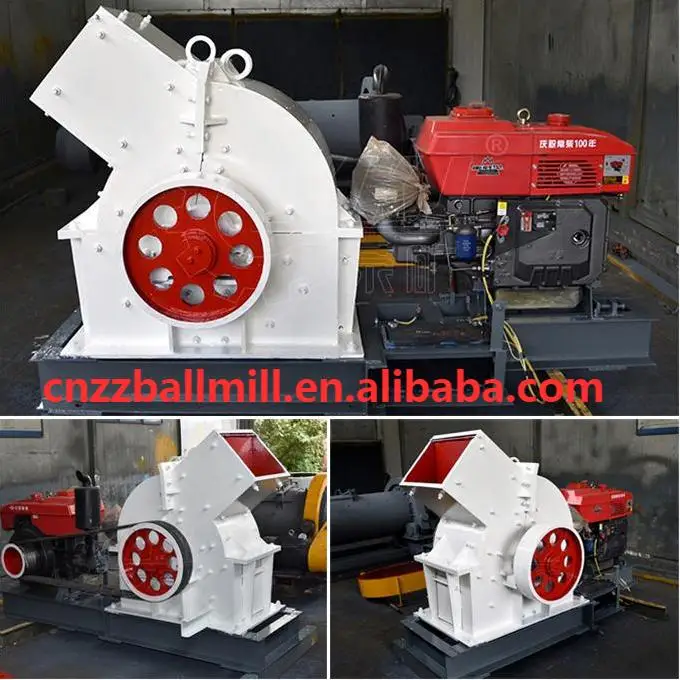

Diesel rock hammer stone crusher

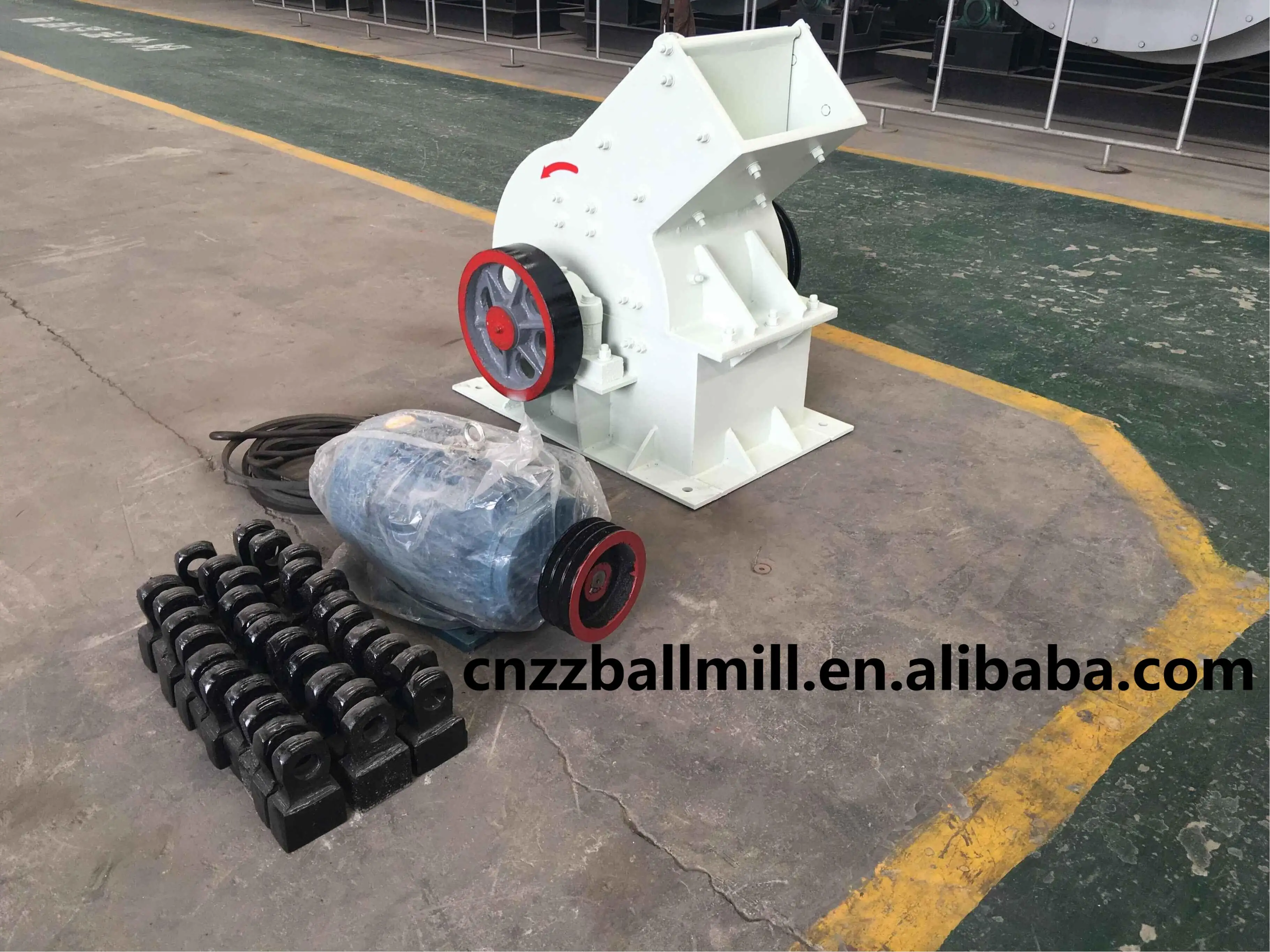

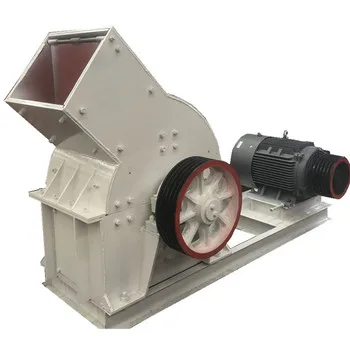

Motor rock hammer crusher
Efficient Quarry Stone Crushing Machine Cost Rock Hammer Crusher For Sale
Features of rock hammer crusher
1.simple operation
2.high efficiency and low cost
3.good maintainability
4.easy installation
5.small size and light weight

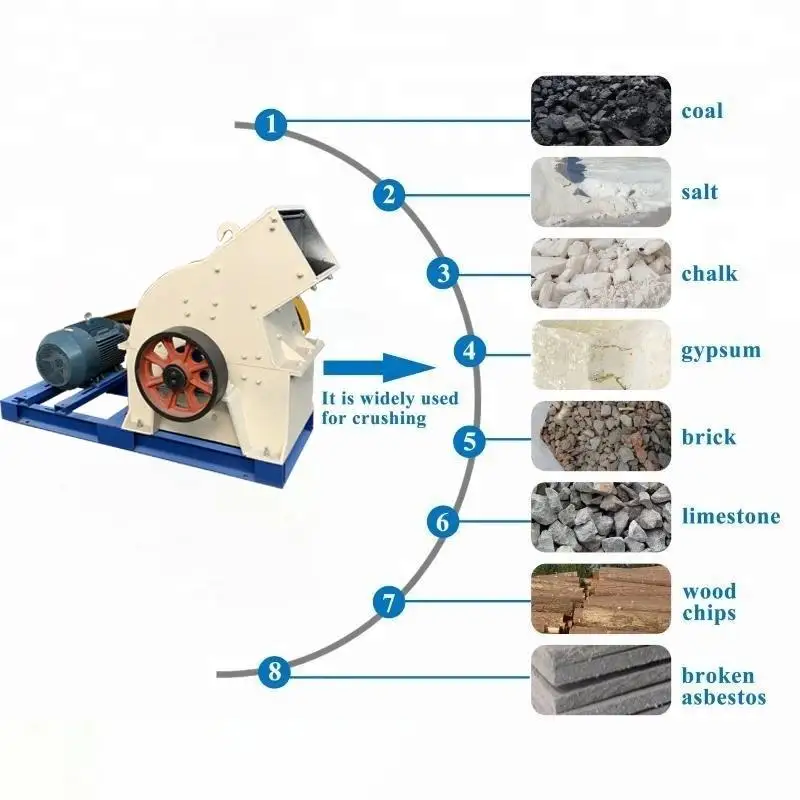

Application of rock hammer crusher

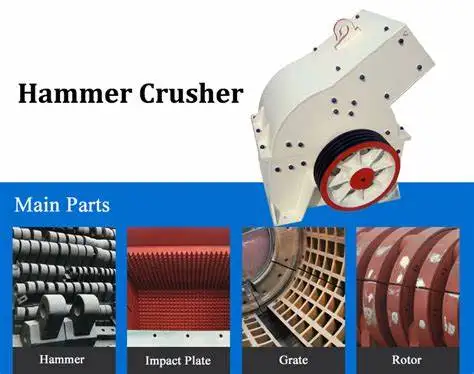

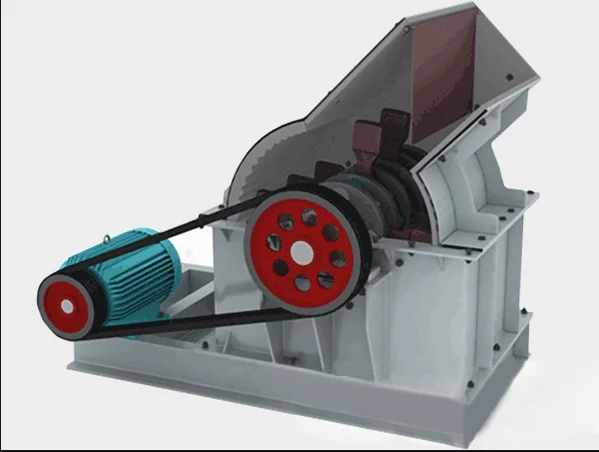

Production structure&working principle of rock hammer crusher

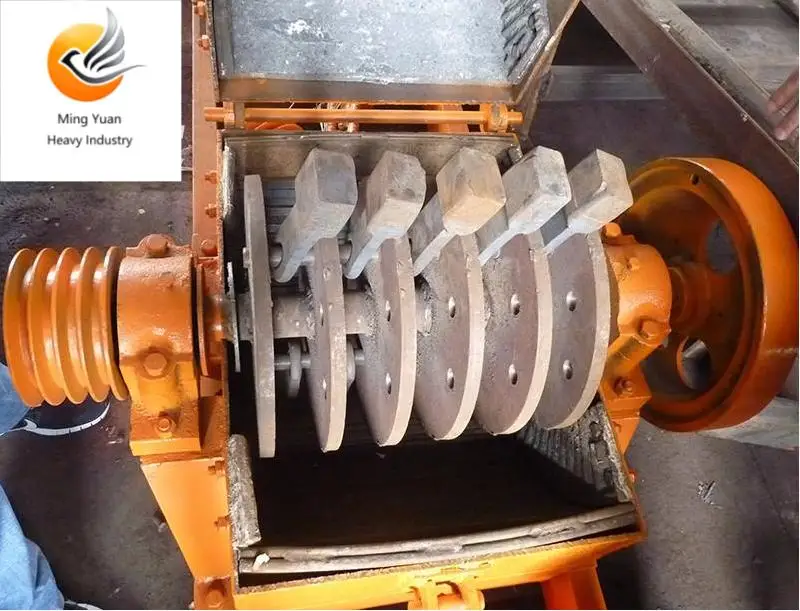

Hammer stone crusher uses high-speed rotary hammer head to impact ore and crush the ore after it entering the crushing cavity. At the same time, the ore got energy in the impact process and beared down on the crushing plate and sieve disk to get further crushing.
Efficient Quarry Stone Crushing Machine Cost Rock Hammer Crusher For Sale
Main technical parameters of rock hammer crusher
| Model | Rotor speed (r/min) | Input opening size(mm) | Max. feed size (mm) | Discharged size (mm) | Capacity (t/h) | Power(kw) | Weight(t) | Overall Dimension (L×W×H)(mm) |
| Φ400×400 | 1500 | 145×450 | 100 | 0-30 | 5-8 | 7.5 | 0.9 | 844×942×878 |
| Φ600×400 | 1000 | 295×450 | 100 | 0-35 | 10-12 | 18.5 | 1.03 | 1054×972×111 |
| Φ600×600 | 1000 | 295×570 | 100 | 0-35 | 12-18 | 45 | 2.14 | 1315×840×150 |
| Φ800×600 | 1000 | 350×570 | 120 | 0-45 | 20-25 | 55 | 2.45 | 1515×2586×10 |
| Φ800×800 | 1000 | 350×850 | 120 | 0-45 | 35-45 | 55 | 3.05 | 1515×2831×10 |
| Φ1000×800 | 1000 | 580×850 | 200 | 0-45 | 25-40 | 110 | 6.5 | 3206×2210×15 |
| Φ1000×100 | 1000 | 580×1060 | 200 | 0-45 | 40-80 | 132 | 7.6 | 3514×2230×15 |
| Φ1250×800 | 750 | 650×850 | 200 | 0-45 | 20-50 | 132 | 11.7 | 2630×1780×20 |
| Φ1250×125 | 750 | 650×1330 | 200 | 0-45 | 90-110 | 185 | 13.2 | 2630×2180×20 |
| Φ1400×140 | 750 | 1050×154 | 250 | 0-45 | 120-170 | 280 | 17.2 | 2790×2800×23 |
| Φ1600×160 | 600 | 1500×178 | 350 | 0-60 | 220-280 | 450 | 22.8 | 3350×3120×26 |

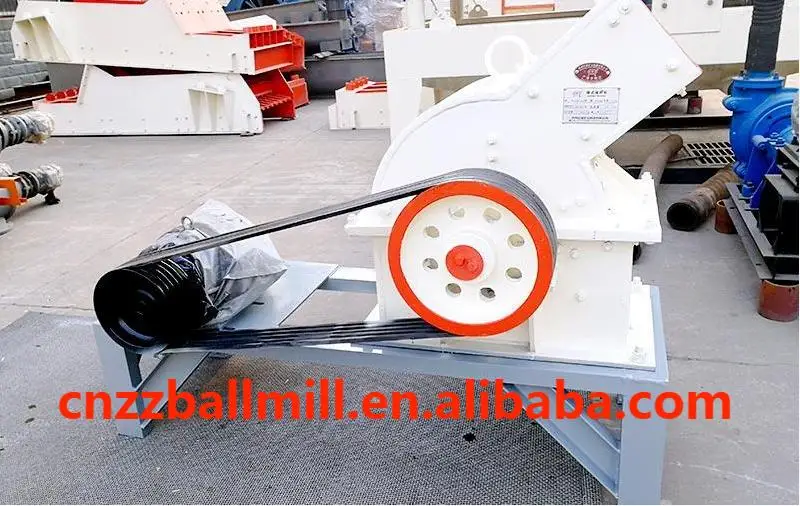

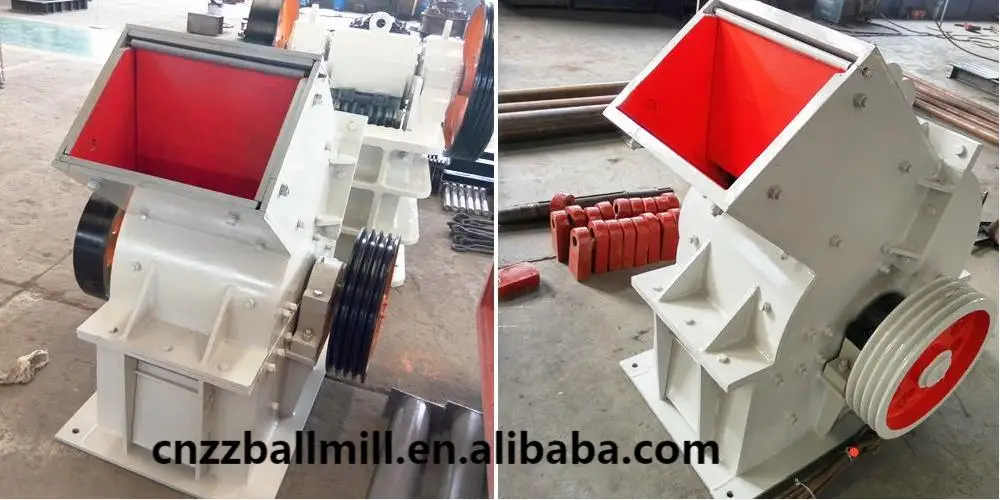

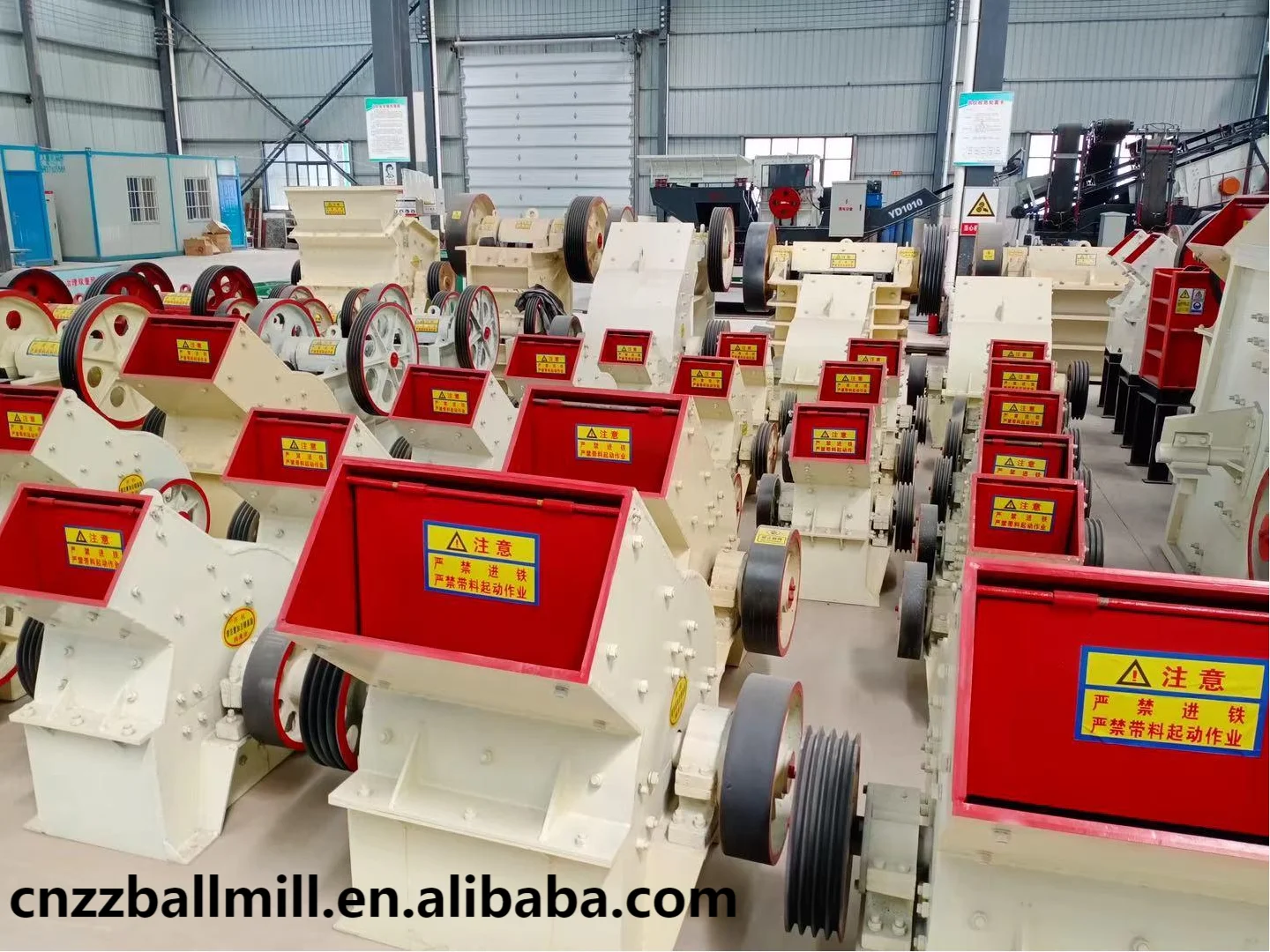

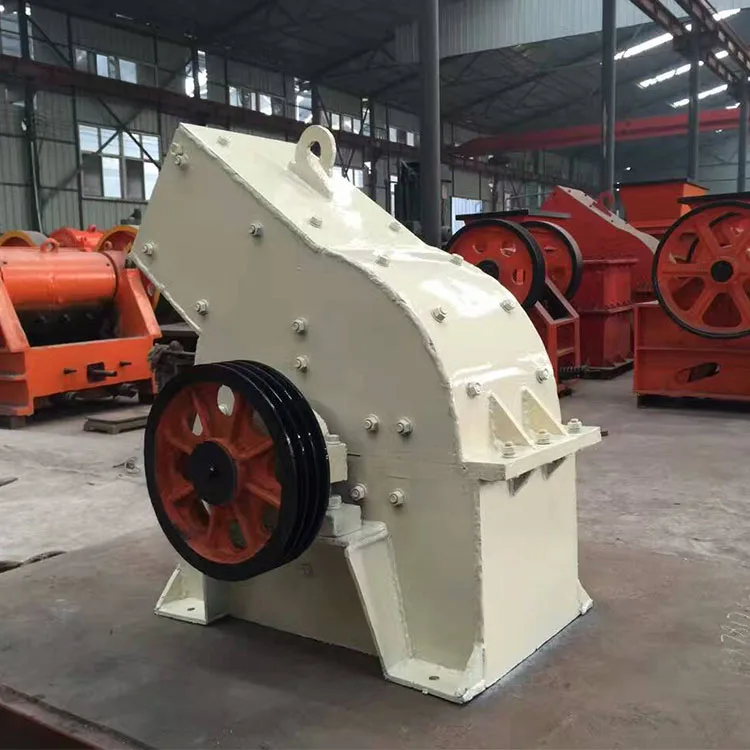

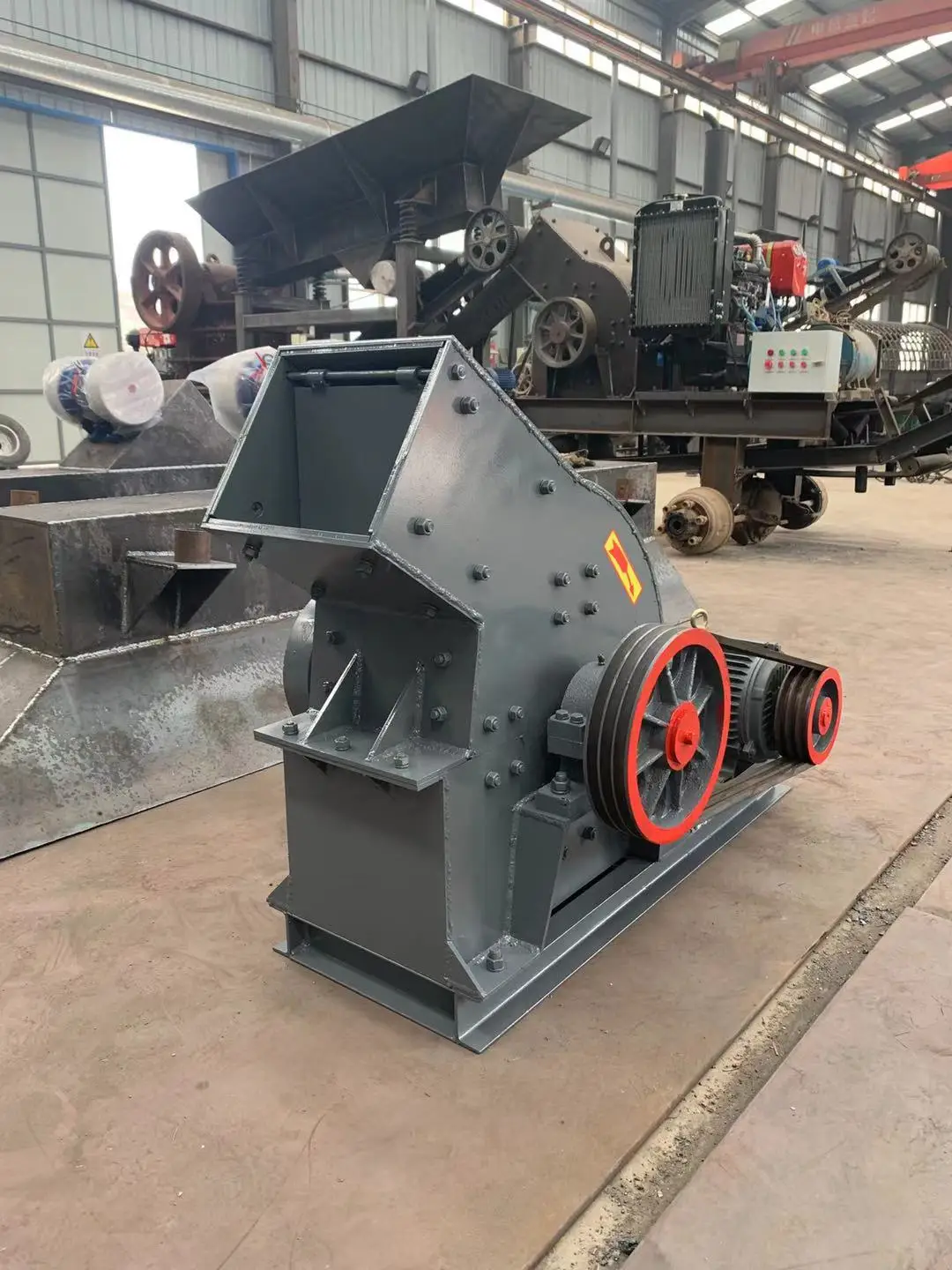

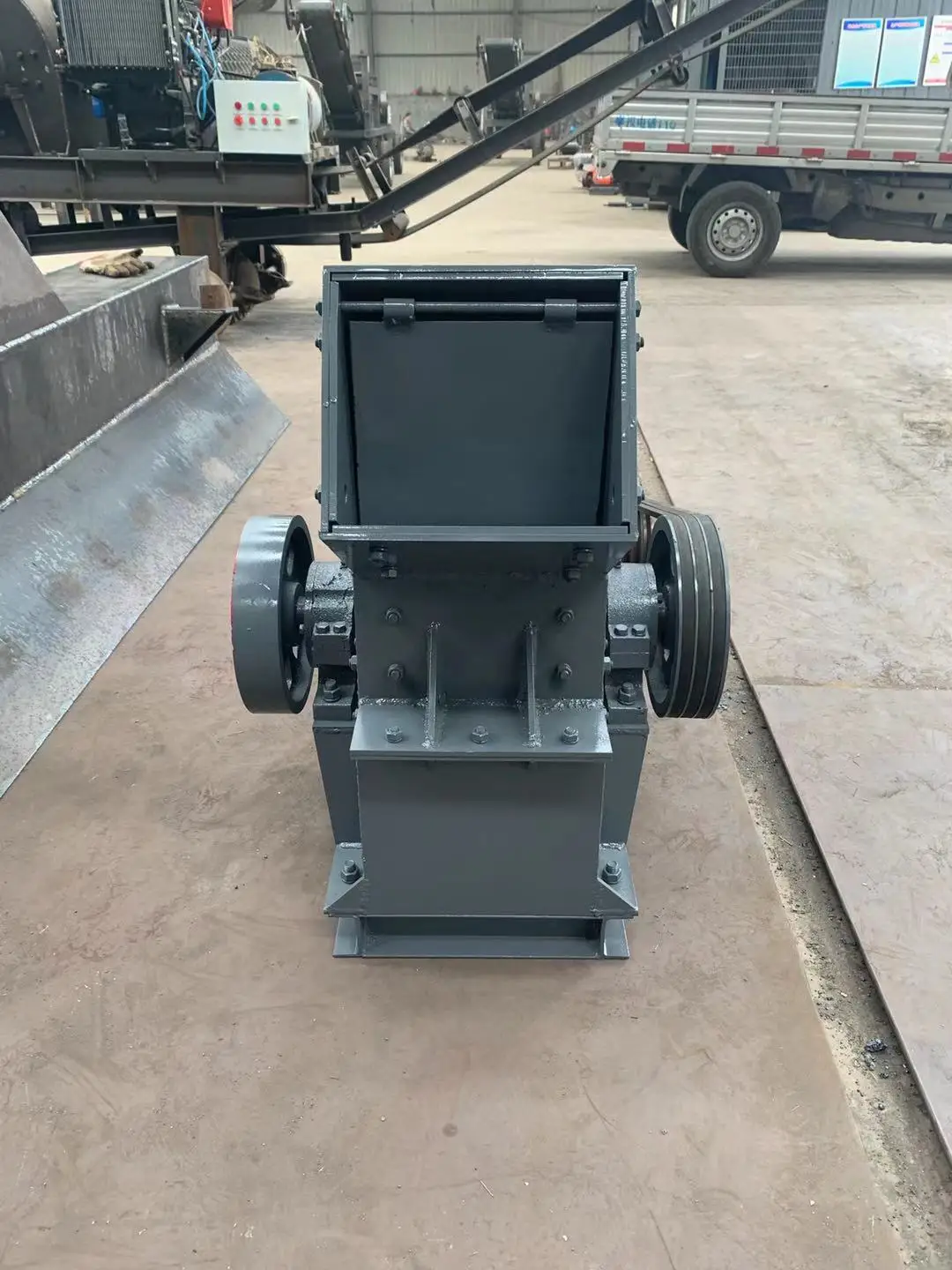

Production show of rock hammer crusher
Efficient Quarry Stone Crushing Machine Cost Rock Hammer Crusher For Sale
Company Information
About us

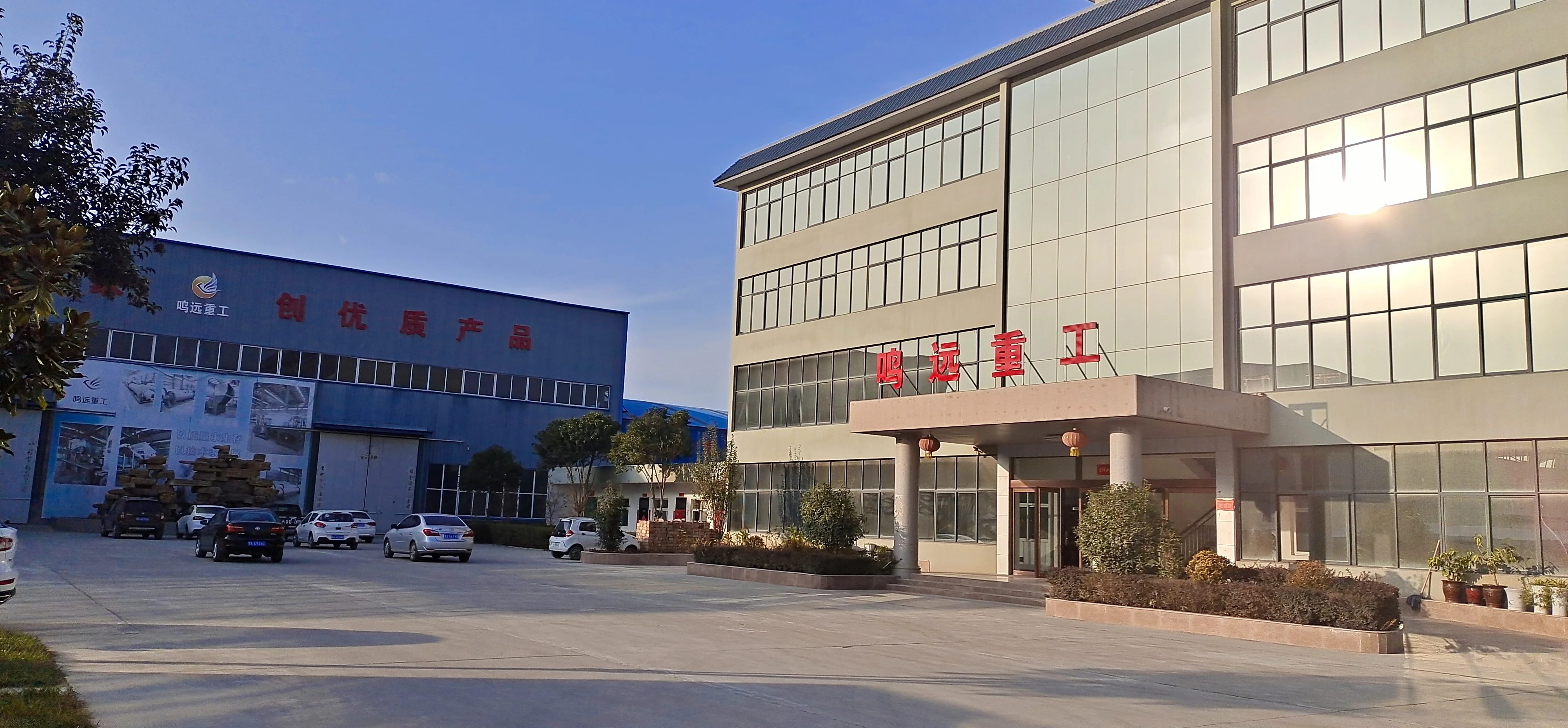

Henan JiangTai Mining Machinery Co.,Ltd , is one of the first garden like factories located in ZhengZhou which is one of the eight historic cities in China. Since established, We have passed ISO9001:2008 quality system authentication and CE certificate. The company has been taking the scientific management method of the modern enterprise, producing with meticulouscare and nonstop creation and developing to become a bright pearl and pacemaker of the mechanical industry.
Main products
Such as:crushing equipment, sand making equipment, concentration, aerated autoclave concrete equipment, coal equipment, milling equipment, burning free brick equipment. gravel equipment, processing equipment, cement equipment, metal magnesium equipment ,etc.

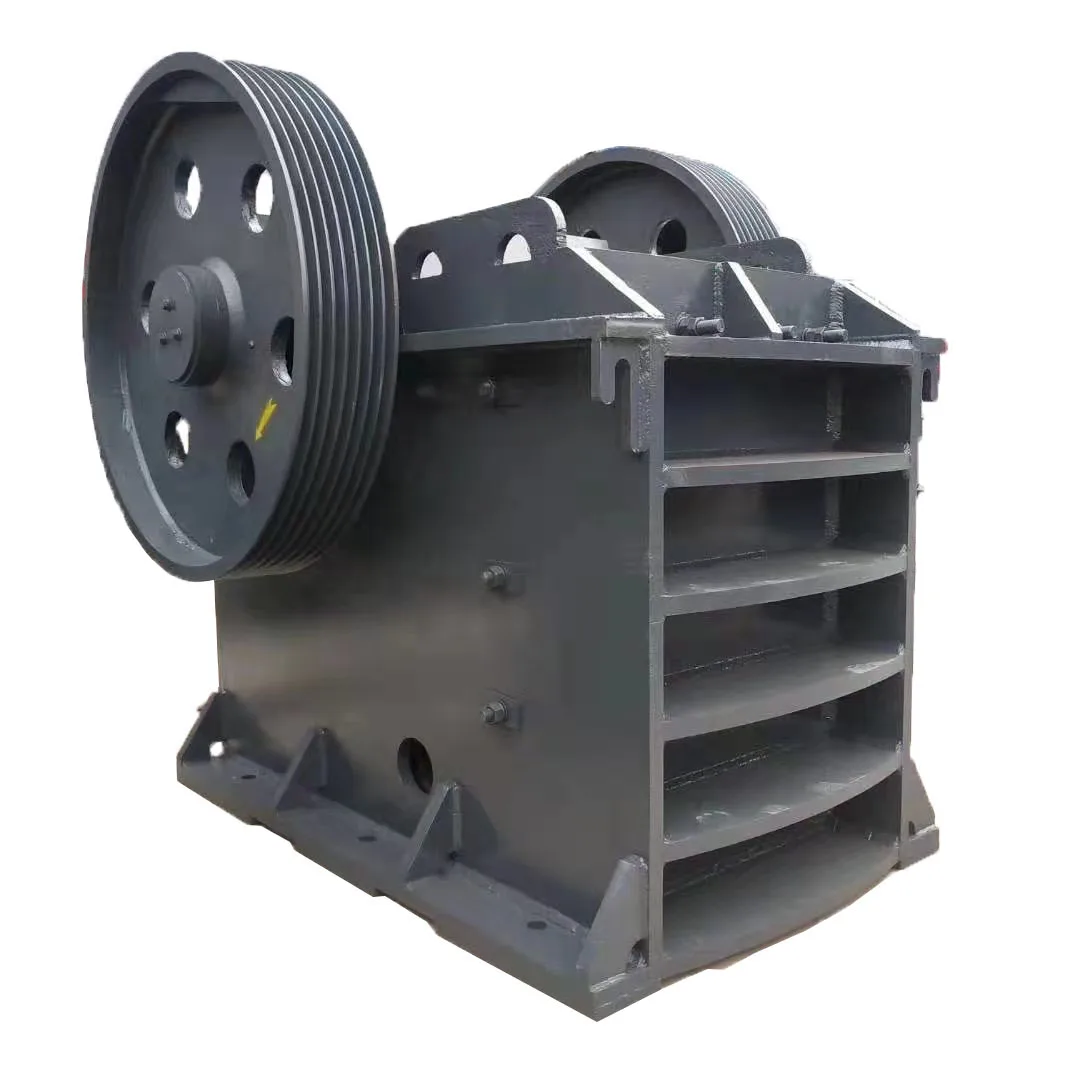

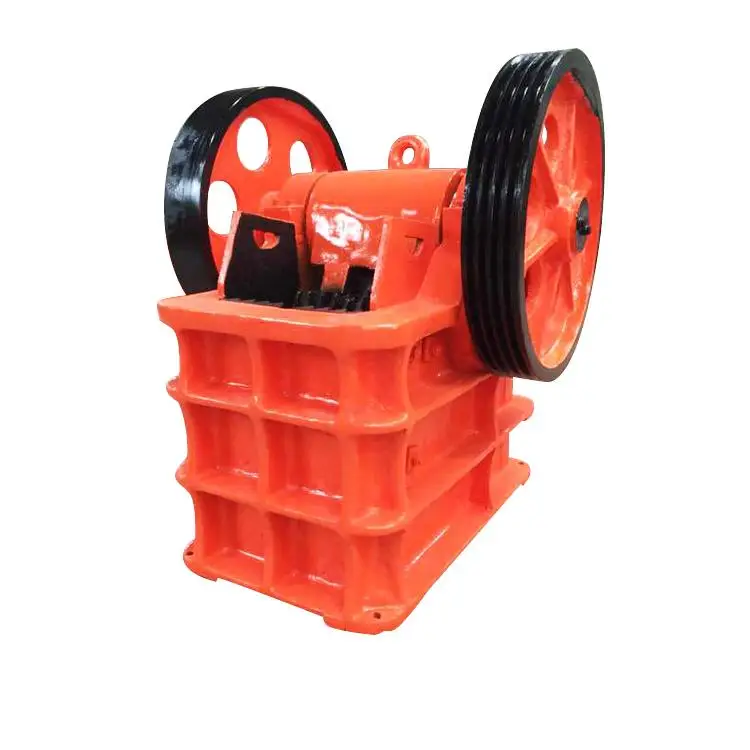

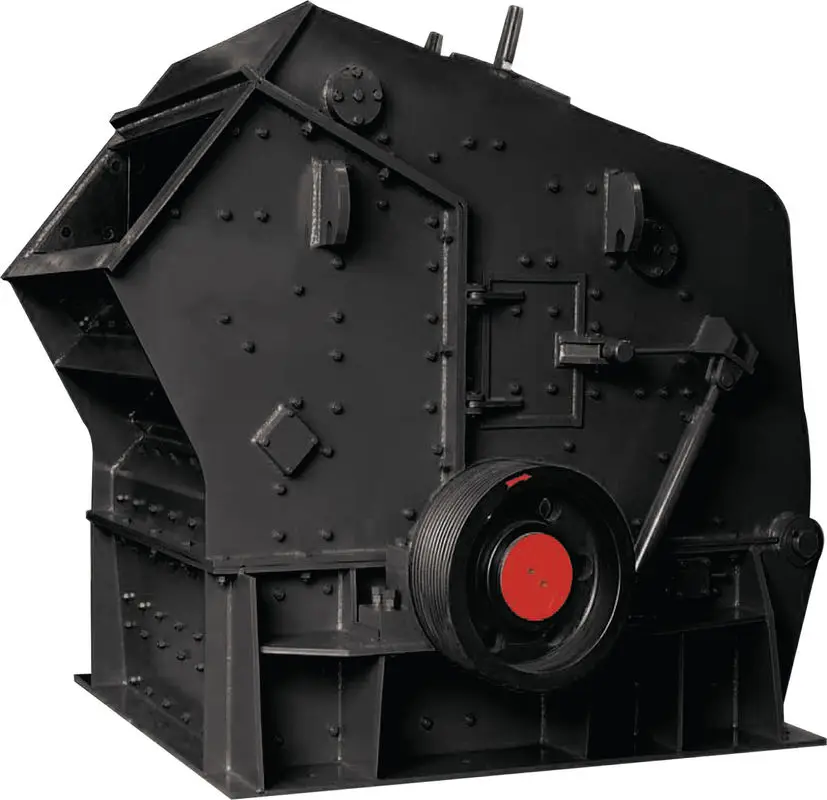

| jaw crusher | PXJ crusher | Impact crusher |
 |  |  |

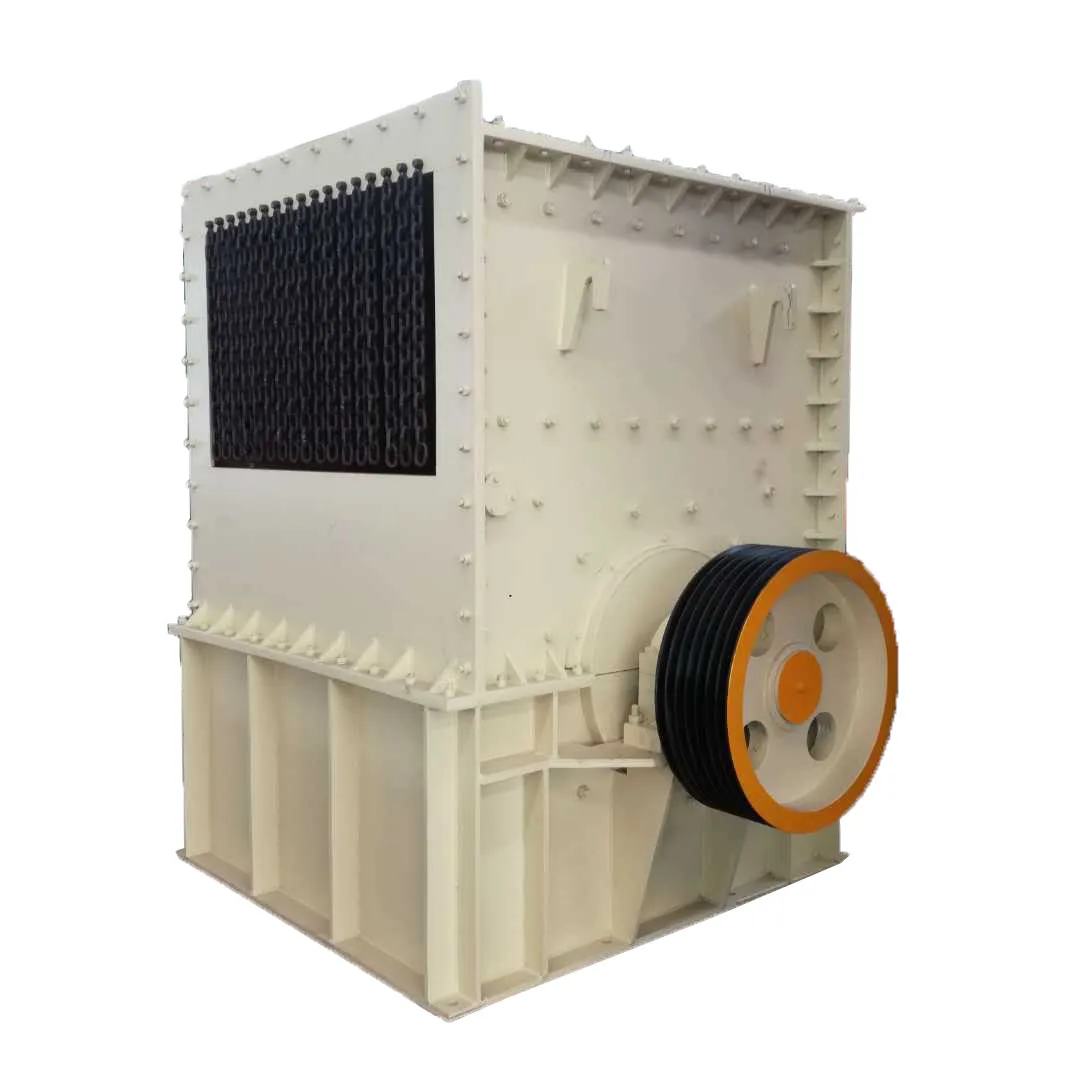

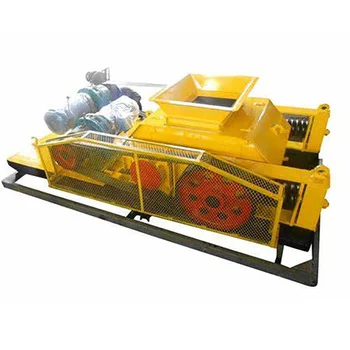

| Pto-powered Type Jaw Crusher | Double Roller Crusher | box type hammer crusher |
 |  |  |
Our Services
According to customers' demand, we supply the services in a flexible way not only the traditional services but also the internet online services. Our engineer is 24 hours online. We try our best to carve out maket and provide services all the time. Before customers purchase, we will send our engineers to customers site to design the best flow chart. After purchase, we will send the engineer to guide to install the machine, take trial run. Try our best to provide our customers with service of high quality and efficiency. We welcome customers from home and abroad to visit our company and carry put cooperation!
