Product Overview

Description

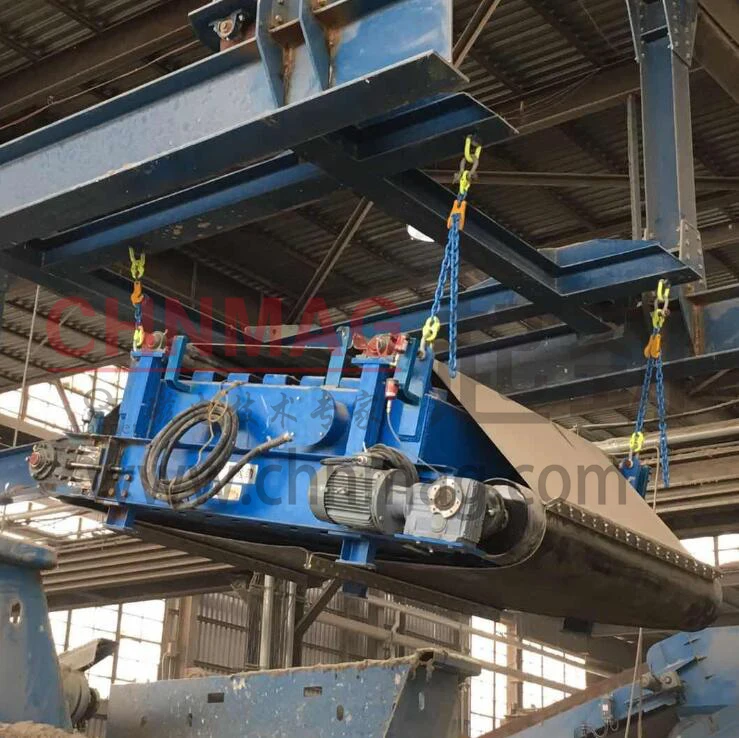

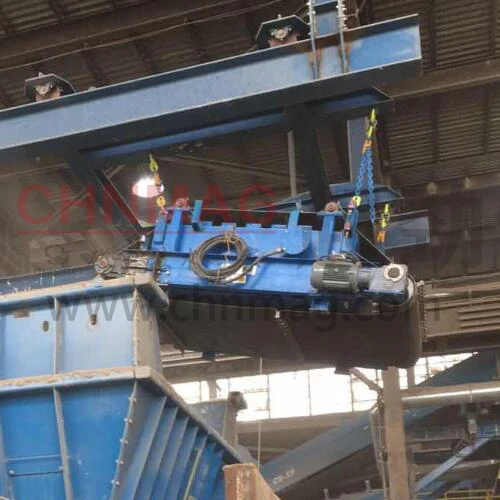

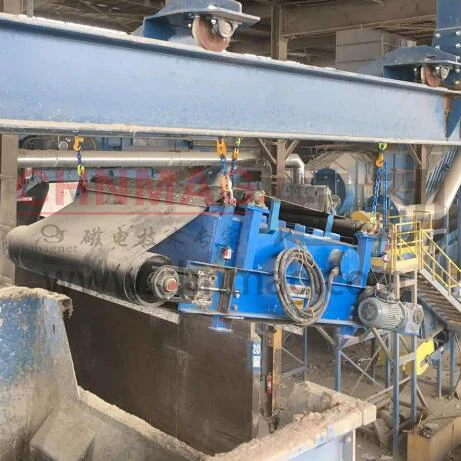

QJRCDD (Self Cleaning) and QJRCDE (Manual Cleaning) Suspended Electromagnetic Separator series are of long work shift hanging over belt conveyor. Some parts like stand, roll, and iron discharging belt are available.

They can throw away the iron materials continuously which have been attracted into iron collecting box.

They are suitable for removing iron magnetic foreign articles from materials of thicker bed and bigger granularity that are rich in iron like ores, coal, and hard coke.



1. Magnetic circuit adopts computer simulation design, so it has a deep penetration strong magnetic force and high field gradient and can provide max attracting force.

2. The shell of hanging elctromagnetic separator is welded by sealed steel plate and has gone through a strict test of air-proof. Meanwhile, a vacuum filling epoxy resin has been added between coil and shell to enable the equipment work well even in harsh working conditions.

3. Natural cooling mode is adopted which causes a less risk of fault occur.

4. The Electro Magnetic Separator can remove 0.1~35 kg materials from non-magnetic materials and the removing rate can up to 95% or more.

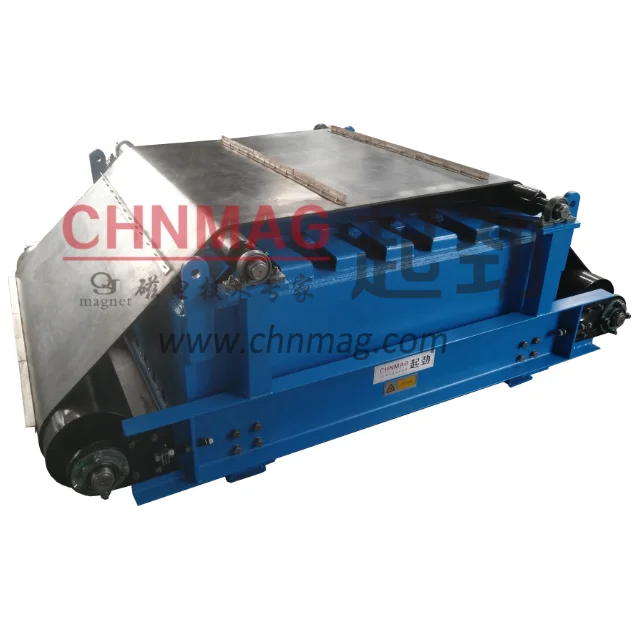

Electromagnetic separator                       QJRCDE

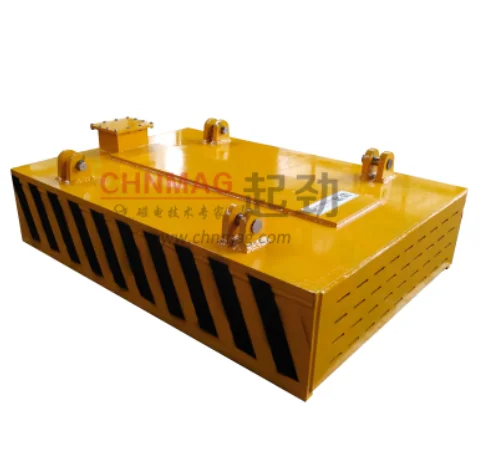

                       QJRCDD Series                                                                                           QJRCDE Series

Electromagnetic Separator Data Sheet



Mode

Applicable

Belt Width (mm)

Hanging Height

(mm)

Magnetic

Induction

(≥m T)

Material

Thickness

(≤mm)

Applicable

Belt speed

(≤m/s)

Excitation

Power

(k W)

Motor Power

(k W)

Overall dimension

(mm)

Weight (kg)

L

W

H

QJRCDD-5

500

150

65

100

< 4.5

1.89

1.5

1450

950

540

900

QJRCDD-6

600

200

150

2.84

2.2

1600

1100

600

1200

QJRCDD-8

800

250

68

200

3.9

3.0

1700

1230

650

1500

QJRCDD-10

1000

300

250

6.2

3.0

1916

1384

780

1980

QJRCDD-12

1200

350

300

8.2

4.0

2150

1550

830

2850

QJRCDD-14

1400

400

71

350

11.6

4.0

2400

1800

900

3460

QJRCDD-16

1600

450

400

14.5

5.5

2700

2150

920

4580

QJRCDD-18

1800

500

450

17.9

7.5

3100

2450

1020

6500

QJRCDD-20

2000

550

72

500

27

7.5

3300

2700

1050

8000

QJRCDD-22

2200

600

550

31

11

3600

2850

1100

10800

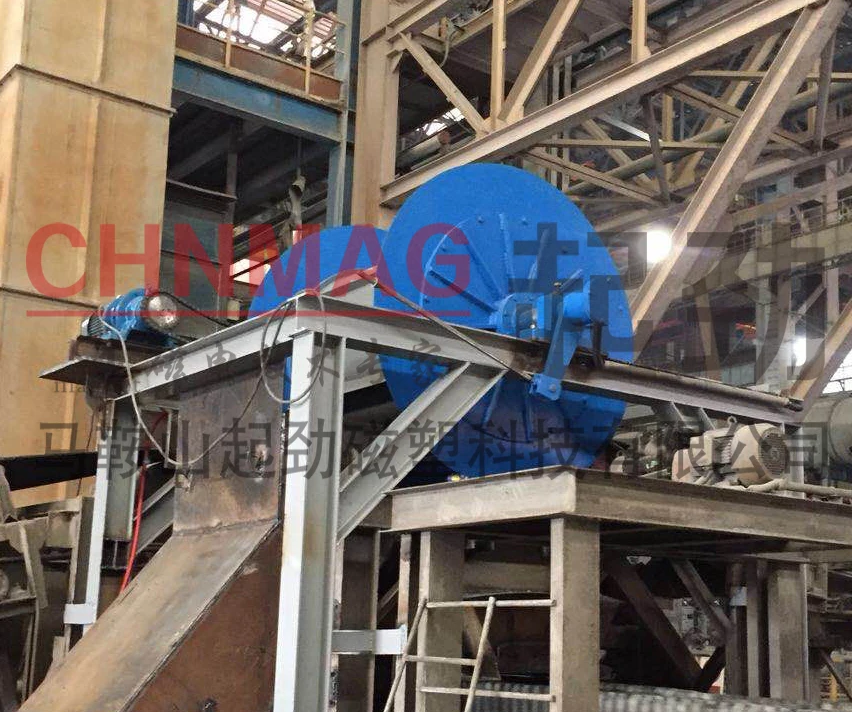

 QJMG Electromagnetic Drum Separator



QJMG Magnetic Drum Separator are usually suitable for purification treatment on powdery, grainy and small material, or iron recovery can protect crusher, muller and mill from damage or wear, featuring simple installation, strong attraction force, no energy
consumption, continuous work and simple operation. This series which is designed as per the standard of series TD-75 can
satisfy customer's need of high magnetic induction and deep removing and now are widely applied in metallurgy industry,
abrasive industry, corundum industry, nonmetal ore industry, refractory industry, mine industry, food industry, building
material industry and etc.
