WODWIN High Quality LCD Screen Ptz Camera NDI Keyboard Controller for Broadcast
- Category: >>>
- Supplier: World Win Technology (shenzhen) Co. Ltd.
Share on (1600306518245):
Product Overview
Description
Tip:
1.Contact us for more discount;
2.OEM/ODM are also welcome；
3.Excellent quality and better Price.
3.Excellent quality and better Price.
Products Description

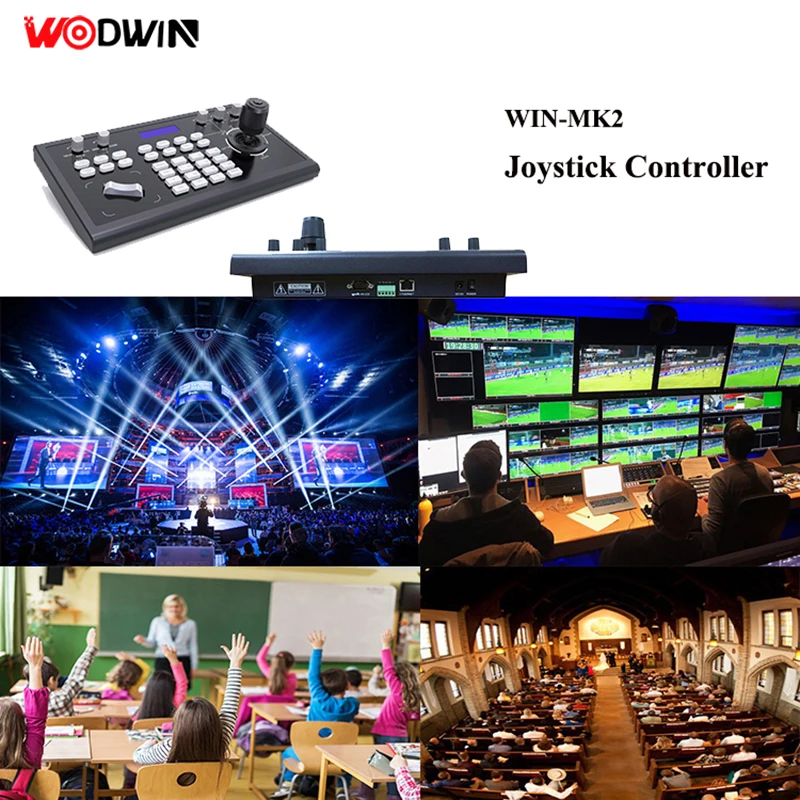

WODWIN High Quality LCD Screen Ptz Camera NDI Keyboard Controller for Broadcast
WIN-MK2
WIN-MK2 Keyboard Controller for Broadcast Selling Points:
1. Supporting ONVIF, VISCA, Serial port VISCA, PELCO-D/P protocols and etc.

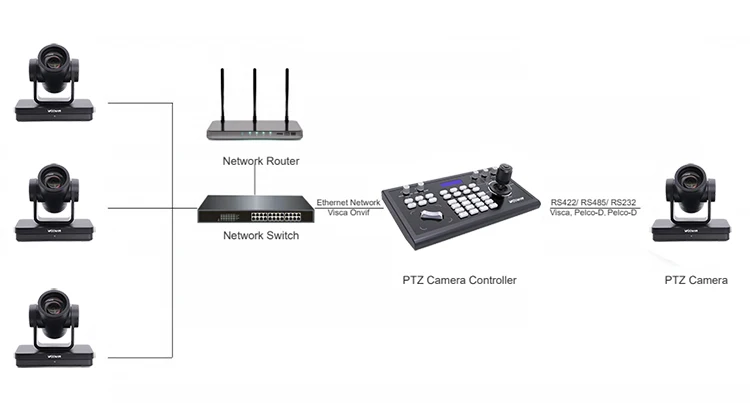

2. RJ45, RS422, RS232 control interfaces; Control up to 255 Cameras.3. Unique control code learning function allows customers to modify the control code instructions
4. Any device on the RS485 bus can be individually configured with different protocols and baud rates.
5. All camera parameters can be set through the button operation.
6. Metal shell, silicone key design.
7. LCD display, keypad sound prompt, real-time display decoder and matrix working status.
8. 4D joystick allows variable speed control to cameras
9. Maximum communication distance: 1200M(0.5MM Twisted-Pair Cable)

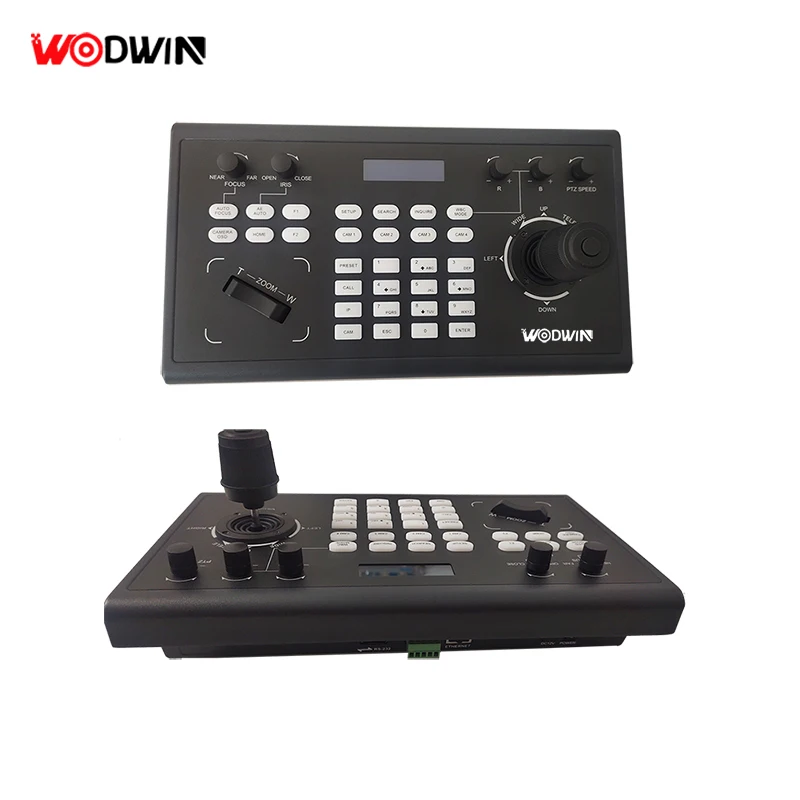

Details Images
Product Paramenters
Product Name | PTZ Controller | ||
Item No. | WIN-MK2 NDI Controller | WIN-J91AS | |
Port | Network: RJ45. Serial Port: RS422, RS232 | 3.50 Megapixels | |
Protocol | Network : ONVIF, VISCA Serial Port: VISCA, PELCO-D, PELCO-P | 20X optical zoom | |
Communication BPS | 2400bps, 4800bps, 9600bps, 19200bps, 38400, 115200 | 58.7°(W)~3.2°(T) | |
Interface | 5PIN, RS232, RJ45 | ||
Joystick | 4D（up, down, left, right, zoom, lock） | ||
Display | LCD Blue Screen | ||
prompt tone | ON/OFF | ||
Power Supply | DC12V±10% | ||
Power Consumption | 6W MAX | ||
Working Temperature | -10℃～50℃ | ||
Storage Temperature | -20℃～70℃ | ||
Environment humidity | ≦90%RH (nodew) | ||
Dimensions(mm) | 320mm（L）X179.3mm（W）X109.9mm(H) | ||
Product packaging
