  • K power RC30P 30kg 360 degree rotation Magnetic encoder servo/wheel rc robot servo

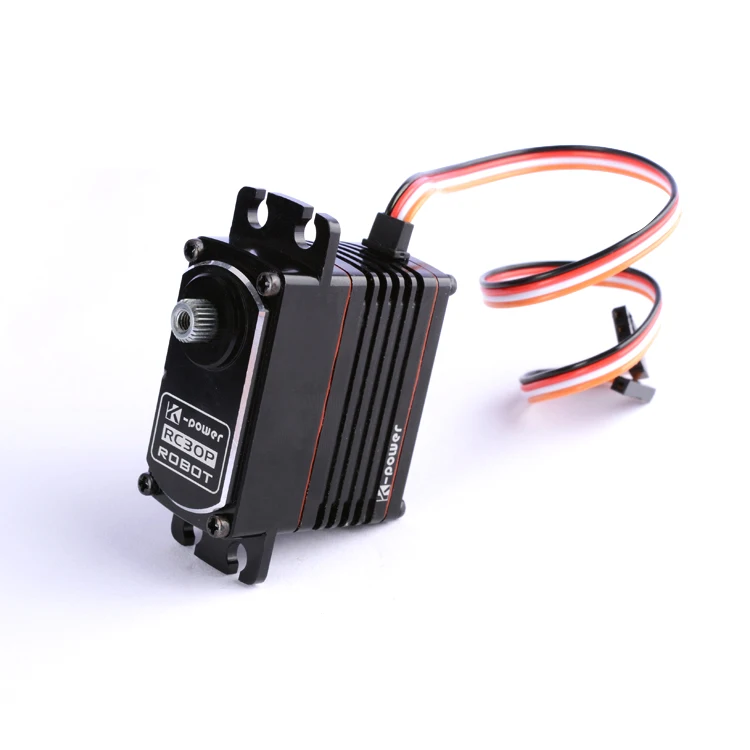

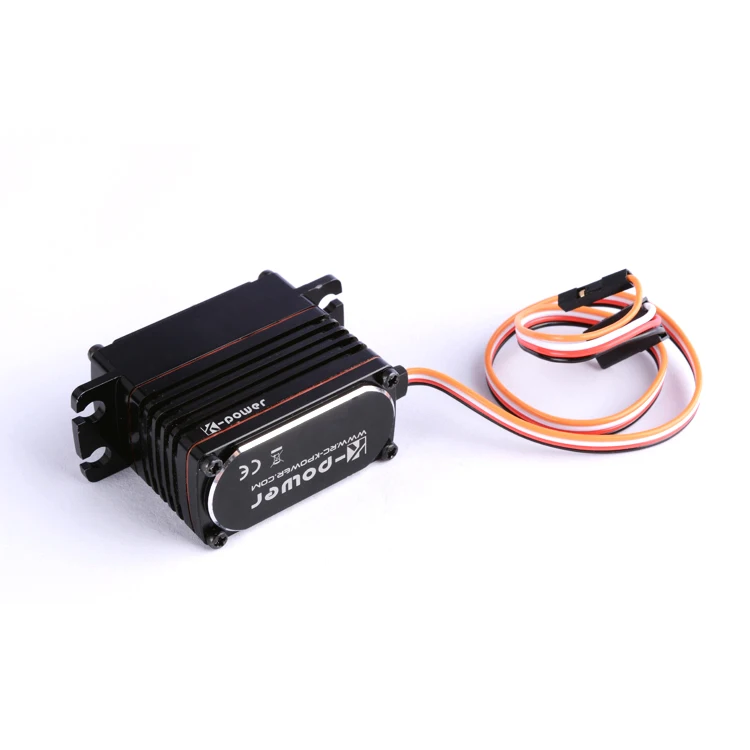

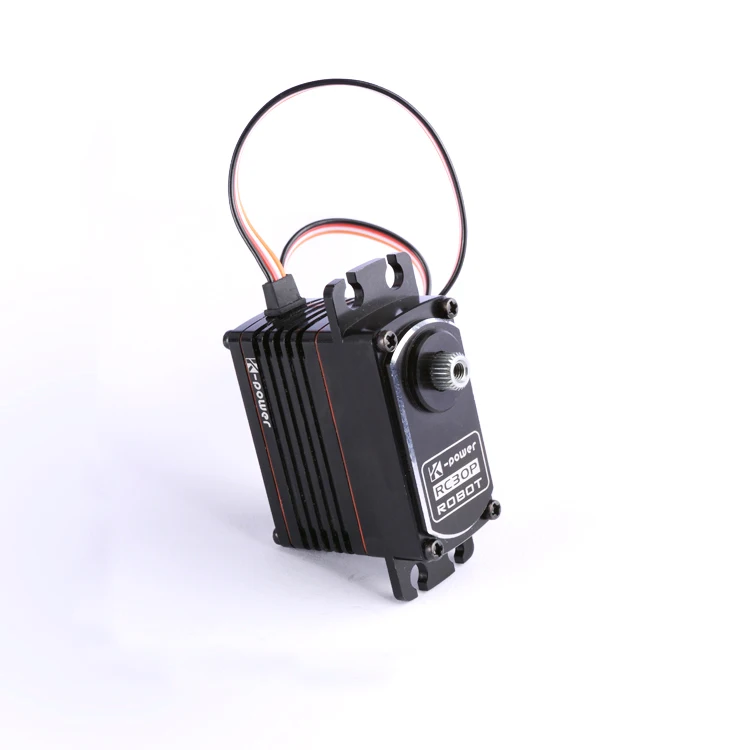

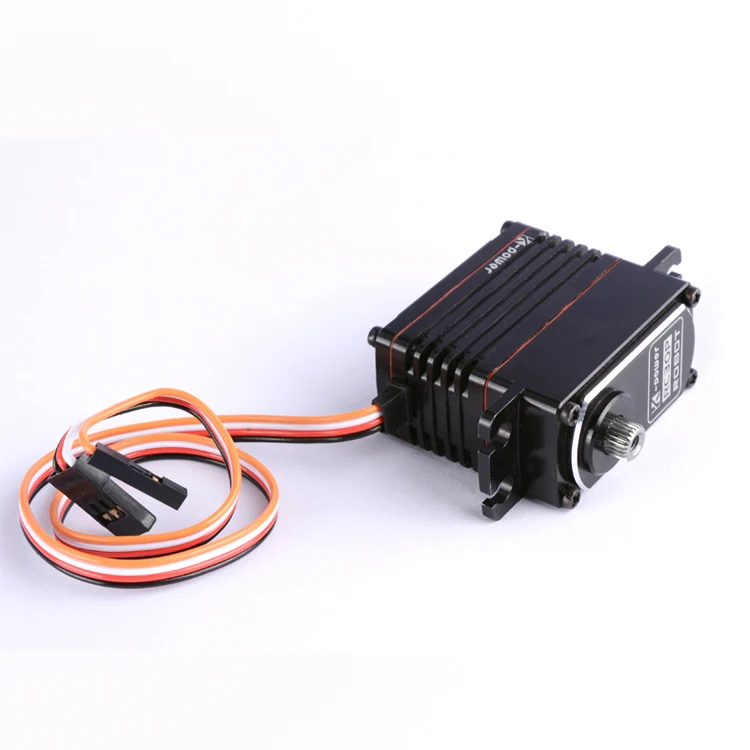

K power RC30P 30kg 360 degree rotation Magnetic encoder servo/wheel rc robot servo
K-power RC30P 30kg 360 degree rotation Magnetic encoder servo/wheel rc robot servo
K-power RC30P 30kg 360 degree rotation Magnetic encoder servo/wheel rc robot servo
K-power RC30P 30kg 360 degree rotation Magnetic encoder servo/wheel rc robot servo
K-power RC30P 30kg 360 degree rotation Magnetic encoder servo/wheel rc robot servo

K power RC30P 30kg 360 degree rotation Magnetic encoder servo/wheel rc robot servo

Share on (1600308490286):


Price:

Quantity:


Product Overview

Description



Product Features


RC30P 30kg 360 degree rotation Magnetic encoder servo/wheel rc robot servo

=30kg high torque rc robot servo
=With Magnetic encoder 360 degree controllable PWM servo
=Full CNC aluminium case coreless motor servo
=With postion feeback


Product Description


Dimension (mm):
40*20*37.5mm
Weight(g):
60
Voltage Range(DC V)
DC4.8-8.4V
Rated Voltage(DC V)
7.4V
Stall Torque (N.M)
3.14N.M(32kg.cm)
No load Speed(RPM)
66.6rpm(0.15s/60°)
Motor Type
Coreless
Resolution
0.35°
Running Degree
0-360°
Mode
Servo/Wheel Mode(endless rotation)
Communication Method
PWM(deadband 1-2μs)
NO.of Wire
4Pin
Feedback
Position
Position Sensor
Magnetic encoder
Case
CNC Aluminium Alloy
Gear
7075 Aluminium Coated With Titanium


Detailed Images






Servo Certificates

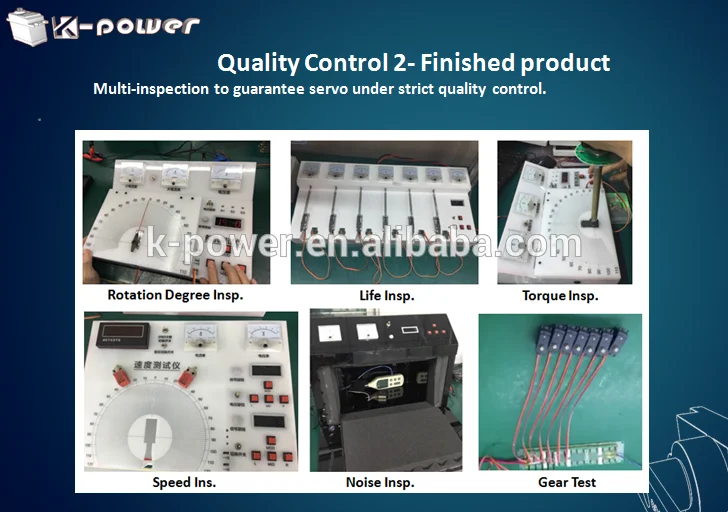

Quality Control


To guarantee our quality, our QC will inspect the goods from the following steps:

1. Raw materials, to control the quality from the source.
2. Semi-finished products.
3. Before package, our QC will inspect the 100% goods .
