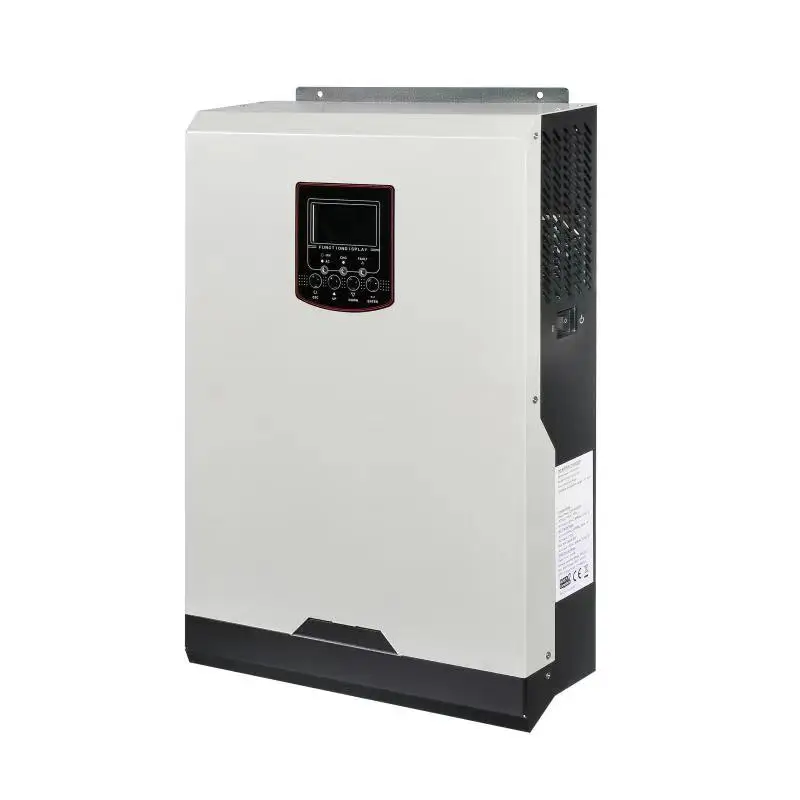

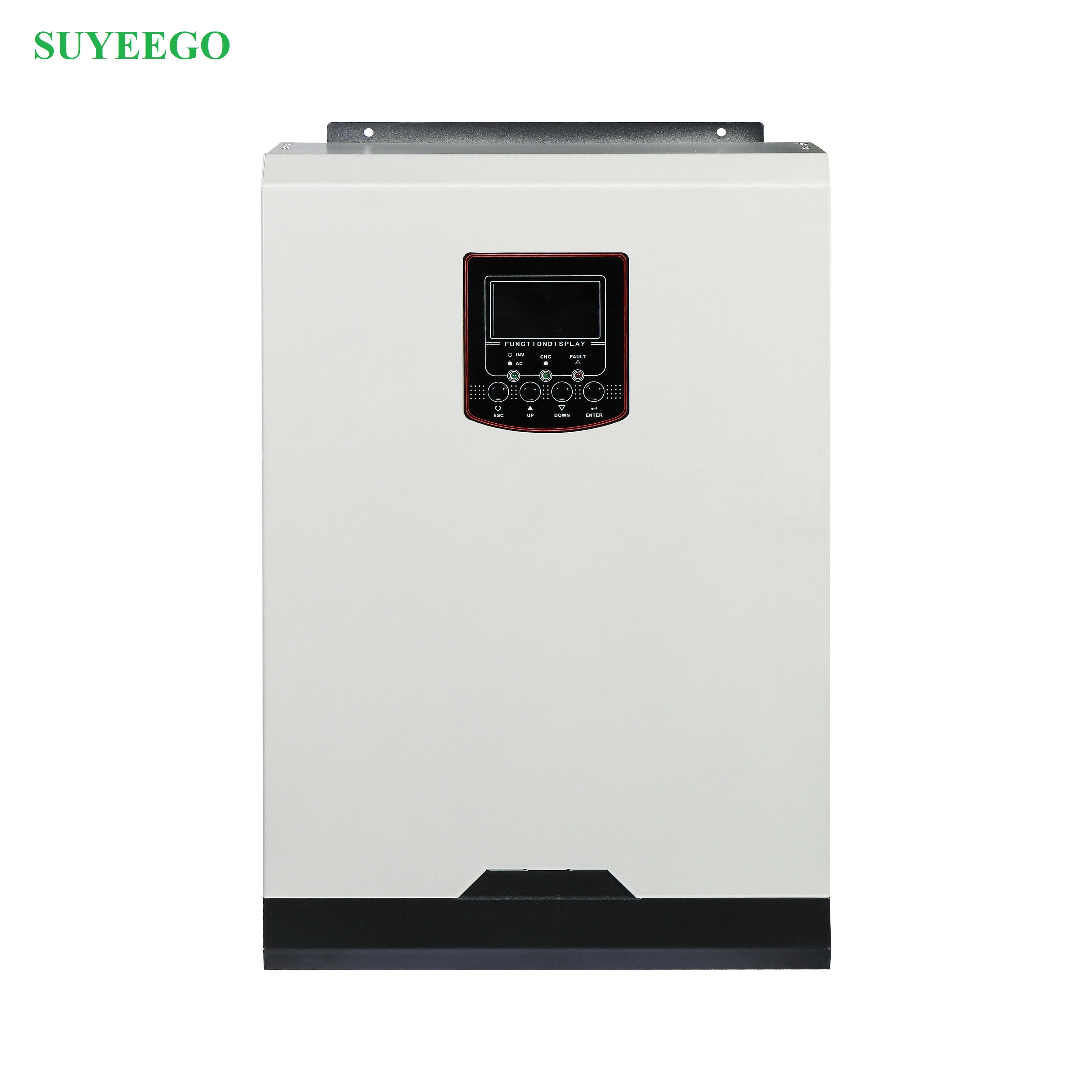

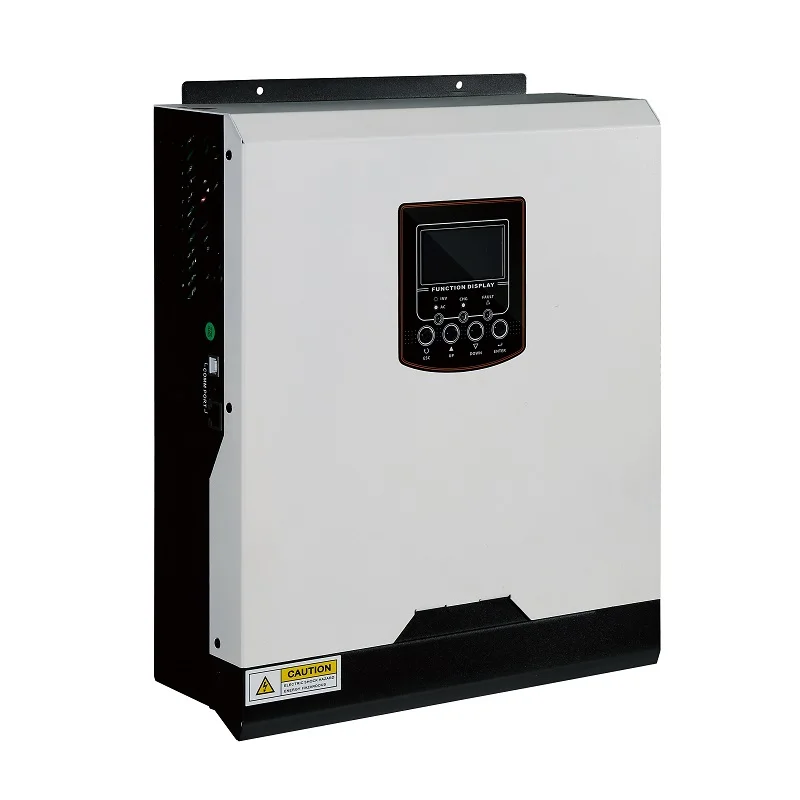

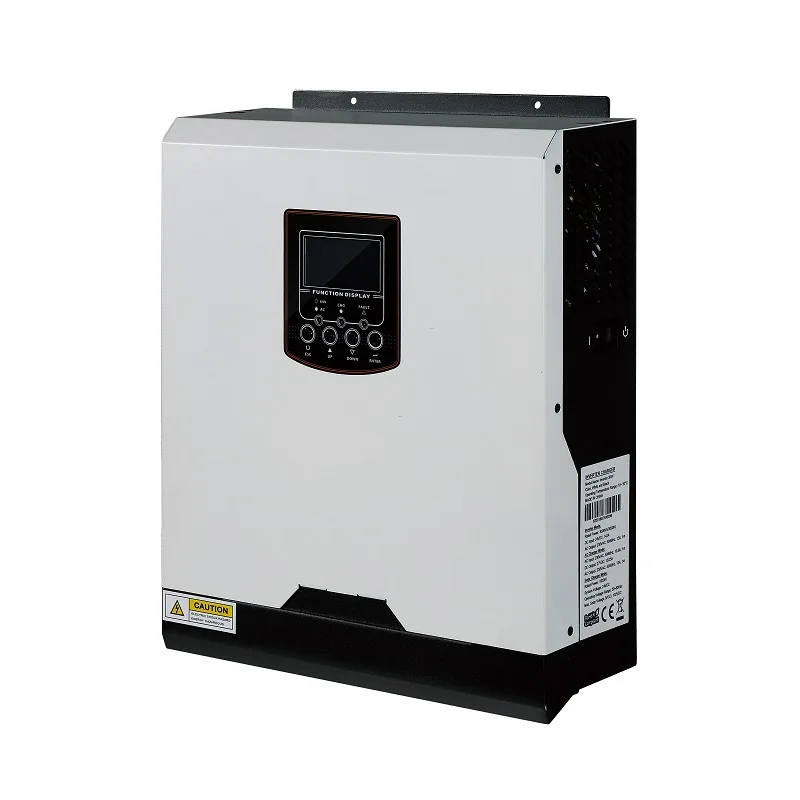

SUYEEGO VMII plus 3 кВт 3 кВт 5 кВт 6 кВт MPPT Гибридный солнечный инвертор 3000 Вт onduleur hybride
- Category: Solar Inverter >>>
- Supplier: Guangzhou Suyeego Electronic Technology Co. Ltd.
Share on (1600309632065):
Product Overview
Description
SUYEEGO VM II plus 3kw 3.5kw 5.5kw 6kw MPPT off grid hybrid solar inverter 3000w onduleur hybride
Product Description
1.Pure sine wave inverter
2.Built-in MPPT solar charge controller
3.Selectable input voltage range for home use
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
2.Built-in MPPT solar charge controller
3.Selectable input voltage range for home use
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
Product Paramenters
Model | HB-PW-G-3.5KW | |
Rated power | 3500VA / 3500W | |
Voltage | 230VAC | |
Selectable voltage range | 170-280VAC (for personal computers) 90-280VAC (For home appliances) | |
Frequency range | 50Hz/60Hz (auto sensing) | |
OUTPUT | ||
AC voltage regulation (Batt. mode) | 230VAC±5% | |
Surge power | 7000VA | |
Efficiency (peak) | 90%~93% | |
Transfer time | 10ms (for personal computers) 20ms (for home appliances) | |
Waveform | pure sine wave | |
BATTERY | ||
Battery voltage | 24VDC | |
Floating charge voltage | 27VDC | |
Overcharge protection | 33VDC | |
Maximum charge current | 20A / 30A | |
SOLAR CHAGER | ||
Charging current | 100A | |
Maximum PV array open circuit voltage | 500VDC | |
MPP Range @ Operating Voltage | 120-450VDC | |
Max. AC Charge Current | 60A | |
PHYSICAL | ||
Dimension, D*W*H (mm) | 100*300*440mm | |
Net weight (kg) | 11kg | |
OPERATING ENVIRONMENT | ||
Humidity | 5%-95% relative humidity (non-condensing) | |
Operating temperature | -10℃-55℃ | |
Storage temperature | -15℃-60℃ | |
Send your inquiry to us！
------More than 10 Years Industry Experience, OEM/ODM available, for more any information, pls feel free to contact us by click here.

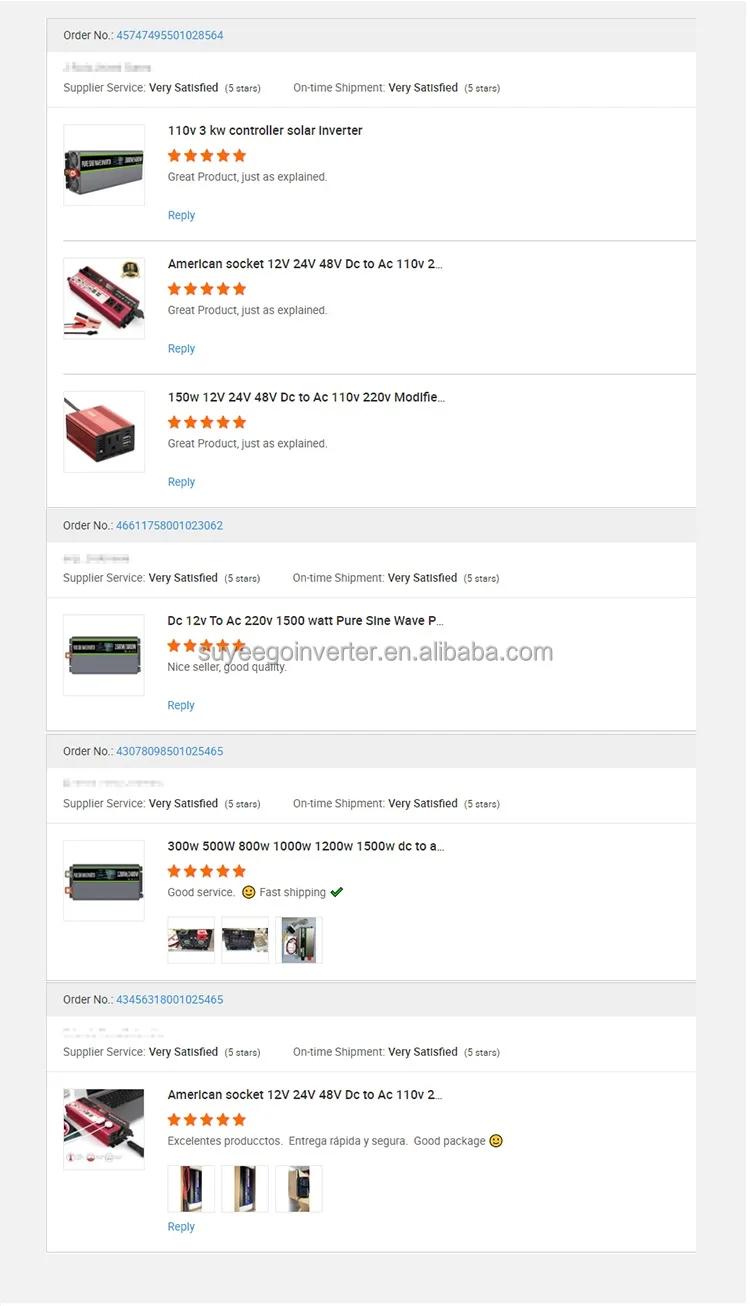

Client feedback

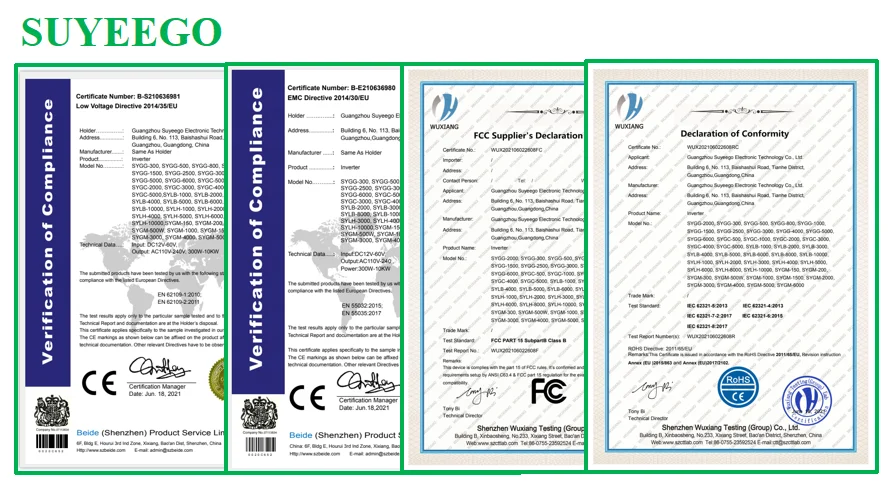

Certifications
Company Introduction
Packaging & Delivery
FAQ
1. How does a power inverter work?
A power inverter converts DC power into conventional AC power, when an AC outlet is not available. Simply connect an inverter to a battery source, plug your appliance into the inverter.
2. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.
Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
3. What type of batteries do you recommend?
Most of people choose to use deep cycle marine batteries with their inverters. Also can use Acid battery, Lithium battery.
4. Do you accept OEM and ODM service?
Yes, we accept OEM and ODM service.
5. How long of the delivery time, sample order and wholesale order?
For Sample order, within 3 days; For 1000pcs wholesale order, 7-15 working days.
6. How do I know which inverter to buy?
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model:
AMPS x 120 = Watts
For Example: 20 Amp Freezer Unit * 120 = 2400 Watts
A power inverter converts DC power into conventional AC power, when an AC outlet is not available. Simply connect an inverter to a battery source, plug your appliance into the inverter.
2. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.
Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
3. What type of batteries do you recommend?
Most of people choose to use deep cycle marine batteries with their inverters. Also can use Acid battery, Lithium battery.
4. Do you accept OEM and ODM service?
Yes, we accept OEM and ODM service.
5. How long of the delivery time, sample order and wholesale order?
For Sample order, within 3 days; For 1000pcs wholesale order, 7-15 working days.
6. How do I know which inverter to buy?
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model:
AMPS x 120 = Watts
For Example: 20 Amp Freezer Unit * 120 = 2400 Watts
