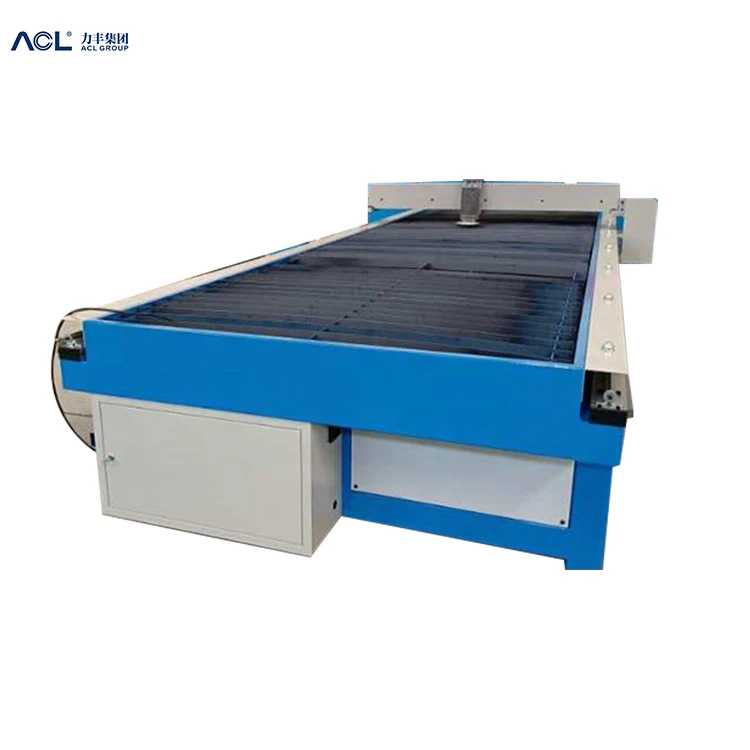

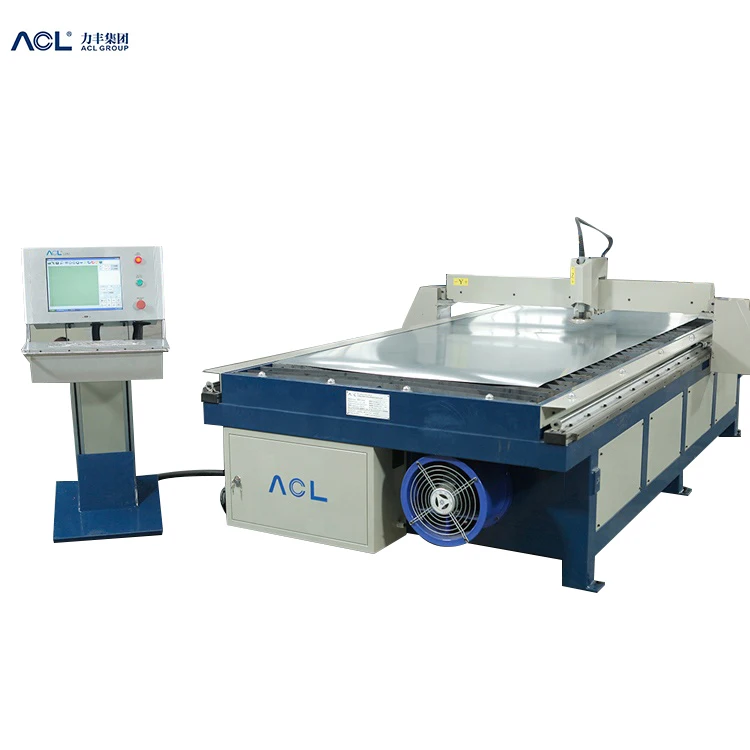

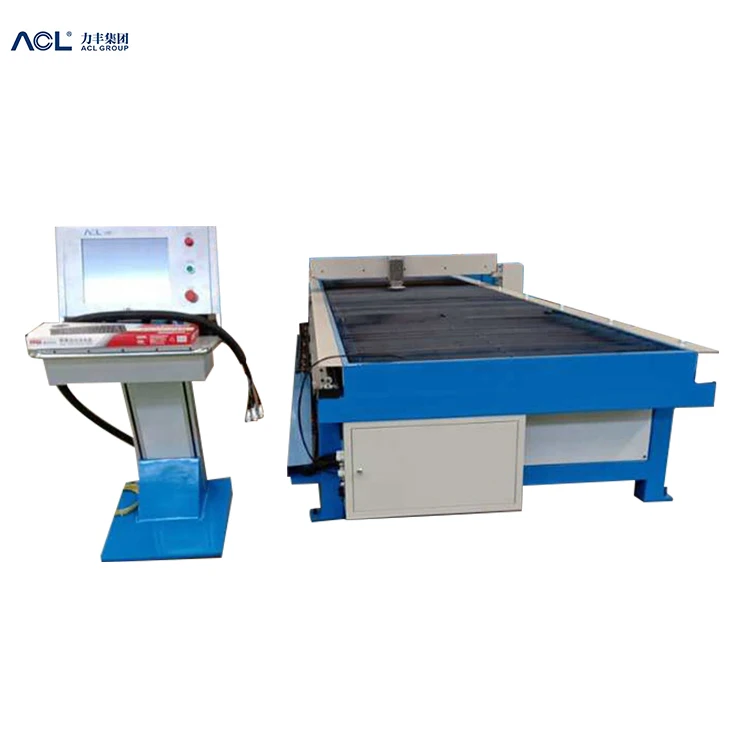

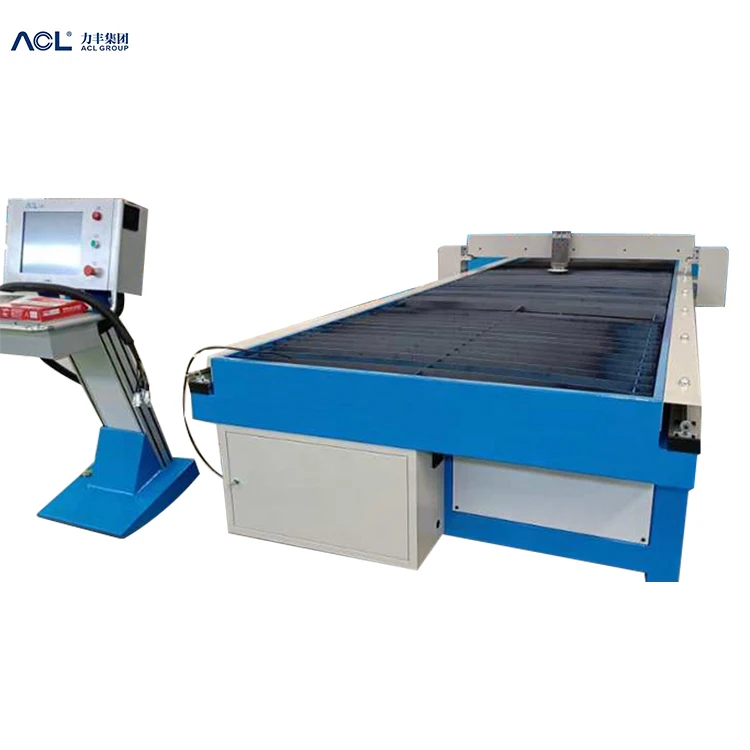

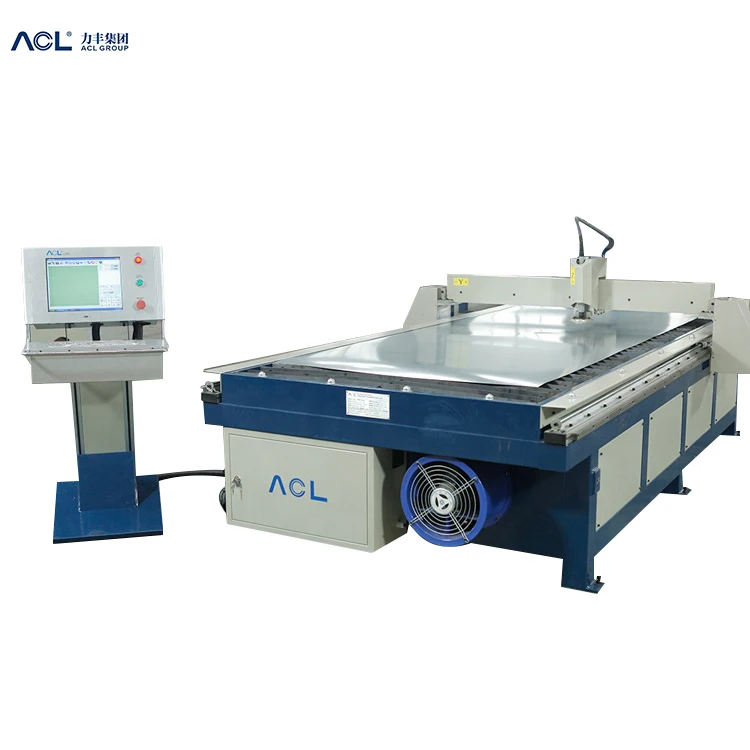

Table Type PM 3100 Cnc Plasma Cutting Machine Sheet Metal Cutter
- Category: Machine Tool Equipment >>>
- Supplier: Foshan Nanhai Lifeng Machine Tool Co. Ltd.
Share on (1600310037684):
Product Overview
Description
Product Description

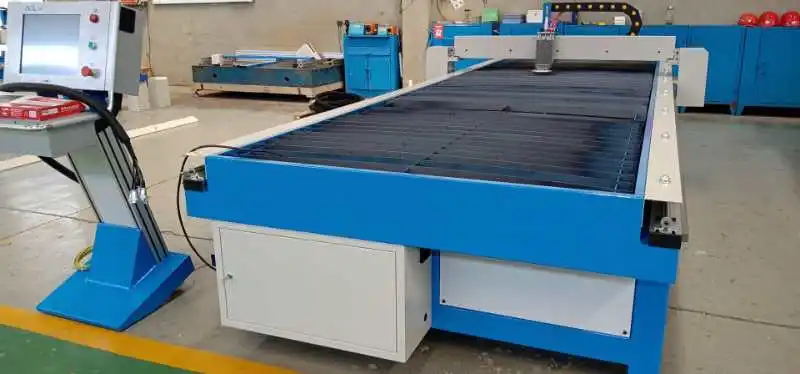

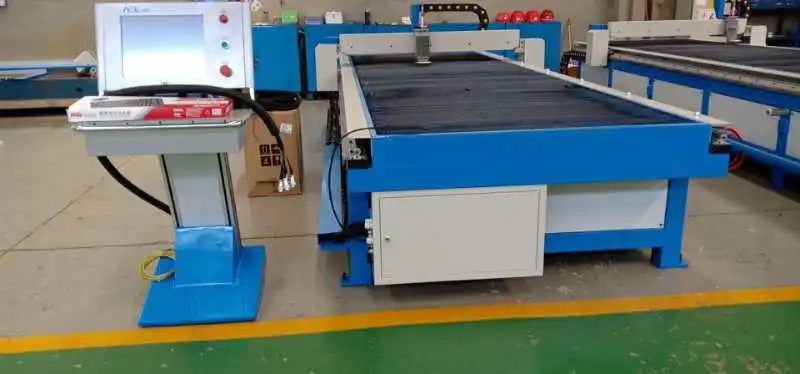

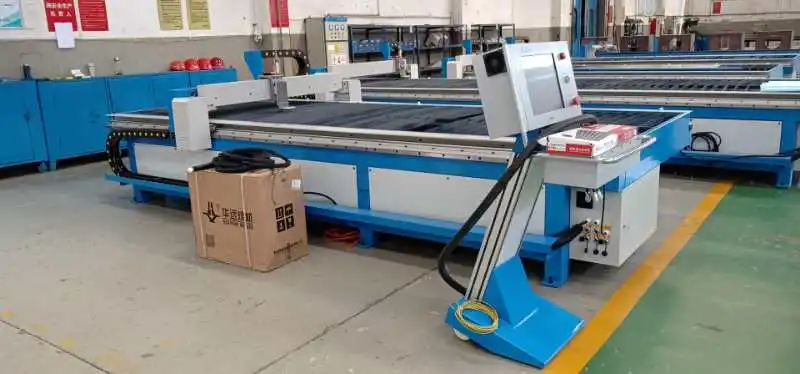

Heavy Duty Cut 60 Tube Plasma Cutter, Carbon Steel Cnc Flame And Plasma Cutting Machine
Technical reference | |||
Model | PM-3100 | PM-5100 | Other model |
Effective cutting area | 1250*3100 | 1250*5100 | Customer request |
Processing plate thickness | 0.5-6mm iron plate is standard, copper, aluminum, stainless steel, etc. are subject to the standards provided by the generator manufacturer. | ||
Machining error | Length error :±0.2mm/m diagonal:±0.5mm/m | ||
Torch lifting distance | 0-50mm | ||
Cutting speed | 0-10m/min | ||
Input voltage | 220v/380v/50HZ | ||
File transfer method | USB interface | ||
Performance characteristics
1. The frame adopts all-welded steel structure, after aging treatment, high stability, small deformation and good rigidity. The sheet support platform is composed of a cutting board, which is convenient for replacement and cleaning of the cutting waste in the machine body.
2. The beam is designed with light structure and has the characteristics of good rigidity, light weight and small inertia.
3. Reasonable material leakage design, safe and convenient.
4. Gantry structure, X-axis, Y-axis installation of high-precision circular guide rail, X-axis adopts synchronous double drive, stable transmission and high running precision.
5. The cutting weld is small, tidy, and there is no slag phenomenon, which avoids secondary refining.
6. CNC system configuration, automatic arc ignition, stable performance.
7. Professional cutting software, easy to learn, the software has a complete library, just enter the corresponding size to automatically generate NNC code, complete automatic cutting.
8. Stand-alone console, the machine host and the console are separated for easy operation.
Configuration instructions
1. The transmission system is high-precision rack and pinion transmission, equipped with Raytheon stepper motor (optional servo motor, the price is calculated separately) to ensure that the transmission accuracy is higher than the industry standard.
2. Configure industrial-grade gold motherboard with powerful anti-electric radiation and seismic resistance.
3. Industrial-grade true color 15-inch full-touch liquid crystal display, powerful, avoiding the high-pressure adsorption of dust, high-temperature heating, radiation and other adverse effects brought by the traditional screen display, and improving the service life of electrical components.
4. Configure industrial standard CNC special metal operation keyboard, and equipped with high-sensitive dedicated controller.
5. Plasma cutting power supply configuration generator or Italian technology generator, optional generator.
Our Service
Price : Give me reply, i will give you my favorable price immediately !
Payment term : 40% deposit and the balance paid against copy of B/L in 3 days .
Package : Standard exporting package .
Operation manual and video disc :
When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc .
After-sales service :
1.machine is simple, generally, user can understand how to operate. There is operation instruction and disc .
2.welcome to our factory to learn how to operate our machine, we will give good training .
3.our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user .
Hot Products
Company Information
ACL Machine Co., Ltd.
ACL Machine Co., Ltd. established in 1981, is one of China's larger-scaled manufacturers of heavy forging machinery, heating and ventilating equipment and sheet metal equipment.
ACL specializes in co-operative manufacturing and development of the machinery and equipment in the industries of ferrous metallurgy, petrochemical, nuclear power, ship traffic, spaceflight and aviation, military project, engineering machinery, heating ventilation, container, boiler, bridge, building materials and so on, as well as grafting and localization of the equipments introduced from foreign countries.
ACL now has three manufacturing bases in China
Which are located in Guangdong, Shanghai and Shandong separately. ACL covers an area of more than 700, 000 square meters. There are about 150, 000 square meters of large and heavy industry plant areas, 400 sets of various large and medium-sized production equipments and more than 1,200 stuffs including 100 engineers and more than 100 sales personnel or agents all over china and worldwide. With its strong capability and technology, ACL keeps improvement and innovation over the years and has become a leading manufacturer of sheet metal processing equipment in China.
In the past more than thirty years, ACL’s products have been exported to over 86 countries and regions in the world such as the USA, Japan, Australia, Europe, the Middle East, South East Asia. For a long-term cooperation with well-known corporations in the world, we have adapted to the way of cooperation with European and American corporations.
No matter when and where you are, ACL is always able to provide you with the best products and service, with machines built to your specifications
Team&Exhibition
Project
Certificate
Transport
FAQ
1. Are you a trading company or a factory?
We are a factory manufacturer with 38 years of experience in mechanical manufacturing. We have more than 20 distributors in China and export to more than 100 countries. We are a leader in the Chinese machinery manufacturing industry.
2. Can you customize the machine?
Yes, you provide the drawings and details of the product, and our engineers will give you a plan to confirm and then make a custom order.
3. How to solve your machine warranty and after-sales problems?
Our machines are guaranteed for one year. We will send accessories and remotely guide customers for repairs after the factory has been confirmed for non-human damage within one year. Special circumstances cannot be repaired, we will send engineers to the local area for repairs, and the guests will pay for all the living expenses of the engineers.
4. Do you include installation and debugging?
In general, our prices are EXW prices, and do not include the cost of installation and commissioning. Before shipment, we will arrange an installation and commissioning test. Customers can come to the factory for reference and training, or we can send video to the customer. If you need to go to the local installation and commissioning, you must dispatch the engineer.
5. What are your payment terms?
The payment terms we accept include: Western Union, T/T ,cash,. A 40% deposit is paid first and the final payment is paid before shipment.
