2021 router AX3000 2.4G 5.0 GHz Wireless Router gigabit wifi6 4 High Gain Antennas Network Extender

processor

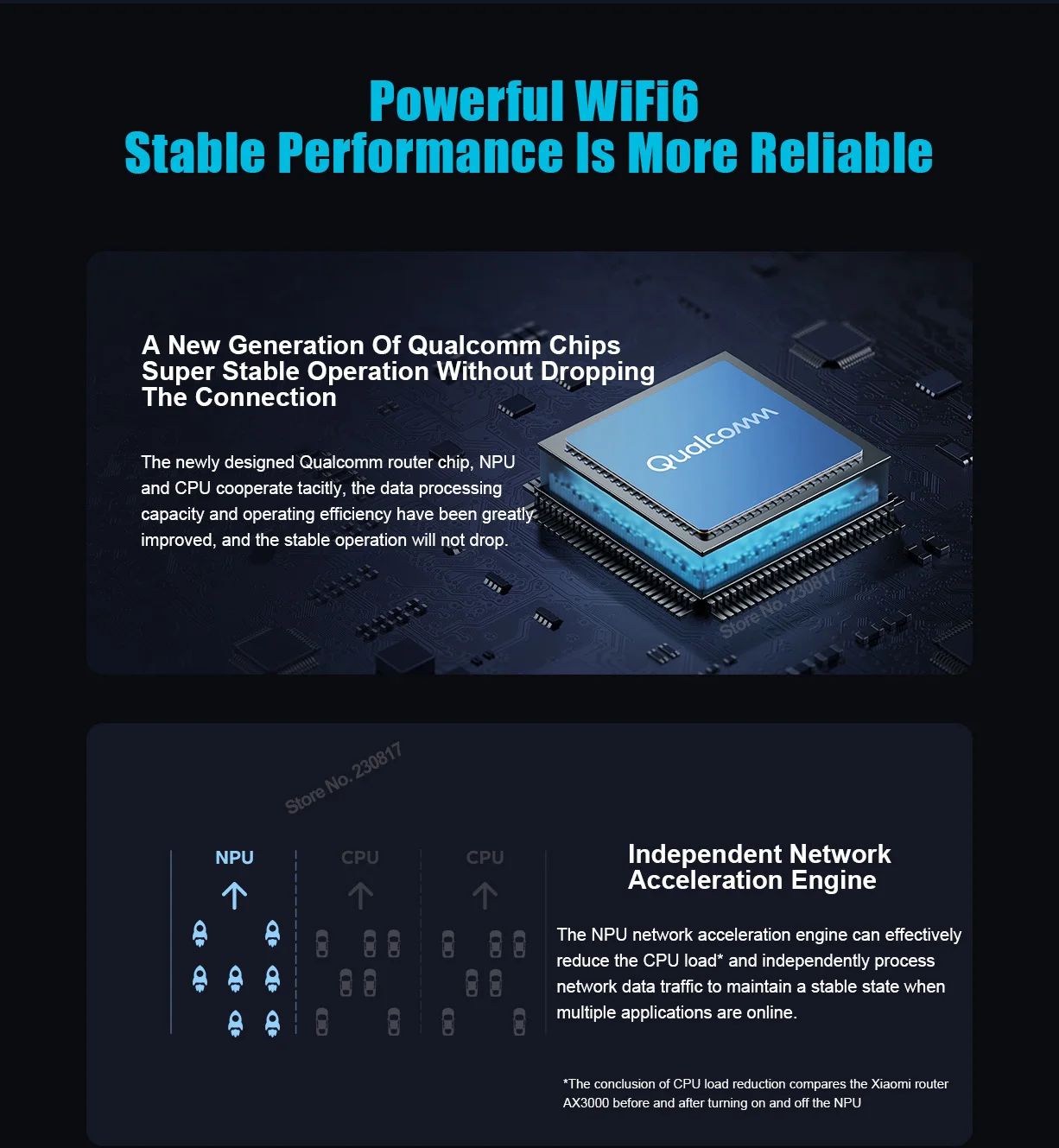

1PQ5000 dual-core 1.0GHz CPU

Network acceleration engine

single core 1.0GHz

RAM

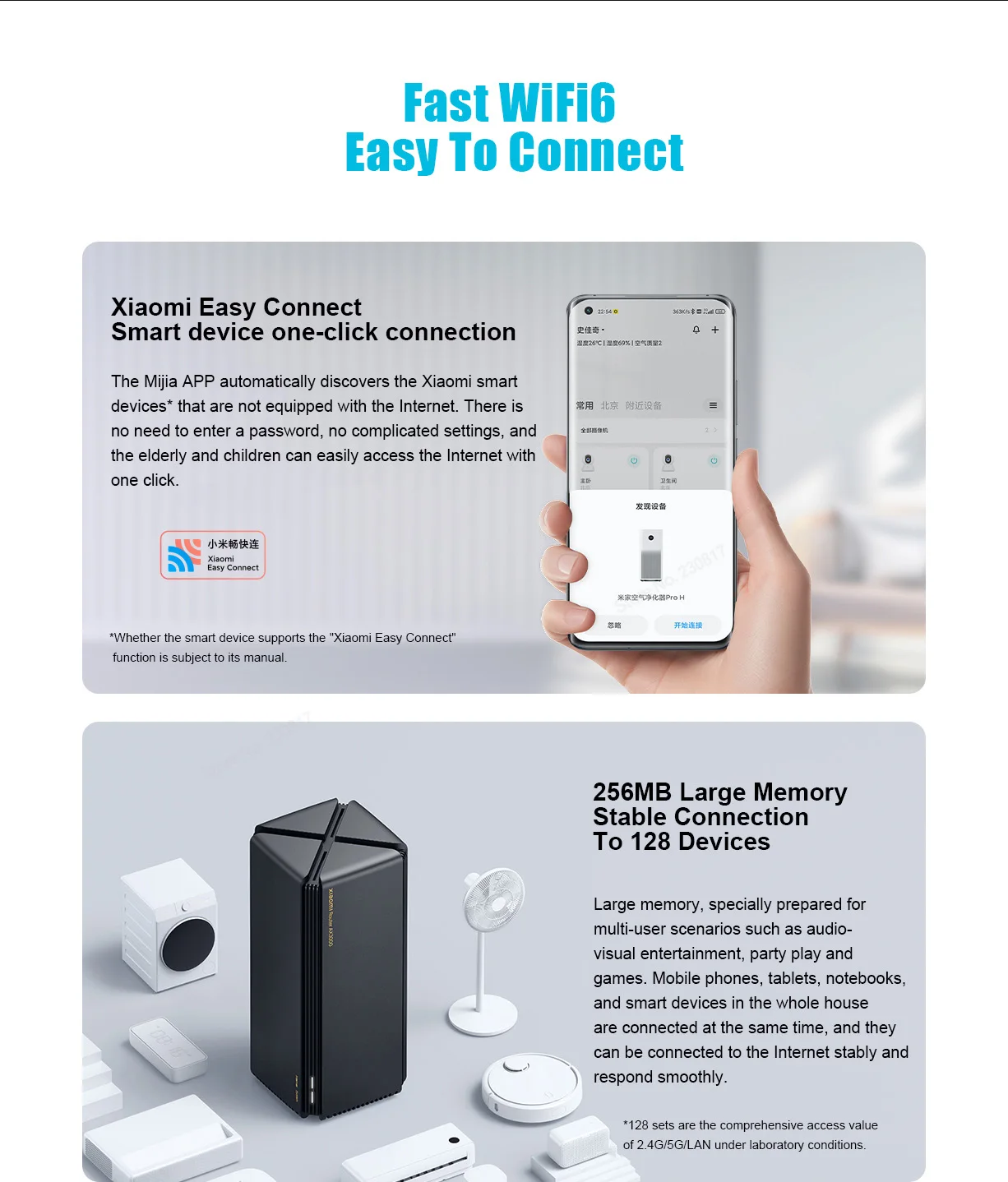

256MB

2,4G Wi-Fi

2x2 (supports up to EEE 802.11x protocol, theoretical maximum rate can reach 574Mbps)

5G Wi-Fi

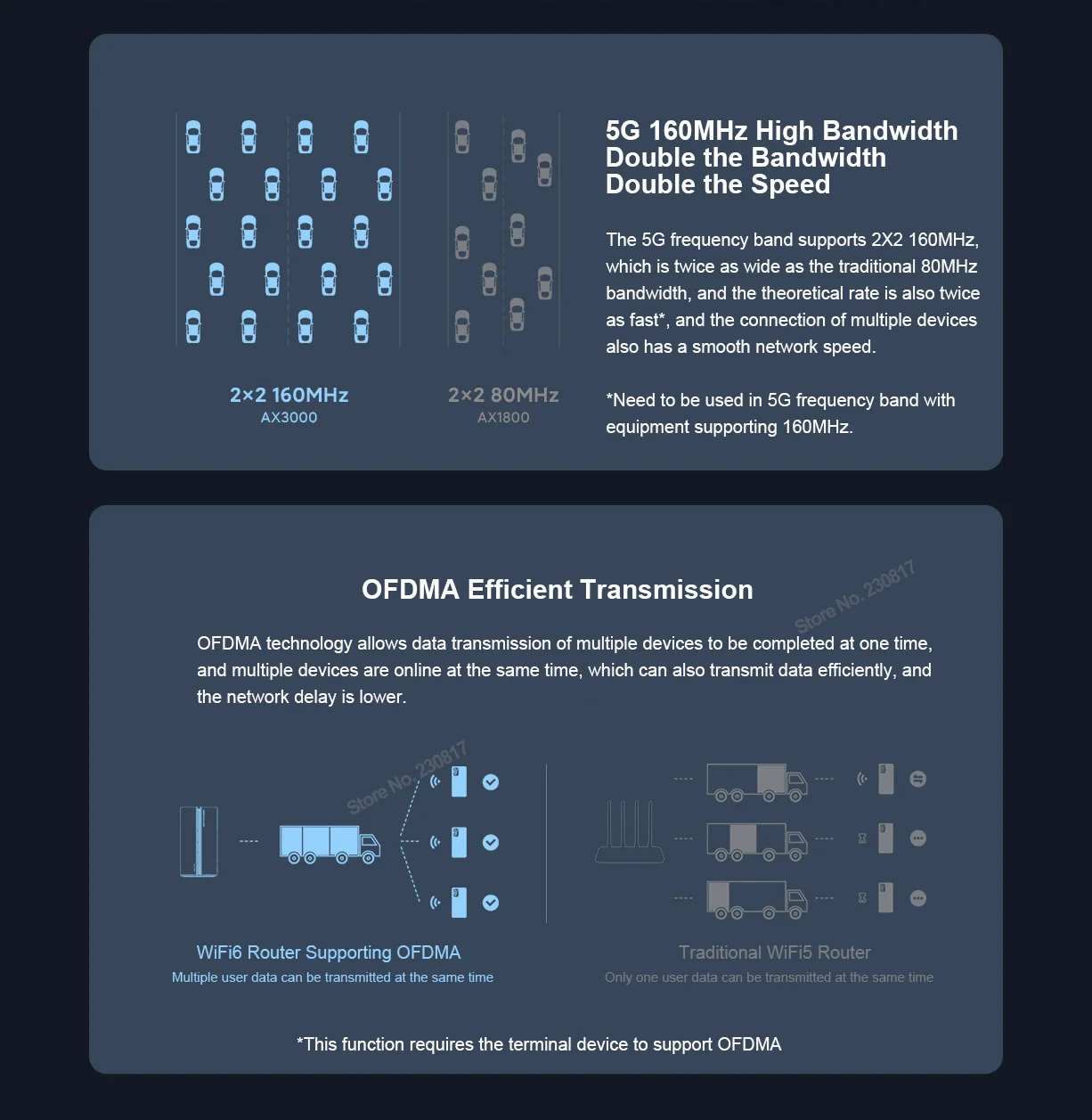

2x2 160MHz (supports up to IEEE 802.11x protocol, theoretical maximum rate can reach 2402Mbps)

Product antenna

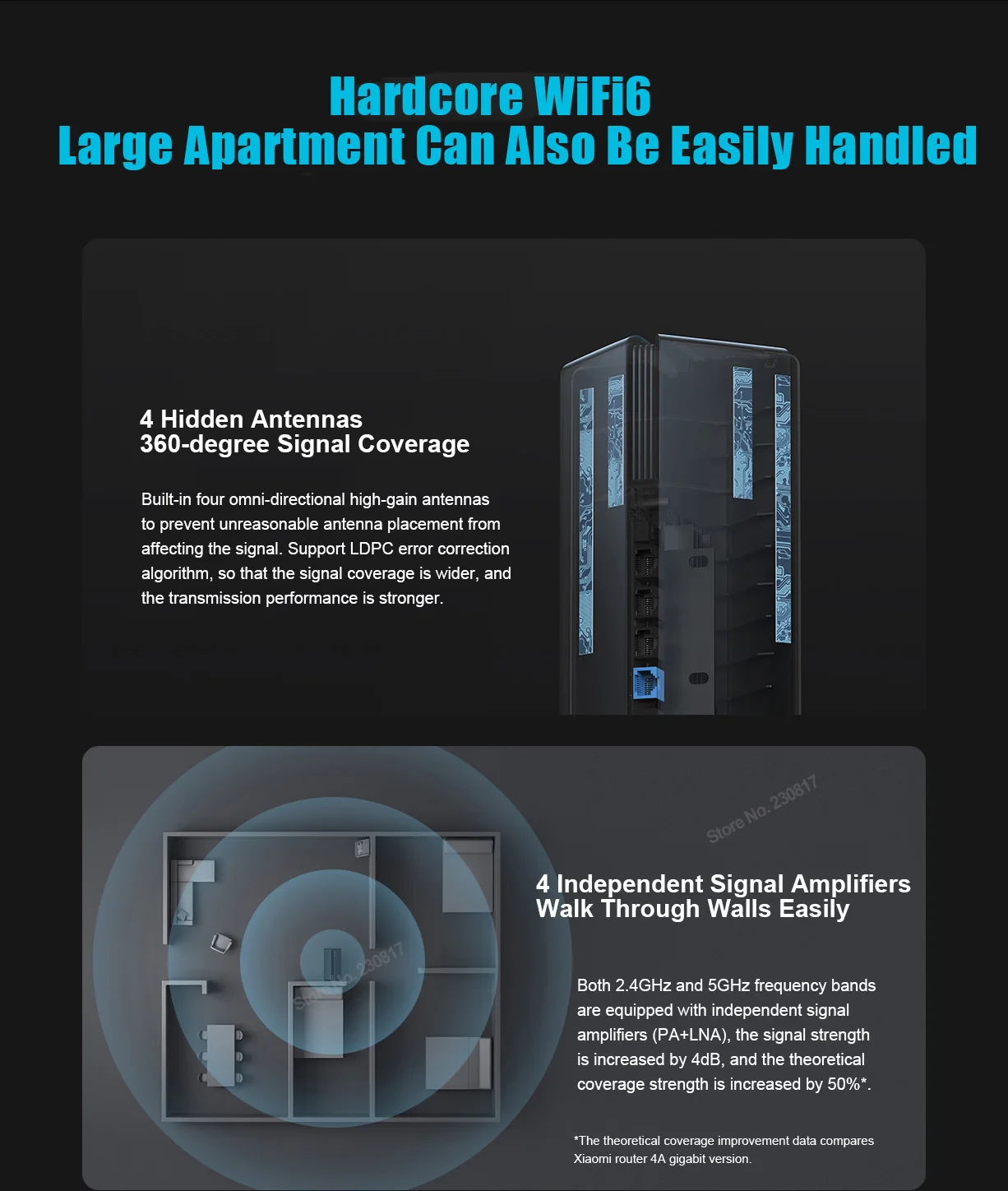

4 built-in antennas

Product heat dissipation

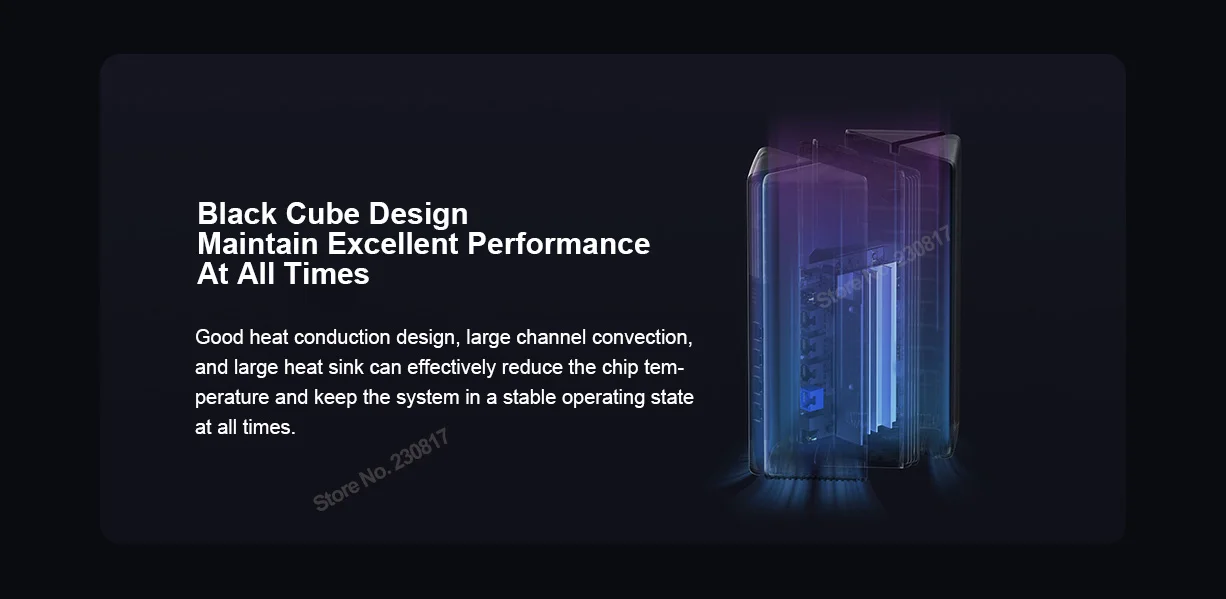

natural heat dissipation

Machine interface

1 10/100/1000M adaptive WAN port (Auto MDI/MDIX)
3 10/100/1000M adaptive LAN ports (Auto MDI/MDIX)

LED indicator

2 (System indicator *1, Internet indicator *1)Tookfun

System reset button

1

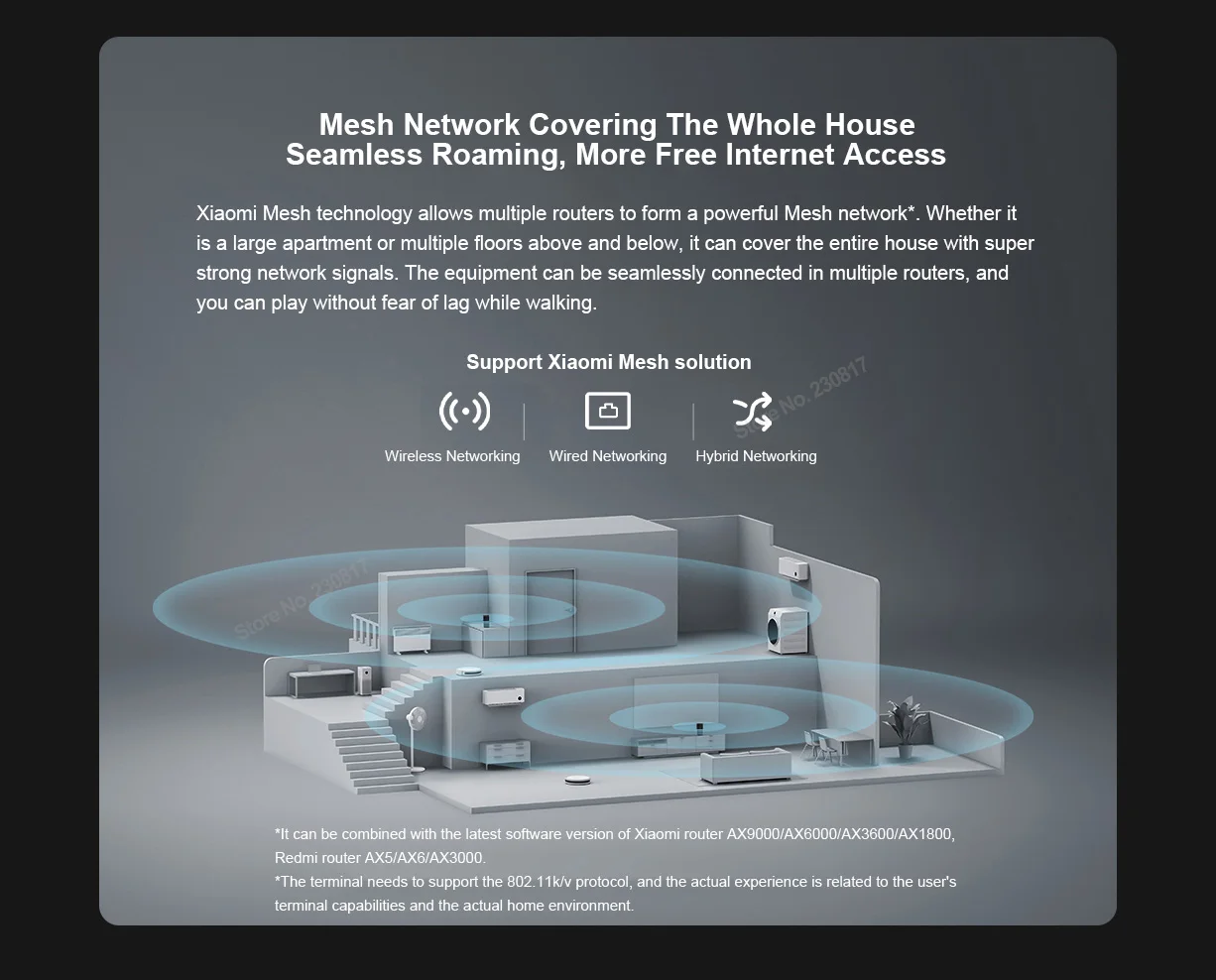

Mesh button

1

Power input interface

1

Protocol standard

IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3/3u/3ab

Certification standards

GB/T9254-2008; GB4943.1-2011

Dual frequency

2.4GHz and 5GHz

Wireless channel

2.4GHz Channel: 1, 2. 3, 4, 5. 6, 7, 8, 9, 10, 11, 12, 13
5GHz Channel: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165

Modulation

11b: DSSS: DBPSK(1Mbps), DQPSK(2Mbps).CCK(5.5/11Mbps)
11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
11n: MIMO-OFDM: BPSK.QPSK, 16QAM, 64QAM. Rate set: MCSO-MCS15.Tookfun
11ac: MIMO-OFDM: BPSK, QPSK. 16QAM. 64QAM, 256QAM. Rate set: MCSO-MCS9 (support 2 streams)
1lax: MIMO-OFDM: BPSK.QPSK.16QAM.64QAM, 256QAM1024QAM, rate set: MCSO-MCS11 (support 2 streams)

Product power supply

12V/1.5A

Operating system

MiWiFi ROM, an intelligent routing operating system based on OpenWRT's deep customization

Wireless security

WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, intelligent anti-scratch
network

Workingenvironment

Working temperature: 0-40℃

Working humidity: 10%-90%RH (non-condensing)

storage temperature: -40-70℃

Storage humidity: 5%-90%RH (non-condensing)

Management application

Support Web, Android, ios
