bottom price china pvc pipe making machine large diameter for water plastic pvc pipe machinery

Share on (1600312764563):


Price:$750,000.00

Quantity:


Product Overview

Description

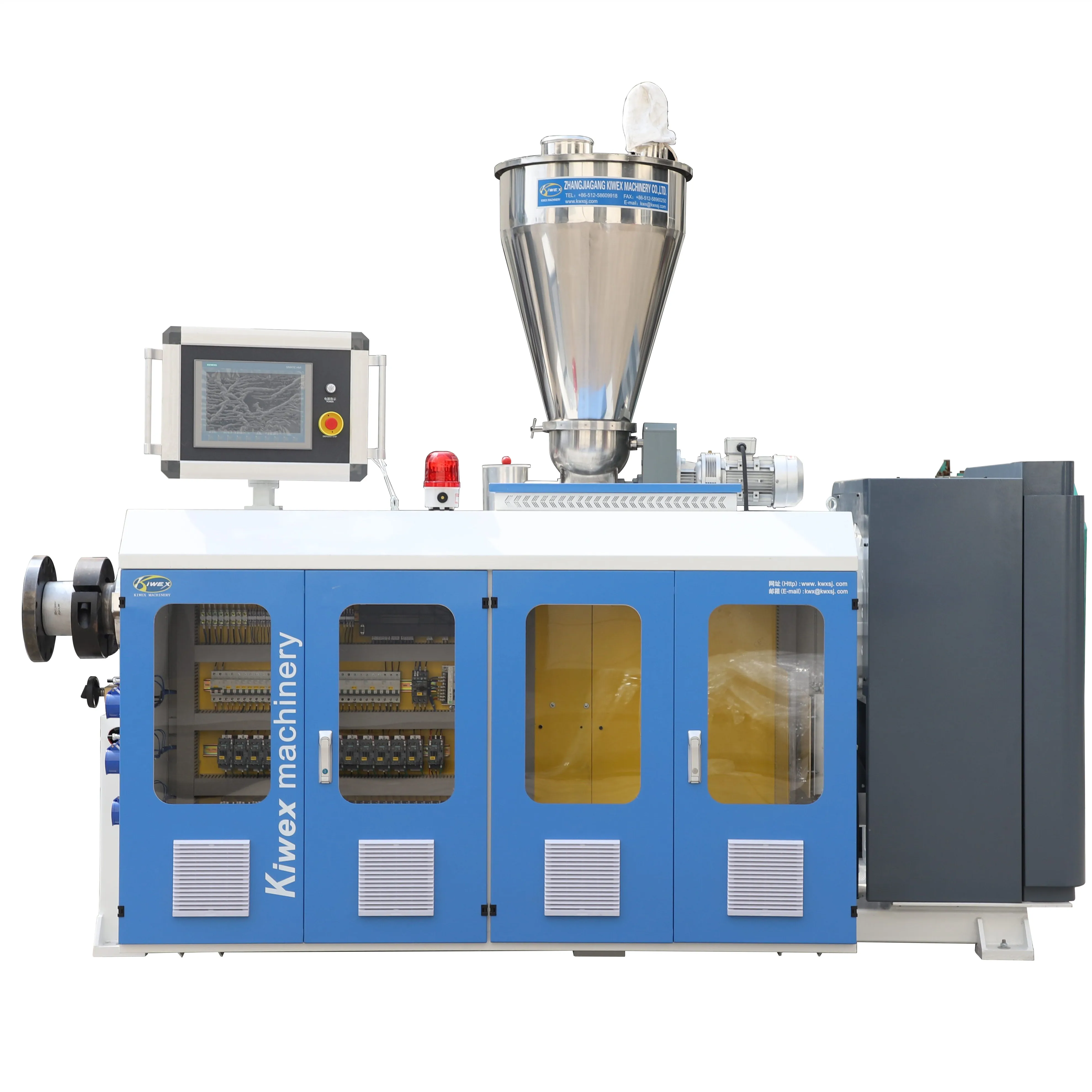

Conical twin screw extruder
1)Adopting high quality screws and gears ,made of 38CrMoAlA treated by percolating nitrogen.
2) Adopting high quality reducer cabinet, driving by inclined gears which have been treated by percolating nitrogen and polishing.

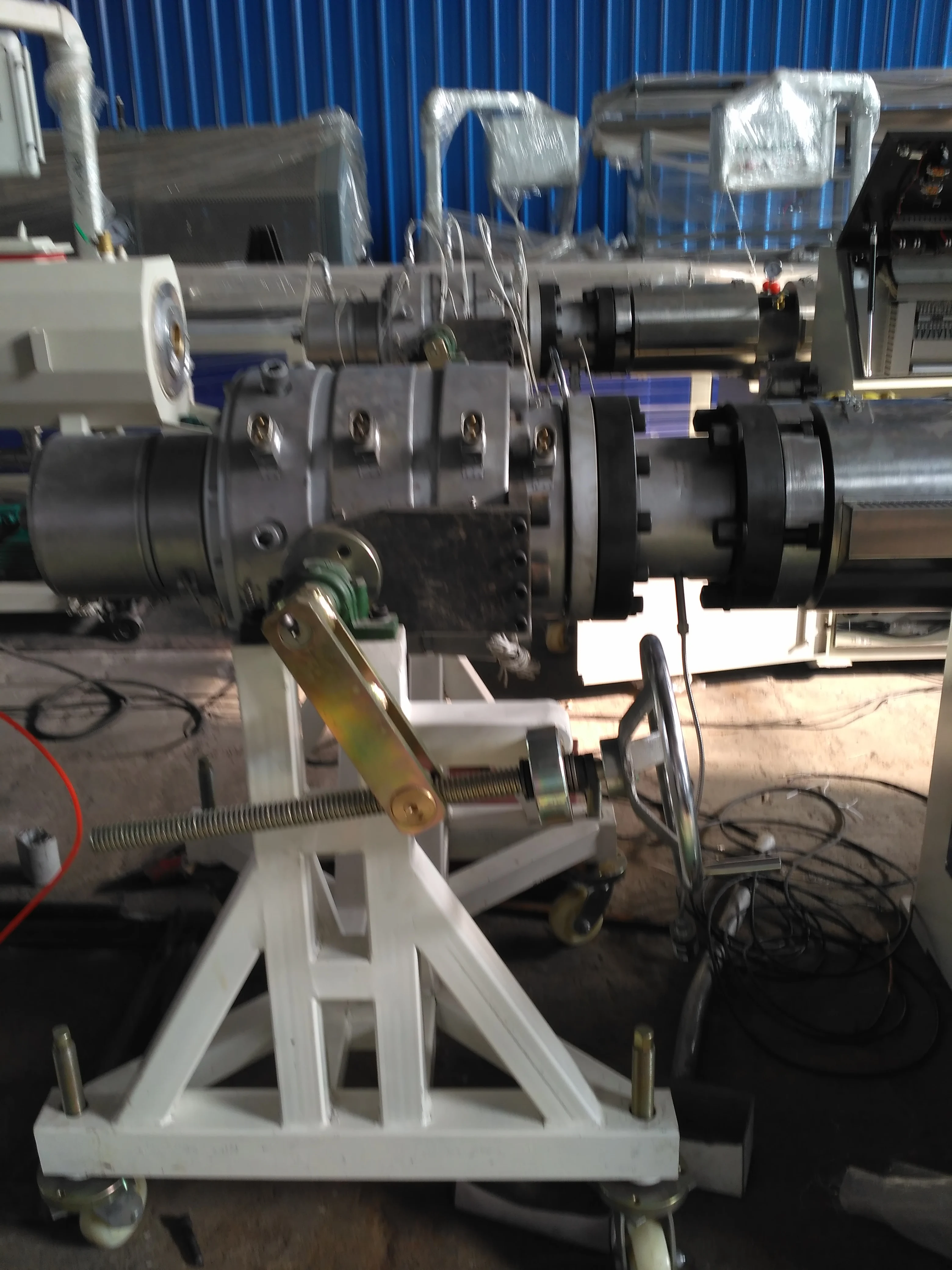

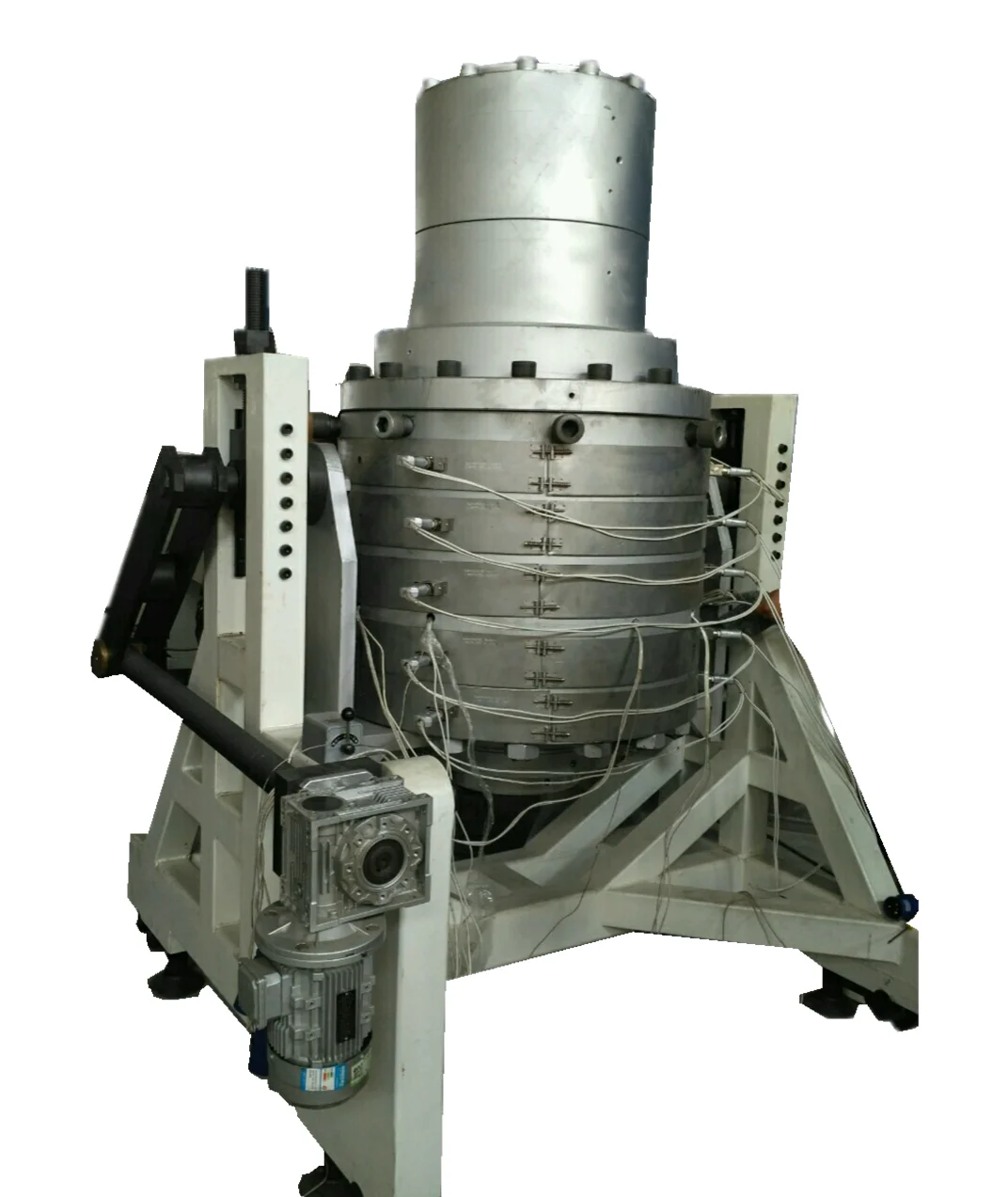

Mould
1)The axle is made of 40Cr so pushing bearing runs stably.
2) Mould has 1 calibrator for each size and 3 pressure classes each size) and made of 40Cr, diameter fixing covers are made of cast copper. With one die head, equipped with three grades of pressure.

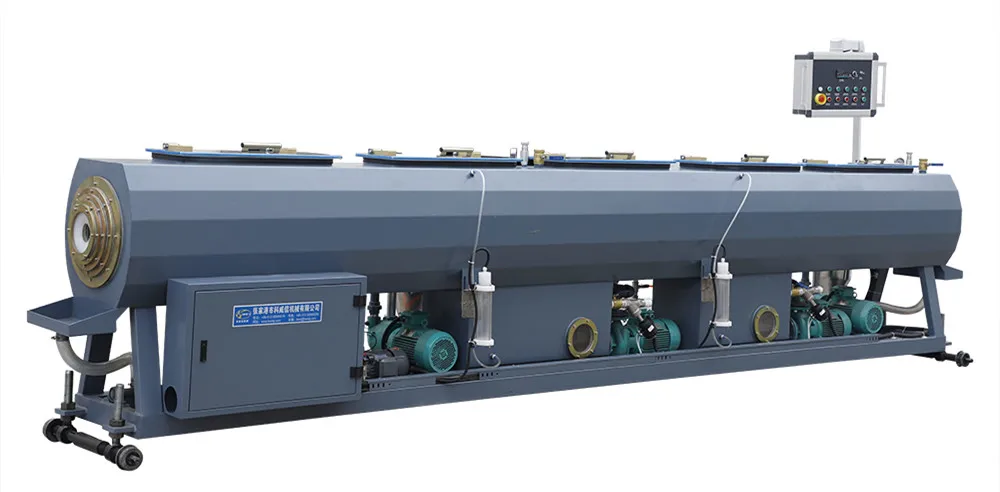

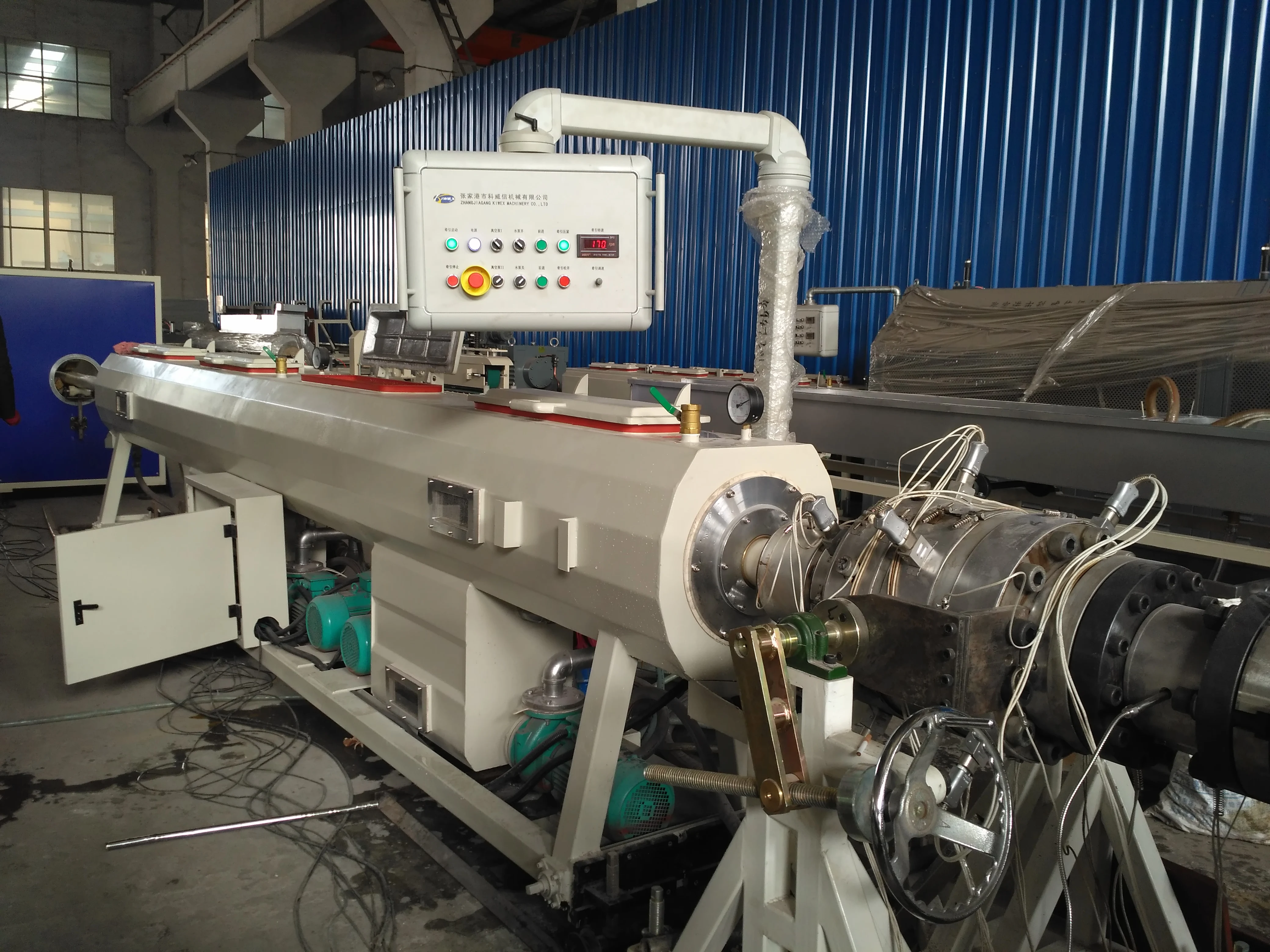

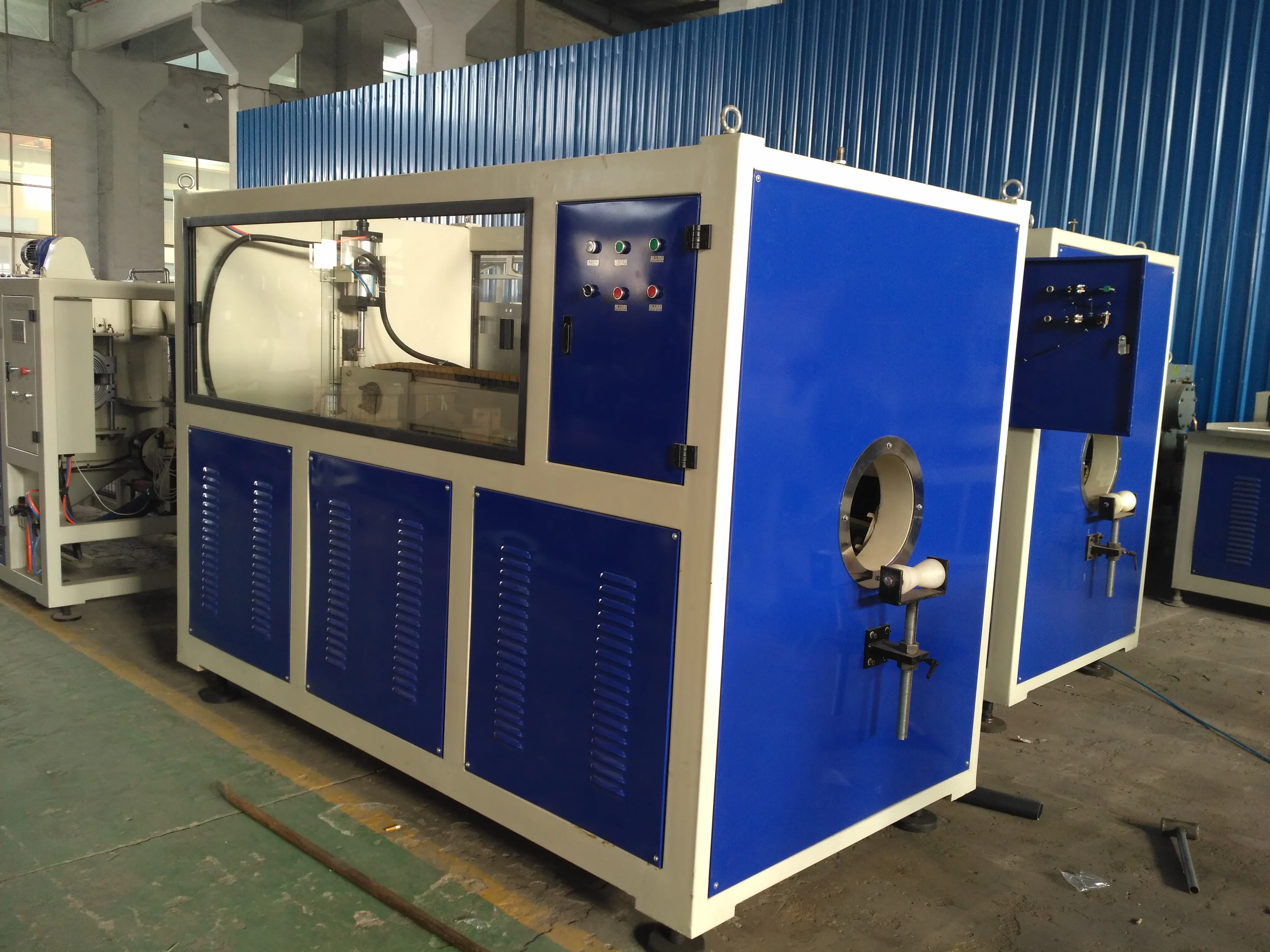

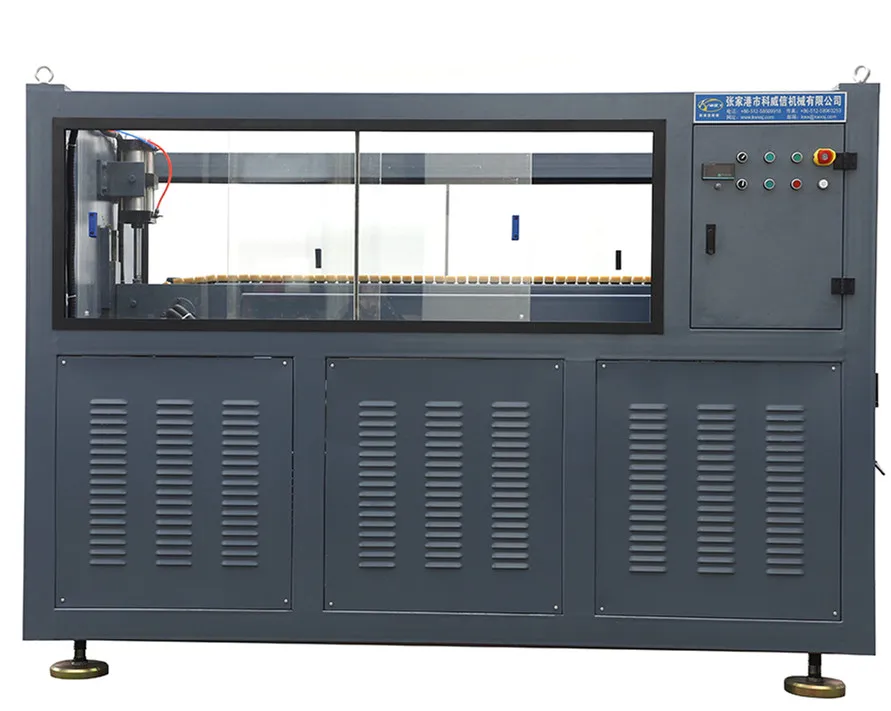

Vacuum Calibration Tank
Water pump uses circling water in box, with temperature control and water level control devices. Nozzles are distributed in high density. The fog nozzles outlets can cool pipes adequately. R type diameter board is equipped in box. Longitude moving device,manual direction adjusting devices are equipped on the vacuum forming machine.


Haul-off unit (3 tracks)
Mode:3-claw pedrail
Clamp mode: Pneumatic/electric
Haul-off speed adjustment: Frequency conversion.

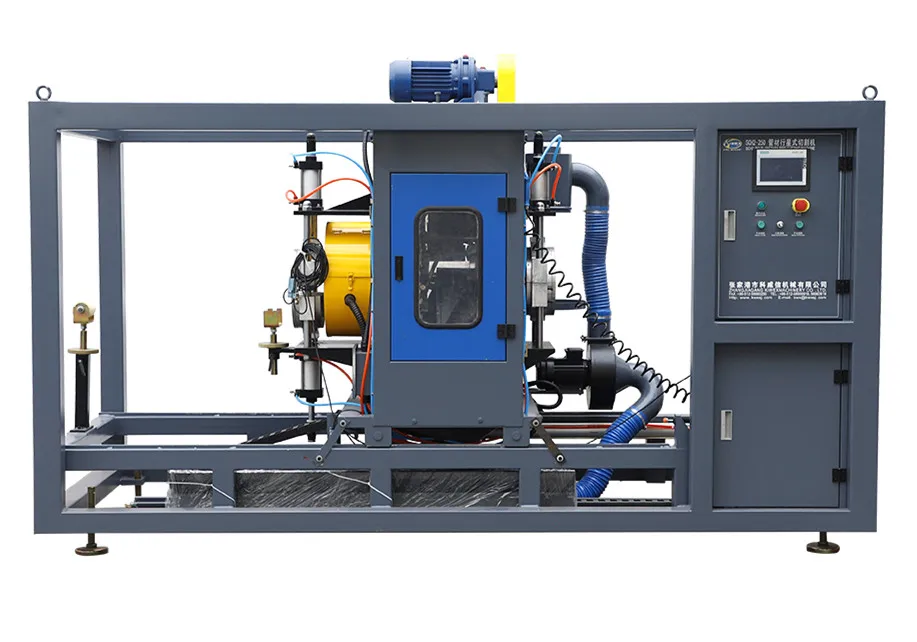

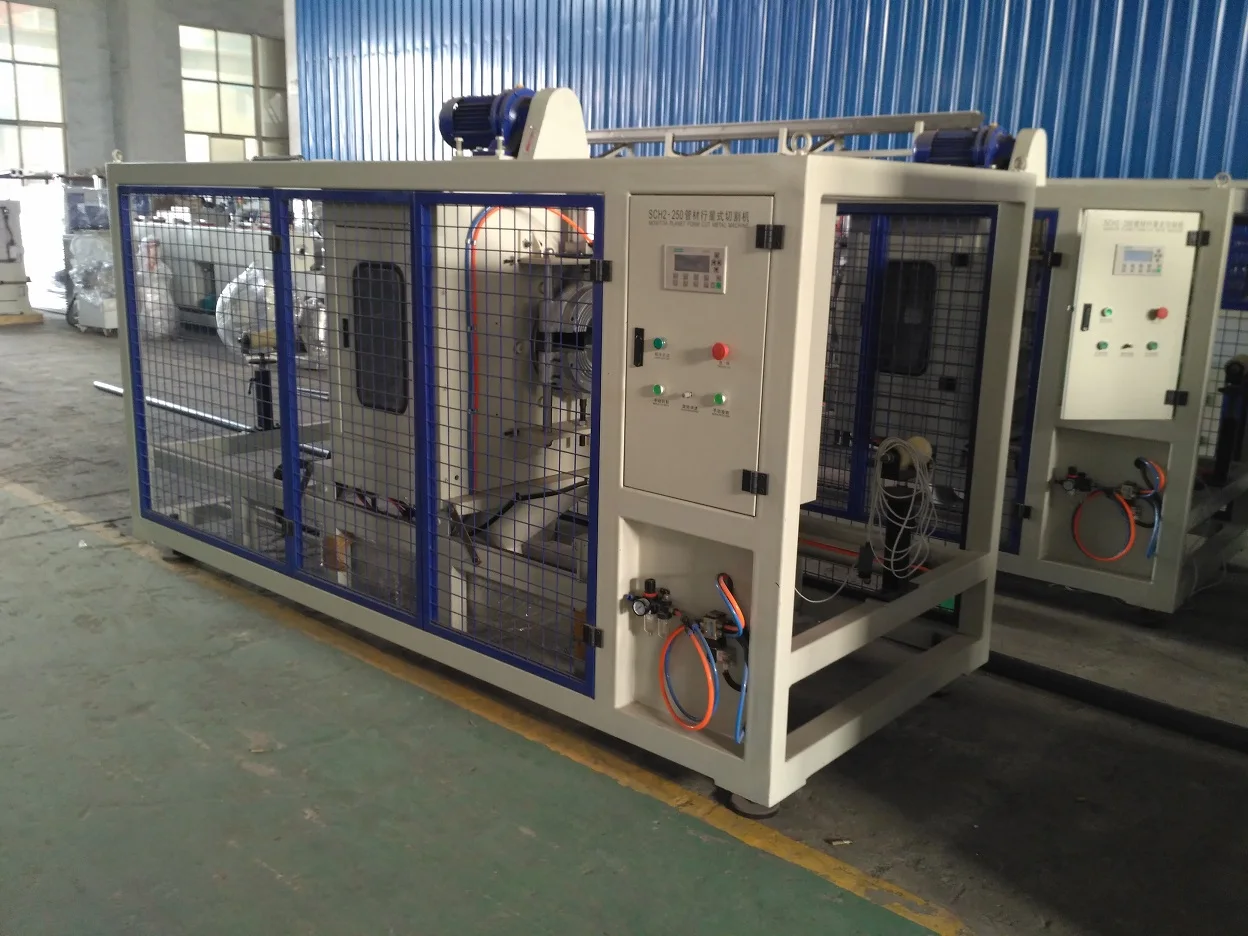

Planetary cutter
Mode:Planet round cutter, with pipe inner cutting device.
Sawdust collector: hop-pocket type
Following move mode: Pneumatic, following mode distance is not lower than 1800mm


Belling Machine(Can be choosen)






Model
Diameter rang (mm)
Output (kg/h)
KWX-75
16-75
250
KWX-110
20-110
250
KWX-160
40-160
250
KWX-250
50-150
250
KWX-400
110-400
450
KWX-630
110-630
750
KWX-800
110-800
1000
KWX-1000
630-1000
1000
