FNIRSI 1014D Dual Channel Input Storage Oscilloscope Digital Signal Generator
- Category: Oscilloscopes >>>
- Supplier: Guilin Qixing District Zhongyinke Electronic Equipment Factory
Share on (1600318154941):
Product Overview
Description
Product Overview

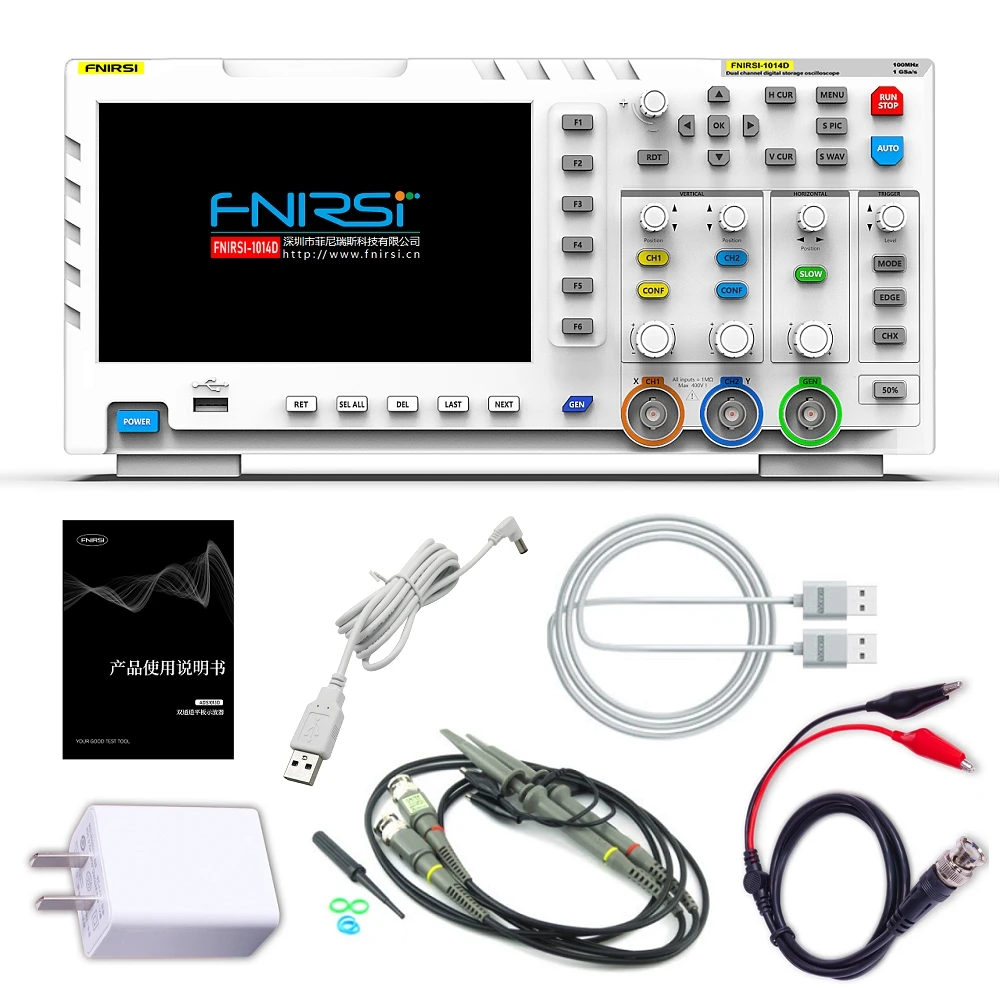

FNIRSI-1014D Digital Tablet Oscilloscope
FNIRSI-1014D is a two in one oscilloscope and signal generator, the real-time sampling rate is 1GSa / s and with 100MHz* 2 ana-log bandwidth, with 7inch TFT LCD display screen, the built-in high-voltage pro-tection module can tolerate up to 400V continuous voltage, without worrying about the oscilloscope burning accident caused by the probe not moving to 10x gear, built in DDS function signal generator and the industry's original chopping output (@ 2.5vpp), all signal frequency step is 1Hz, support 14 kinds of standard function signal and a customizable chopping signal, chopping The output device intercepts part or the whole part of the complex signals measured by the oscilloscope as the output signal of the signal generator, which can store up to 1000 customized cut-off signals. Come on and try it, it will not let you down.
Product Name | FNIRSI-1014D Oscilloscope |
Ana-log band width | 100MHz * 2 |

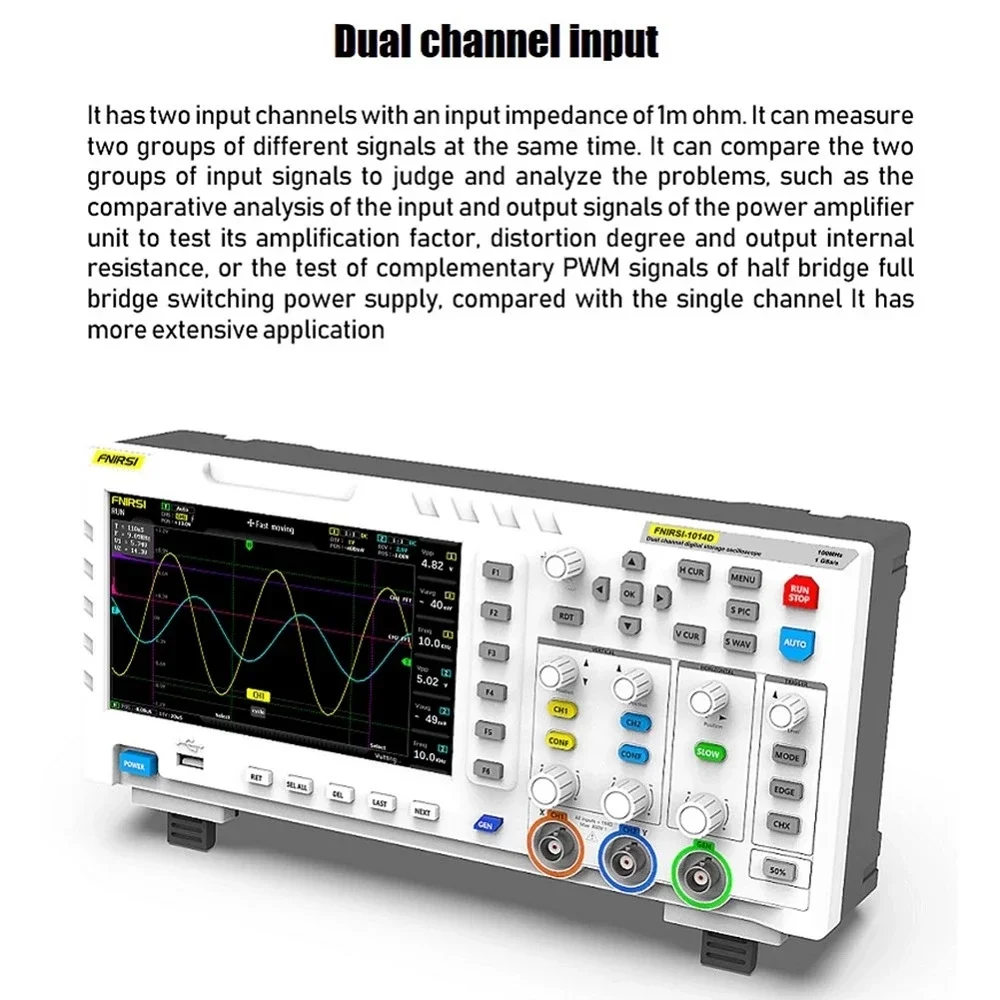

Number of channels | 2 channels |
Maximum real time sampling rate | 1GSa/s |
Vertical sensitivity | 50 mV/div ~ 500 V/div |
Horizontal time base range | 50S/div ~ 10nS/div |
Maximum test voltage | 40 V (1X probe), 400 V (10X probe) |
Storage depth | 240Kbit |
Input resistance | 1MΩ |
ADC precision | 8bits |
Coupling mode | AC/Direct Current |
Trigger mode | Single, Normal, Auto |
Trigger edge | Rising edge/Falling edge |
Related Products
Company Profile
Guilin Zhongyinke Electronic Equipment Factory is located in the famous tourism city of Guilin, China, it is focus on electronic DIY kits like: Intelligent tracking line car, mini tesla coils, soldering practice plate, digital storage oscilloscope and other electronic equipments. Zhongyinke is an electronic equipment factory integrating production, design and R&D. Its electronic equipment products sell well in more than 100 countries around the world.
Our company has more than 15 years of OEM production and export experience. Its excellent product quality, competitive price and advanced after-sales service have been widely recognized by domestic and foreign customers.
The factory not only has its own strong design engineer team, but also tests the quality of raw materials, production lines and products before delivery for more than three times, so don't worry anything, we are a professional electronic equipment factory with premium products.
The factory not only has its own strong design engineer team, but also tests the quality of raw materials, production lines and products before delivery for more than three times, so don't worry anything, we are a professional electronic equipment factory with premium products.
Quality Control
Certifications
Our products have quality assurance, we have TUV, CE, FCC, ROHS and others certificates.
