Series		TO1000 Series (1G Sampling)		TO1112 Series (250M Sampling)
Level
Horizontal Scale Range		2ns/div~100s/div1,2,5 sequence		2ns/div~100s/div1,2,5 sequence
Incremental Time Measurement Accuracy (Full Bandwidth)		Single, "Sampling" mode		Single, "Sampling" mode
		± (1 sampling interval +100ppm× reading +0.6ns)		± (1 sampling interval +100ppm× reading +0.6ns)
		>16 times on average		>16 times on average
		±(1 sampling interval +100ppm× reading +0.4ns)		±(1 sampling interval +100ppm× reading +0.4ns)
		Sampling interval = seconds/grid ÷200		Sampling interval = seconds/grid ÷200
Vertical
A/D Converter		8-bit resolution,each channel sampled simultaneously		8-bit resolution,each channel sampled simultaneously
Vertical Cale Range		2mV/div~10V/div at input BNC		10mV/div~10V/div at input BNC
Vertical Resolution		8bit		8bit
Vertical Sensitivity Range		2mV/div~10V/div		10mV/div~10V/div
Offset Range		±1V(2mV/div~100mV/div)		±1Vmax(100mV/div)
		±10V(200mV/div~1V/div)		±10Vmax (1V/div)
		±50V(2V/div~10V/div)		±50Vmax (10V/div)
Dynamic Range		±5div(8bit)		±5div(8bit)
Optional Analog Bandwidth Limitation, Typical		20MHz,Each channel is independently selectable		20MHz,Each channel is independently selectable
DC Gain Accuracy		±3% FullScale		±3% FullScale
Isolation Between Channels		40dB,DC to the maximum rated bandwidth of each model		40dB,DC to the maximum rated bandwidth of each model
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Sampling Rate Range		1GSa/s		250MSa/s
Acquisition Modes		Normal, Average, Peak, High resolution		Normal, Average, Peak, High resolution
Waveform Interpolation		(sinx)/x		(sinx)/x
Single Sequence	Acquisition Modes	Collection Stop Time		Collection Stop Time
	Normal and Peak	All channels perform single collection at the same time.		Simultaneous single acquisition of all channels
	Average	All channels perform collections for N times at the same time. N can be 2, 4, 8, 16, 32, 64, 128, or 256.		All channels conduct n acquisitions at the same time, and N can take the values of 2, 4, 8, 16, 32, 64, 128, 256
Storage Depth		8Mpts		8Mpts

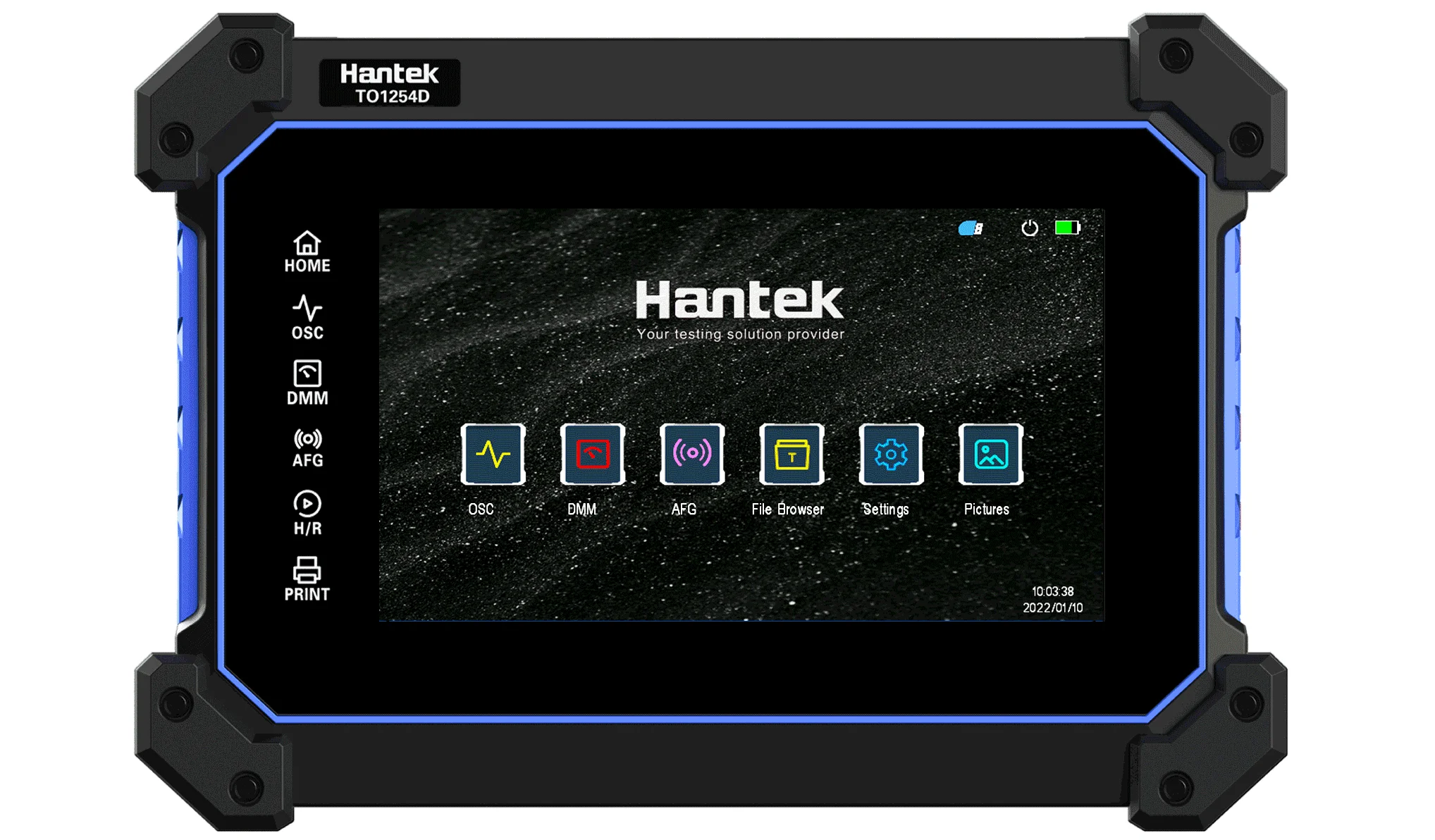

Integrates multiple functions

Digital storage oscilloscope, arbitrary function signal generator, high-precision multimeter, data recorder, frequency meter, FFT spectrum analyzer.

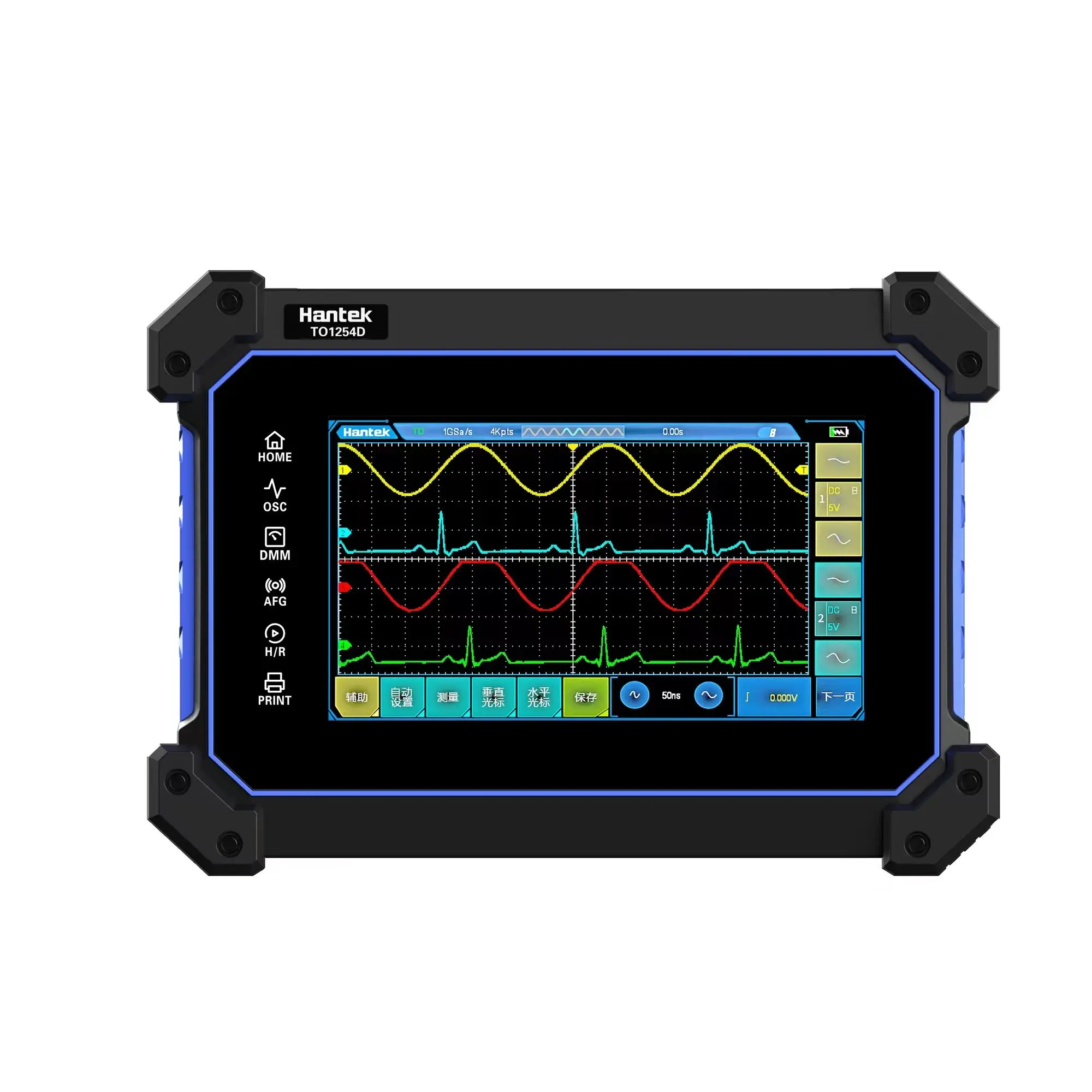

Four channel digital storage oscilloscope

Bandwidth up to 250MHz, 1GSa/ s high sampling rate, 8M large storage depth; Edge, slope, pulse width, video, timeout and other triggers; Up to 42 measurement functions.

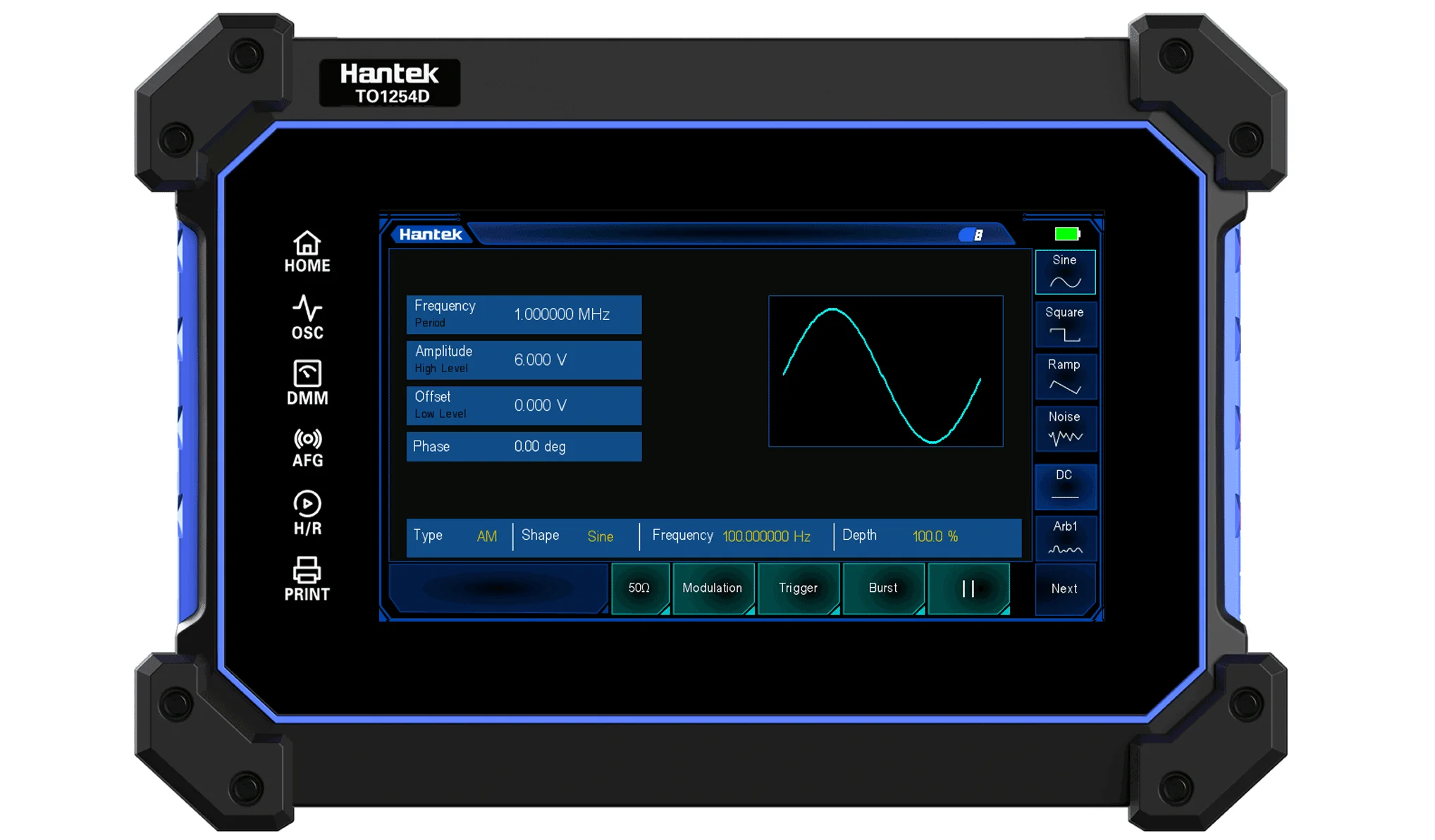

Function of arbitrary function signal generator

The highest output frequency reaches 25MHz, 12bit high resolution, 200Ms / s high sampling rate; Built in a variety of arbitrary waves, support AM / FM modulation, output high resistance and low resistance can be switched.

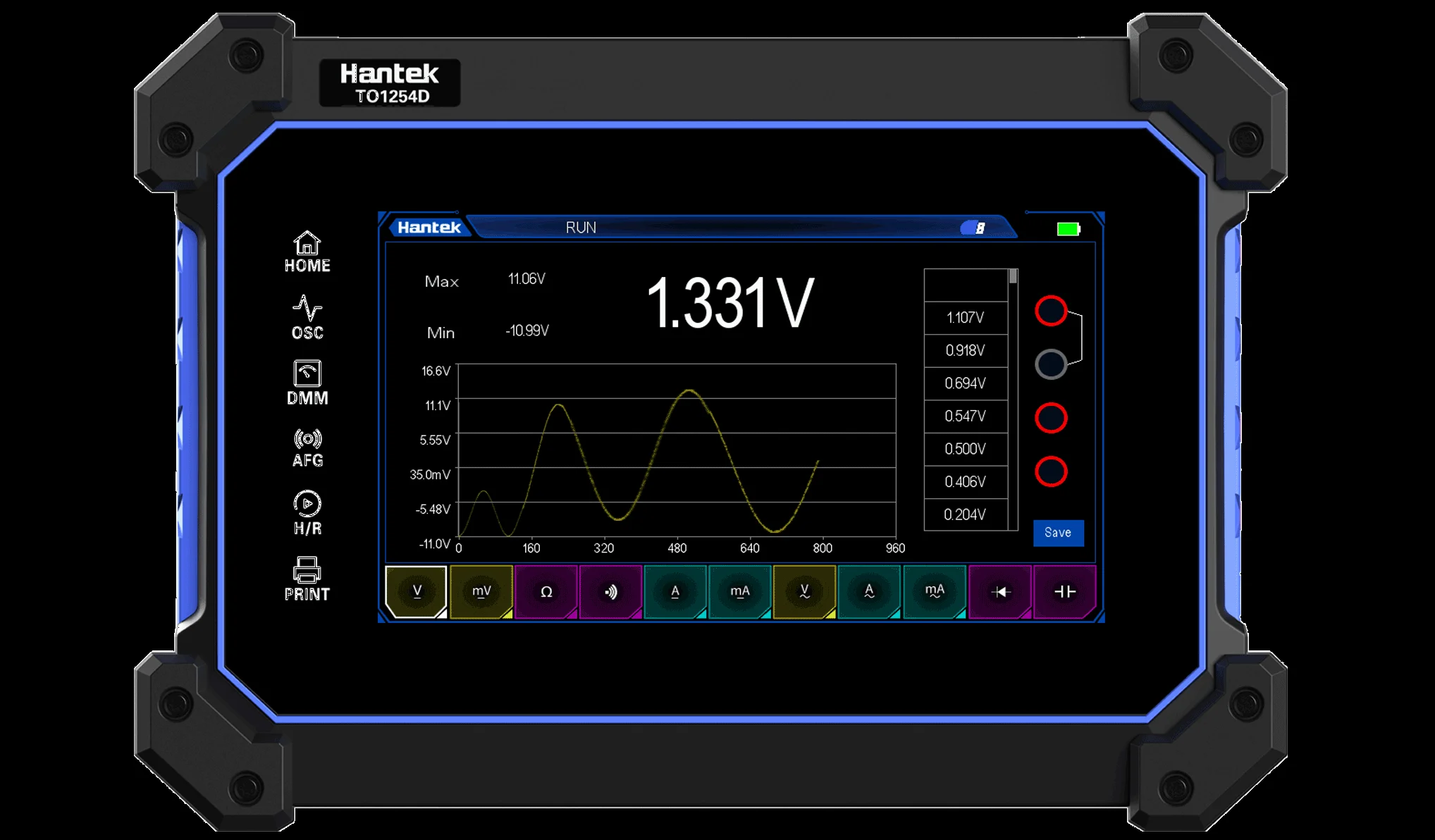

Digital multimeter function

AC and DC voltage, current, resistance, capacitance, diode, on-off measurement; The multimeter has its own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.

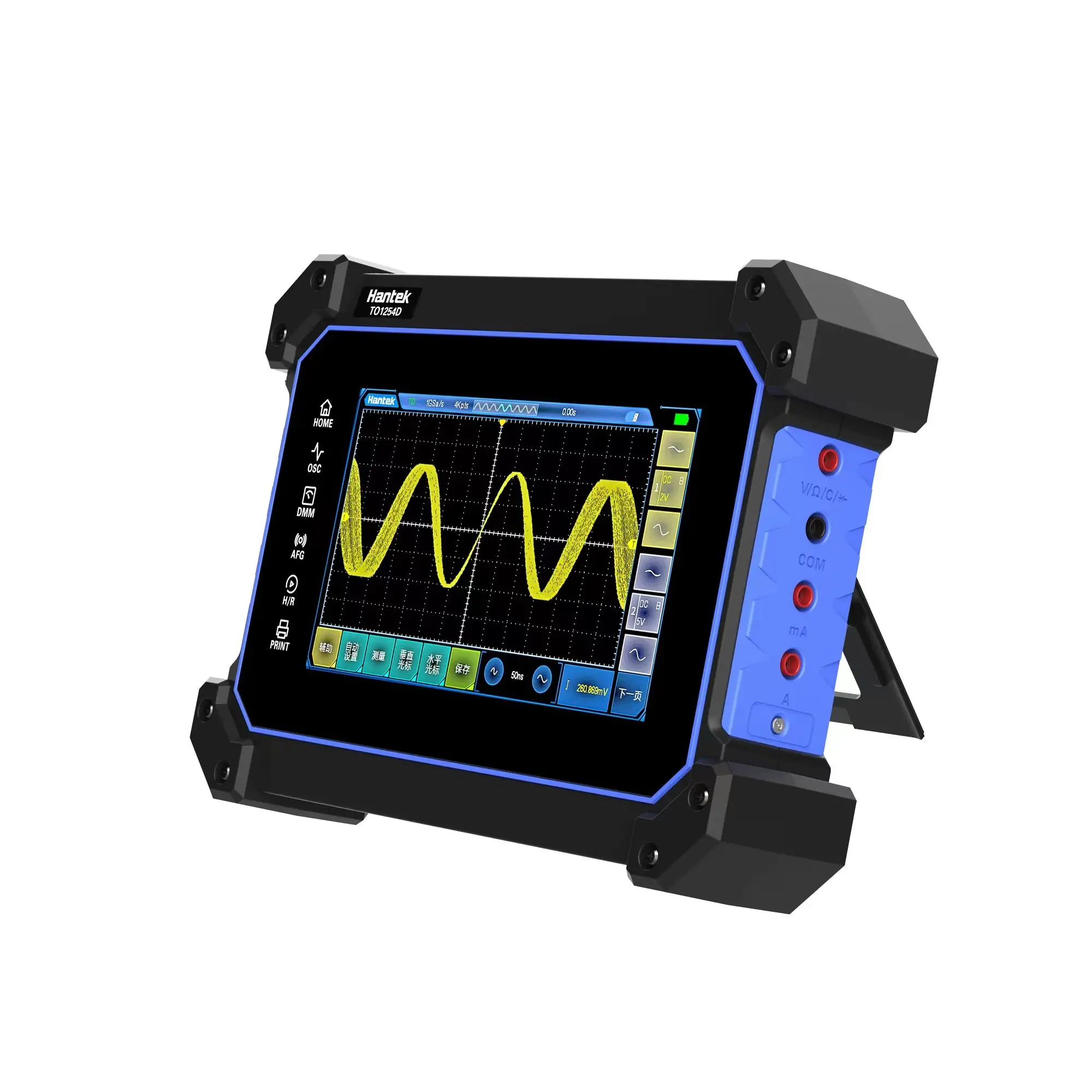

Suspension foot,hands-free

Unique suspension foot design, free hands; It can be used and put at any time. It is anti falling and anti-seismic, sturdy and durable.
