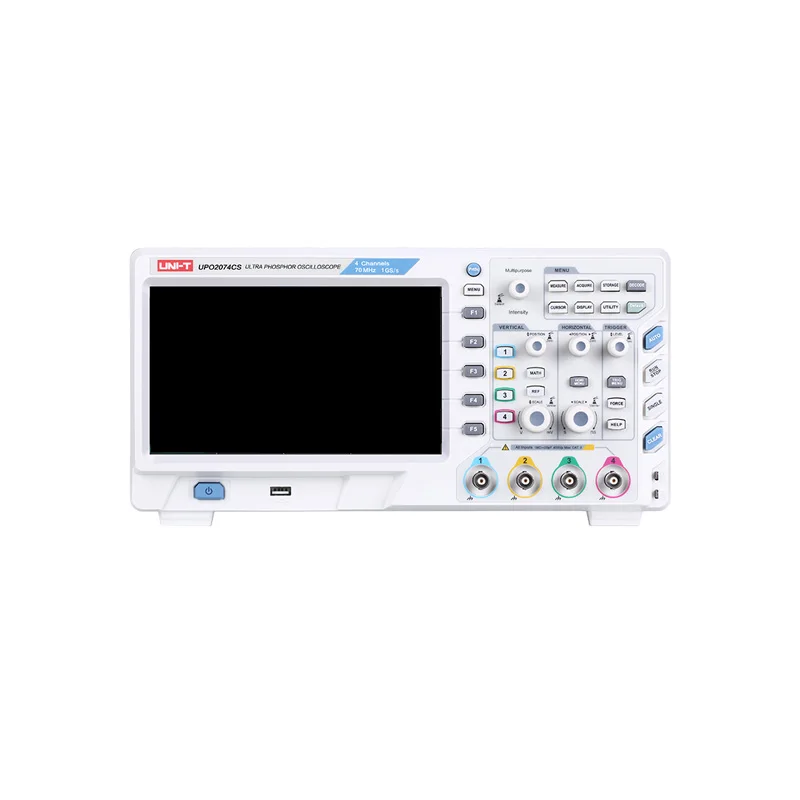

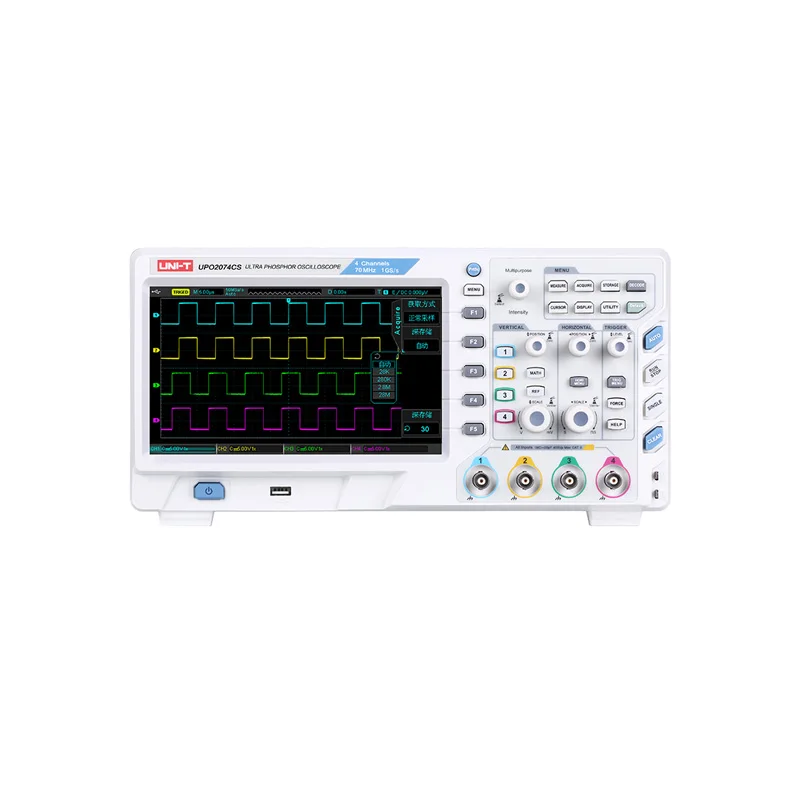

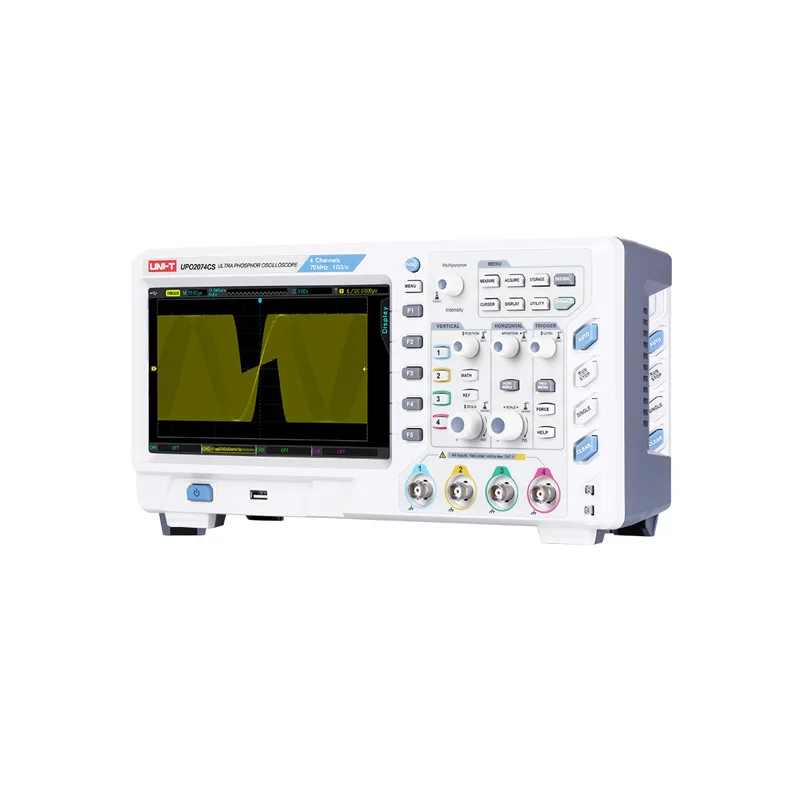

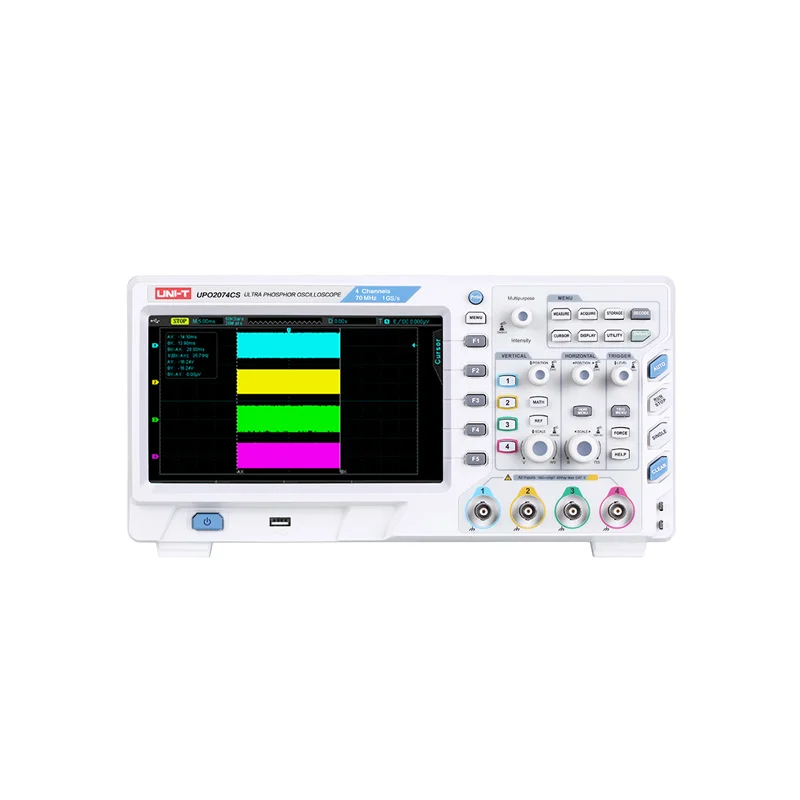

UNI T UPO2074CS USB Digital Fluorescent Storage Oscilloscope 4 Channels 70MHz 1GSa/s
- Category: Oscilloscopes >>>
- Supplier: Shenzhen Ever Good Electronic Co. Ltd.
Share on (60711592946):
Product Overview
Description
UNI-T UPO2074CS USB Digital Fluorescent Storage Oscilloscope 4 Channels 70MHz 1GSa/s
Features
UPO2000CS series digital oscilloscope is based on UNI-T’s unique Ultra Phosphor technology. A multi-functional, high performance oscilloscope that is easy to use, with excellent technical specifications, a perfect combination of many functionalities that can help users to quickly complete testing. UPO2000CS series is aimed at satisfying the most extensive oscilloscope markets, including communications, semiconductors, computers, aerospace, defense, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, R&D, education etc.
Technical Parameters
| Specifications | UPO2074CS |
| Analog Bandwidth | 70 MHz |
| Channels | 4 |
| Sample Rate | 1GS/s(Single Channel) |
| Memory Depth | 28Mpts(Each Channel) |
| Waveform Capture Rate | 50,000wfms/s |
| Time Based Scale | 5ns/div~ 50s/div |
| Input Impedance | (1MΩ±2%)//(20pF±3pF) |
| Vertical Sensitivity Scale | 1 mV/div ~20 V/div(1 MΩ) |
| DC Gain Accuracy | ±3% Full Scale |
| Waveform Record | MAX, 65,000 Frames |
| Trigger (Optional Accessories) | Edge, Pulse Width, Alternate, Runt, Nth Edge, Delay, Duration, Setup/Hold, Slope, Vedio, Pattern, RS232/UART, I2C, SPI |
| Bus Decode(Optional Accessories) | RS232/UART,I2C,SPI |
| Waveform Operation | A+B, A-B, A×B, A/B, FFT, Logic Operation, Editable Advanced |
| Auto Measurement | Maximum,Minimum, Peak-Peak, Top, Bottom, Amplitude, Cycle Mean, Mean, Middle, Cycle RMS, RMS, Overshoot, Preshoot, Frequency, Cyle, Rise Time, Fall Time, Positive Pulse, Negative Pulse, Positive Duty Ratio, Negative Duty Ratio, DelayA→B,DelayA→B, PhaseA→B, PhaseA→B, Area, Cycle Area Measurment |
| Number of Measurements | Display 5 measurements at the same time |
| Measurement Statistic | Average, Max, Min, Standard Deviation, Number of Measurements |
| Frequency Counter | Hardware 6 bits counter |
| Display Type | 8 Inches TFT LCD |
| Display Resolution | 800 Horizontal×RGB×480 Vertical Pixels |

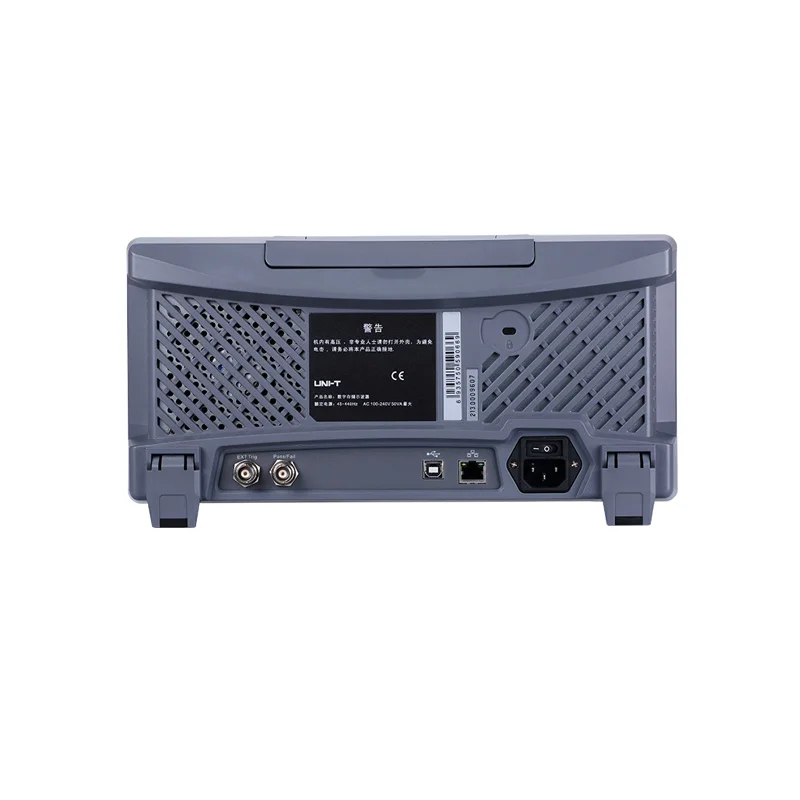

| Standard Interface | USB Host, USB Device, LAN, AUX OUT |
| General Parameters | |
| Power | 100V~240VACrms,50Hz/60Hz |
| LCD Size | 8 Inches TFT LCD, WVGA(800×480) |
| Product Color | Ivory White and Gray |
| Product Weight | 3.5 kg |
| Product Size(W×H×D) | 336mm×163.8mm×105mm |
| Standard Accessories | Probe×2(1×, 10×switchable, 2 channels), Probe×4(1×, 10×switchable, 4 channels), National Standard Power Cord,USB Cable, Software CD, Quick Guidance |
| Standard Individual Packing | Carton |
| Standard Quantity Per Carton | 2 PCs |
Standard Carton Measurement (L×W×H) | 550mm×220mm×325mm |
| Standard Carton Gross Weight | 9.5 kg |
| Optional Accessories* | LA Module, 25MHz Function/Arbitrary Waveform Generator |
| Decoding Options: RS232/UART Decoding Suites, I2C Decoding Suite, SPI Decoding Suite | |
