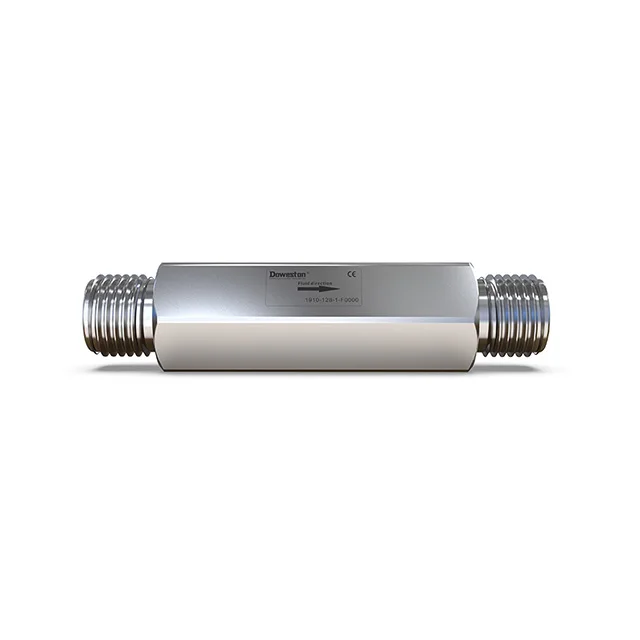

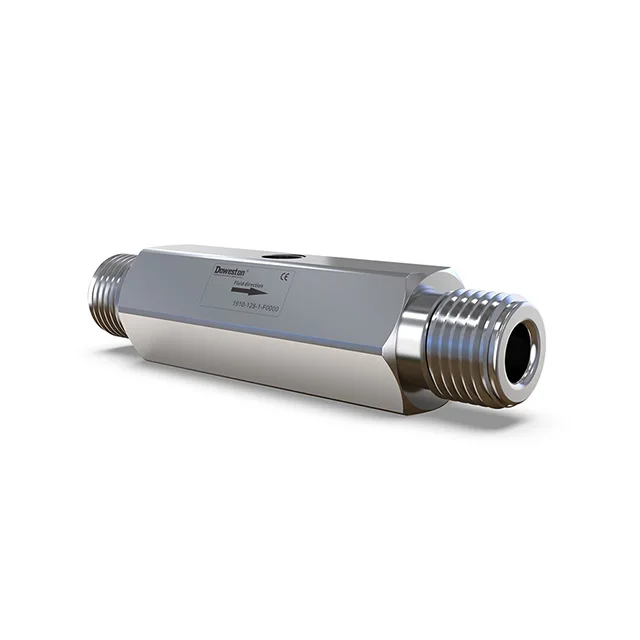

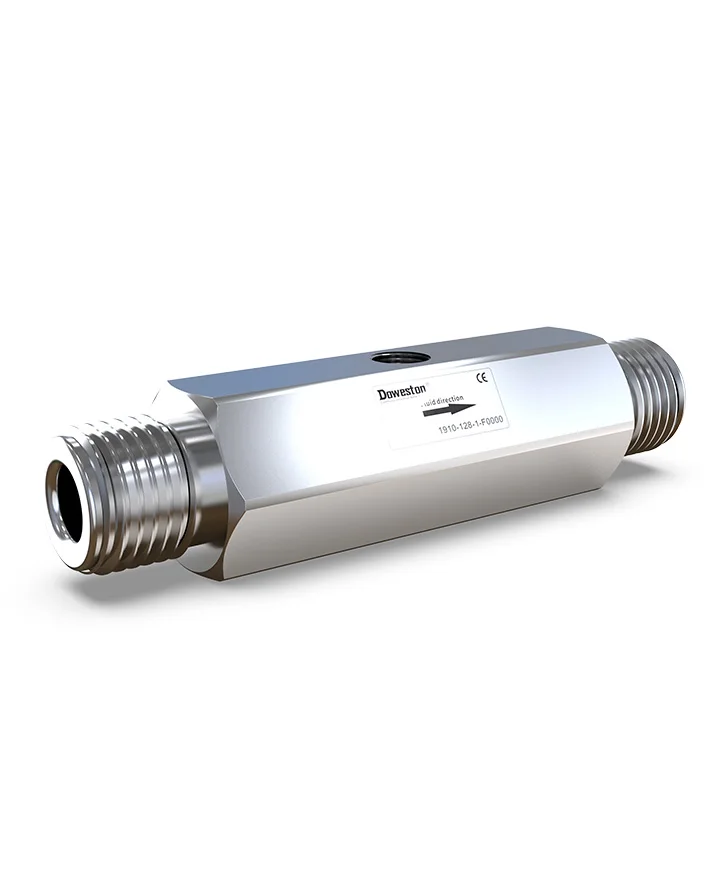

Турбинный расходомер с наружной резьбой

The basic principle of the FTR-1600E external thread turbine flowmeter: the fluid flows through the sensor housing. Because the blades of the impeller have a certain angle with the flow direction, the impulse of the fluid makes the blades have a rotating moment. After overcoming the friction torque and fluid resistance, the blades rotate. After balance, the speed is stable. Under certain conditions, the speed is proportional to the flow rate. Because the blade has magnetic permeability, it is in the magnetic field of the signal detector (composed of permanent magnets and coils). The rotating blade cuts the magnetic field lines periodically. The magnetic flux of the coil is changed, so that electrical pulse signals are induced at both ends of the coil. This signal is amplified and reshaped by the amplifier to form a continuous rectangular pulse wave with a certain amplitude, which can be transmitted to the display instrument remotely to display the instantaneous flow rate and flow rate of the fluid. Cumulative amount. Within a certain flow range, the pulse frequency f is proportional to the instantaneous flow Q of the fluid flowing through the sensor.

■　The pressure loss is small, and the impeller has anti-corrosion function

■　Using advanced ultra-low power consumption single-chip microcomputer technology, the whole machine has strong functions, low power consumption and superior performance

■　Intelligent flow display with nonlinear precision compensation function. The accuracy of the correction formula is better than ±0.02%

■　Using EEPROM to protect the cumulative flow and meter coefficient from power failure, the protection time is more than 10 years

■　Using high-performance MCU central processing unit to complete data acquisition, processing, display output, and simultaneous display of cumulative flow and instantaneous flow

■　The amplifier can be separated from the sensor (separation distance 15m)

■　Strong anti-magnetic interference and vibration ability, reliable performance and long life

■　Corrosion resistant, suitable for acid and alkali solutions

■　Low lower limit flow rate, wide measuring range

■　Can be made into a plug-in type, suitable for large-caliber measurement, with low pressure loss, low price, continuous flow out, easy installation and maintenance.

■　Wide range, medium and large diameters can reach 1:20 and small diameters are 1:10
