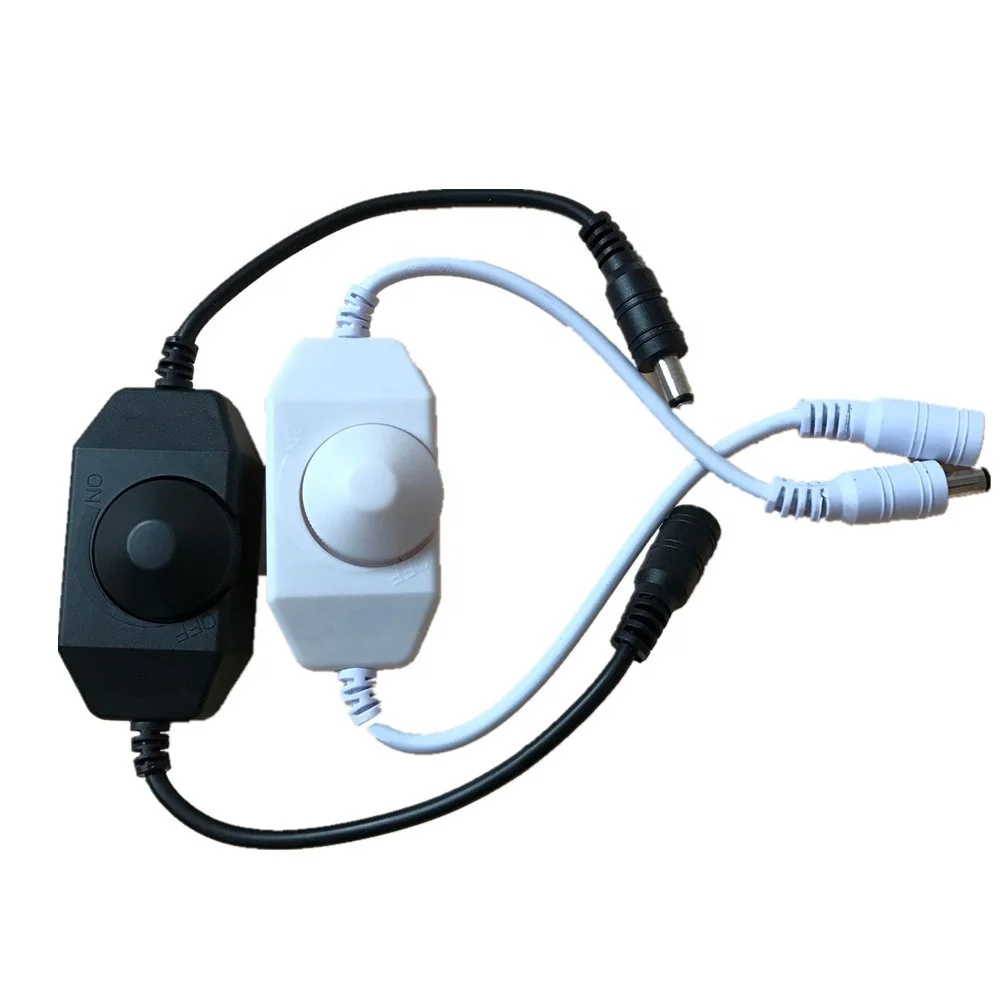

DC5V 12V 24V White / Black Shell Manual Rotary Inline LED Dimmer Switch for Control Single Color LED Strips Light
- Category: >>>
- Supplier: Shenzhen Xingzhiyou Technology Co. Ltd.
Share on (1600318688274):
Product Overview
Description

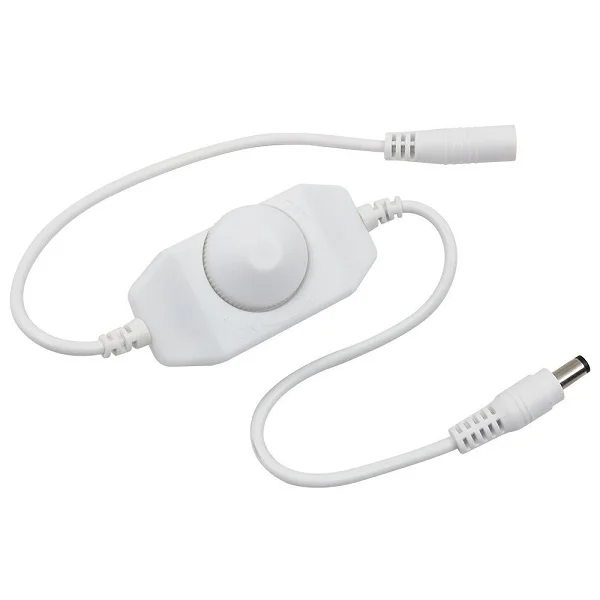

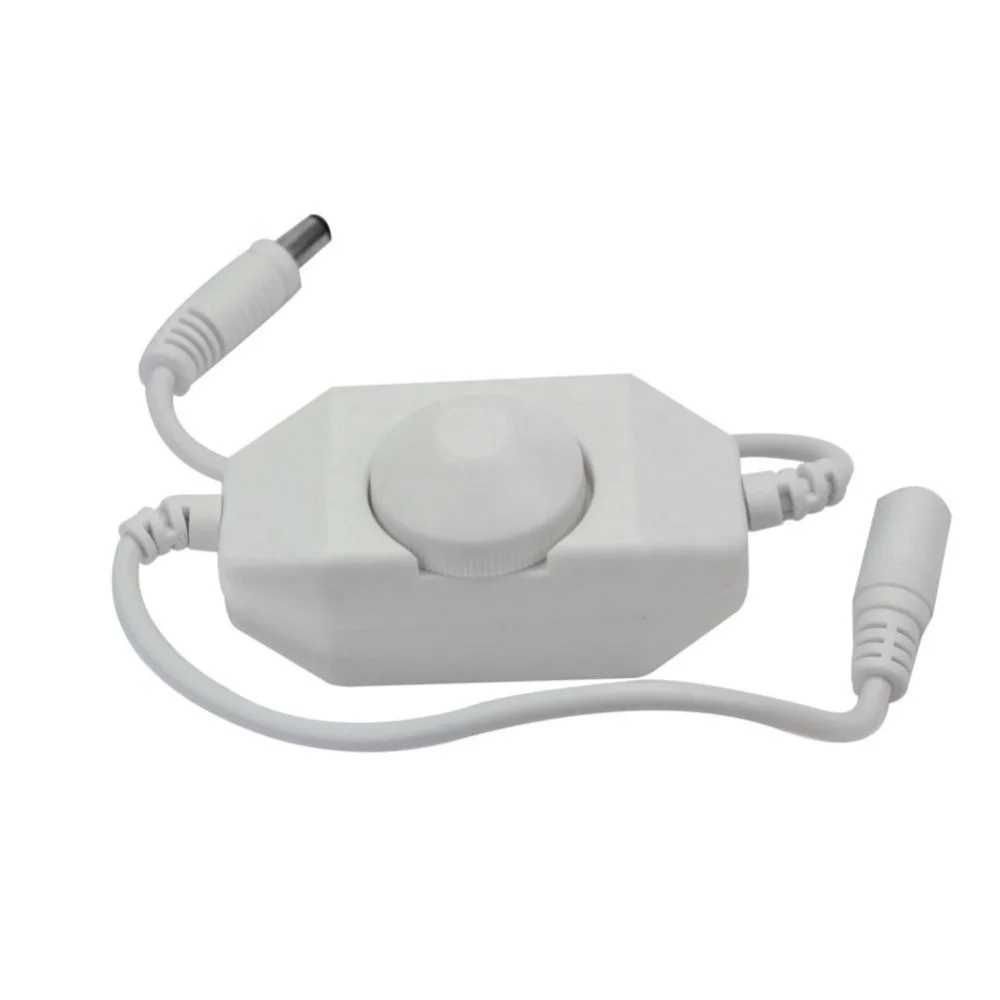

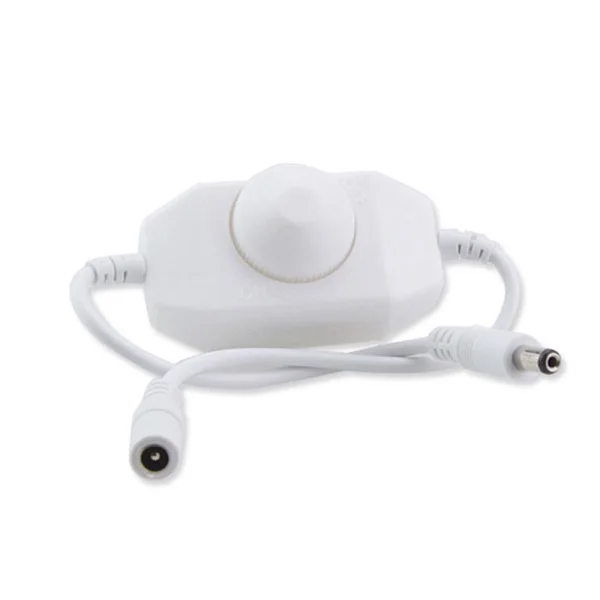

Inline LED dimmer
Single color dimmer can achieve step-less dimming. It adopts the knob control manner. According to actual needs, users can transfer the light to the appropriate brightness.
DC5V 12V 24V Manual Rotary Inline LED Dimmer Switch for Control Single Color LED Strips Light White Black Colors
Product Description
Technical Parameters
Working temperature: -20 ~ 60℃
Supply voltage: DC5V, 12V~24V optional (specify the required voltage on orders)
0utput: 1 channel
External dimension: L61×W33×H32mm
Packing size: L90xW60xH40mm
Net weight: 30g
Gross weight: 50g
Static power consumption: <1W
Output current: <6A
Output power: 5V<30W, 12V<72W, 24V<144W

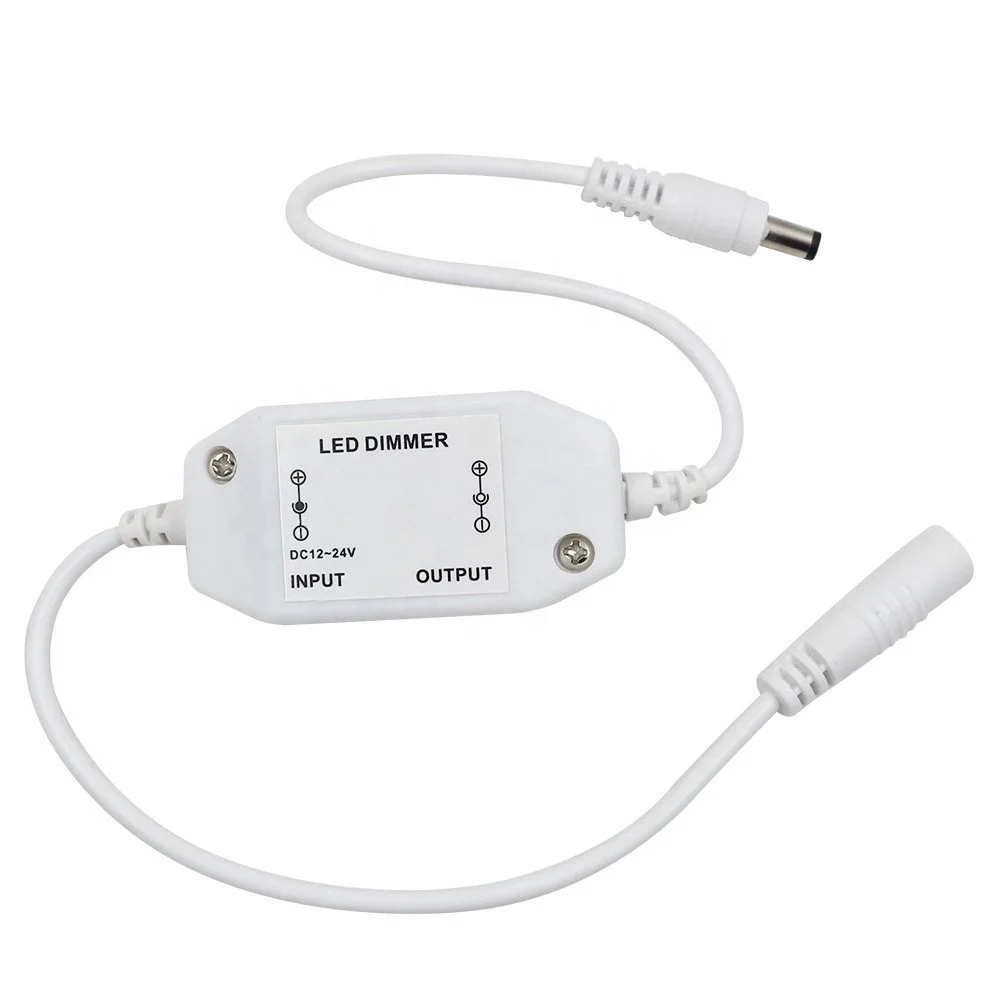

Inline LED dimmer
Single color dimmer can achieve step-less dimming. It adopts the knob control manner. According to actual needs, users can transfer the light to the appropriate brightness.
| Working temperature | -20-60℃ |
| Input voltage | DC12-24V |
| Output | 1 channel |
| Output current | <6A |
| Output power | 5V:<30W, 12V:<72W, 24V:<144W |
| Connection mode | Common anode |
| Static power consumption | <1W |
| Weight | 60g |
| Product size | L61*W33*H32 mm |
| Packing size | L90xW60xH40mm |
Details:
Direction for use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Adopt rotary button, its function as follows:
Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.
Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.
