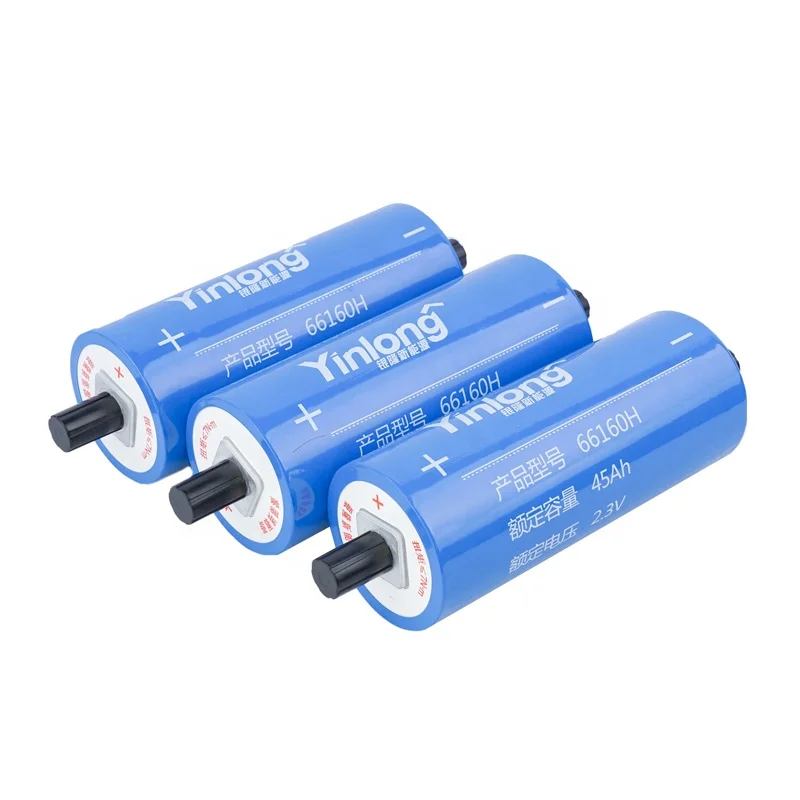

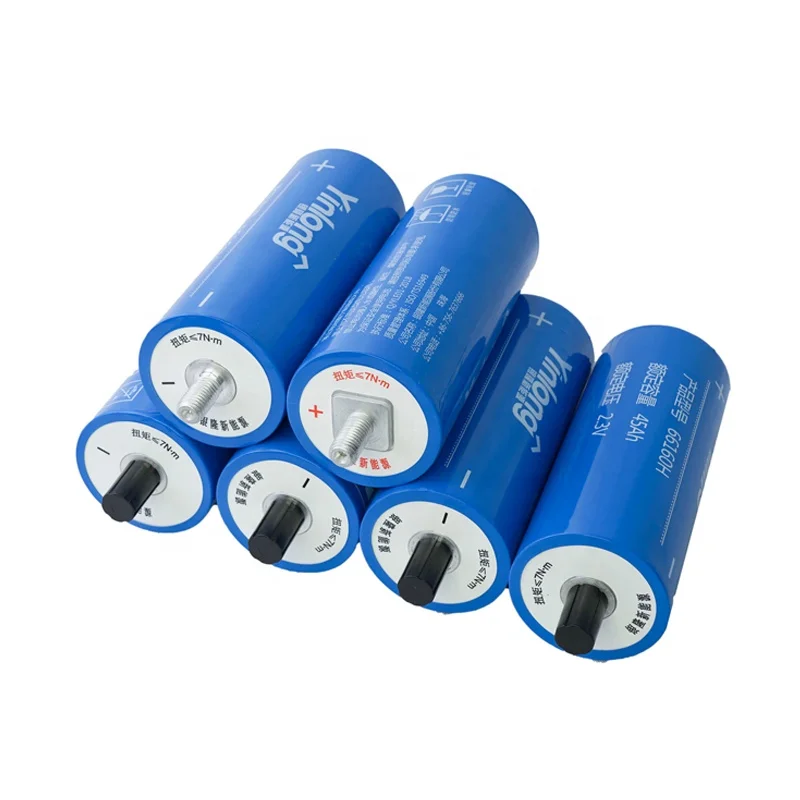

Long Cycle Life 66160H Yinlong 2.3V 45Ah Lithium Titanate Battery LTO For Powerwall
- Category: Batteries >>>
- Supplier: Shenzhen Flyxure Technology Co. Ltd.
Share on (1600319168035):
Product Overview
Description
Product Description
Battery type | LTO 66160H |
Chemistry | Lithium Titanate Oxide |
Nominal capacity | 45Ah |
Nominal voltage | 2.3V |
Weight | 1.25kg |
Internal impedance | ≤0.7mΩ |
Cycle life | ≥25000 times, 80% DOD, capacity rentation≥80% |

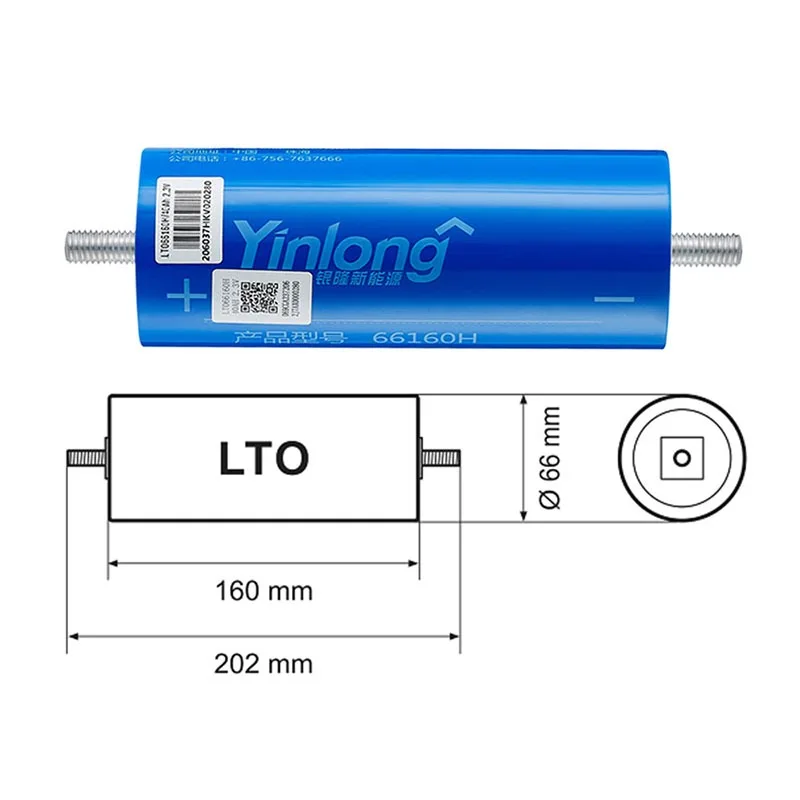

Dimension | 66*160mm |
Cell height | 202mm (including terminals) |
Max.cont.charging/discharging current | 450A(10C) |
Max.pulse charging/discharging current | 900A(20C,10s) |
Charging cut-off voltage | 2.9V |
Discharging cut-off voltage | 1.5V |
Applications | Energy Storage/UPS |
Operation temperature | -50-65℃ |
Life duration | 30 years |
1. FASTER CHARGING: fully charged in 10 minutes
2. HIGH DISCHARGE RATE: up to 10C
3. WIDE WORKING TEMPERATURE RANGE: -50°C ~ 65°C
4. VERY LONG LIFETIME: over 30,000 cycles
2. HIGH DISCHARGE RATE: up to 10C
3. WIDE WORKING TEMPERATURE RANGE: -50°C ~ 65°C
4. VERY LONG LIFETIME: over 30,000 cycles
TO battery applications
LTO are high power batteries, so they are perfect for use in the fast charging stations,forklifts, DIY starter batteries, Car audio and some special power tools..
Other applications: UPS, electrical power trains, solar powered street lights, fast charge stations, aerospace and military uses, and more importantly wind and solar energy storage and smart grids creation.
Other applications: UPS, electrical power trains, solar powered street lights, fast charge stations, aerospace and military uses, and more importantly wind and solar energy storage and smart grids creation.
Advantages
1. Super fast charge & discharge in 6 mins
2. Wide operating temperature between -50℃-60℃
3. High safety: The chemical reactivity between lithium Titanate Oxide and electrolyte is low, no SEI film formed to make sure the battery keeps stable and safe.
4. Super long lifespan: 25000-30000 times for 30 years.
Testing show
Penetrating
Overcharge & overdischarge
Penetrating under water
Drilling
Cutting
Buring
Experiments proves that Yinlong LTO batteries can still keep working.
No fire, no explosion, no leakage happened after strict tests in 6 parts above.
Applications
Lithium batteries are widely used in many power fields:
1. Electric vehicles, e-scooters, ebikes, Rickshaws, Motorcycles,Racing cars, Tricycles.
2. Electric cars, Electric boats, Marines, Electric forklifts, Go karts, Golf karts.
3. Solar street lights, Solar or wind energy storage, Home energy storage, RV, UPS, Motorhome.
4. Power tools, electric vacuum sweeper, beauty or medical equipment.
1. Electric vehicles, e-scooters, ebikes, Rickshaws, Motorcycles,Racing cars, Tricycles.
2. Electric cars, Electric boats, Marines, Electric forklifts, Go karts, Golf karts.
3. Solar street lights, Solar or wind energy storage, Home energy storage, RV, UPS, Motorhome.
4. Power tools, electric vacuum sweeper, beauty or medical equipment.
Why Choose Us
[1]. 5 years+Professionalism in lithium battery fields, multiple solutions offered from experienced sales and engineers team.
[2]. Various & stable availability of high quality items with low MOQ for retailers and wholesalers.
[3]. More upcoming new arrivals and promotions to save your costs.
[4]. Fast delivery and instant 24/7 online response, considerate after-sale services.
[5]. All-around product test pre-shipping, strict and excellent packing controls.
[2]. Various & stable availability of high quality items with low MOQ for retailers and wholesalers.
[3]. More upcoming new arrivals and promotions to save your costs.
[4]. Fast delivery and instant 24/7 online response, considerate after-sale services.
[5]. All-around product test pre-shipping, strict and excellent packing controls.
We are honored to be one part of your business, your trusted supplier.
Packing&Shipping
PACKING METHODS:Hold in custom pallets firstly(6 pcs each), then put into hard 5 layers of cartoon boxes.
SHIPPING
1.To USA/Canada/Australia: sea+ups/fedex combined (DDP & Tax free)
Unavailable: Military and PO box address,Puerto Rico,Virgin Islands,Guam
Addtional freight is needed and customs duties is not included for Hawaii.
ETD: 4~6 days
ETA: 30-45 days since Vessel voyage begins
2. To EU: railway + ups/dpd combined (DDP & Tax free)
ETD: 4~6 days
ETA: 30-45 days since train begins
For remote areas or islands: shipping availability is unsure, contact us before your buying.
3. To Taiwan,Vietnam,Thailand,Cambodia,Singapore, Malaysia, Philippines,
Indonesia : special line
ETD: 4~6 days
ETA: 10-20 days since dispatch begins
Note: The tracking status can be updated after customs clearance finished and picked up by local express, please wait patiently or contact us for help.
Other countries which is not stated above, please check shipping fee with us before order.
1.To USA/Canada/Australia: sea+ups/fedex combined (DDP & Tax free)
Unavailable: Military and PO box address,Puerto Rico,Virgin Islands,Guam
Addtional freight is needed and customs duties is not included for Hawaii.
ETD: 4~6 days
ETA: 30-45 days since Vessel voyage begins
2. To EU: railway + ups/dpd combined (DDP & Tax free)
ETD: 4~6 days
ETA: 30-45 days since train begins
For remote areas or islands: shipping availability is unsure, contact us before your buying.
3. To Taiwan,Vietnam,Thailand,Cambodia,Singapore, Malaysia, Philippines,
Indonesia : special line
ETD: 4~6 days
ETA: 10-20 days since dispatch begins
Note: The tracking status can be updated after customs clearance finished and picked up by local express, please wait patiently or contact us for help.
Other countries which is not stated above, please check shipping fee with us before order.
FAQ
1. Q: What about your batteries?
A: All batteries are brand new grade A, Factory direct sales.
2.Q: How about the warranty?
A: 1~5 years from date of purchase.
Any physical damage like crashes or improper handling is excluded.
3. Q: If price can be negotiated?
A: Yes, we have a pricing range for different quantities.
4. Q: What is the lead time?
A: In 3~10 days, depending on purchasing quantities.

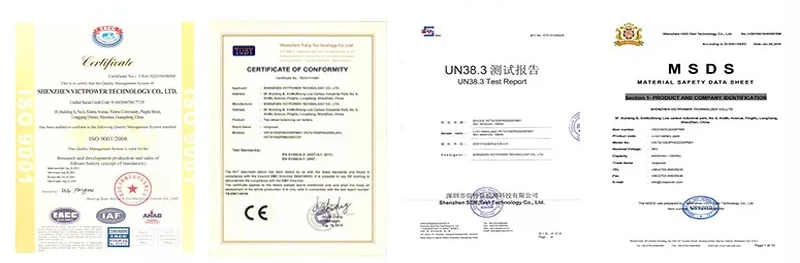

5. Q: Does the items have certificates?
A: Most of them have original specification and was certified with CE/FCC/CB/UN38.3
/MSDS,etc.
6. Q: Do you have catalogue and quotation sheet?
A: Yes.
7. Q: How can i place the order?
A: Online transaction by Alibaba trade assurance: please place your order and pay directly
for RTS(Ready To Ship) products if there is clear shipping cost or free shipping, or contact
our sales to creat a online order.
8. Q: What you’ll do before shipment?
A: Test all cells and get it balanced, well packaging offered.
9. Q: How can i make good comments?
A: Find out your order list and specifically make your good reviews on the items you
received, sincerely appreciated.
A: All batteries are brand new grade A, Factory direct sales.
2.Q: How about the warranty?
A: 1~5 years from date of purchase.
Any physical damage like crashes or improper handling is excluded.
3. Q: If price can be negotiated?
A: Yes, we have a pricing range for different quantities.
4. Q: What is the lead time?
A: In 3~10 days, depending on purchasing quantities.
5. Q: Does the items have certificates?
A: Most of them have original specification and was certified with CE/FCC/CB/UN38.3
/MSDS,etc.
6. Q: Do you have catalogue and quotation sheet?
A: Yes.
7. Q: How can i place the order?
A: Online transaction by Alibaba trade assurance: please place your order and pay directly
for RTS(Ready To Ship) products if there is clear shipping cost or free shipping, or contact
our sales to creat a online order.
8. Q: What you’ll do before shipment?
A: Test all cells and get it balanced, well packaging offered.
9. Q: How can i make good comments?
A: Find out your order list and specifically make your good reviews on the items you
received, sincerely appreciated.
