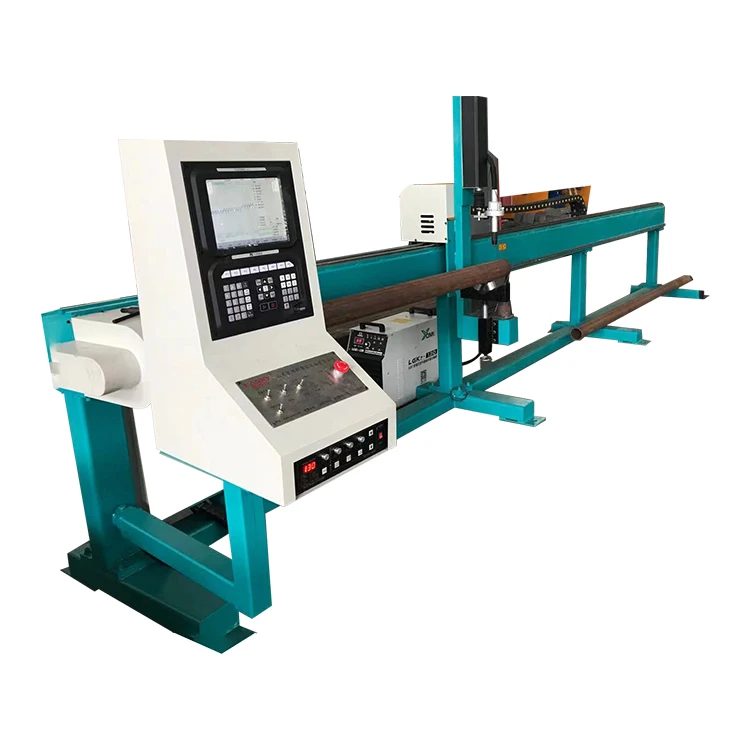

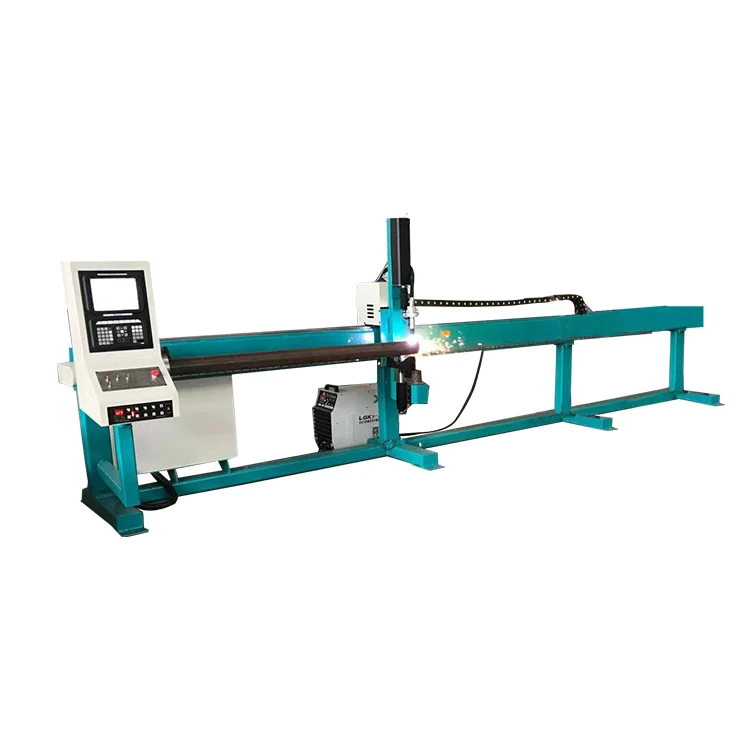

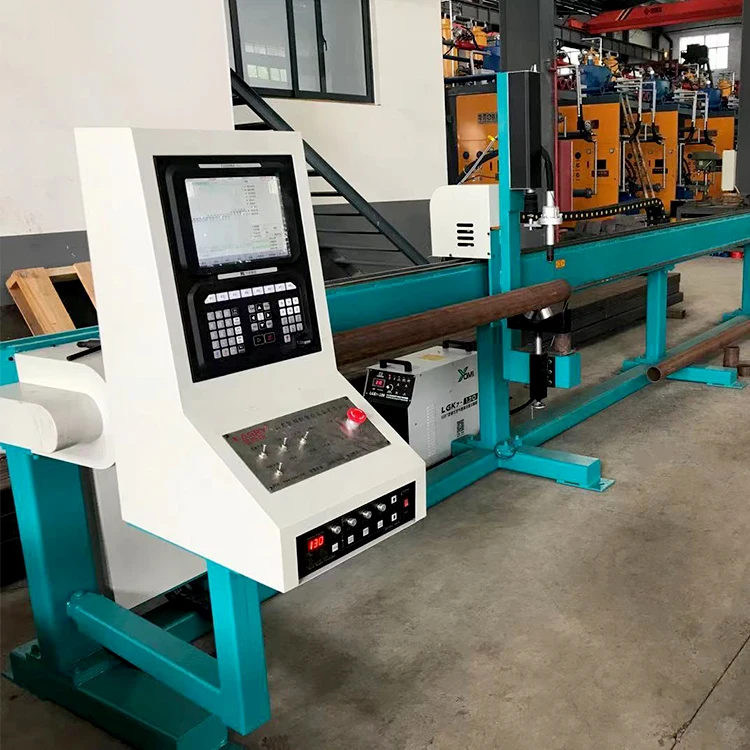

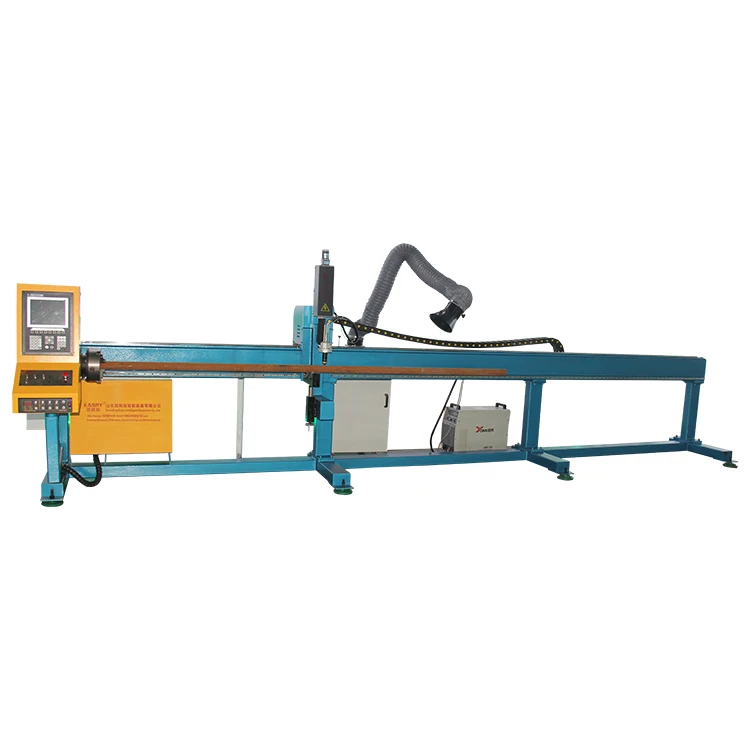

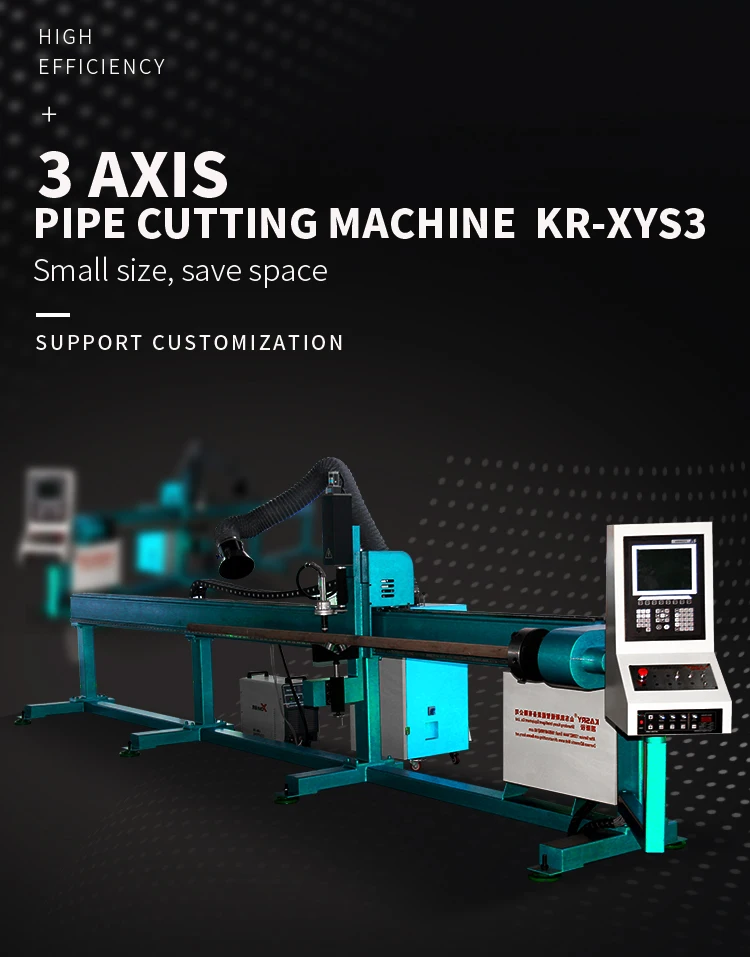

Three Axis Industrial Metal Pipe CNC Flame Plasma Cutting Machine
- Category: Pipe Cutting Machines >>>
- Supplier: Shandong Kasry Intelligent Equipment Co. Ltd.
Share on (1600320645643):
Product Overview
Description
Model | 3 axis pipe CNC cutting machine | ||
Material Size | Round pipe Diameter | 50-300mm | |
Effective cutting length | 6m | ||

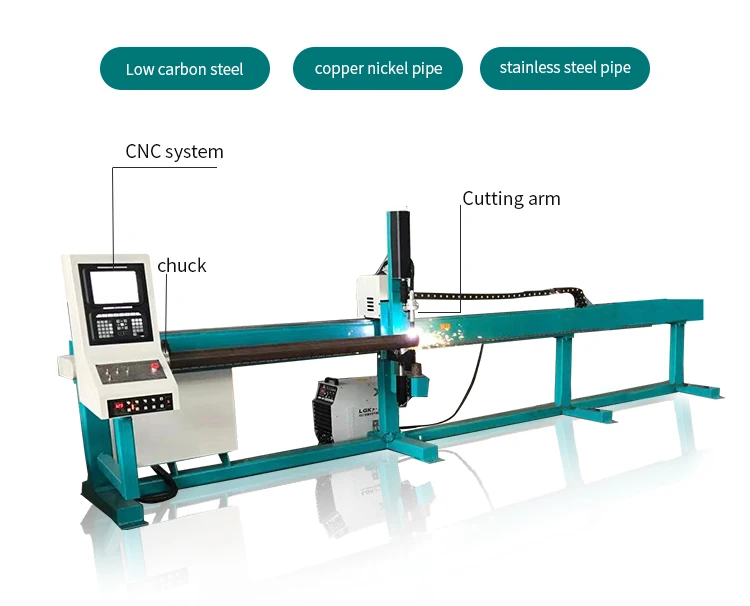

Mainly used for thermal cutting of intersecting lines and ends of various pipe . Applicable workpiece material: low carbon steel (copper-nickel tube, stainless steel tube need plasma cutting) | |||
Cutting Method | Cutting method | Plasma | |
Plasma power | 100A | ||
Plasma cutting thickness | 1-10mm | ||
Control system and Software | Control system | Kasry control system | |
Computer | Taiwan Advantech Industrial Computer | ||
Software | KASRY Pipe Nest software | ||
Accuracy | Requires workpiece ellipticity | ≤1% | |
Cutting Speed | 10-2000mm/min | ||
Moving Speed | 10-6000mm/min | ||
Cutting length accuracy | ±1.5mm | ||
Cutting precision execution standard | According to ISO9013-2002, ISO8206-1991 and JB / T10045.4-1999JB | ||
