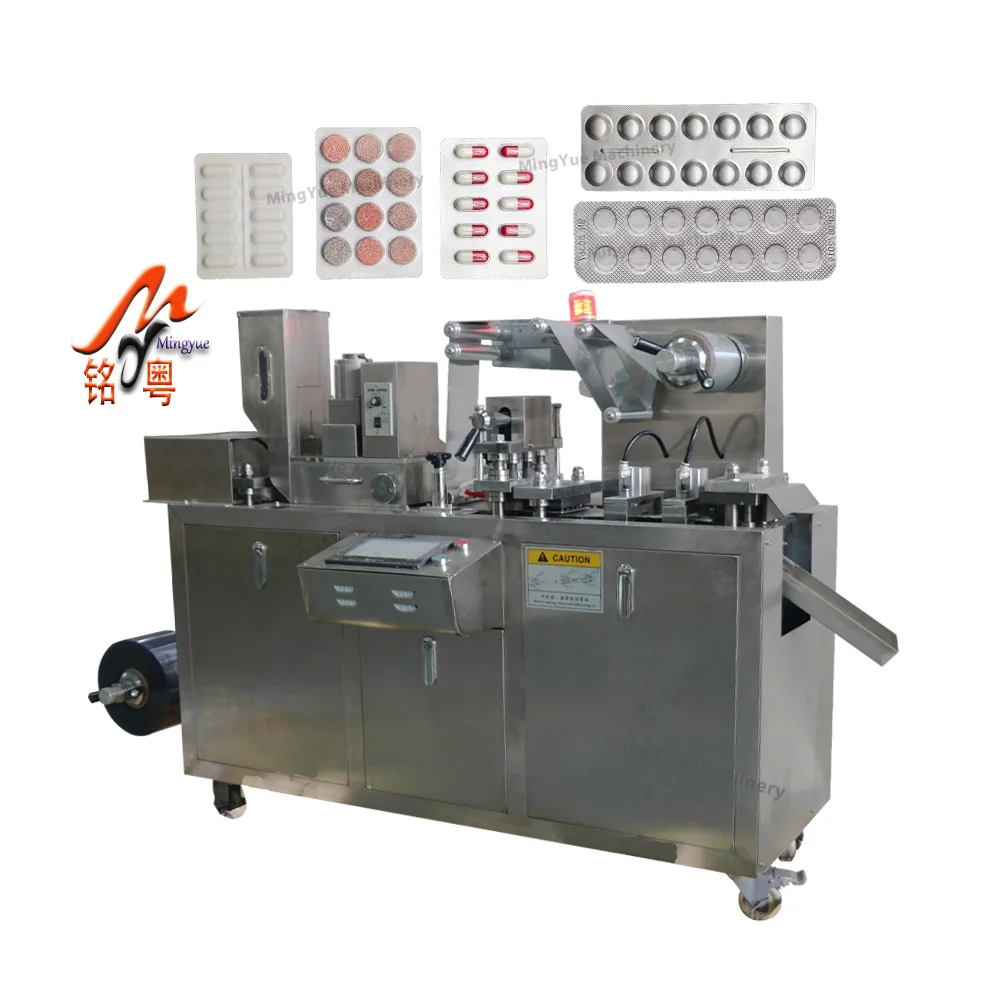

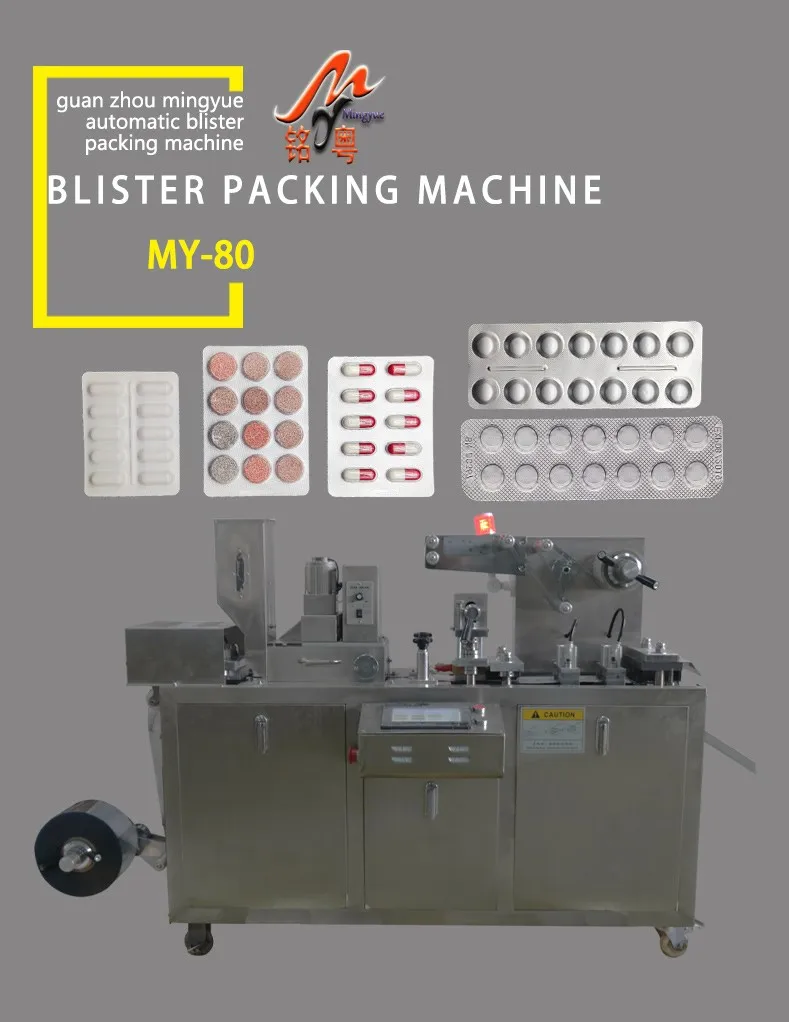

pharma automatic thermoforming making sealing double roll aluminum foil contenar tablet strip pack blister packing machine price

pharma automatic thermoforming making sealing double roll aluminum foil contenar tablet strip pack blister packing machine price

Category: Other Pharmaceutical Machinery >>>
Supplier: Guangzhou Mingyue Packaging Machinery Co. Ltd.

Price:$4,500.00 - $6,000.00

Quantity:

Product Overview

Description

pharma automatic thermoforming making sealing double roll aluminum foil contenar tablet strip pack blister packing machine price

Product Description

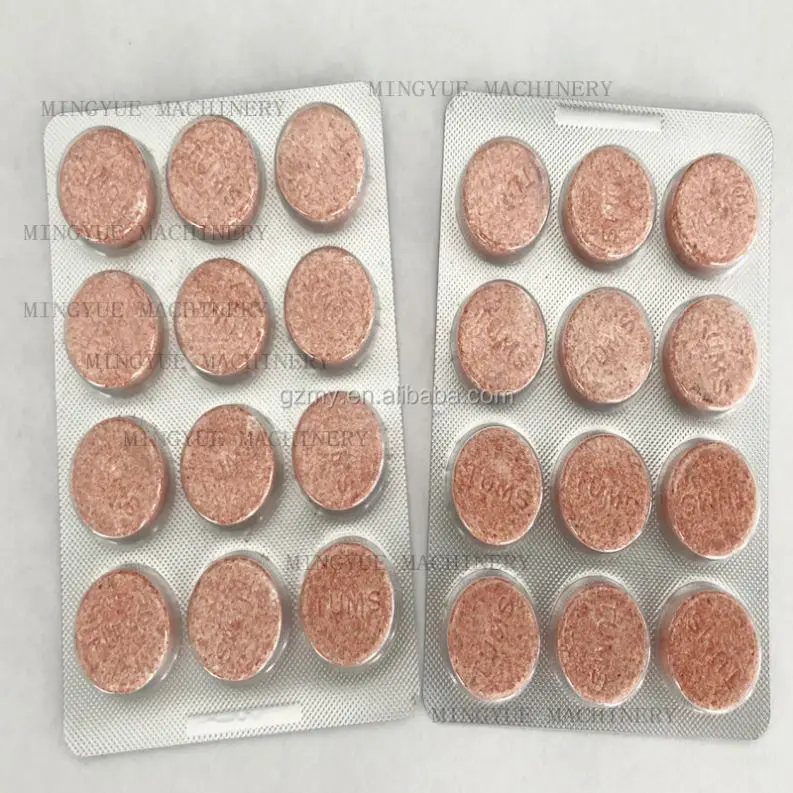

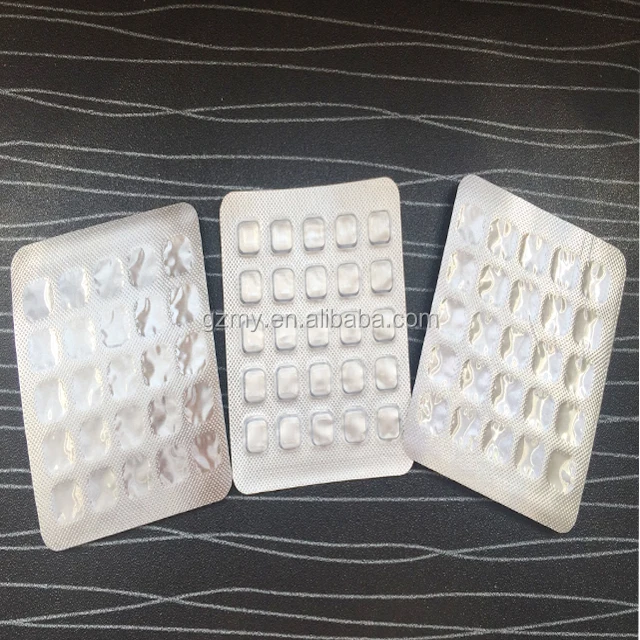

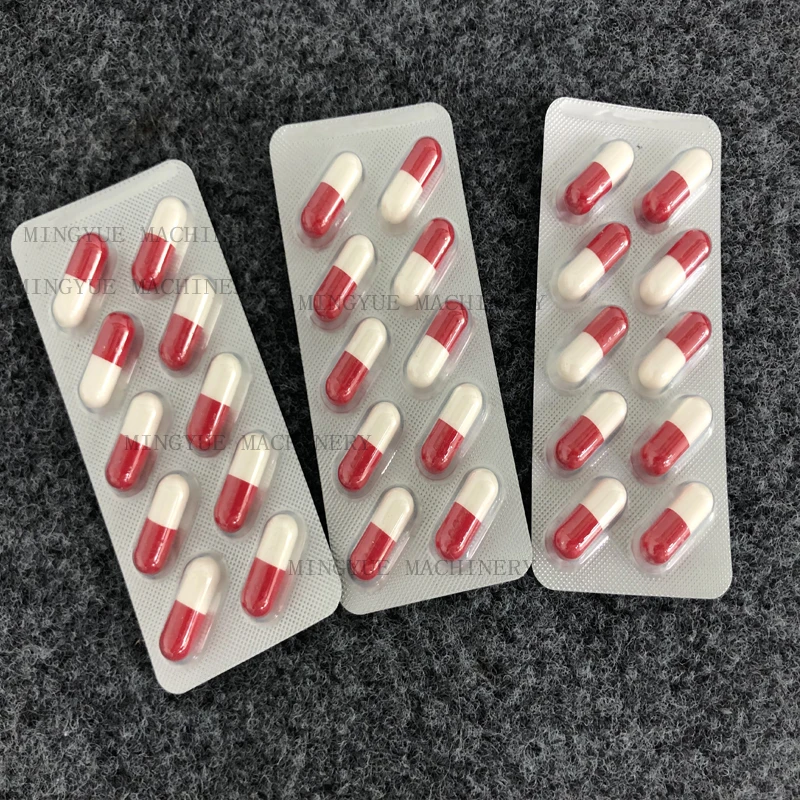

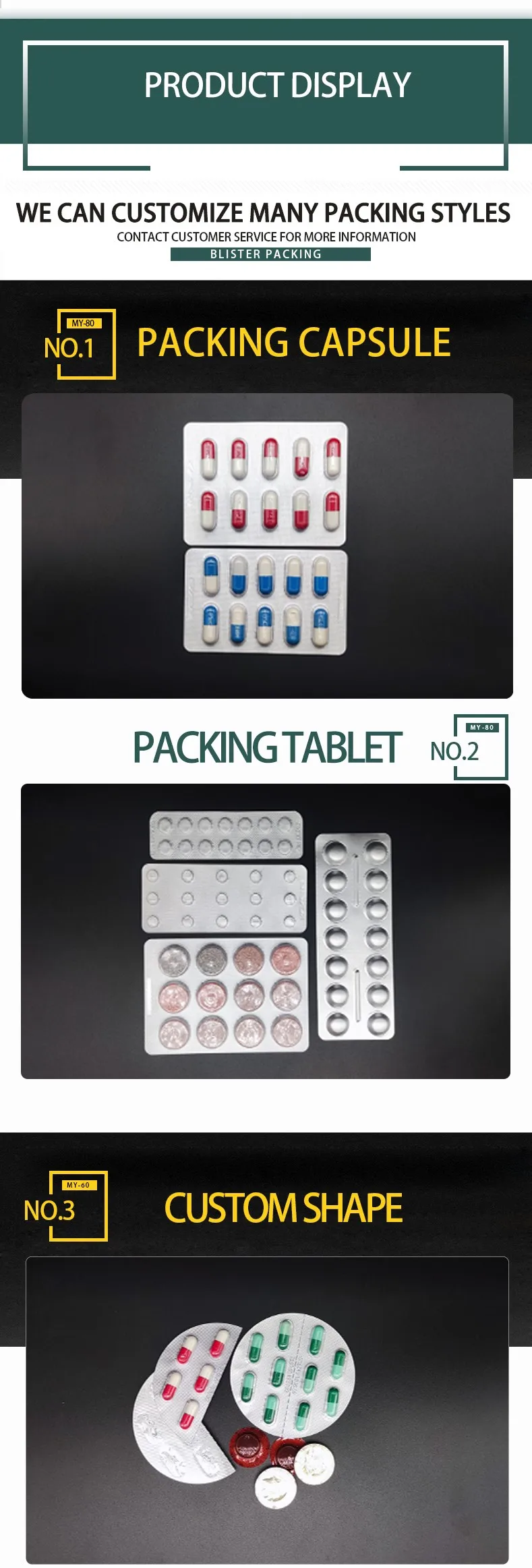

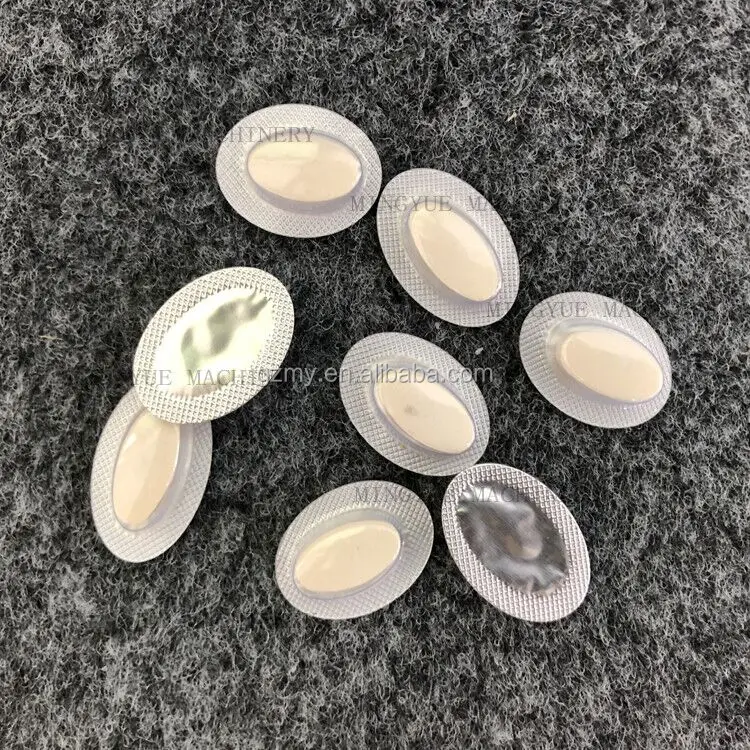

This machine is specially designed for laboratory, dosage room in hospital, mini-pharmaceutical factory, mini-motor test workshop, and medicine institute. This machine is flat plate structure, positive pressure and convenient to operate. It is small and the stroke Length is adjustable. It is suitable for AL/PL package for any shape of objects, such as capsule, tablet, pellet, sugar-coated tablet, leisure candy, milk tablet, mini metal etc

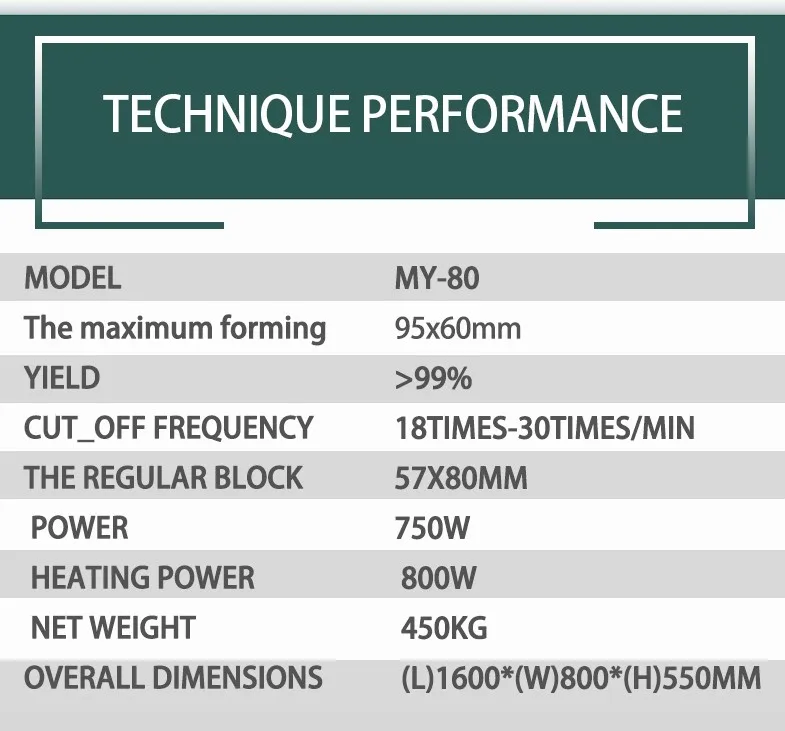

Main Technical Parameters

Cutting Frequency (Times/min)	27
Capacity (10 thousand pcs/h)	1.1-6.5
Stroke (mm)	40-110
Max. Forming Area and Depth(mm)	60×100×14
Air Compressor(m³/min)	≥0.3 (provided by user) oilless air compressor better
Air Pressure (Mpa)	0.4
Standard Plate(mm)	80×57 can be manufactured as user's requirements
Total Power	380V/220V 50Hz 2.8kw
PVC Hard Pieces(mm)	0.25-0.35×90
PTP Aluminum Foil(mm)	0.02-0.035×90
Mould Cooling	tap water or recycling water
Overall Dimensions(mm)	1300×400×1070(L×W×H)
Weight(kg)	220
