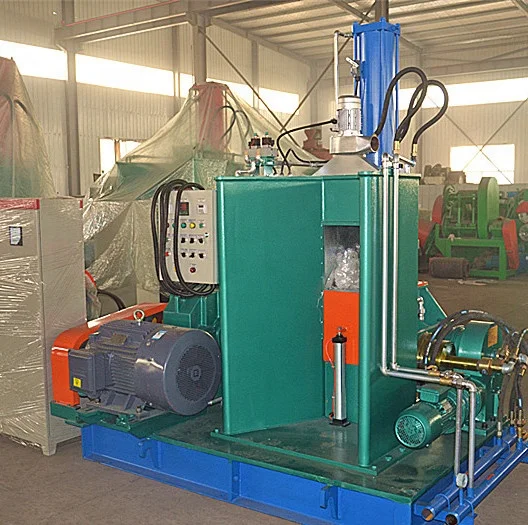

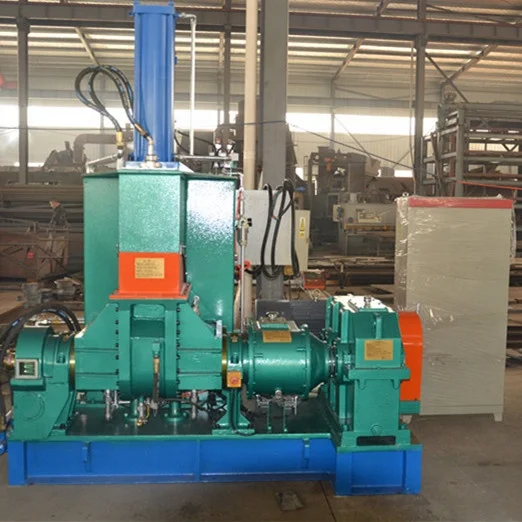

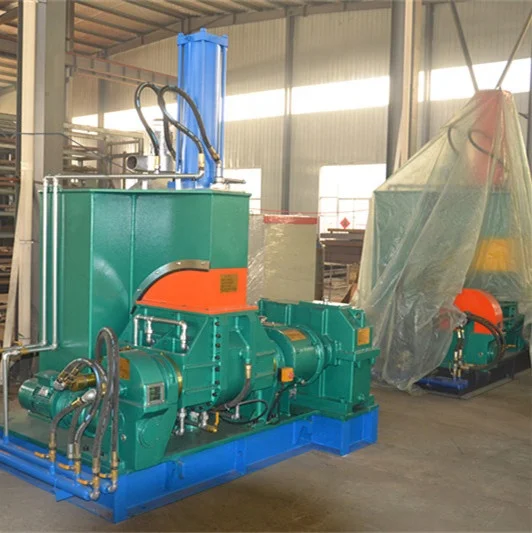

EVA Rubber Kneader / Rubber Internal Mixer Machine / Rubber Dispersion Mixer
- Category: Internal Mixers >>>
- Supplier: Qingdao Shun Cheong Rubber Machinery Manufacturing Co. Ltd.
Share on (1600324095685):
Product Overview
Description
Product Description
Specification
item | value |
Place of Origin | China |
Shandong | |
Condition | New |
Batch Time(times/hour) | 6times/hour |
Total Capacity(L) | 440L |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product |
Warranty of core components | 1 Year |
Core Components | PLC, Motor, Pressure vessel |
Brand Name | SFC |
Model Number | X(S)-200*30 |
Voltage | AC380V |
Dimension(L*W*H) | 4250mm*3400mm*4215mm |
Certification | ISO9001:2008/CE/SGS |
Year | Customization |
Warranty | 1 Year |
Video technical support | |
Key Selling Points | Competitive Price |
Power (kW) | 280kW |
Weight (KG) | 22500KG |
Showroom Location | None |
Local Service Location | None |
After Warranty Service | Video technical support, Online support |
Applicable Industries | Rubber |
Model | X(S)-200*30 |
Working Volume (L) | 200 |
Driving Motor Power (KW) | 280 |
Tilting Motor Power (KW) | 11 |
Tilting Angle(°) | 135 |
After-sales Service Provided | Video Technical Support |
Pressure Of Colling Water (MPA) | 0.3-0.4 |
Overal Dimension (L*W*H) (mm) | 4250*3400*4215 |
Gross Weight (KG) | 22500 |
Total Volume (L) | 440 |
Product Application
1. The Hydraulic Internal Mixer is mainly used for plasticizing and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials.

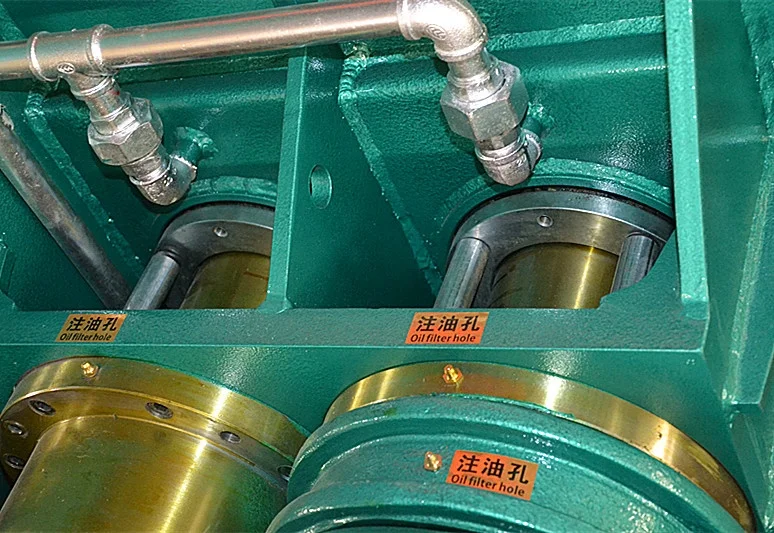

2. The rotor adopts rolling bearing for support, so the maintenance work is convenient and the service life is long.
3. The transmission device adopts NGW hard tooth flank planet reducer, which has compact structure, low noise and high efficiency.
It furnished with reasonable designing, construction tightly packed, occupying small area, installing convenience, highly efficiency of production, operation simply.
4. The machine is the advanced new type mixer equipment of rubber and plastics industry, various features are so advanced as the same product of foreign. For seal designing, we get excellent result in sealing and everlasting.
2. The rotor adopts rolling bearing for support, so the maintenance work is convenient and the service life is long.
3. The transmission device adopts NGW hard tooth flank planet reducer, which has compact structure, low noise and high efficiency.
It furnished with reasonable designing, construction tightly packed, occupying small area, installing convenience, highly efficiency of production, operation simply.
4. The machine is the advanced new type mixer equipment of rubber and plastics industry, various features are so advanced as the same product of foreign. For seal designing, we get excellent result in sealing and everlasting.
Our services
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.

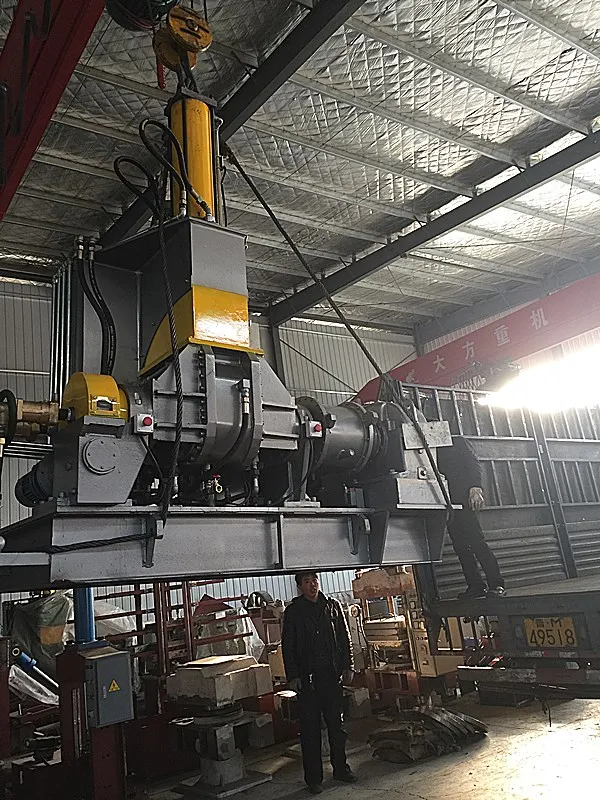

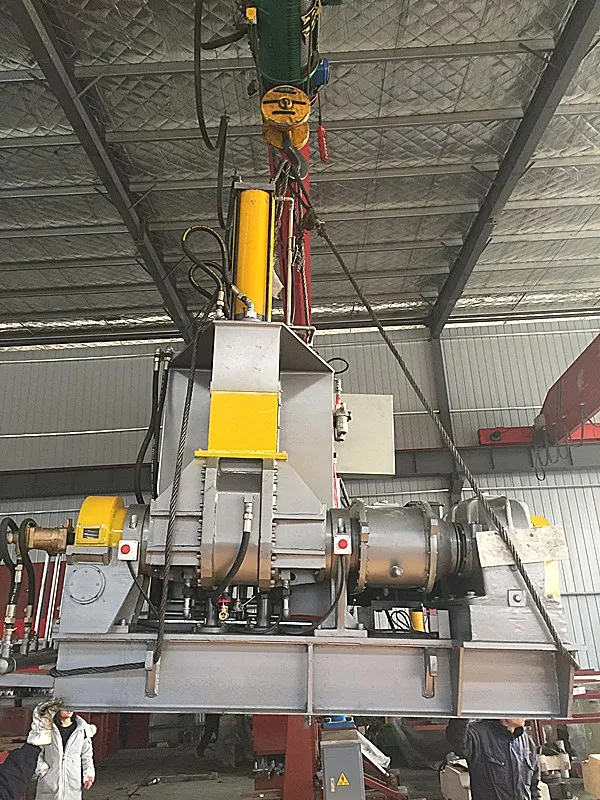

Packing & Delivery
Standard Wooden Case
Company Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, Huangdao New District,Qingdao City.Who is a specializing in the production of rubber machinery of high and new technology backbone enterprises, the company passed the ISO9001:2008 quality management system certification, the European Union CE certification and Switzerland SGS certification.
Company's products mainly cover the following industry: tire manufacturing, rubber conveyor belt production, all kinds of rubber products, tires refurbished manufacturing, waste tire recycling.
The main equipment are: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire crusher, Rubber Extruder, Rubber Strainer,etc.
Company's products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine,Uzbekistan, Kazakhstan and so on,more than 50 countries and regions, has won the domestic and foreign customers praise and cooperation for years.Meanwhile,they also introduced new customers to cooperate.
Product quality and after-sales service is the key to survival of Qingdao Shun Cheong Machinery Co.,Ltd, and also are top priorities of management of the company, the company commitment to all customers as follows:
1. Every parts pass strict quality inspection before storage.
2. All the products overload trial running before shipment, such as Plate Vulcanizing Press,to test pressure for 24 hours under 1.25 times the rated working pressure. Rubber Mixing Mill, rubber mixing 20 minutes under 1.1 times amount of the rated mixing rubber etc.
3. The whole body of all products are with free technical support.
4. The warranty period of 3 years for main parts, wearing parts for 1 year warranty.
5. The products issues quality problems in the use process, first of all, our sales staff and engineers through the Internet or telephone guidance service, if not solve we will find a local agent or factory's engineer to door repair for the first time! In order to better serve customers, the company provides conveyor belt, waste tire recycling line and tire and other rubber products production site for customers to visit, consultation.

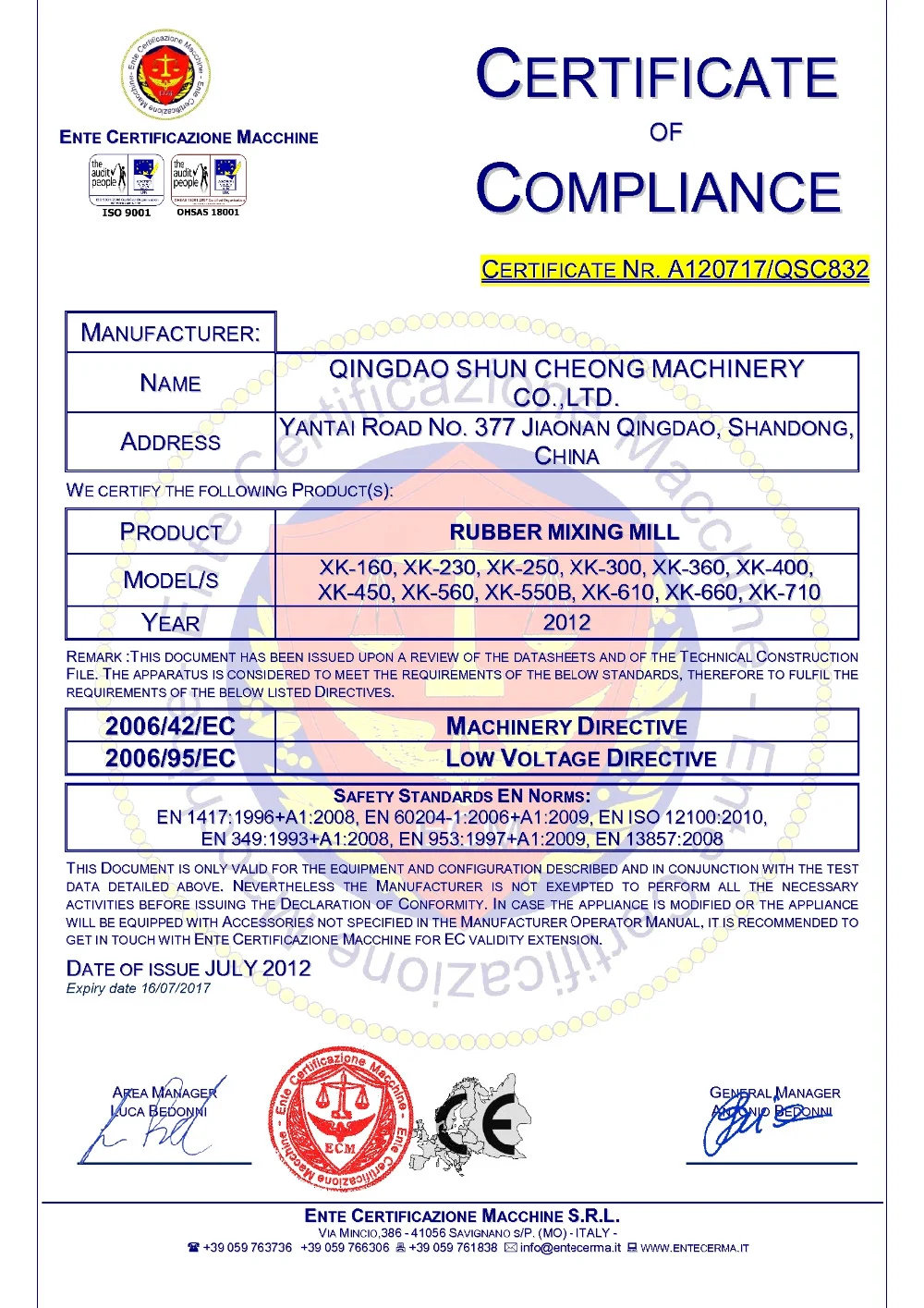

Certifications
Our Service
Customization Service
* Our engineers can design target machines for customers and send th em the drawing to confirm.
* We supply overseas engineer service and help to train your workers to operate the machine.
* We are always on the side of saving your cost.
* In the process of production, we will take photos and send to customers for their track the progress.
* We supply overseas engineer service and help to train your workers to operate the machine.
* We are always on the side of saving your cost.
* In the process of production, we will take photos and send to customers for their track the progress.
Near The Qingdao Airport & port
* Close to Qingdao port (Qianwan Port).
* Long term cooperation with world famous ship company, ensure the rubber machinery delivery on time and safety.
* Long term cooperation with world famous ship company, ensure the rubber machinery delivery on time and safety.
Part Of The Company's Products
Common Vulcanizing Press
Common Vulcanizing Press
Rubber Tiles Vulcanizing Press
Duplex Curing Press
C Type Vulcanizing Press
Tire Tread Vulcanizing Press
Rubber Extruder
Rubber Mixing Mill
Two Roller Calender
Rubber Kneader
Batch Off Cooler
Whole Tire Shredder
Rubber Bale Cutter
Strip Cutter
Bucket Elevator
1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What can you buy from us?
Rubber Mixing Mill,Vulcanizing Press,Rubber Calender,Batch Off Cooler,Kneader,New Type Waste Tire Recycling Machine.
Rubber Mixing Mill,Vulcanizing Press,Rubber Calender,Batch Off Cooler,Kneader,New Type Waste Tire Recycling Machine.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. Why should you buy from us not from other suppliers?
Our company has around 20 years experiences for manufacturing rubber machinery and have good seasoned engineers.Company's products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan etc.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
Our company has around 20 years experiences for manufacturing rubber machinery and have good seasoned engineers.Company's products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan etc.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
