Banbury резиновый внутренний смешивающий месильник/резиновый месильный аппарат 75 л banbury месильный смеситель

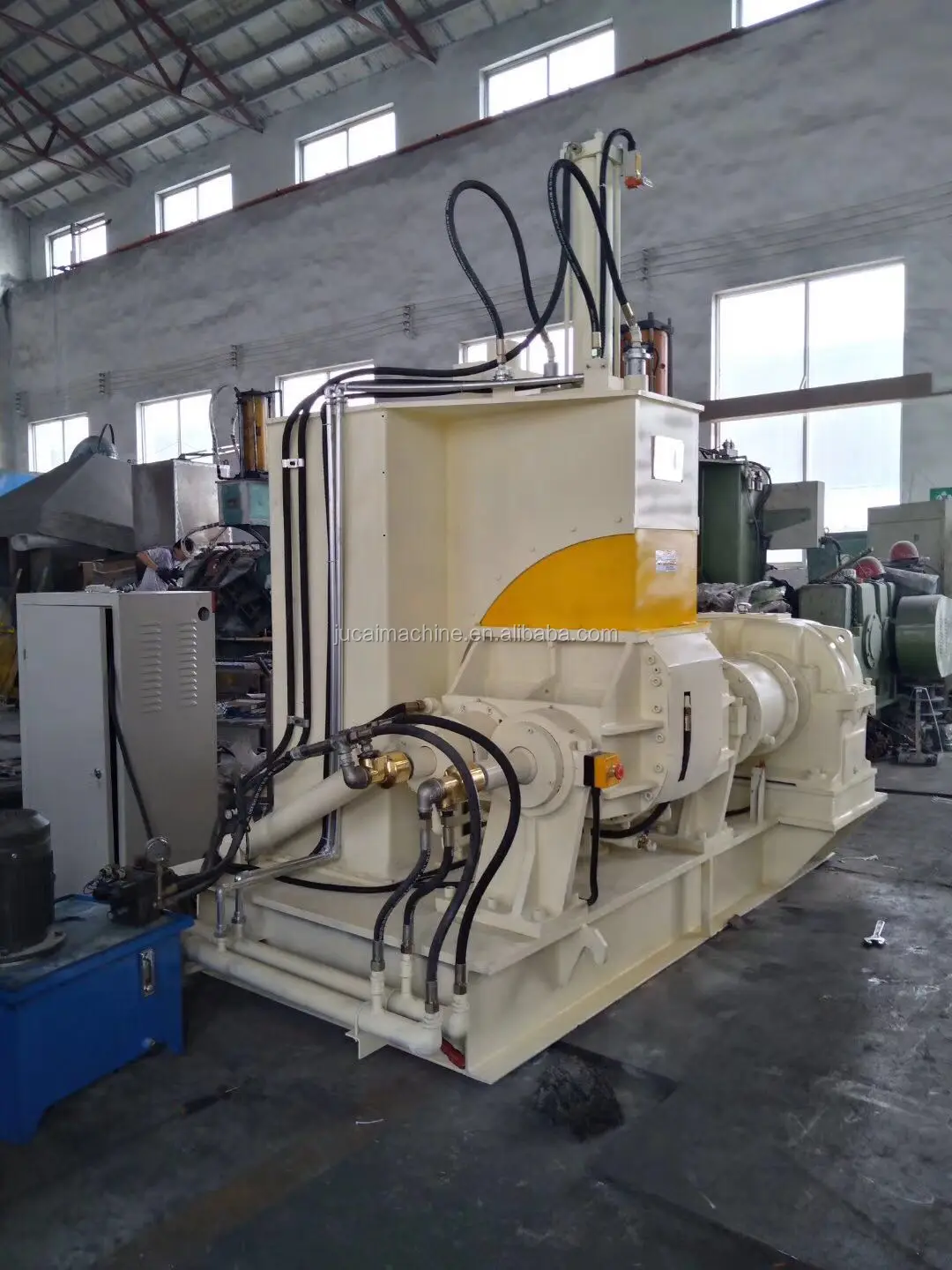

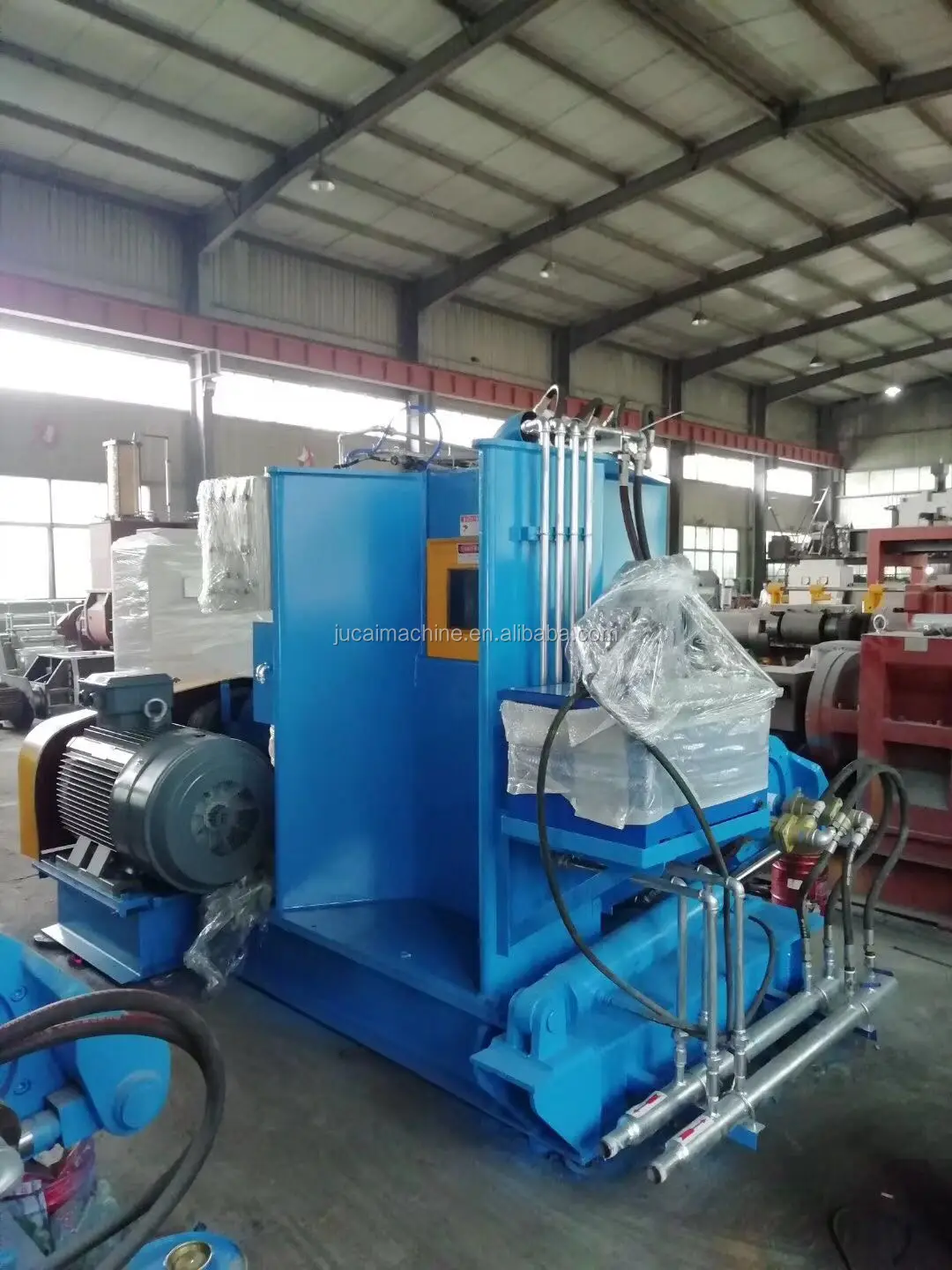

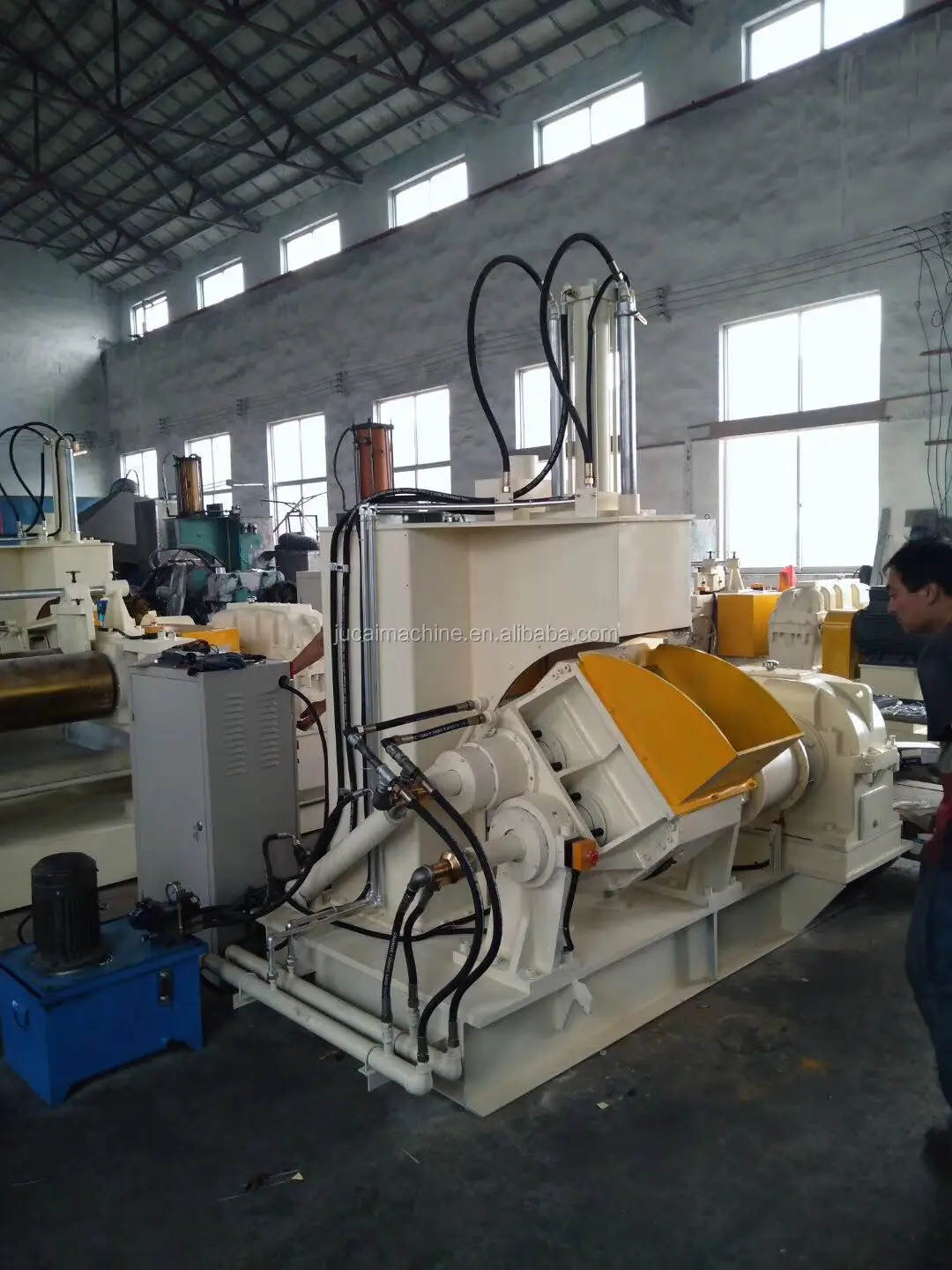

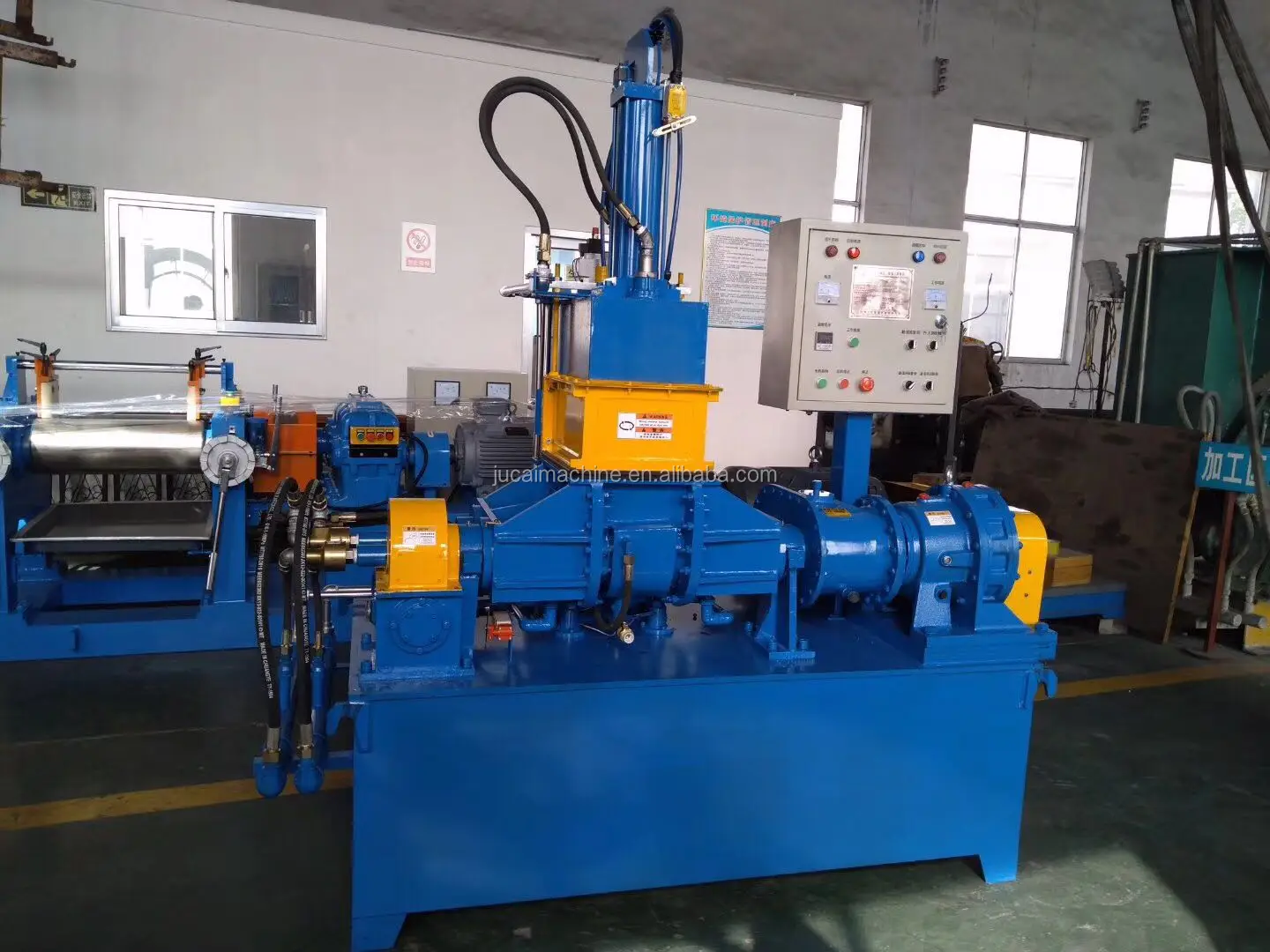

This machine consists of pnuematic control system , heating/cooling system, tilting system,rotor,thermal resistance,main driving system,mixing chamber,rotor ,dust stop device , ete . It is used to plasticize , mix and final mix rubber , plastics or blend of plastics and rubber

2.Tilting mechanism consists of brake motor , cycloidal gear reducer , TP type worm and worm gear etc . It is able to actuate the mixing chamber to tilte by 140 around the front rotor

3.rotor shaft wing body top and wing corner are welded up with wear resistant alloy . rotor shaft surface ,the mixing chamber inner wall , upper ram surface and other surface connected with stock are hardened or polished and plated with hard chrome , or welded up wear resistant alloy welding , so they are wear resistant and corrosion resistant

4.rotor shaft is of integral structure rotor wing body welded on bored shaft , so it improves the strength and stiffness of the rotor . rotor inner wing vody cavity can be put through the cooling water or heating steam

5..mixing chamber is jacket type hollow structure . upper ram is hollow to increase cooling or heating area and the temperature control effect

6.main driving system consists of main motor ,reducer ,connecting gearbox odd-speed and face to face rotation of rotors is achived

7.electrical control system adopts the imported PLC device . All electronic components are imported or introduction technology products , to improve the reliability of the system.
