XSN 110L гидравлический Наклонный Банбери интенсивный резиновый тестомес/резиновый смеситель

Product Overview

Description

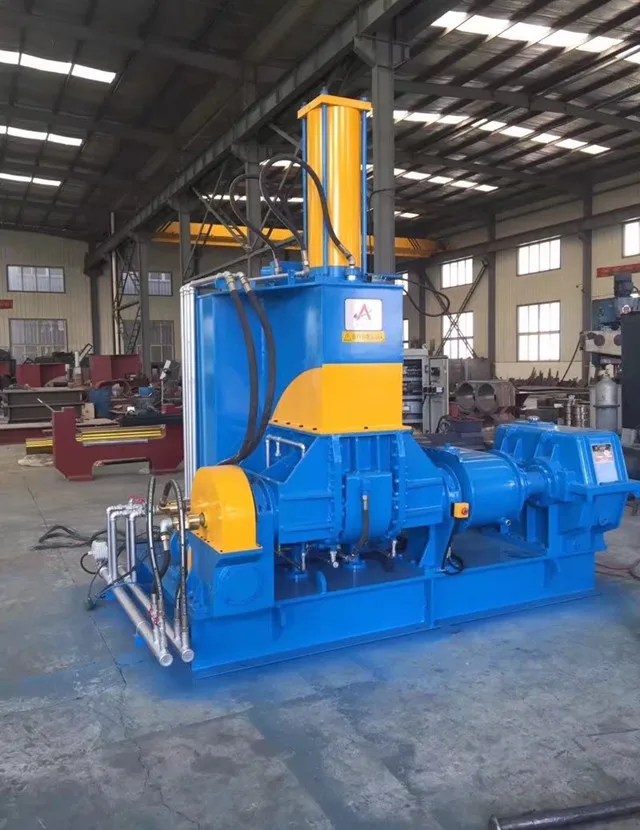

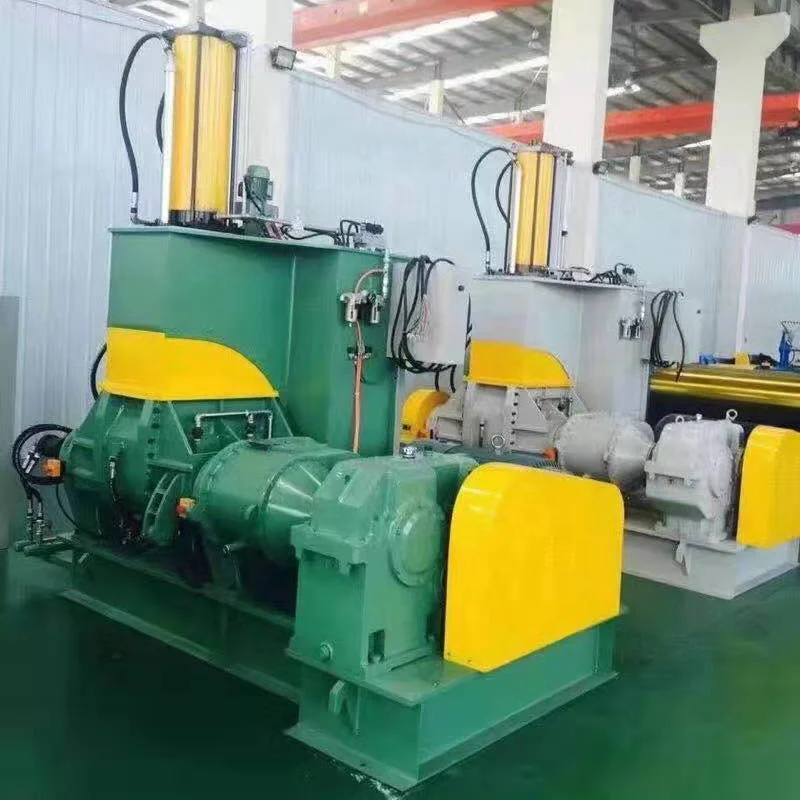

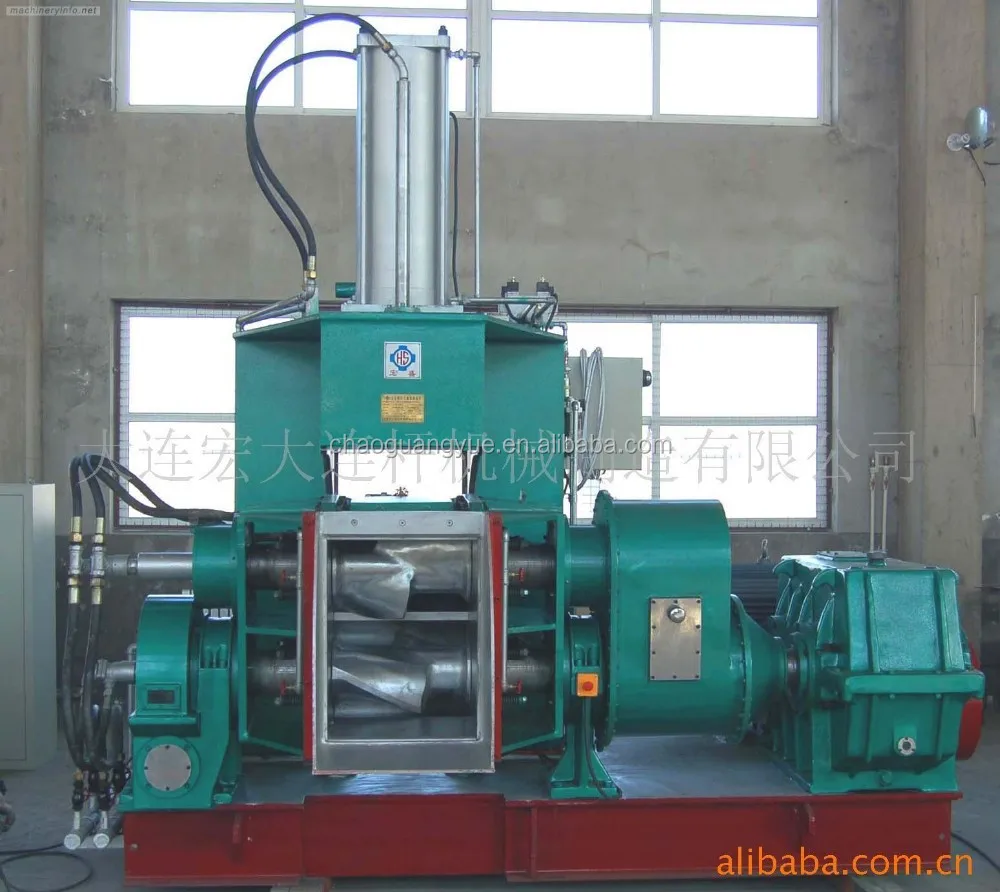

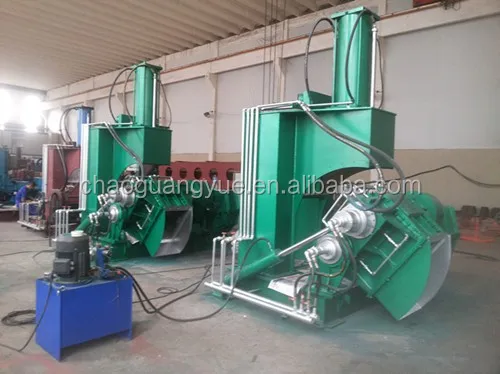

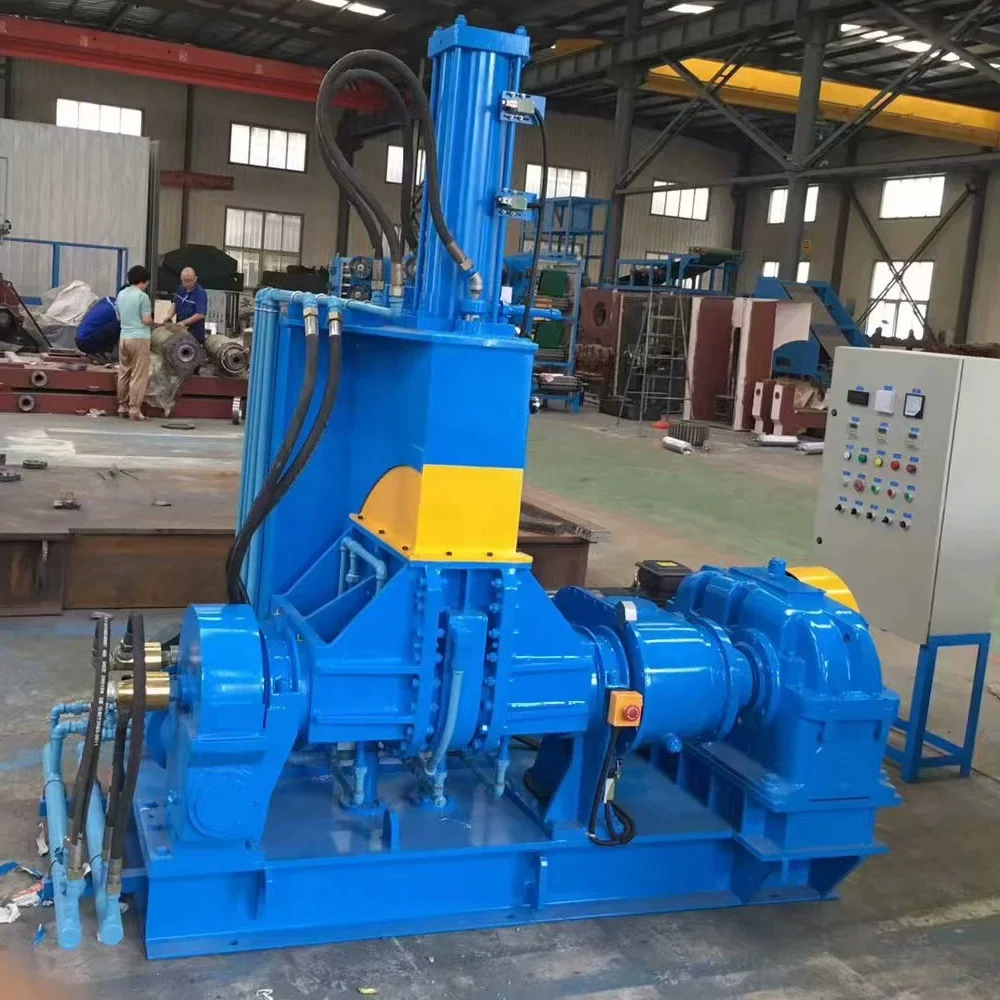

XSN 110L Hydraulic tilting banbury intensive rubber kneader/rubber mixer

1-Name:   Rubber banbury mixer Internal rubber mixer, Rubbe kneader.

2-Function:

Dispersion kneader, equipped with a pair of rotors which perform relative rotation with the specific shape, is a kind of machine for intermittently plasticating and mixing the polymer materials under  with adjustable temperature and pressure.

3-Range for materials processing:

Rubber Compounds and End Products
Natural Rubber, Synthetic Rubber, Mastication of NR, SBR, CR, EPDM, Fluorine Rubber, Silicone Rubber,  ECT.

4-  version: XSN-110/30

5- Description:

1)Maximum Dispersion & High Production
Double blades, proper clearance & high cooling effect gives excellent dispersion . Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.

2)Easy Cleaning and Colour Change
Mixing chamber can be tilted which enables easy cleaning, because of this, different coloured compounds can be made nice.

3)Short Mixing Time
Mixing time ranging from 6 to 12 minutes depending on compound's specific gravity.

6- Main parameters:



Version & Parameters	XSN-35/30	XSN-55/30	XSN-75/30	XN-110
Mixing  capacity  (L)	35	55	75	110
Main Power(kw)	55	75	90	160
Brake Motor (kw)	2.2	3.0	4.0	5.5
Tilting angle	140	140	140	1400
Air compressor (kw)	5.5	7.5	10	10
Dust collector	HLL-10	HLL-15	HLL-20	HLL-30
Cooling water (MPA)	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Heating Steam (MPA)	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Electric Heater (kw)	12	15	18	24
Overall Size L×W×H (mm)	3200×1900×2950	3750×1950×3050	3760×2143×3050	3930×3000×3660
Weight(kg)	6500	7800	10500











Our Services :







1. We will design,manufacture,install and test the machines according to  customers' requirement .Relevant personnel  training for customers,ensure that customers fullygrasp the use and maintenance of technology.







2 .Our service department  listen to customers' feedback at any time and provide spareparts timely.







Welcome to visit our factory and we can show you the machine in working condition:







If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
