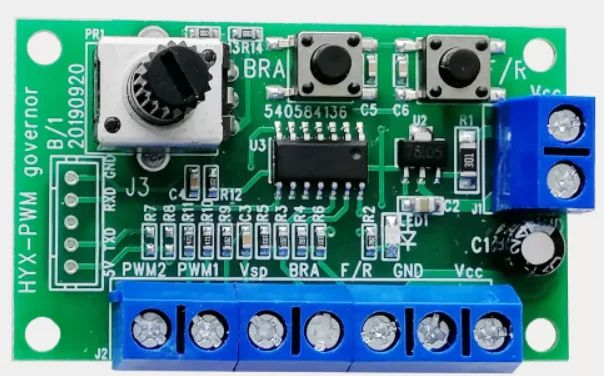

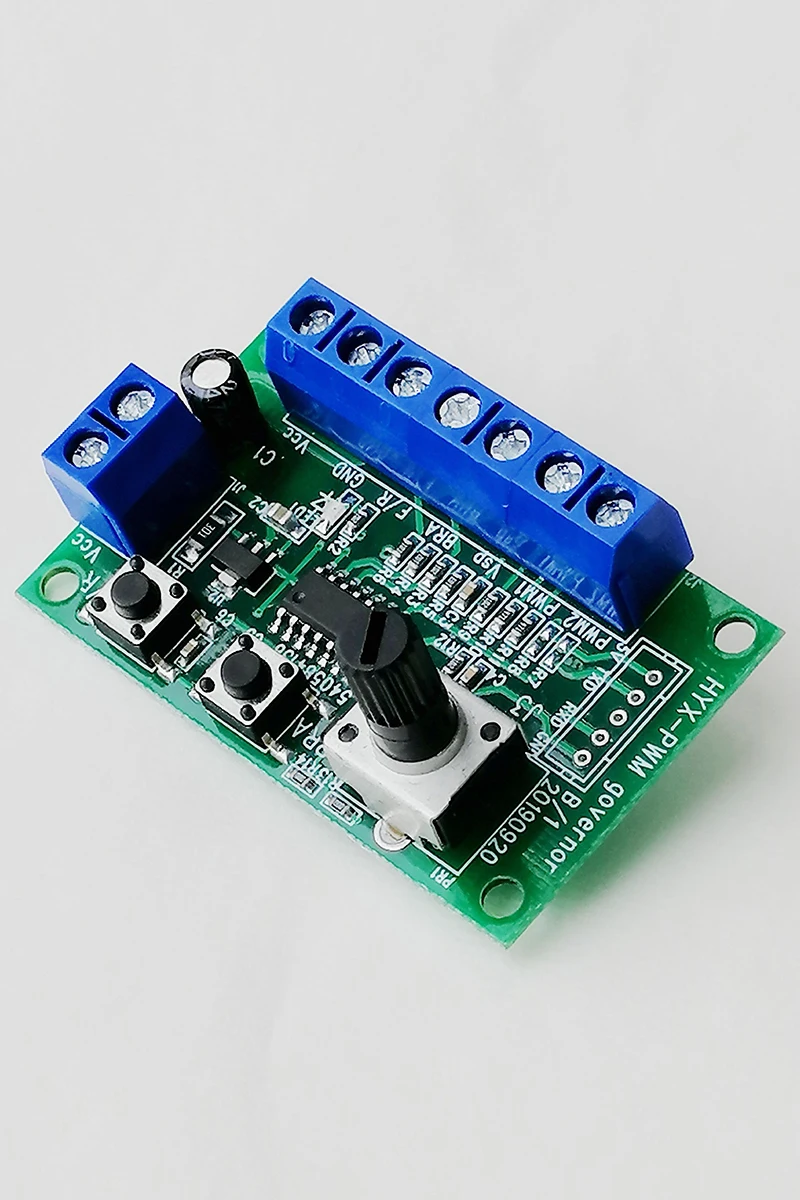

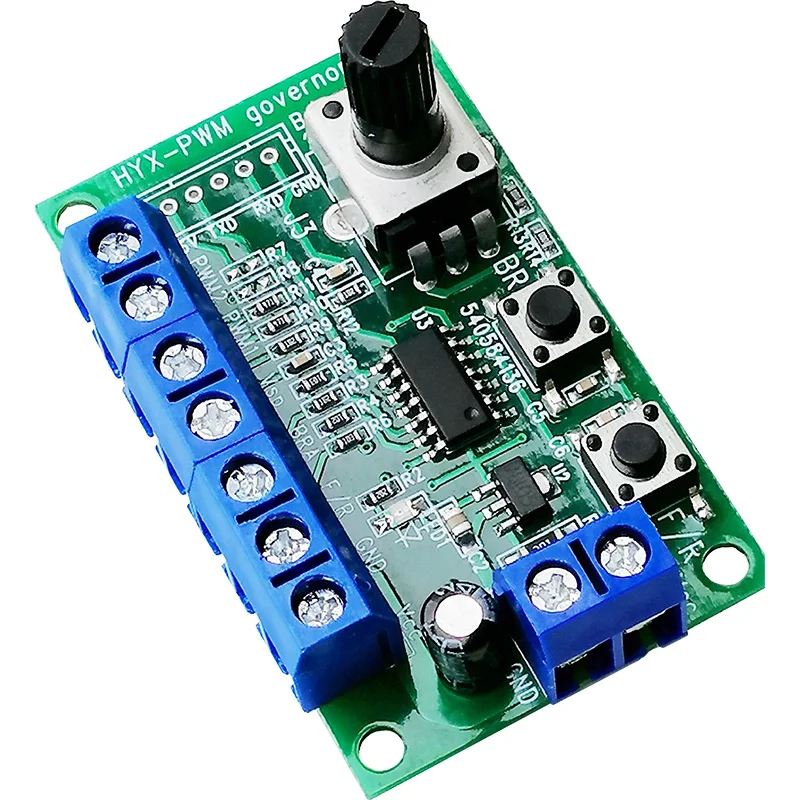

30 buyer CCM9 PWM1 Unidirectional Variable 12 24V 3A DC Motor Speed Controller ESC

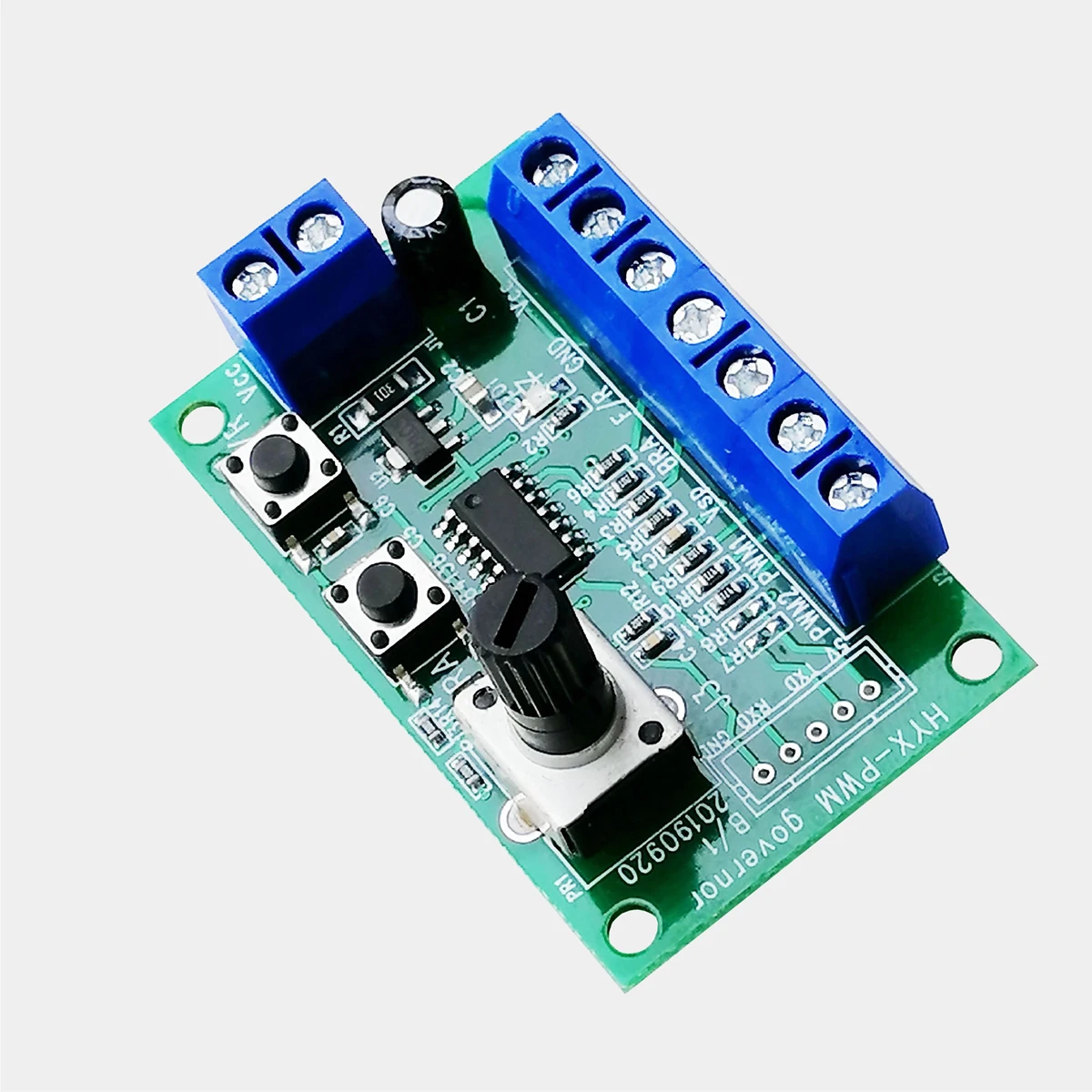

30 buyer CCM9 PWM1 Unidirectional Variable 12-24V 3A DC Motor Speed Controller ESC
30 buyer CCM9 PWM1 Unidirectional Variable 12-24V 3A DC Motor Speed Controller ESC
30 buyer CCM9 PWM1 Unidirectional Variable 12-24V 3A DC Motor Speed Controller ESC

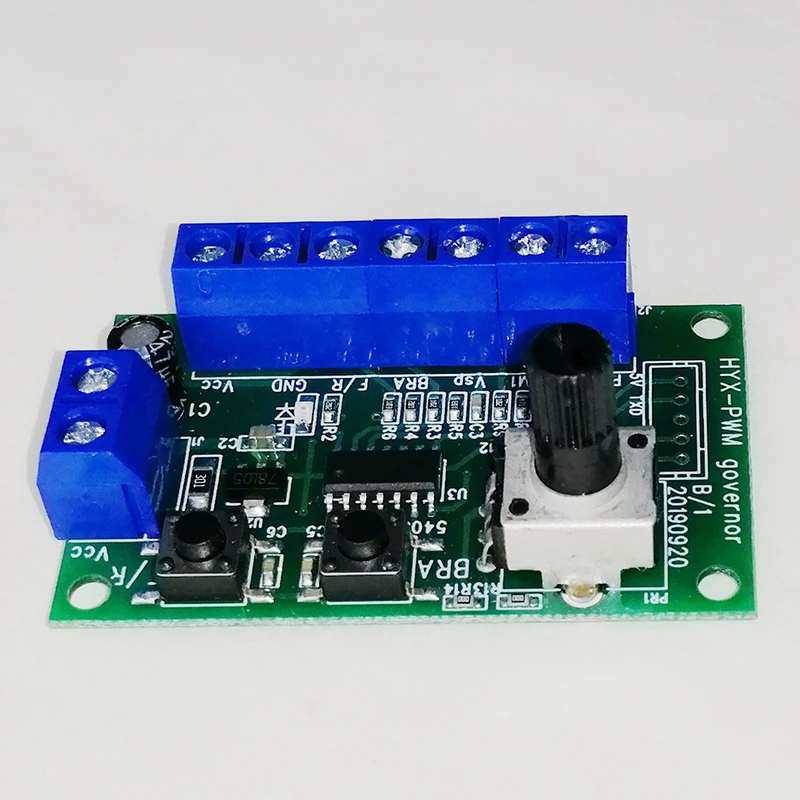

30 buyer CCM9 PWM1 Unidirectional Variable 12-24V 3A DC Motor Speed Controller ESC
30 buyer CCM9 PWM1 Unidirectional Variable 12-24V 3A DC Motor Speed Controller ESC
30 buyer CCM9 PWM1 Unidirectional Variable 12-24V 3A DC Motor Speed Controller ESC

30 buyer CCM9 PWM1 Unidirectional Variable 12 24V 3A DC Motor Speed Controller ESC

Share on (1600325518600):


Price:$4.00 - $6.00

Quantity:


Product Overview

Description



Product Description


General specifications::
Features:
* Using PWM speed control technology, with high conversion efficiency, wide speed range, and stable performance.
* Adopting imported semiconductor chips, and had tested the voltage, current, function etc. So the circuit is stable and
reliable.
* Overload short circuit protection and the current no more than 30 seconds.
* Potentiometer is used to speed up the positive and negative switch for forward, reverse, and stop.

Specifications:
* The resistance value of a resistor: B10K
* Cable length: approx. 20cm/7.87''
* resistor mounting hole: 8mm
* Voltage: DC 10V-30V( wide range)
* Working voltage: 12v*3A=36W/24V*3A=72W Maximum up to 120W
* Rated current: 3A(Maximum continuous output current)
* Maximum current: 4A
* Modulation range: 5%-95%
* PWM frequency: 500HZ
* Module size: approx.74*47*28mm/2.91*1.85*1.10''
* Net weight: approx. 66g
* Gross weight: approx. 70g

Note:
* DC motor speed control input is DC, can not directly connect AC current (such as the 220V AC) otherwise it will burn.
* The positive and negative poles of the DC power supply can not be reversed, Otherwise the governor will damage.
* Motor can be divided into positive and negative, when the direction of operation and expectations are inconsistent, you can
change the direction of the alignment.
* The potentiometer knob can change the output duty cycle of the governor, thus changing the speed of the motor.
* Please allow 1-3mm differs due to manual measurement.


The A and B outputs are square waves from 0 V to Vcc approximately 90° out of phase. The frequency of the transitions tells you the speed of the motor, and the order of the transitions tells you the direction.


The resistance value of a resistor
Cable length
resistor mounting hole
 Voltage
Working voltage
B10K
approx. 20cm/7.87''
8mm
DC 10V-30V( wide range)
12v*3A=36W/24V*3A=72W Maximum up to 120W


Datasheet of gear motor:
