7.5kw 48v asynchron motor auto electric car differential conversion kit (60798469663)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

About US

(A very important question is what does a conversion kit include?

Normally, a conversion kit for electric vehicle is comprised of a motor and controller assembly(includes key switch, stall switch, accelerator and 4m wire harness). Thus, our price does not include battery pack and charger or other parts.


We have devoted ourselves in motor control system for more than 10 years. Our products are sold to all over the world.

We can provide electric ac motor, motor controller (both ac motor controller and bldc motor controller), dashboard, dc-dc converter, etc.

Our driving system is suitable for various types of electric vehicle, like golf cart, electric tricycle, electric tuk tuk, electric atv or utv, electric car (both for cargo or passenger).

SHINEGLE 7.5kw/10kw/15kw electric vehicle conversion kit are especially for those who want to retrofit their fuel cars to EVs.

Moreover, Our controller and motor can be applied to electric boat.

As an enterprise with full ability to develop and produce. Our products can be customized according to clients’ needs.

\t
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
\t

Motor
\t
Rate power:7.5/10/15KW
\t
Duty:S1
\t
Max speed:7500 rpm
\t
Rate voltage:72/96/108V
\t
Net weight:35~50kg
\t
Speed sensor:64 Pulse
\t
\t
Rated speed:3000~4500rpm
\t
\t

Controller
\t
Rated voltage:72/96/108V
\t
Rated output current:100/120
\t
Max output current:500A
\t
Efficiency:98%
\t
Protection grade:IP65
\t
Packing:wooden box
\t
Net weight:5~10kg
\t
Ambient temperature:-40 ~ 50℃
\t
HS:8714990000
\t

Gearbox
\t
Speed capacity:9000 rpm
\t
Ratio:6:1/8:1/10:1/12:1
\t
Packing:wooden box
\t
Torque capacity:180N.m
\t
Center distance:50~106mm
\t
HS:7326909000
\t
Noise:≤65dB
\t
Est. net weight:15~30kg
\t

Main Features

1) High torque and fast speed

2) Hands-on instruction, installation and use

3) Provide customers the fastest system solutions

4) Work with clients to calculate and test

5) Long time system testing, product maturity

Certifications

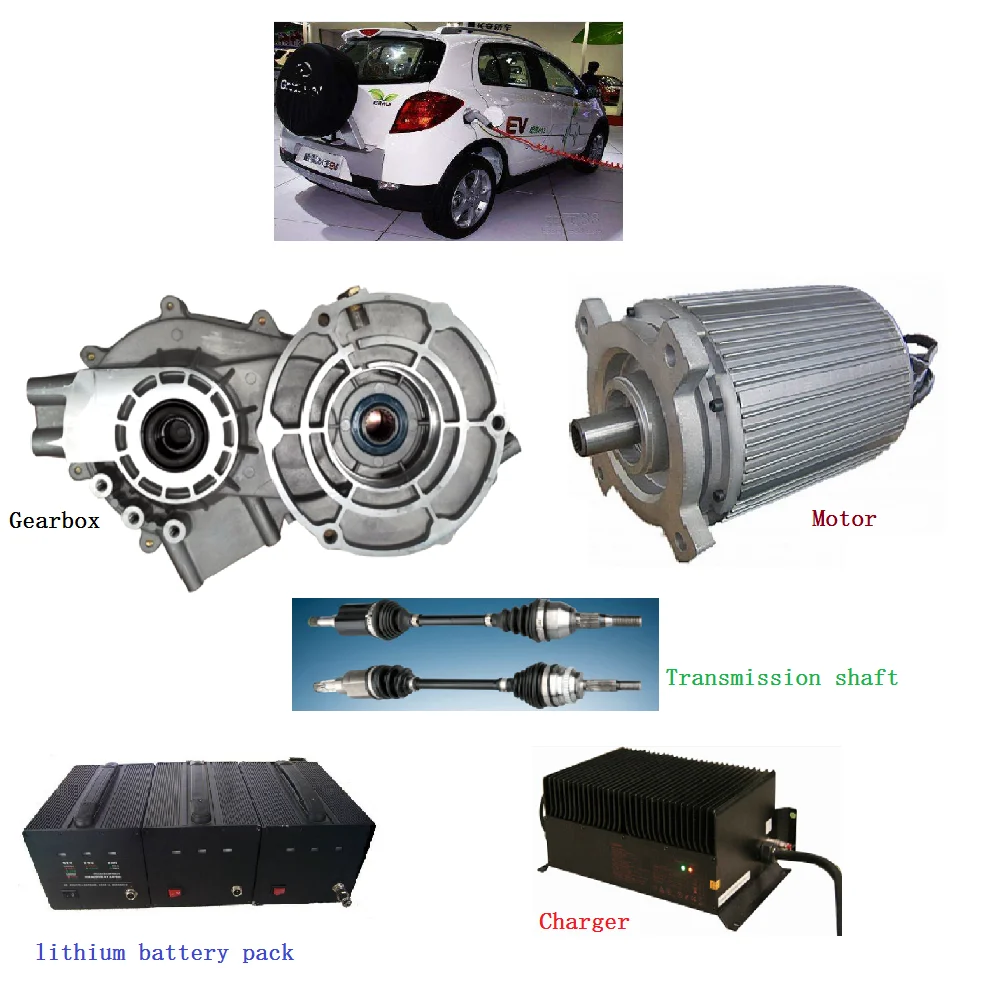

Detailed Images

(Click the Following Corresponding Pictures for More Information)


Name: AC Motor

Brand: SHINEGLE

Original: China

Maintenance-free motor. It is the most promising motor for electric vehicles. Compared with DC motor, AC motor has more advantages, like larger torque.

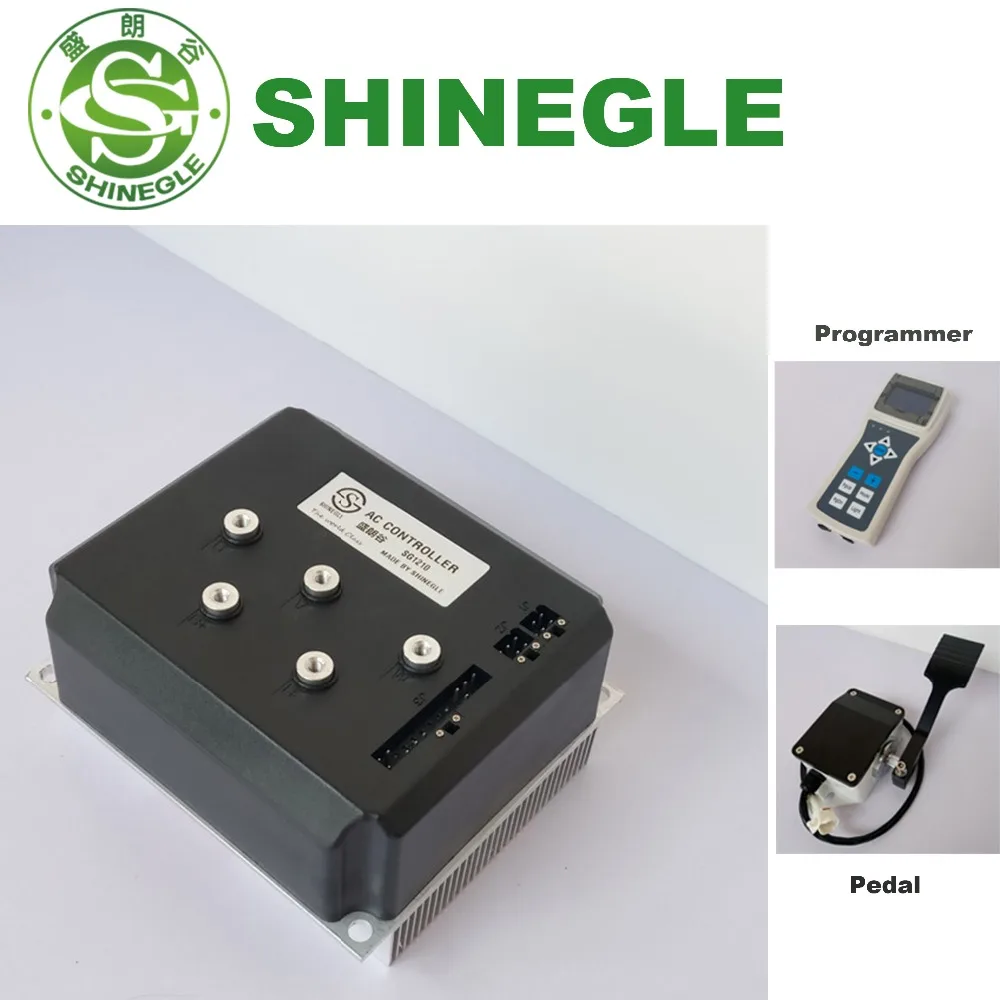

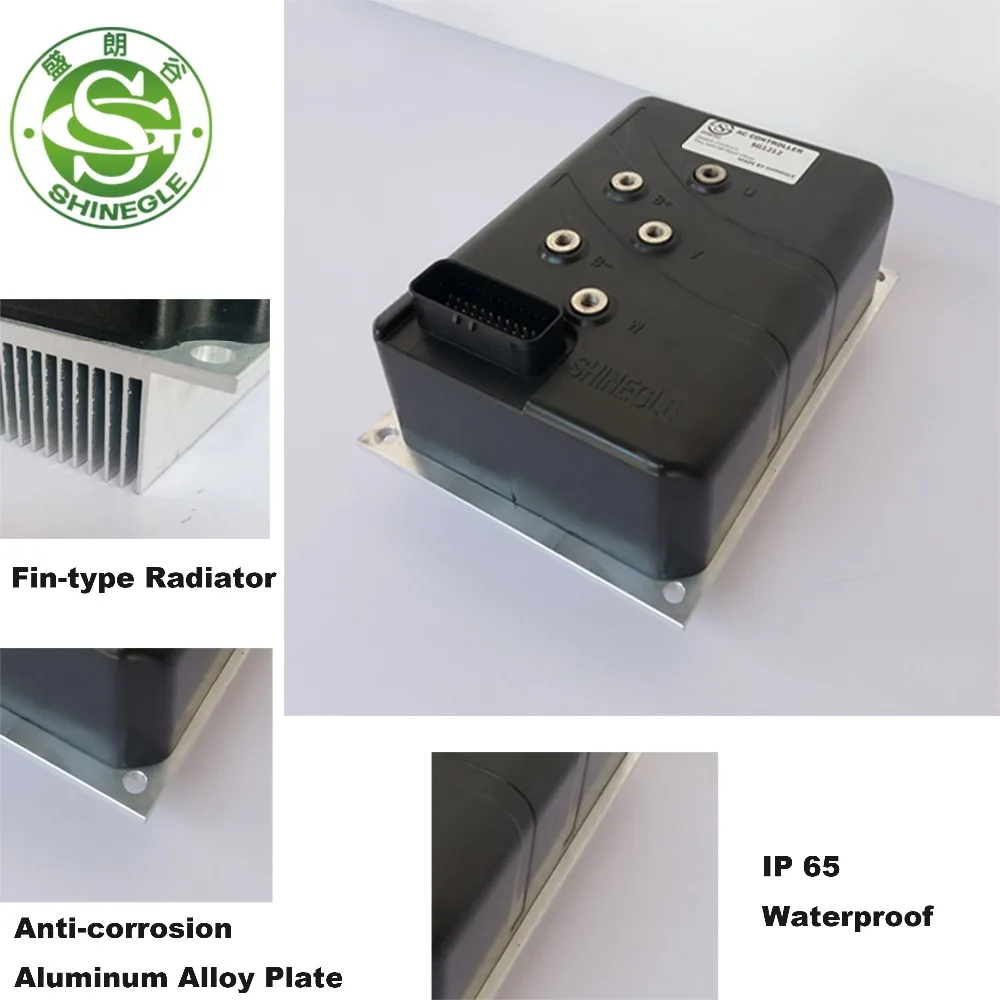

Name: Motor Controller
Brand: SHINEGLE
Original: China
Vector control is one of the best ways to control motor. We have tested this system for more than 10 years, and the current stability is very high.


Name: Gearbox
Brand: SHINEGLE
Original: China
Low noise and high transmission efficiency are the two main advantages of the gear box.


Name: Battery and Charger
Brand: SHINEGLE
Original:China
At present, China's lithium-ion battery cell production technology is in the world's leading position. We can provide 100000km protection for our customers.


Name: DC-DC Converter and Dashboard
Brand: SHINEGLE
Original: China
Usage of DC-DC converter: to convert battery voltage to 12V in order to deliver suitable voltage to headlight, air conditioning, etc.

Connection

Our Service

Pre-Sales Service

* Customer sends inquiry

* Tailor the right system

* Sample testing support

After-Sales Service

* Timely technical communication

* Result feedback and improvement

Packing & Delivery
\t
Packing
\t
Size
\t
1280 (L) * 456 (W) * 789 (D)
\t
Weight
\t
1.2 T
\t



Packing Details
\t
Normal packing is wooden box(Size: L*W*H). If to European countries,the wooden box will be fumigated. If container is too high,we will use PE film for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
123 (L) * 456 (W) * 789 (D)
\t
Weight
\t
100kg
\t



Packing Details
\t
Normal packing is wooden box(Size: L*W*H). Sometimes we choose cartons when by air.
Related Products

(Click for More Information)

AC&BLDC Motor Controller
3kw ac & bldc motor controller                4kw ac & bldc motor controller
5kw ac & bldc motor controller
7.5kw ac & bldc motor controller             10kw ac & bldc motor controller
15kw ac & bldc motor controller

AC Motor
3kw ac motor                       4kw ac motor                          5kw ac motor
7.5kw ac motor                    10kw ac motor                       15kw ac motor

Electric Vehicle Conversion Kit
7.5kw electric vehicle conversion kit
10kw electric vehicle conversion kit
15kw electric vehicle conversion kit

Electric Vehicle Conversion Kit


  DC Motor Controller


AC Motor Controller
FAQ

1.Q: What is the difference of ac and dc motor?
AC motor does not need routine maintenance, but dc motor needs. AC motor has larger torque comparing with dc motor at the same power. But from the perspective of performance, they have no difference. Both of them have the same function and can use in same application.

2.Q: Is your controller compatible with ac & dc motor?
Yes. Which means it can be used in both ac and dc motor.

3. Q: How to install them in vehicle?
We will provide instruction and technical support online to help clients to make it work.

4. Q: How to build an electric car or hybrid car?
Although we are the supplier of electric vehicle components, we are determined to solve problems for clients. So if you do not have thoughts, we are happy to be of help. Just contact us.

As a company that is of R&D ability, we are now planning to develop controllers for different applications, such as electric bus, street sweeper, mobility scooter for the senior, electric motorcycle, etc. If you are in need, just send us inquiry or chat with us by Trade Manager.

Feel free to contact us if you have any problem for we have confidence in providing an ideal solution for you with 15-year experience in developing motor and motor control system.
