Xhorse VVDI MB BGA Tool Device for Mercedes Benz support Password Calculation and all Key Lost vvdi mb key programmer
- Category: >>>
- Supplier: Chengdu Daobo Technology Co. Ltd.
Share on (1600327469015):
Product Overview
Description

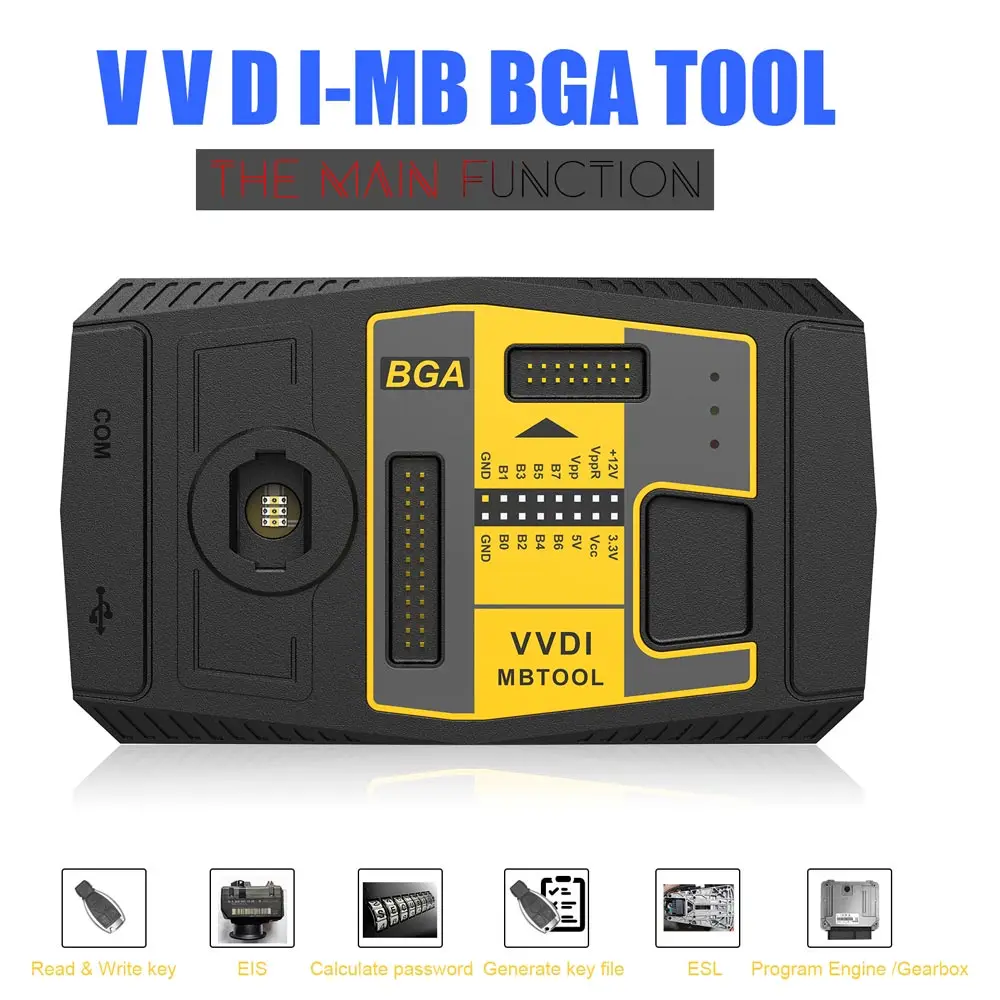

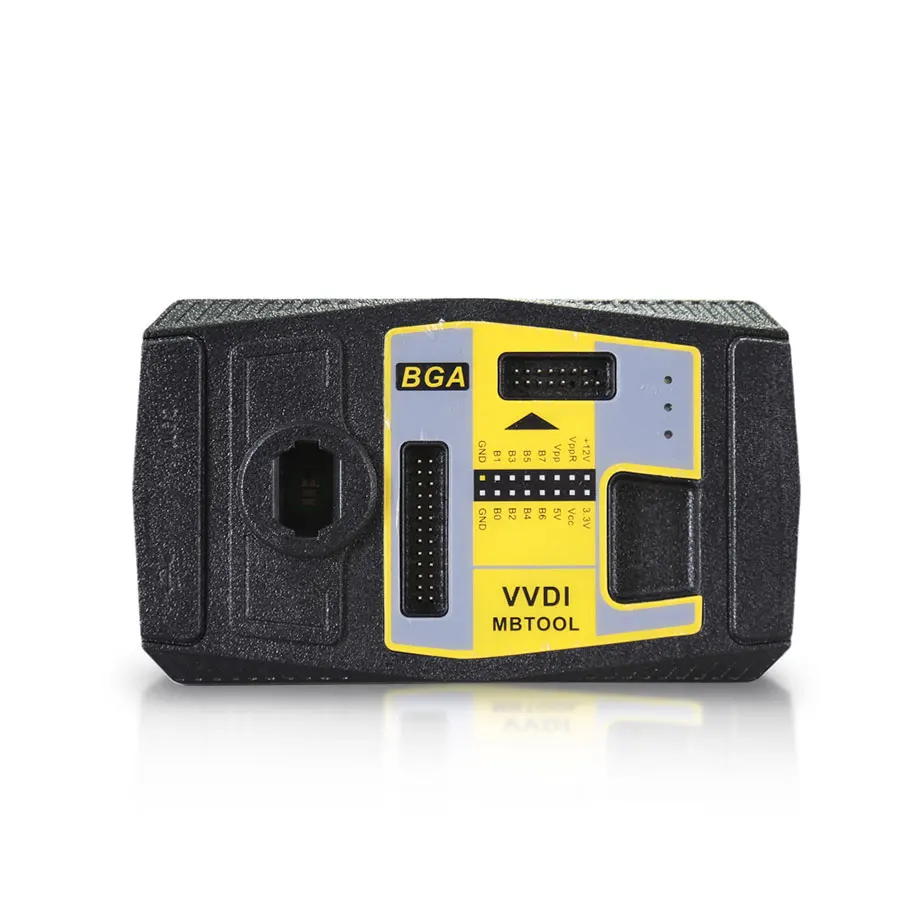

Original Xhorse VVDI MB BGA Tool for Benz Key Programmer Including BGA Calculator Function
Xhorse VVDI MB BGA TOOL Highlights:
1. Support BE key, read password and prepare new key via IR.
2. NEC V051,V057 support on board get password
3. All NEC keys support on board write and erase
4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.
5. Support renew EIS and ELV
6. Support write EIS and ELV
7. Support online generate key file
8. Unlock ELV Function
9. Language: English, Spanish and Polish.
10. VVDI MB BGA Tool Support the popular models like W166, W197, W212, W218, W246, W206, W210,w204, w207,W166,W203, W463, W639, W246, W212, W212(old),some W216, W164 2009- ,W164,W221,W215, W220, W230 and some others.
Notice:
Supports Password Calculator Function.It takes 4 minutes to collect data, and 2 minutes to calculate
1. Support BE key, read password and prepare new key via IR.
2. NEC V051,V057 support on board get password
3. All NEC keys support on board write and erase
4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.
5. Support renew EIS and ELV
6. Support write EIS and ELV
7. Support online generate key file
8. Unlock ELV Function
9. Language: English, Spanish and Polish.
10. VVDI MB BGA Tool Support the popular models like W166, W197, W212, W218, W246, W206, W210,w204, w207,W166,W203, W463, W639, W246, W212, W212(old),some W216, W164 2009- ,W164,W221,W215, W220, W230 and some others.
Notice:
Supports Password Calculator Function.It takes 4 minutes to collect data, and 2 minutes to calculate
VVDI MB BGA Tool Function in Details:
1. Read Write Key
1. Read key basic information
2. Key with BE version, we can read password from key via IR directly. Of course,renew key, write new key file via IR is also supported
3. Support IR repair key, repair key not work via IR
4. NEC adaptor can read key password from NEC v51, v57 version
5. Support write and renew (NEC adaptor) NEC key versions following: v51, v57,v28, v35, v40,v03, v06, v08 (Keyless Go),v05, v07,
v09 (Keyless Go),v59, v61 (Keyless Go)
2. EIS Tools
1. Support read EIS data via OBD and IR adaptor
2. Under OBD mode, we provide auto detect EIS type for CAN protocol
3. Support read W164, W209, W211 EIS via OBD without gateway support
4. Support read for old Motorola EIS (HC05, HC08, K-Line) password via IR directly
5. Support renew EIS, make 2 nd hand EIS to new one (online)
6. Support replace EIS, you can write original EIS data to new EIS via IR
7. Support write new VIN
8. Support clear TP
9. Support disable key position
10. Support personalize W204 ESL
11. Support test EIS, ELV, working key status
12. Support type:
W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212 (old, with ELV) W203, 463, 639 (K),W202, 208, 210(K),W215, 220 (K),W230 (K),W216,W221,W639 2009-
3. Password Calculation: support working key and lost all key
1. Password calculation can get the key password from working key and EIS(online)
2. CAN protocol EIS all support password calculation (support BGA keys and other NEC keys)
3. We also support calculate password for NEC v51, v57 keys. No soldering.
4. Data acquisition time depends on the key version. It needs about 3.5 minutes -13minutes, BGA version need about 5 minutes
5. Calculate time in server: 30 seconds – 1 minute
6. Now VVDI-MB TOOL is the fastest tool for password calculation
7. Lost all key password calculation: Now we support calculate password for W166, W212, W246, W212(old, with ELV) while lost all key
8. Support type (have working key): W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212(old, with ELV),W216,W221,W639 2009-
1. Read Write Key
1. Read key basic information
2. Key with BE version, we can read password from key via IR directly. Of course,renew key, write new key file via IR is also supported
3. Support IR repair key, repair key not work via IR
4. NEC adaptor can read key password from NEC v51, v57 version
5. Support write and renew (NEC adaptor) NEC key versions following: v51, v57,v28, v35, v40,v03, v06, v08 (Keyless Go),v05, v07,
v09 (Keyless Go),v59, v61 (Keyless Go)
2. EIS Tools
1. Support read EIS data via OBD and IR adaptor
2. Under OBD mode, we provide auto detect EIS type for CAN protocol
3. Support read W164, W209, W211 EIS via OBD without gateway support
4. Support read for old Motorola EIS (HC05, HC08, K-Line) password via IR directly
5. Support renew EIS, make 2 nd hand EIS to new one (online)
6. Support replace EIS, you can write original EIS data to new EIS via IR
7. Support write new VIN
8. Support clear TP
9. Support disable key position
10. Support personalize W204 ESL
11. Support test EIS, ELV, working key status
12. Support type:
W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212 (old, with ELV) W203, 463, 639 (K),W202, 208, 210(K),W215, 220 (K),W230 (K),W216,W221,W639 2009-
3. Password Calculation: support working key and lost all key
1. Password calculation can get the key password from working key and EIS(online)
2. CAN protocol EIS all support password calculation (support BGA keys and other NEC keys)
3. We also support calculate password for NEC v51, v57 keys. No soldering.
4. Data acquisition time depends on the key version. It needs about 3.5 minutes -13minutes, BGA version need about 5 minutes
5. Calculate time in server: 30 seconds – 1 minute
6. Now VVDI-MB TOOL is the fastest tool for password calculation
7. Lost all key password calculation: Now we support calculate password for W166, W212, W246, W212(old, with ELV) while lost all key
8. Support type (have working key): W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212(old, with ELV),W216,W221,W639 2009-
VVDI for Benz BGA Tool Customer Feedback:
i have an me-rcedes W245 B-Class from 2007 it work for All key lost
W221 - all keys lost - Ok
W164 - no connection by OBD, IR is ok. Can not do data collect, EZS IR reading only
W212 - all keys lost by OBD - Ok
W220 - no K-Line connection for data collect. IR reading - Ok.
I try to collect list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 - MCU -read PSW IR - not successful
W210: EIS/EZS A210.545.02.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.03.08 - MCU 1D69J - read PSW IR - not successful W210: EIS/EZS A210.545.00.08 - MCU 0D69J - read PSW IR -
not successful W215: EIS/EZS A215.545.00.08 - MCU 0D69J - read PSW IR - not successful W215: EIS/EZS A215.545.08.08 - MCU 1L85D -
read PSW IR - not successful
W203: EIS/EZS A203.545.05.08 - MCU ??? - read PSW IR - OK
W203: EIS/EZS A203.545.05.08 - MCU 1J35D - read PSW - OK
W203: EIS/EZS A209.545.09.08 - MCU 1L85D - read PSW IR - not successful
W220: EIS/EZS A215.545.02.08 - MCU - read PSW IR - OK
W220:EIS/EZS A215.545.00.08 - MCU 1D69J read PSW IR - not successful
W639: EIS/EZS A639.545.05.08 - MCU 2x 1L02Y - read PSW IR - not successful
W639: EIS/EZS A639.545.09.08 - MCU 0L01Y - read PSW IR/OBD - not successful
I Can guarantee it will not read ANY WITH HC05
1D69J/0D69J cannot be read by IR alone - A calculation with kline is possible.
read a w203 A203.545.05.08 with mask 1J35d password ok
W203 IES 203 545 05 08 read PSW IR OK
W 220 IES 215 545 02 08 read PSW IR – OK
Only support parts of HC05, HC08 motorola eis(K line),if cannot support will show error, need to remove eis get eeprom. we have
tested W215 ok, but not means all W215 can support.in fact only support parts of this type.

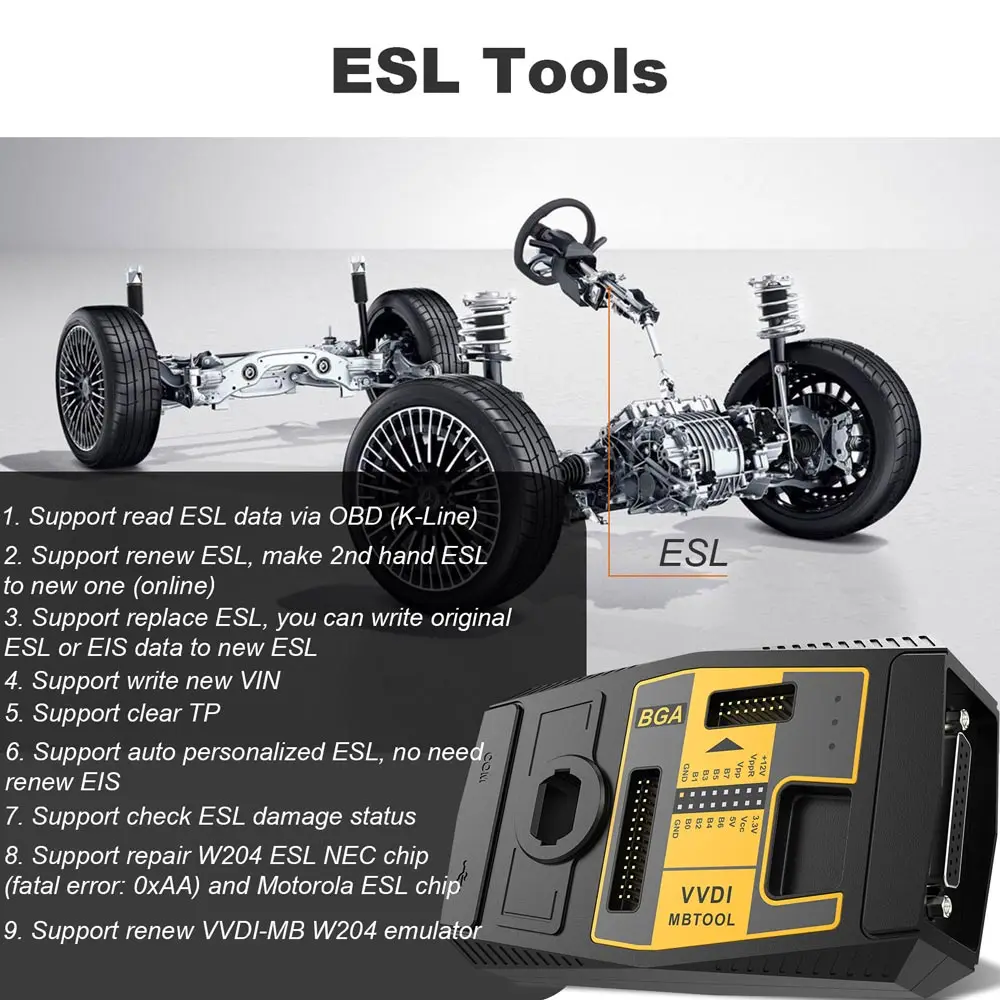

please refer to change W204 esl steps:
ESL:Clear TP, Renew ESL(need erase password)
EIS:Renew EIS(need password & erase password)
Write EIS data back,then Personalize W204ESL
1. I test password from 212 new model super
good tool need pay 2 tokens
need 10 min all ok
2. Do you have see video of this tool?
They say can do all key lost on w212.
No tool can do it even Mehaco or nec pro51.
w212 eis on video, sure it can.. mehaco/mercedesinstrument can do all keys lost on w212.. the option is availible a few months.
To view more real feedback from customers worldwide, please refer to our official blog Xhorse VVDI MB BGA Tool All Info
VVDI M-B BGA Tool FAQ:
Q: I test read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect
16 12v
4+5 GND
14 CAN_L
6 CAN_H
pin 1 : ESL 1
pin 2 : GND
pin 3 : +12V (30)
pin 5 : CAN L (White)
pin 6 : CAN H (Green)
pin 7 : CAN L
pin 8 : CAN H
Can any one test?
A: Read eis via obd for W164, W169, W211, W209, require gateway connected
i have an me-rcedes W245 B-Class from 2007 it work for All key lost
W221 - all keys lost - Ok
W164 - no connection by OBD, IR is ok. Can not do data collect, EZS IR reading only
W212 - all keys lost by OBD - Ok
W220 - no K-Line connection for data collect. IR reading - Ok.
I try to collect list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 - MCU -read PSW IR - not successful
W210: EIS/EZS A210.545.02.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.03.08 - MCU 1D69J - read PSW IR - not successful W210: EIS/EZS A210.545.00.08 - MCU 0D69J - read PSW IR -
not successful W215: EIS/EZS A215.545.00.08 - MCU 0D69J - read PSW IR - not successful W215: EIS/EZS A215.545.08.08 - MCU 1L85D -
read PSW IR - not successful
W203: EIS/EZS A203.545.05.08 - MCU ??? - read PSW IR - OK
W203: EIS/EZS A203.545.05.08 - MCU 1J35D - read PSW - OK
W203: EIS/EZS A209.545.09.08 - MCU 1L85D - read PSW IR - not successful
W220: EIS/EZS A215.545.02.08 - MCU - read PSW IR - OK
W220:EIS/EZS A215.545.00.08 - MCU 1D69J read PSW IR - not successful
W639: EIS/EZS A639.545.05.08 - MCU 2x 1L02Y - read PSW IR - not successful
W639: EIS/EZS A639.545.09.08 - MCU 0L01Y - read PSW IR/OBD - not successful
I Can guarantee it will not read ANY WITH HC05
1D69J/0D69J cannot be read by IR alone - A calculation with kline is possible.
read a w203 A203.545.05.08 with mask 1J35d password ok
W203 IES 203 545 05 08 read PSW IR OK
W 220 IES 215 545 02 08 read PSW IR – OK
Only support parts of HC05, HC08 motorola eis(K line),if cannot support will show error, need to remove eis get eeprom. we have
tested W215 ok, but not means all W215 can support.in fact only support parts of this type.
please refer to change W204 esl steps:
ESL:Clear TP, Renew ESL(need erase password)
EIS:Renew EIS(need password & erase password)
Write EIS data back,then Personalize W204ESL
1. I test password from 212 new model super
good tool need pay 2 tokens
need 10 min all ok
2. Do you have see video of this tool?
They say can do all key lost on w212.
No tool can do it even Mehaco or nec pro51.
w212 eis on video, sure it can.. mehaco/mercedesinstrument can do all keys lost on w212.. the option is availible a few months.
To view more real feedback from customers worldwide, please refer to our official blog Xhorse VVDI MB BGA Tool All Info
VVDI M-B BGA Tool FAQ:
Q: I test read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect
16 12v
4+5 GND
14 CAN_L
6 CAN_H
pin 1 : ESL 1
pin 2 : GND
pin 3 : +12V (30)
pin 5 : CAN L (White)
pin 6 : CAN H (Green)
pin 7 : CAN L
pin 8 : CAN H
Can any one test?
A: Read eis via obd for W164, W169, W211, W209, require gateway connected
Product Description
Specification
item | value |
Type | Engine Analyzer |
Voltage | 12v |
Power | 24v |
Applicable Models | Fit for most of cars |
Combination | pin code reading, key precoding & programming, ECU EEPROM, Fastest password calculation |
Place of Origin | China |
Guangdong | |
Brand Name | Xhorse |
Model Number | vvdi bga |
Warranty | 1Years |
Product Name | VVDI BGA Key Programmer |
Language | Multi-language |
Update | Lifetime Free Update Online |
Function | IMMO programming |
Special Features | Password calculation |
Application | 12V Gasoline Vehicles |
Software Version | Latest Update V5.1.0 |
Delivery time | Within 24 Hours |
Weight | 2.5KG |
Feature | Transponder Programmer |
Packing & Delivery
The product is packed in cartons
Company Profile
Chengdu Daobo Technology Co., Ltd. is specialized in R&D, manufacturing, exporting of various auto diagnostic products,key programmer and so on.
We are mainly focus on car and truck diagnostic tool,ecu programmer, car key programmer,keys,chip,auto locksmith tool, mile-age programmer, auto electronics, and more on auto repair and maintenance tools.
In order to ensure quality, provide high-quality products. We have become a first-level agent for many products.Such as Launch,Autel,Vident,Xtool,Obdstar,Foxwell,Xhorse ans so on.
We provide timely delivery and good after-service to our customers.
Welcome to us for more reliable products!
We are mainly focus on car and truck diagnostic tool,ecu programmer, car key programmer,keys,chip,auto locksmith tool, mile-age programmer, auto electronics, and more on auto repair and maintenance tools.
In order to ensure quality, provide high-quality products. We have become a first-level agent for many products.Such as Launch,Autel,Vident,Xtool,Obdstar,Foxwell,Xhorse ans so on.
We provide timely delivery and good after-service to our customers.
Welcome to us for more reliable products!
FAQ
1. who are we?
We are based in Sichuan, China, start from 2019,sell to Africa(25.00%),South Asia(12.00%),South America(10.00%),North America(10.00%),Eastern Asia(9.00%),Mid East(8.00%),Southeast Asia(8.00%),Central America(5.00%),Eastern Europe(3.00%),Western Europe(3.00%),Oceania(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Domestic Market(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Diagnostic tools,Key programmer,Ecu tools,Mile-age programmer,Airb-ag reset tool
4. why should you buy from us not from other suppliers?
We are mainly focus on car and truck diagnostic tool,ecu programmer, car key programmer,keys,chip,auto locksmith tool, mile-age programmer, auto electronics, and more on auto repair and maintenance tools.
5. what services can we provide?
Accepted Delivery Terms: Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,GBP,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese
We are based in Sichuan, China, start from 2019,sell to Africa(25.00%),South Asia(12.00%),South America(10.00%),North America(10.00%),Eastern Asia(9.00%),Mid East(8.00%),Southeast Asia(8.00%),Central America(5.00%),Eastern Europe(3.00%),Western Europe(3.00%),Oceania(2.00%),Southern Europe(2.00%),Northern Europe(2.00%),Domestic Market(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Diagnostic tools,Key programmer,Ecu tools,Mile-age programmer,Airb-ag reset tool
4. why should you buy from us not from other suppliers?
We are mainly focus on car and truck diagnostic tool,ecu programmer, car key programmer,keys,chip,auto locksmith tool, mile-age programmer, auto electronics, and more on auto repair and maintenance tools.
5. what services can we provide?
Accepted Delivery Terms: Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,GBP,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
