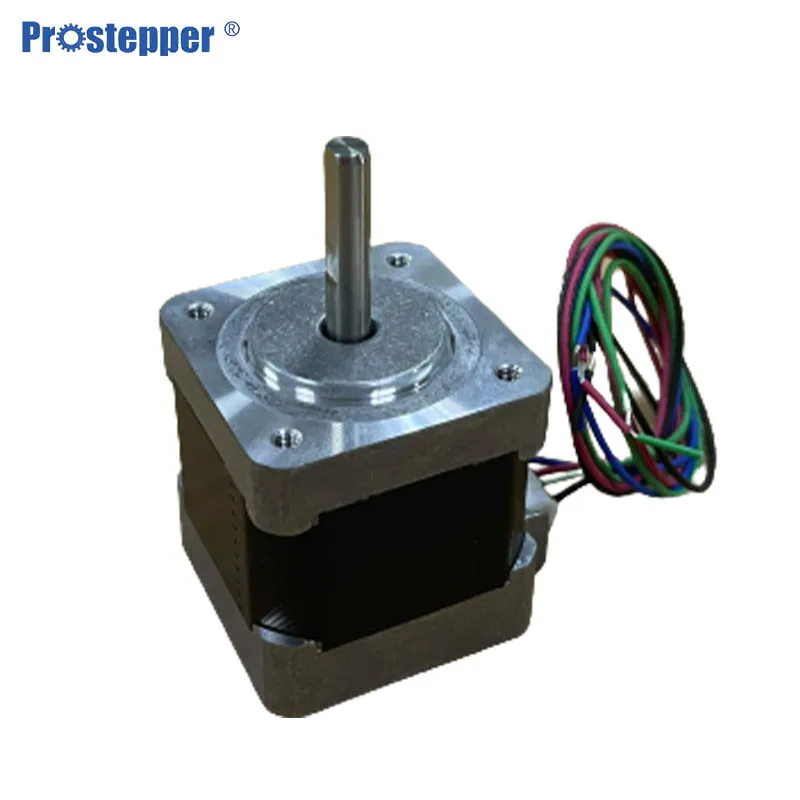

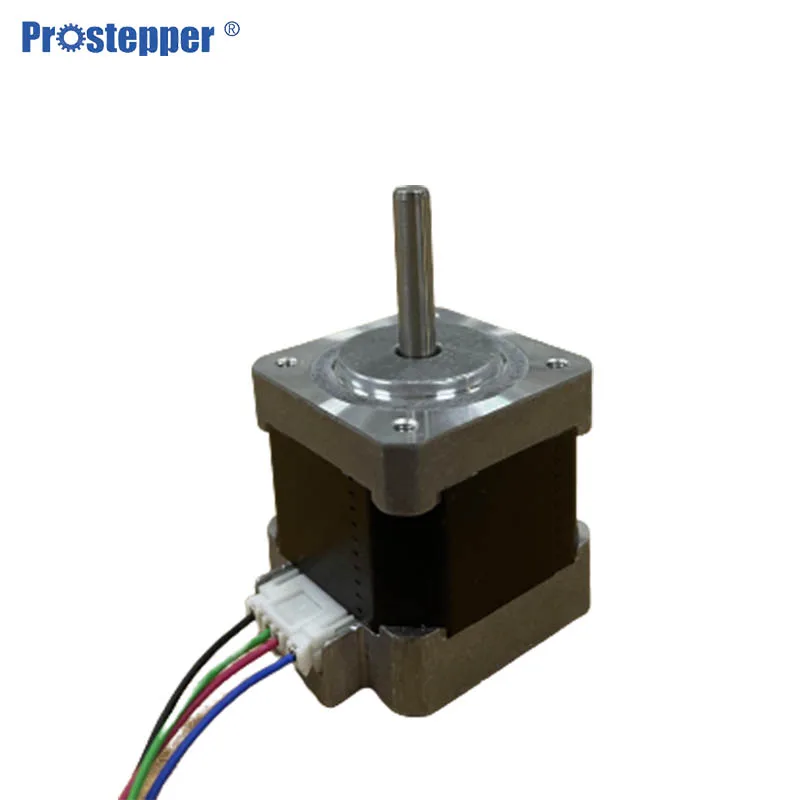

Низкая цена, длина шагового корпуса, 35 мм, кодировщик стандартного типа NEMA14, шаговый двигатель для ЧПУ
- Category: Motors >>>
- Supplier: Changzhou Prostepper Co. Ltd.
Share on (1600327796935):
Product Overview
Description
Product Description
Advantages of Stepper Motor:
1.The rotation angle of the motor is proportional to the input pulse.
2.The motor has full torque at standstill.
3.Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is noncumulative from one step to the next.
4.Excellent response to starting, stopping, and reversing.
5.Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
6.The motor’s response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
7.It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
8.A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.
1.The rotation angle of the motor is proportional to the input pulse.
2.The motor has full torque at standstill.
3.Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is noncumulative from one step to the next.
4.Excellent response to starting, stopping, and reversing.
5.Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
6.The motor’s response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
7.It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
8.A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.
Specification
Product name | Nema14 stepper motor |
Model | PEM35H236E2KzS |
Holding Torque | 0.18 N.m |
Rated Current A/Phase | 1.5 A |
Resistance Ω/Phase | 2.1 Ω |
Inductance mH/Phase | 2.1 mH |
Inertia | 20 g.cm² |
Output | Differental |
Encoder Resolution | 2000 CPR |
Application | 3D Printing |

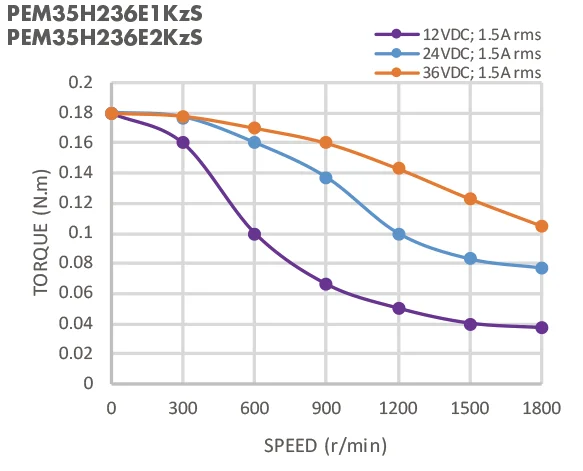

Speed/Torque Characteristics(Reference Value)
NOTE
The Speed/torque curve is based on Prostepper's test conditions.When the conditions change, the dynamic torque changes too.
The rated current in the specification is an effective value, Plesae adjust the driver‘s current below the rated current.
The rated current in the specification is an effective value, Plesae adjust the driver‘s current below the rated current.
Encoder Specifications
MODEL | E1Kz | E2Kz | |
Resolution | 1000cpr/4000ppr | 2000cpr/8000ppr | |
Type | Incremental Encoder | ||
Output Mode | Differental | ||
Output Signal | A+A；B+B-； Z+Z- | A+ A；B+B-；Z+Z- | |
Supply Voltage | 5vDC±5% | ||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

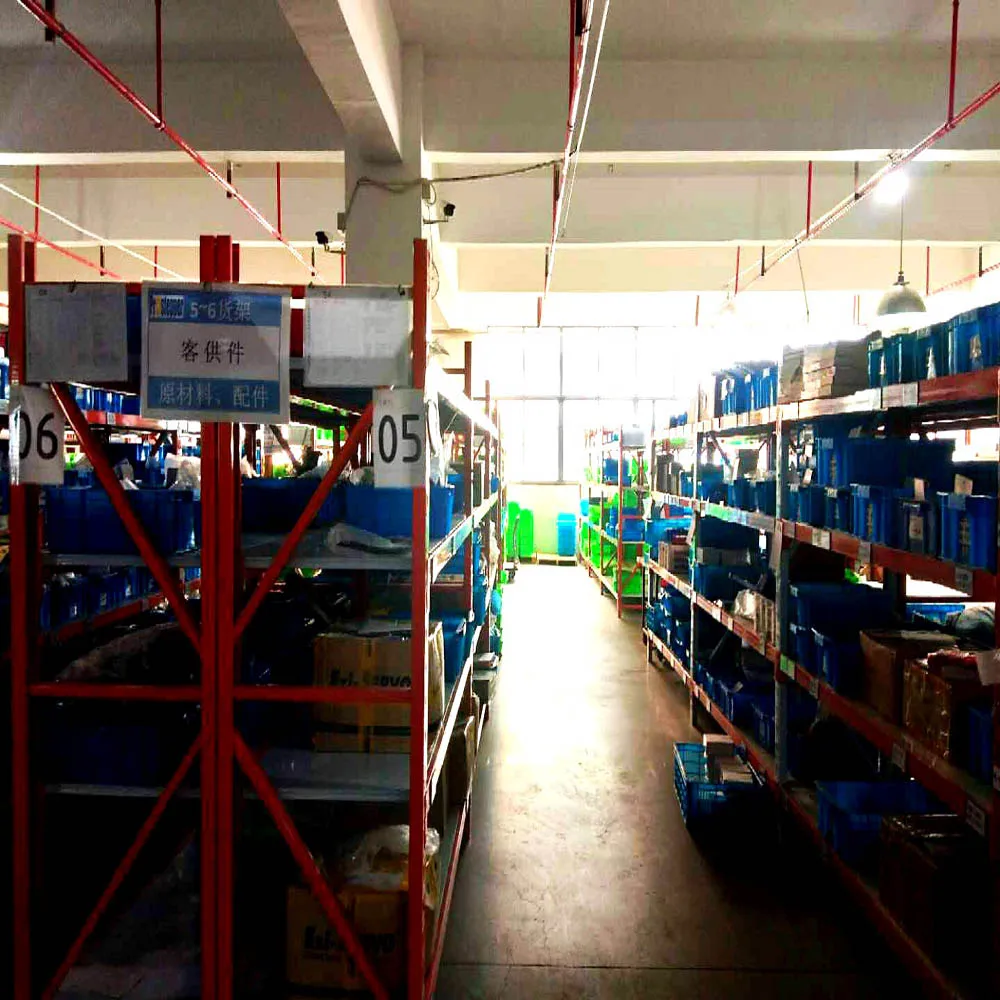

Company Profile
CHANGZHOU PROSTEPPER CO.,LTD. was established in 2004 as Jiangsu High-Tech Enterprise, which is engaging in Developing, designing and producing professional stepper motor and DC brushless motor. It's motor manufacturing and R&D history dated from 1998. "Prostepper" Brand has a good reputation in China and oversea markets. Prostepper possess an annual production capacity is over 3.0 million motors.
Prostepper is the high-level motor supplier in the field of Industrial Automation and Medical Science. Prostepper own a manufacturing team with rich experience and also have very strictly Quality control system, Obtained ISO9001 certificate, the motor products are compliance with CE and RoHS standard.
FAQ
1. How can we know the product quality?
A1: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
2. How can we get your catalog?
A2: Please go to below website link to download it.
3. Can we have free sample?
A3: Yes sure, but please pay the shipping cost by youself.
4. Is this your final price? May i have the discount?
A4: Our price is the factory price, and if your quantity is larger, we will allow the discount for you.
5.Is there cheap shipping cost to import to our country?
A5: Yes, we have our regular shipping company, they have very good price.
6.What is the Warranty for your products?
A6: One year warranty for all electronic products. If any quality problems on our side occured in this period, we will take on the shipping cost and replacement.
A1: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
2. How can we get your catalog?
A2: Please go to below website link to download it.
3. Can we have free sample?
A3: Yes sure, but please pay the shipping cost by youself.
4. Is this your final price? May i have the discount?
A4: Our price is the factory price, and if your quantity is larger, we will allow the discount for you.
5.Is there cheap shipping cost to import to our country?
A5: Yes, we have our regular shipping company, they have very good price.
6.What is the Warranty for your products?
A6: One year warranty for all electronic products. If any quality problems on our side occured in this period, we will take on the shipping cost and replacement.
