2 Ton Manual Hydraulic Stacker With Adjustable Forks For Sale
US $270.00-$550.00

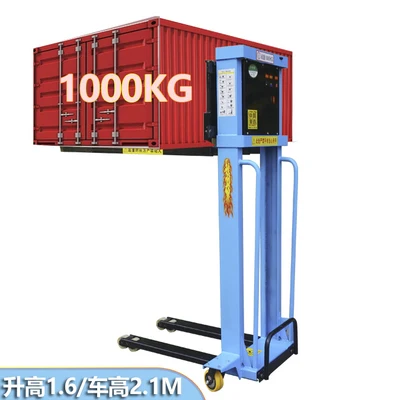

Самоподъемный полуэлектрический штабелер 500 кг 1000 кг 1,3 м 1,6 м ручной штабелер
- Category: Stacker & Reclaimer >>>
- Supplier: Shanghai Yiying Crane Machinery Co. Ltd.
Share on (1600328893266):
Product Overview
Description
HUGO top 10 brand in china forklift 1 ton 2 ton 1.6M manual pallet stacker
Product Description
Hydraulic manual stacker for price for sale
| Model | Unit | ||||
| Product type | hand stacker | hand stacker | hand stacker | hand stacker | |
| Loading capacity | Ton | 0.5 | 1 | 1.5 | 2 |
| loading center | mm | 400 | 400 | 400 | 400 |
| wheel type | nylon | nylon | nylon | nylon | |
| bearing wheel size | mm | Ø75×42 | Ø80×60 | Ø80×60 | Ø80×60 |
| steering wheel size | mm | Ø180×50 | Ø180×50 | Ø180×50 | Ø180×50 |
| Min.fork lowered height | mm | 90 | 90 | 90 | 90 |
| Max.fork lifting height | mm | 1600 | 1600 | 1600 | 1600 |
| Overall fork width | mm | 220-720 | 220-940 | 220-940 | 260-940 |
| Inside width between forks | mm | 20-520 | 20-740 | 20-740 | 20-700 |
| Fork size(l/e/s) | mm | 800/100/53 | 900/100/30 | 900/100/30 | 900/120/30 |
| Overall length | mm | 1284 | 1375 | 1430 | 1430 |
| Overall width | mm | 1980 | 1980 | 2080 | 2080 |
| Overall height | mm | 800 | 1000 | 1000 | 1000 |
| Min.turning radius | mm | 1250 | 1400 | 1400 | 1400 |
| Pump pressure frequncy AT Max.height(laden) | times | ≤95 | ≤95 | ≤110 | ≤110 |
| Service weight | KG | 190 | 220 | 250 | 275 |
Product details
Product details
1)The hydraulic consists of three parts:
the elevating cylinder and controlling parts,the elevating arm and chain-wheel parts,the gantry and back-wheel parts.
The lift lifts the weights with a manual or pedal hydraulic device,and loads weights with manual pull and push at a low position.
The oil-reflow valve is placed in the hydraulic device.
The descending speed is controlled through the pedal,ensuring the correct action of the hydraulic system and safety.
2)Big pump, strong heart
 | Frame thickness The frame thickness has 8mm. |
| Fork size One model for most countries. General size: 330-740mm It is the adjustable fork, the fork size can be adjusted from 330mm to 740mm. And the leg width is 690mm. |  |
 | Fork size One model for the EUROPEAN countries General size:550mm It is the fixed fork, the fork size is 550mm. And the leg width is 490mm. |
Fork size A special model General size:330-830mm It is the adjustable fork, the fork size can be adjusted from 330mm to 830mm.It is on the outside of the leg. And the leg width is 490mm. |  |
| |
