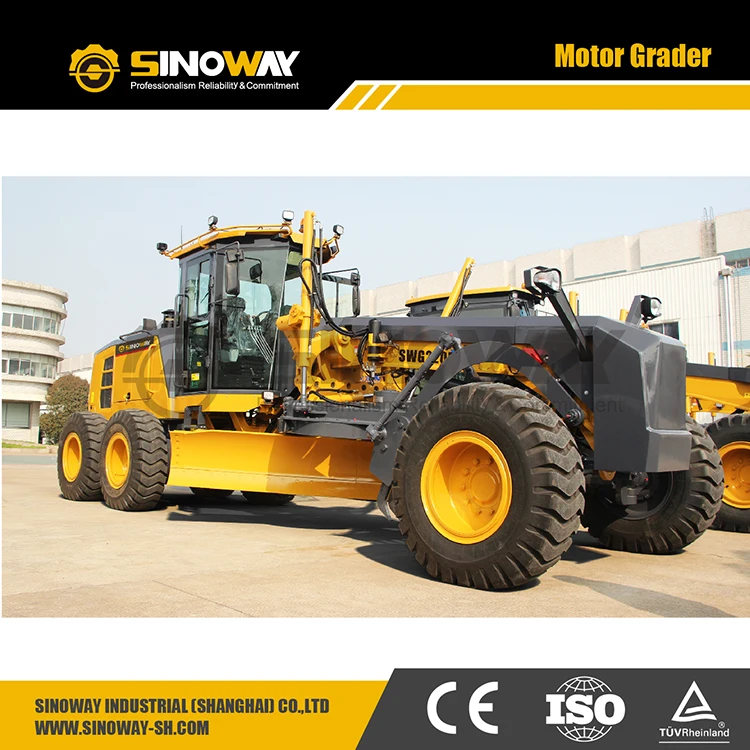

220HP power High Efficiency Motor Grader SWG220M with rear ripper front dozer
- Category: >>>
- Supplier: Sinoway Industrial (Shanghai) Co. Ltd.
Share on (1600329806530):
Product Overview
Description
Main Features
New design platform.
● Three-stage electronic control engine, large power reserve coefficient.
● Load sensing technology, labor-saving operation, accurate control, can realize compound action.
● Independent heat dissipation technology, the machine noise is small.
● Carrying rotary technology, efficient operation.
● Super luxury cab, large internal space, reasonable layout, interior and air duct integrated design.
● Wet brake drive axle, longer service life, with self-locking differential.
● Using articulated frame, with front axle steering, turning radius is small, flexible.
● Adjustable console, seat, control handle and instrument layout is reasonable, small control force, easy to use, improve driving
comfort.
● Optional front ripper rear ripper front dozer automatic leveling device.
● Three-stage electronic control engine, large power reserve coefficient.
● Load sensing technology, labor-saving operation, accurate control, can realize compound action.
● Independent heat dissipation technology, the machine noise is small.
● Carrying rotary technology, efficient operation.
● Super luxury cab, large internal space, reasonable layout, interior and air duct integrated design.
● Wet brake drive axle, longer service life, with self-locking differential.
● Using articulated frame, with front axle steering, turning radius is small, flexible.
● Adjustable console, seat, control handle and instrument layout is reasonable, small control force, easy to use, improve driving
comfort.
● Optional front ripper rear ripper front dozer automatic leveling device.
Product Show
Specification
Engine make | CUMMINS |
Rated power/Speed | 164kW/2200rpm |
Machine dimension(standard) | 9343×2625×3432mm |
Machine weight(standard) | 16500 kg |
Tyre specification | 17.5-25 |
Ground clearance (Front axle) | 613mm |
Wheel base | 2156mm |
Axle distance between front and rear | 6497 mm |
Wheel base between middle and rear | 1538 mm |
Forward speed | 5、9、12、20、25、45km/h |
Rearward speed | 5、12、25km/h |
Traction forcef=0.75 | ≥85kN |
Maximum gradeability | ≥25% |
Inflation pressure of tire | 260kPa |
Work system pressure | 24.5MPa |
Transmission pressure | 1.6-1.8Mpa |
Maximum steering angle of front wheel | ±48° |
Allowable angle of inclination of front wheel | ±17° |
Maximum swinging angle of front axle | ±15° |
Maximum swinging angle of front axle | Front 15°, rear 15° |
Maximum swinging angle of front axle | ±25° |
Minimum turning radius | 7.6m |
Blade Maximum lifting height | 480mm |
Blade Maximum scraping depth | 755mm |
Blade Maximum tilt angle | 90° |
Blade Cutting angle | Front 40°，Rear 5° |
Blade Angle of revolution | 360° |
Blade Length × Height | 4270×610mm |
Coolant | 50L |
Fuel tank | 390L |
Engine | 24L |
Transmission box | 38L |
Balance box | 75L per |
Drive axle | 25L |
Hydraulic oil | 105L |
