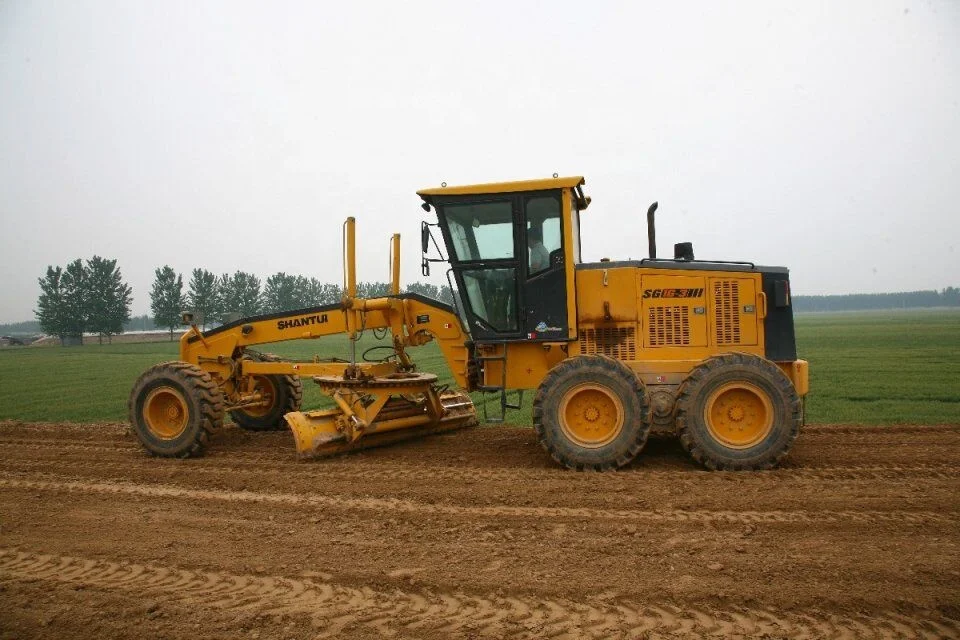

Горячая распродажа! Shantui 160hp автогрейдер SG16 3/GR1653/GR1803/GR215 для дорожного строительства
- Category: Motor Graders >>>
- Supplier: Evangel Industrial (Shanghai) Co. Ltd.
Share on (62195090774):
Product Overview
Description

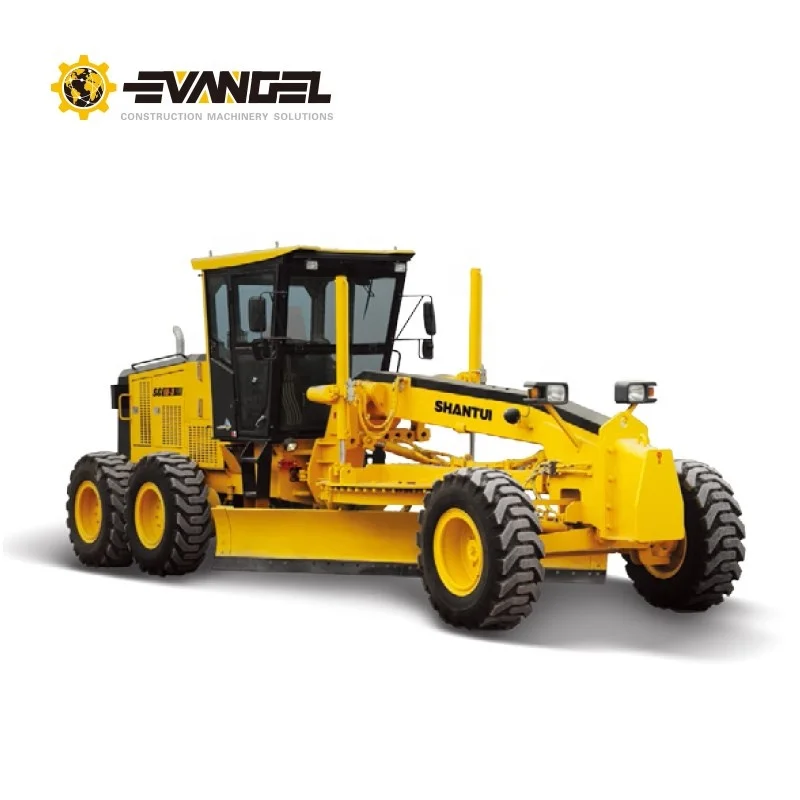

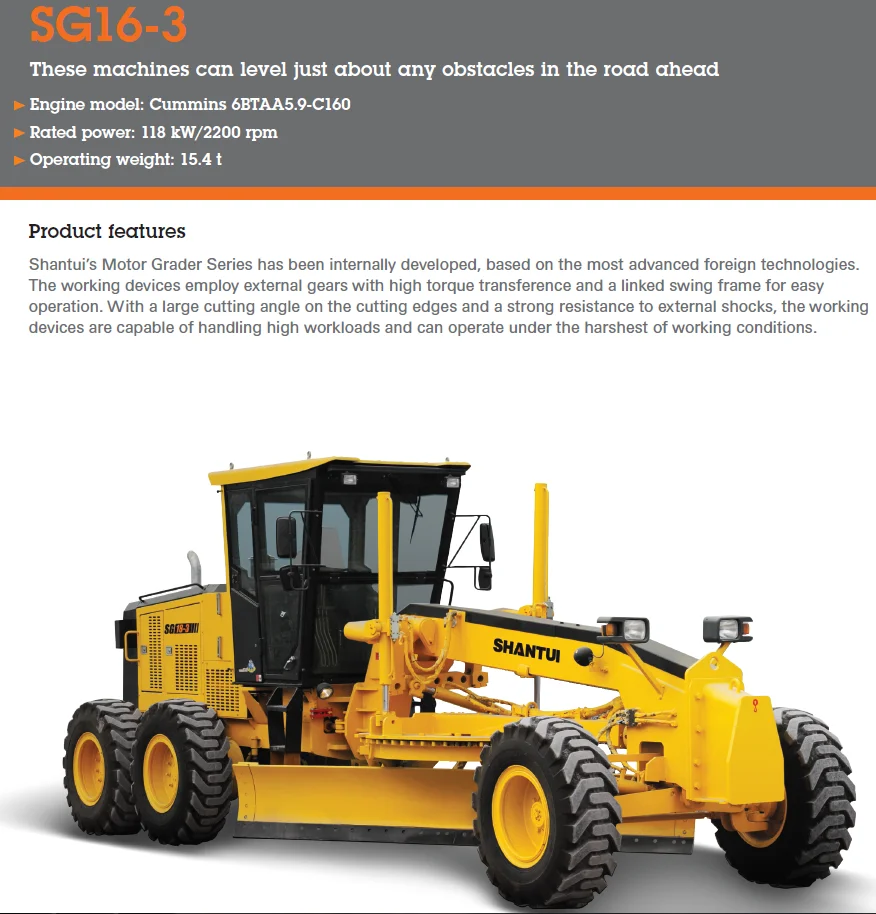

Hot Selling Shantui 160hp motor grader SG16-3/GR1653/GR1803/GR215 for Road Construction
Product Description

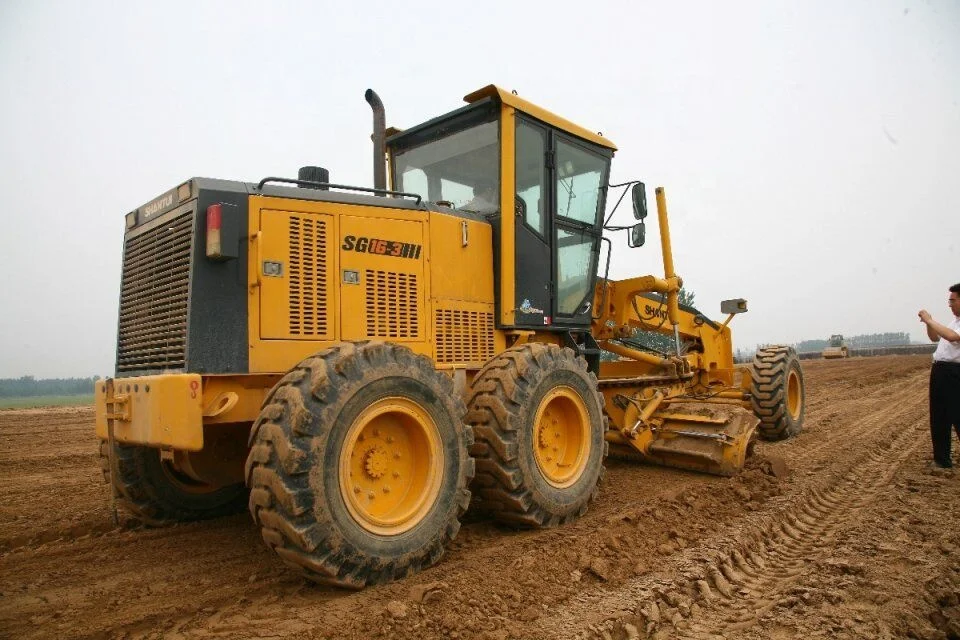

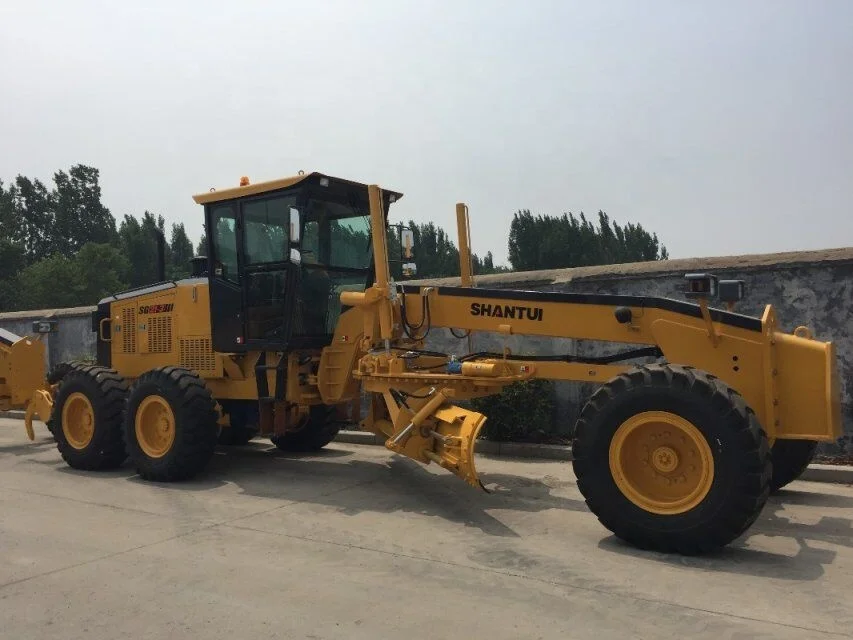

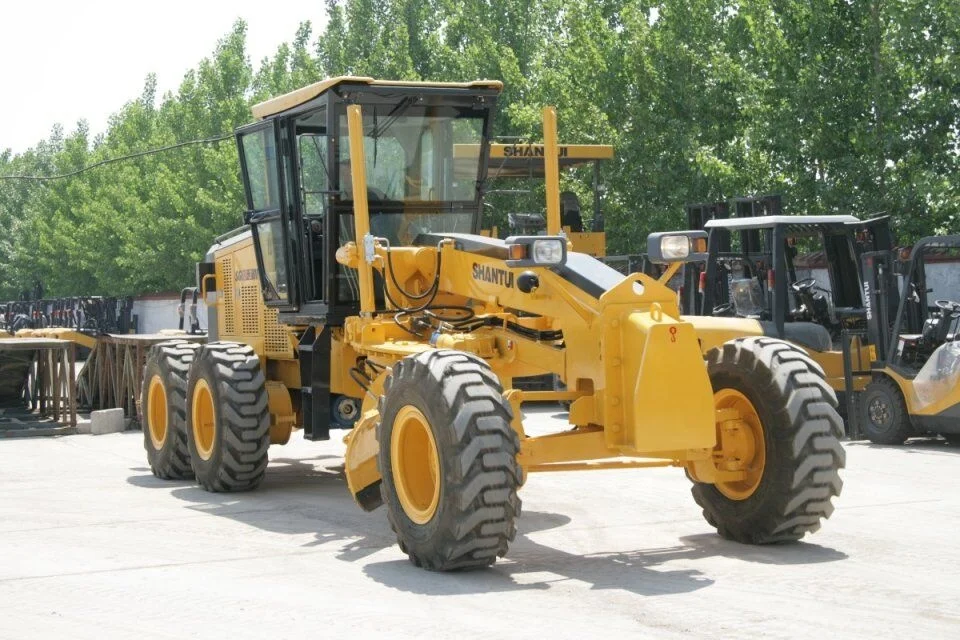

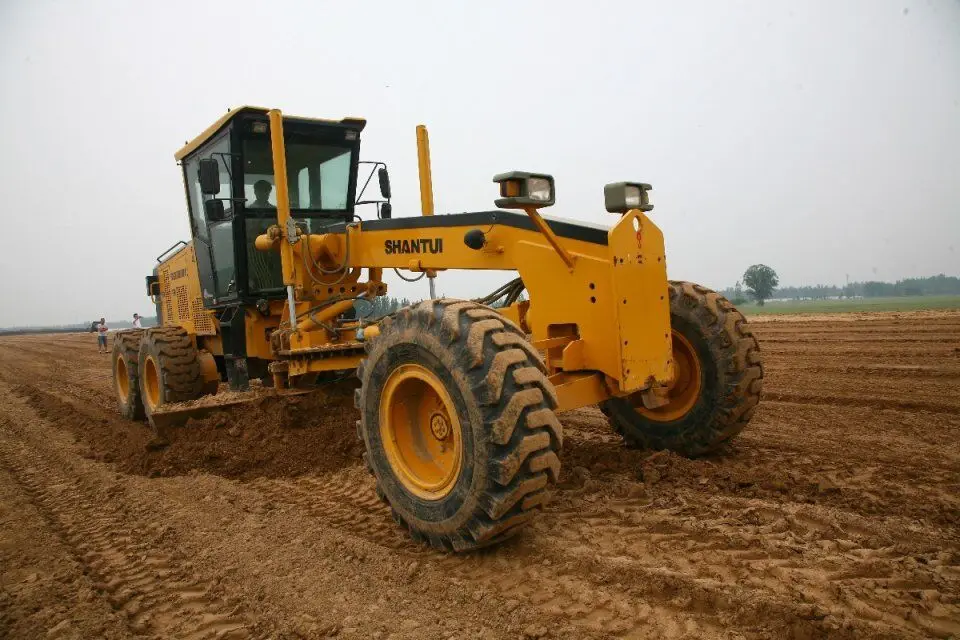

SG16-3 motor grader adopts the external ring gear type working device to achieve higher transmitted torque, larger blade cutting angle,
and better material control capability and features the maximum traction force among the domestic like machines.
This machine is applicable for large-area leveling, ditching, slope scraping, bulldozing, ripping, land clearing,
and snow removing and is an ideally essential machine for large building constructions, water conservancy projects, and farm
Cu-m-mins engine features reliable performances and high efficiency and energy-saving.
The 6-speed electronically controlled shift hydraulic transmission with Z-F technology features reasonable speed ratio distribution to ensure
Cu-m-mins engine features reliable performances and high efficiency and energy-saving.
The 6-speed electronically controlled shift hydraulic transmission with Z-F technology features reasonable speed ratio distribution to ensure
that the whole machine has three working gears at choice to ensure operating reliability and flexibility.
The box-type structure welded from integral plates features high strength.
The extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.
Featuring simple operations and high impact resistance against external forces, it’s applicable for the working conditions with high operating volume and severe operating environment.
The international advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.
The full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.
The high-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.
The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.
The standard high capacity heating and air conditioning system and the double-layer sealed side doors achieve <84dB noise and effectively reduce the labor strength of the operator.
The maintenance-free high performance battery is equipped.
The steel engine hood with four doors eases the maintenance and heat dissipation of the engine.
The hydraulic oil tank adopts the overhead dismountable filter element, featuring convenient repairs and maintenances.
The automatic leveling system can be additionally installed.
The special drive tires and the conventional tires are at your choice for the motor grader.
The box-type structure welded from integral plates features high strength.
The extern ring gear adopted features high transmitted torque, larger blade cutting angle, and better material handling capability and is especially useful while handling dry materials and clays.
Featuring simple operations and high impact resistance against external forces, it’s applicable for the working conditions with high operating volume and severe operating environment.
The international advanced hydraulic brake control technologies and international renowned hydraulic units are adopted to ensure braking safety and reliability.
The full-hydraulic front wheel steering equipped features small turning radius and high mobility and flexibility.
The high-grade full-sealed luxury cab with total visual field and the high-efficiency shock-absorbing seat maximize the operation comfort.
The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.
The standard high capacity heating and air conditioning system and the double-layer sealed side doors achieve <84dB noise and effectively reduce the labor strength of the operator.
The maintenance-free high performance battery is equipped.
The steel engine hood with four doors eases the maintenance and heat dissipation of the engine.
The hydraulic oil tank adopts the overhead dismountable filter element, featuring convenient repairs and maintenances.
The automatic leveling system can be additionally installed.
The special drive tires and the conventional tires are at your choice for the motor grader.

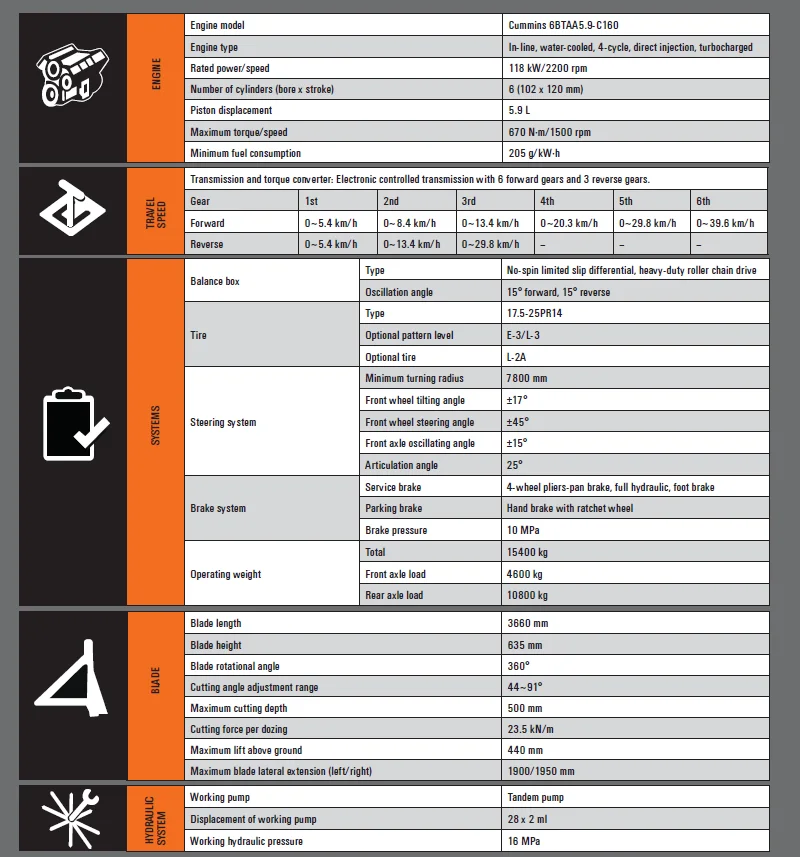

| Weights(kg) | 15400 |
| Front axle load(kg) | 4600 |
| Rear axle load (kg) | 10800 |
| Minimum turning radius(mm) | 7800 |
| Articulation angle(°) | 25 |
| Working hydraulic pressure(Mpa) | 16 |
| Engine Model | Cu-m-mins 6BTAA5.9-C160 |
| Rated horsepower(Kw) | 118 |
| Maximum torque/speed(N.m)/(rpm) | 670 N.m/1500 rpm |
| Blade length(mm) | 3660 |
| Blade height(mm) | 635 |
| Blade rotational angle(°) | 360 |
| Cutting angle adjustment range(°) | 44~91 |
| Maximum cutting depth(mm) | 500 |
| Cutting force per dozing(kN/m) | 23.5 |
| Maximum lift above ground(mm) | 440 |
| Forward(km/h) | 1st 0-5.4 2nd 0-8.4 3rd 0-13.4 4rd 0-20.3 5rd 0-29.8 6rd 0-39.6 |
| Reverse(km/h) | 1st 0-5.4 2nd 0-13.4 3rd 0-29.8 |
| Maximum climbing ability(°) | 20 |

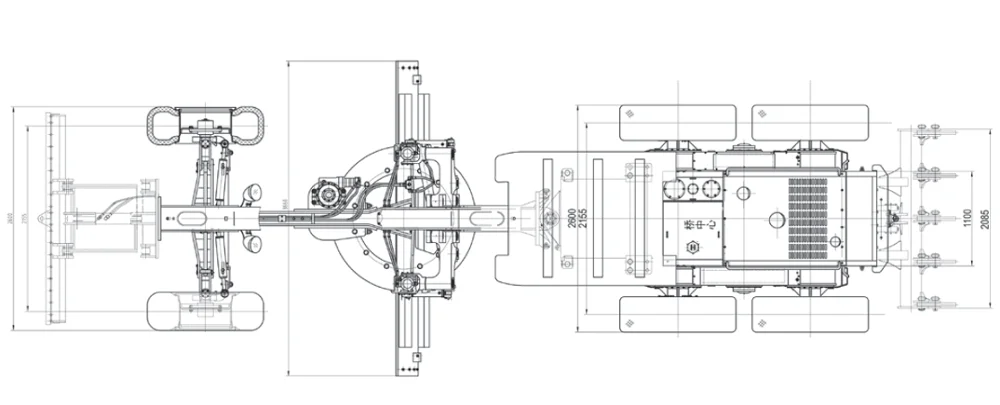

| Overall dimensions (mm) | 8726*3660*3400 |
165hp motor grader GR165/GR1653:
The GR165 adopts Dongfeng Cu-m-mins 6BTA5.9-C180-II turbocharged diesel engine, which has large output torque and power reserve coefficient and low fuel consumption.
The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
Energy-saving and noise-reducing: adopt low-speed engine transmission line, low specific fuel consumption of rated point, energy saving and environmental protection; low-speed ratio configuration of transmission system, average fuel consumption reduced by about 8%.
Strong Power: Adopting Sichai High-efficiency State III Variable Power Engine.
With load rotation: to improve the hydraulic system pressure, blade rotary force greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.
Efficient operation: The displacement of the hydraulic pump and the hydraulic motor is increased, the speed of the cylinder is increased by 20%, and the operating efficiency leads the industry.
The gearbox and torque converter are electronically controlled power shifting and fixed shaft gearboxes. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
| Dimension(LxWxH) | 8900×2625×3470mm |
| Operating weight(Standard) | 15000kg |
| Performance specification | |
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 77KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
| Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Biade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 3965×610mm |
GR1653 motor grader specification:
Engine model | SC7H180.1G3 |
Rated power/speed | 128kW/2000rpm |
Dimension(LxWxH) | 8900×2625×3420mm |
Operating weight(Standard) | 15000kg |
Performance specification | |
Travelling speed ,forward | 5,8,11,19,23,38 km/h |
Travelling speed ,reverse | 5,11,23 km/h |
Tractive force(f=0.75) | 77KN |
Max. gradeability | 20% |
Tire inflation pressure | 260 kPa |
Working hydraulic pressure | 20 MPa |
Transmission pressure | 1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels | ±48° |
Max. lean angle of front wheels | ±17° |
Max. oscillation angle of front axle | ±15° |
Max. oscillation angle of balance box | 15 |
Frame articulation angle | ±27° |
Min. turning radius using articulation | 7.3m |
Blade | |
Maximum lift above ground | 450mm |
Maximum depth of cutting | 500mm |
Maximum blade position angle | 90° |
Blade cutting angle | 28°—70° |
Circle reversing rotation | 360° |
Moldboard width X height | 3965×610mm |
