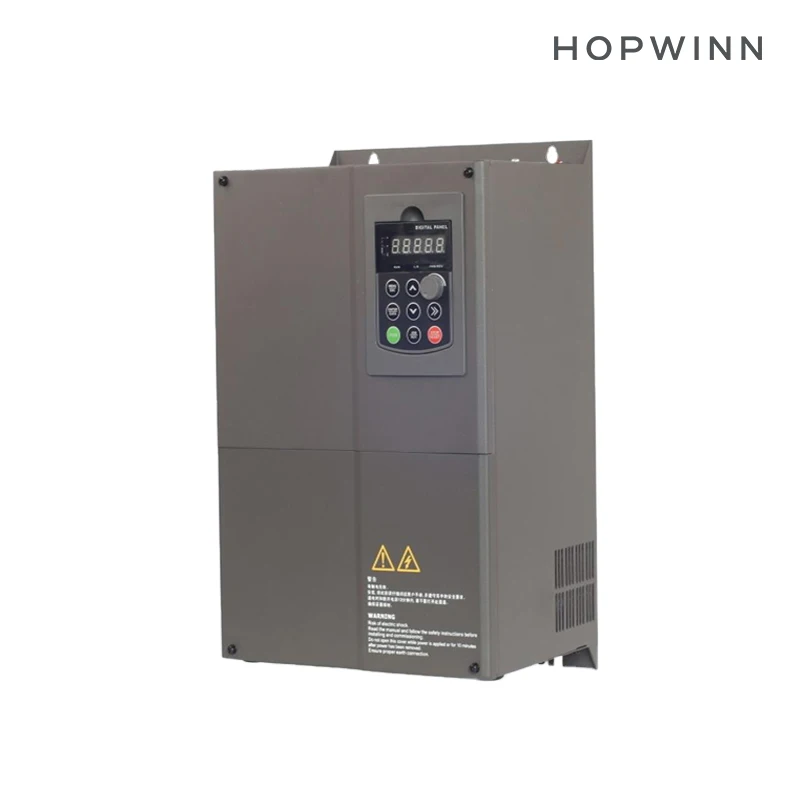

110kw high power 3 phase 380V 415VAC irrigation solar pump inverter (1600329953972)

Share on (1600329953972):


Price:$2,550.00 - $2,558.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description








Model
HW200-4T-055B
HW200-4T-075B
HW200-4T-090B
HW200-4T-110B
DC Input parameter
Optimized Input
537V DC
Suggest Input Range
500V DC - 600V DC
DC MPPT Input Range
250Vdc - 750V DC
Adapted pump power
45KW
55/64KW
75KW
90/93KW
AC Input parameter
380/400/415V AC Three-phase
Max Current(A)
113
157
180
214
Output Parameter
Output Power(KW)
55
75
90
110
Output Voltage(V)
380/400/415V AC Three-phase
Output Curent(A)
112
150
176
210
Output Frequency
0-50HZ/60HZ
Protection
Lightning protect
Built-in
Over Voltage protect
Built-in
low voltage protect
Built-in
Locked rotor protect
Built-in
Output phase loss protect
Built-in
Short-circuit protect
Built-in
Dry pump protect
Built-in,need water level sensor
Full tank protect
Built-in,need water level sensor
Other Parameter
IP Grade
IP20
Environment temperature
‘-20℃~+60℃ >45℃ need derating
Humidity
<95%RH No condensation
Vibration
<5.9m/s(0.6g)
Package size(MM)
635*485*440
755*555*495
Product Weight(kg)
33KG
70KG
Certificate
IEC/EN61800-5-1,IEC/EN61800-3,IEC/EN61000,CE
