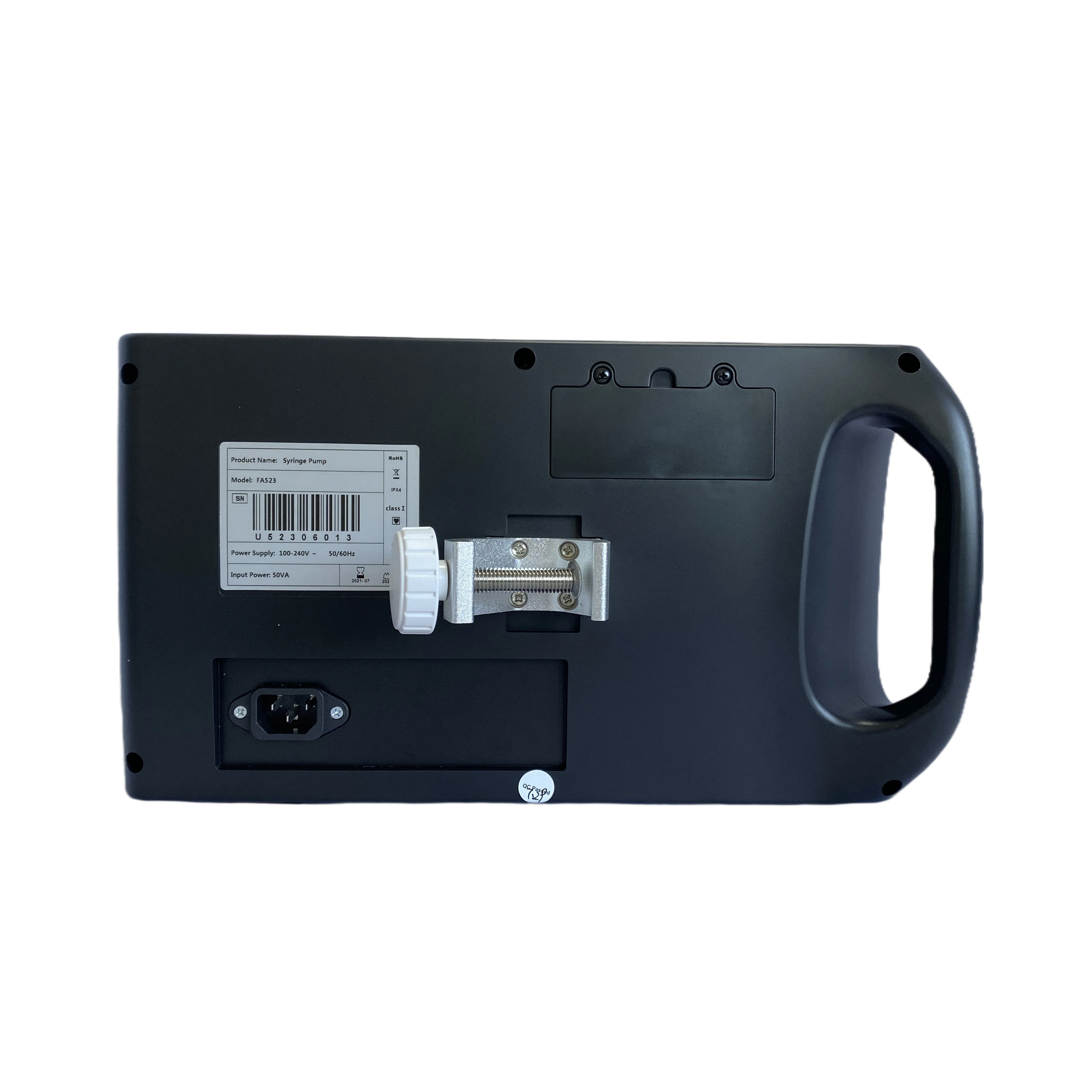

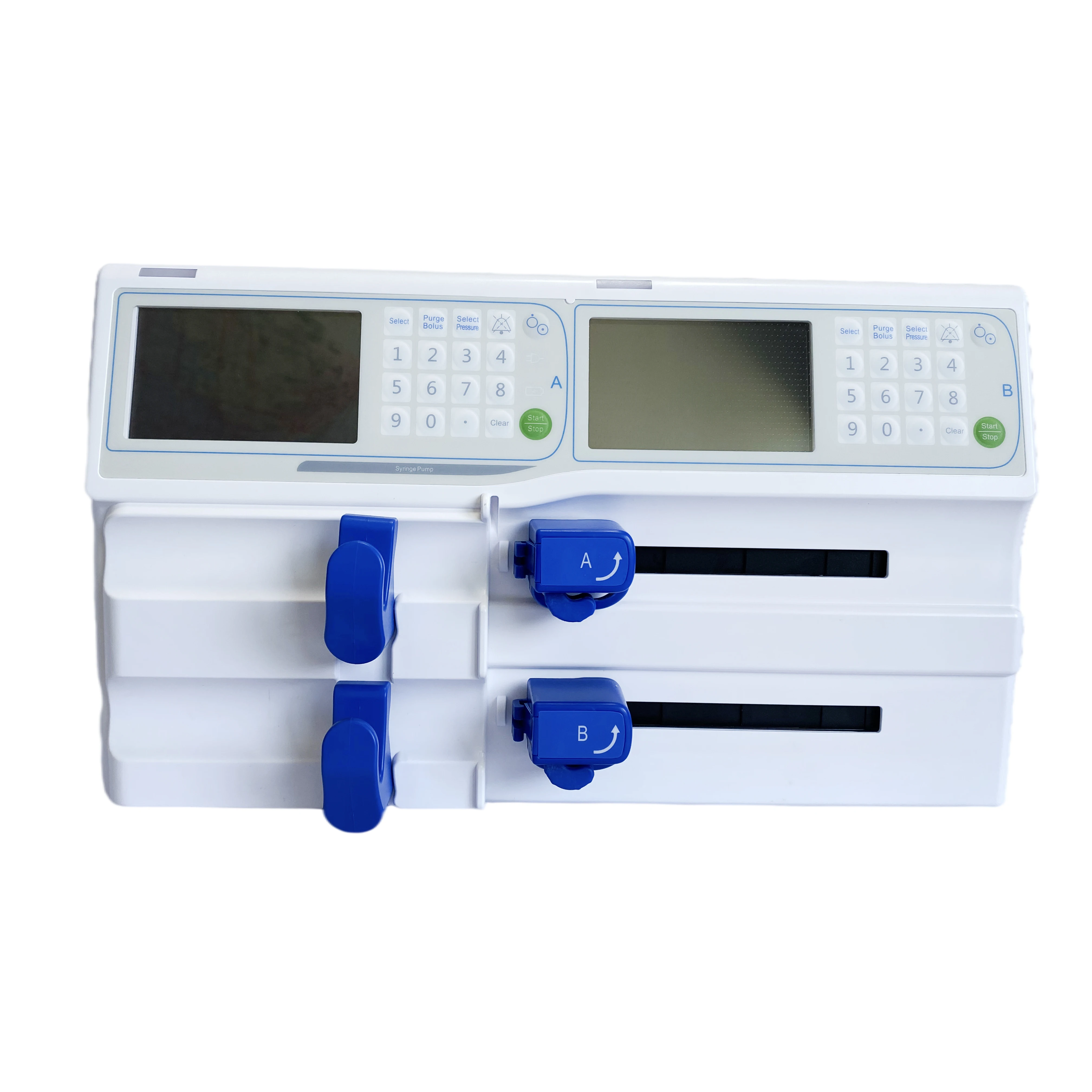

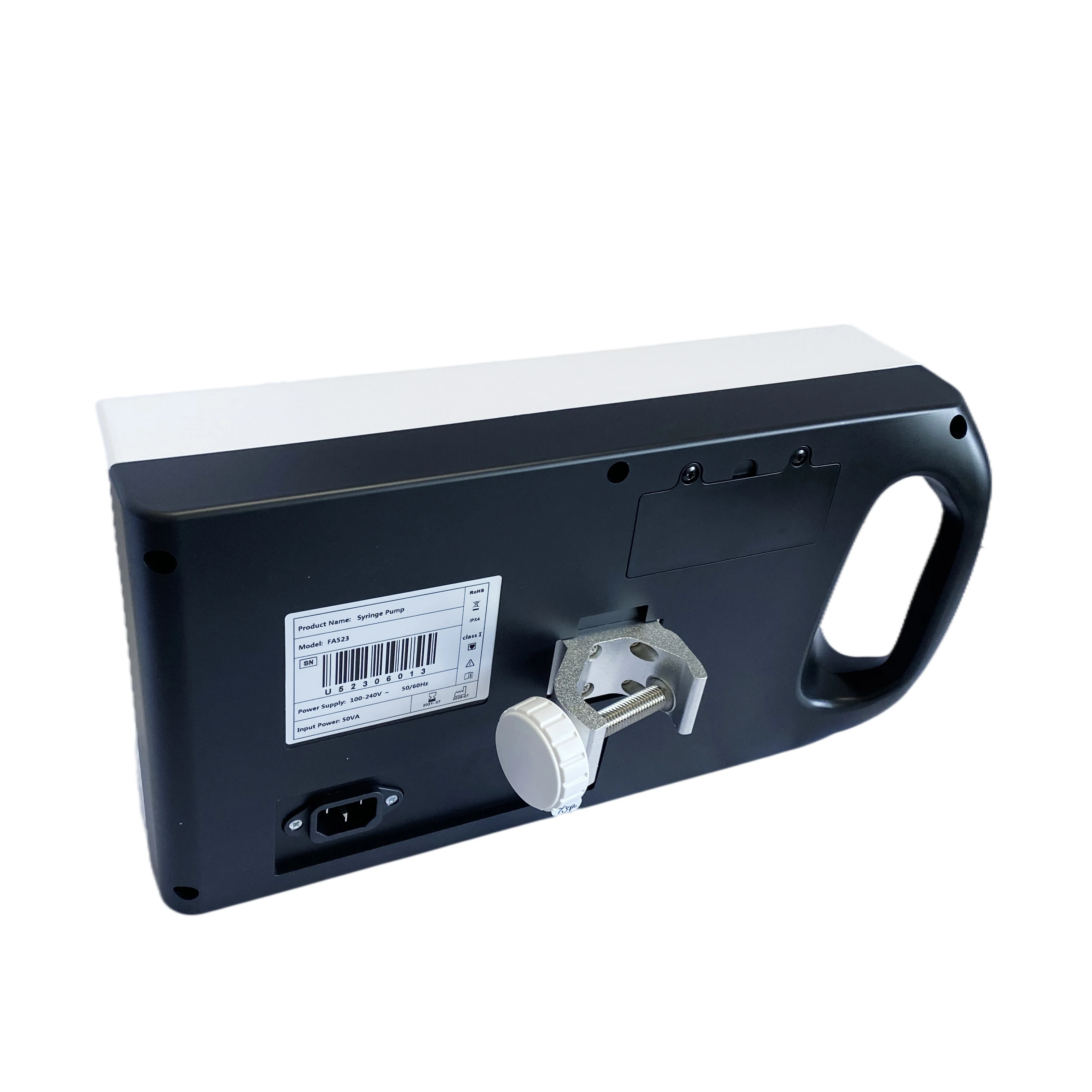

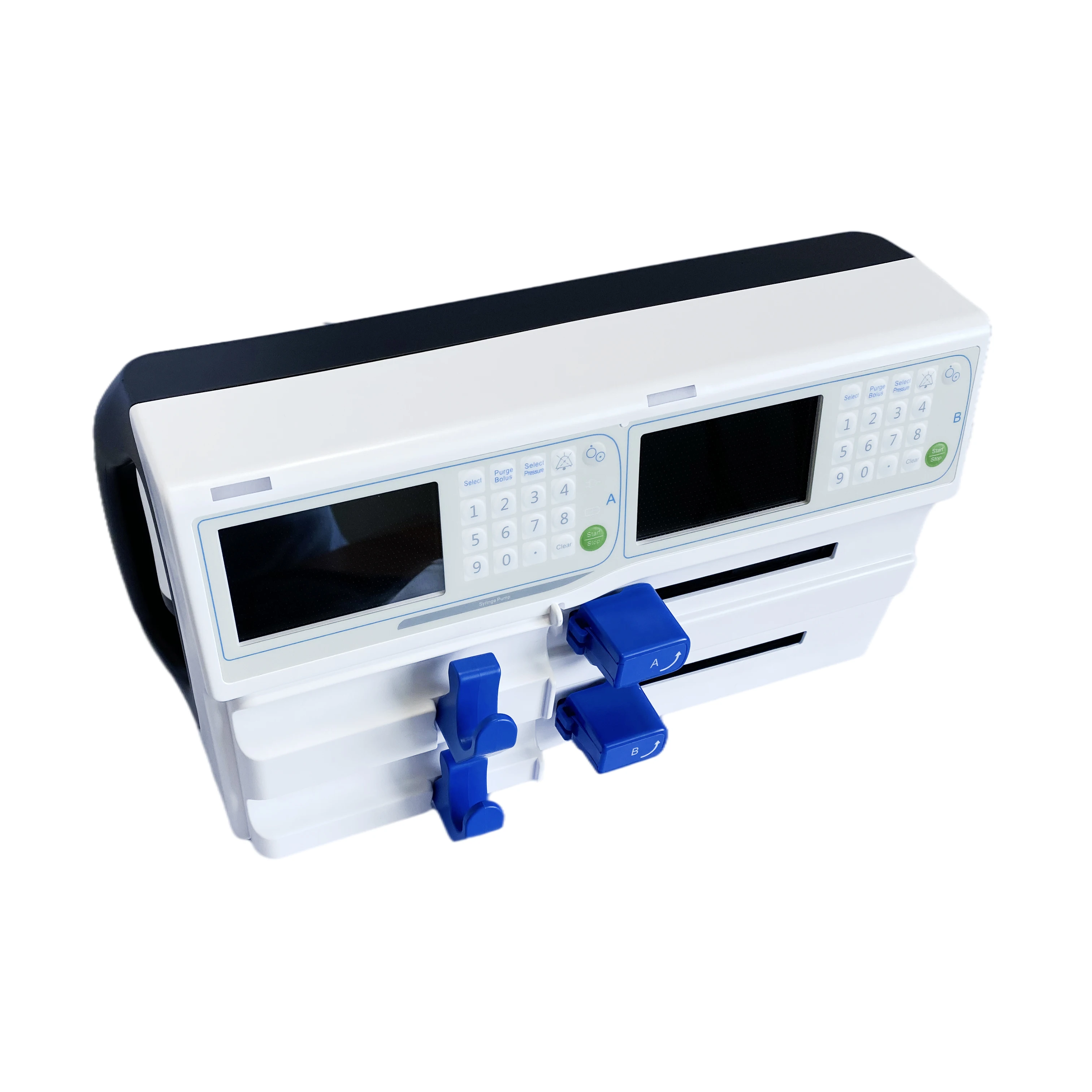

Iv syringe pump peristaltic fa523 double channel syringe pump
- Category: Other Service Equipment >>>
- Supplier: Lifepum Meditech Co. Ltd.
Share on (1600330182012):
Product Overview
Description
FA 513 Main Feature:

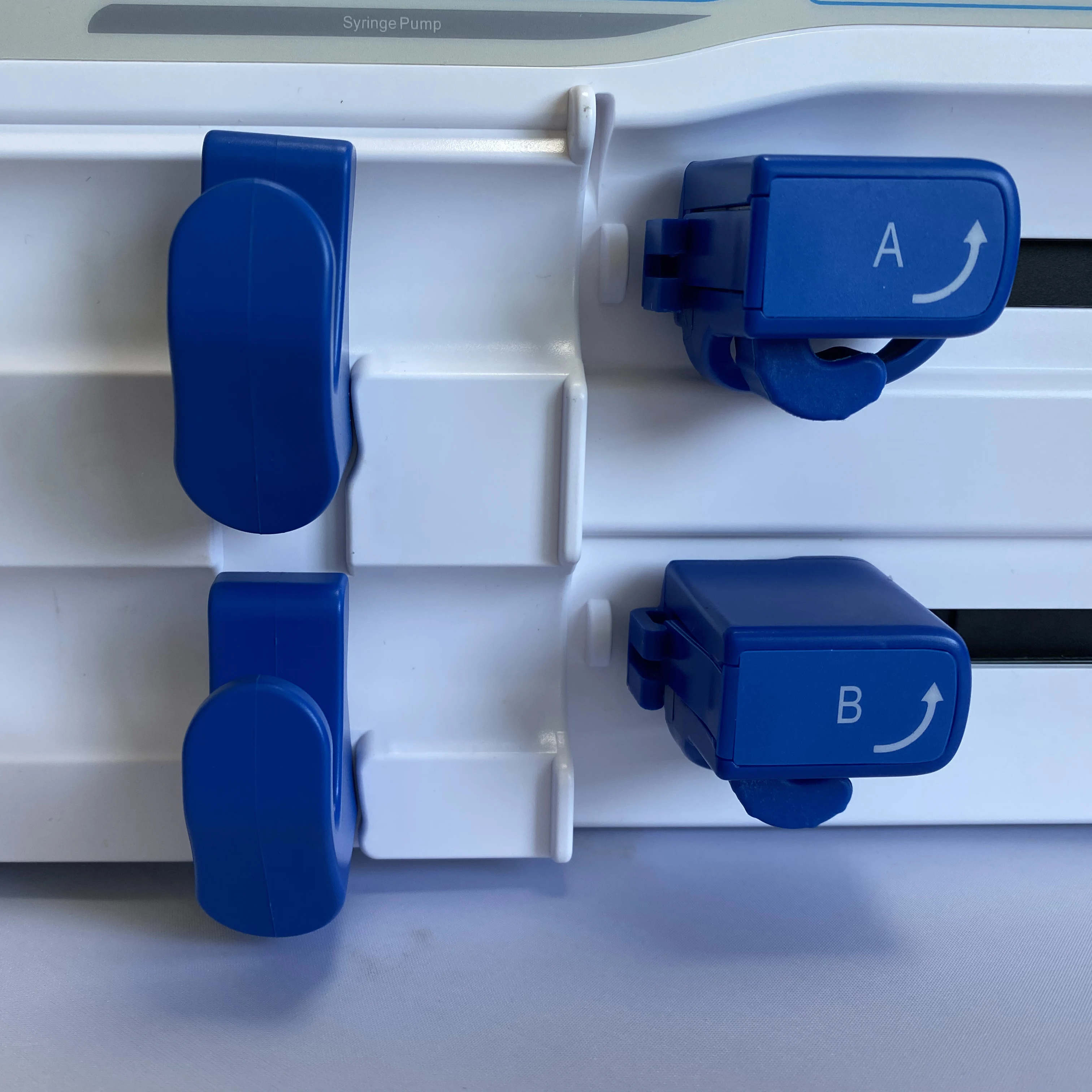

1. Double channel
2. Double MCU,keep the system more safely and reliably
3. 5 inches LCD screen
4. Automatic identification of syringe specifications（10ml,20ml,30ml,50ml,60ml）

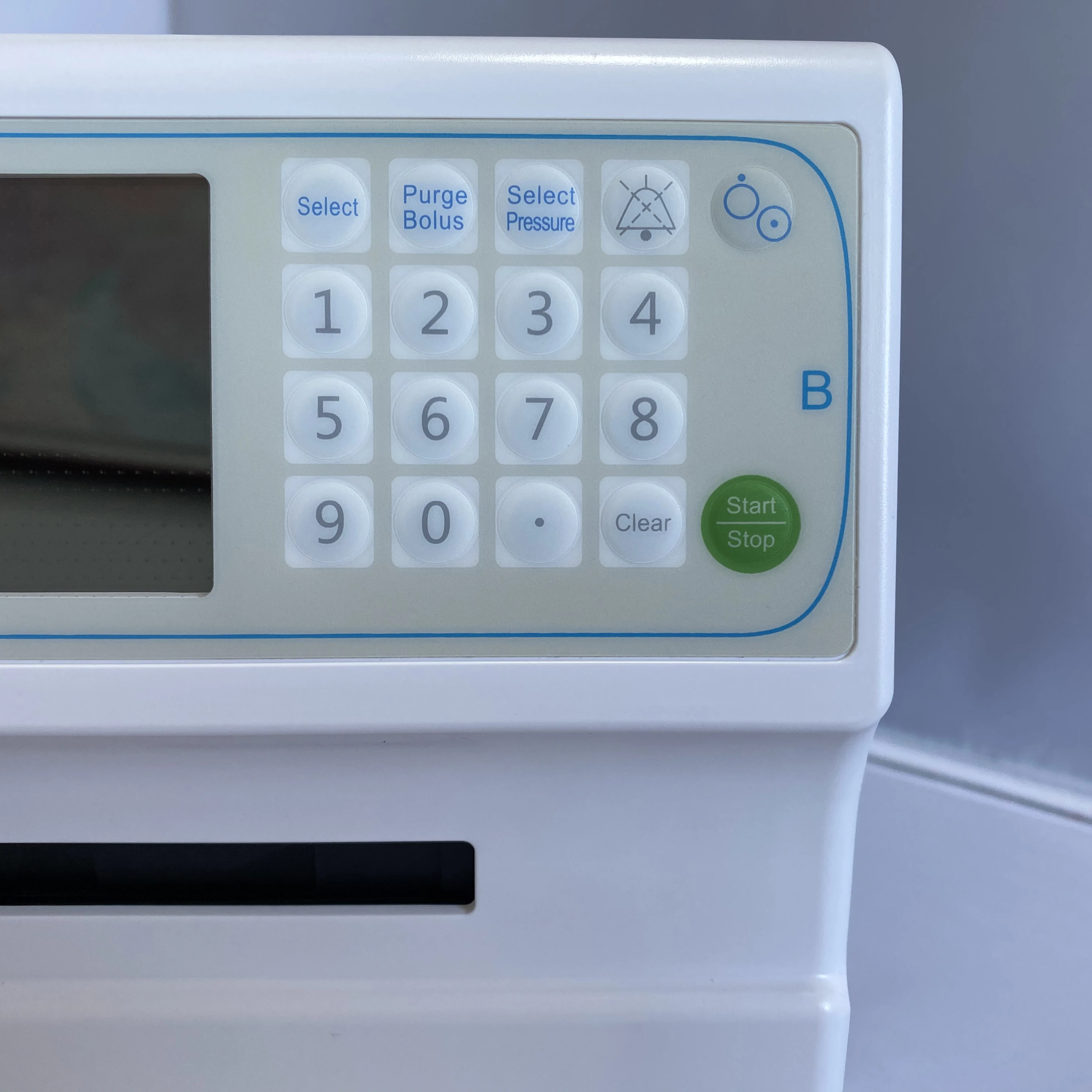

5. Independent digital keys, easy to use
6. Easy calibration, compatible with any brand of syringe,
7. Anti-bolus function
8. KVO function
9. Integrated design, space saving, one power cord
1. Double channel
2. Double MCU,keep the system more safely and reliably
3. 5 inches LCD screen
4. Automatic identification of syringe specifications（10ml,20ml,30ml,50ml,60ml）
5. Independent digital keys, easy to use
6. Easy calibration, compatible with any brand of syringe,
7. Anti-bolus function
8. KVO function
9. Integrated design, space saving, one power cord

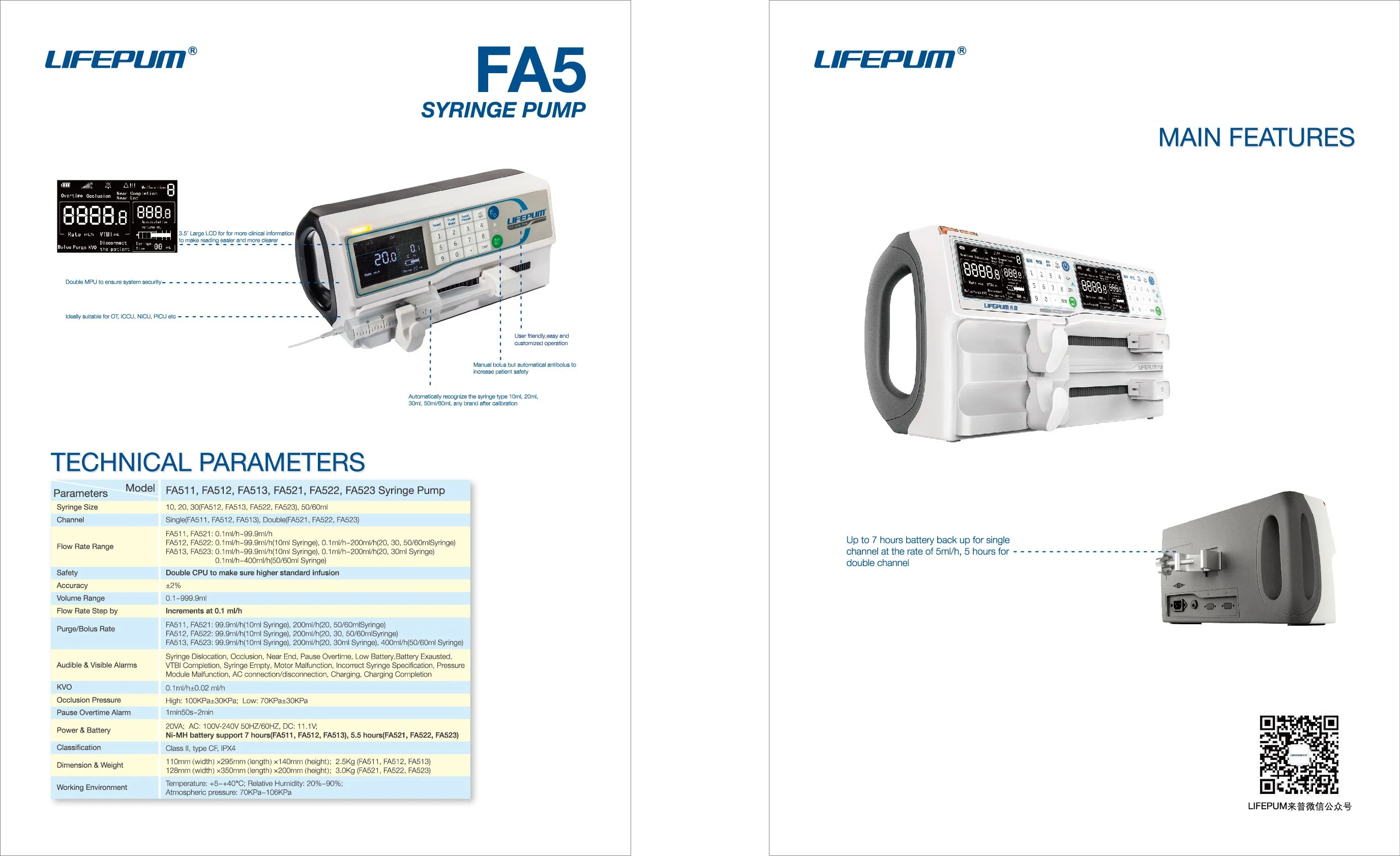

Model No. | FA523 | ||
Channel | Double | ||
Flow Rate Range（ml/h） | 0.1-200ml/h for 10,20,30ml Syringe, 0.1-400 ml/h for 50/60ml Syringe Step by 0.1 | ||
Accuracy | ±2% | ||
Volume Range（ml） | 0-9999.9 Step by 0.1 | ||
Purge/Bolus Rate | 50ml: 400ml/h 30ml: 200ml/h 20ml: 200ml/h 10ml: 100ml/h | ||
阻塞报警值 | 高 | 20ml、30ml、50ml：90Kpa±30Kpa 10ml：100Kpa±30Kpa | |
低 | 20ml、30ml、50ml：50Kpa±30Kpa 10ml：70Kpa±30Kpa | ||
KVO Rate | 0.1ml/h ±0.02 ml/h | ||
Purge / Bolus Function | √ | ||
Alarm | Occlusion, Pause Overtime, Low Battery, Near End, VTBI Completion, Syringe Near Empty, Syringe Empty, Incorrect Syringe Specification, Syringe Dislocation, Motor Malfunction, Battery Exhausted, Battery Malfunction. | ||
Pause Overtime Alarm | 1min50s—2min | ||
Power & Battery | ～100V～240V 50Hz/60Hz DC：12V Inner Ni-MH battery 12V | ||
Weight | 3.5 Kg | ||
Battery Time | Ni-MH battery support 7 hours for single channel, 5.5 hours for double channel at intermediate rate under full of charge. | ||
lassification | Class II, type CF,IPX4 | ||
Size | 138mm×105mm×290mm | ||

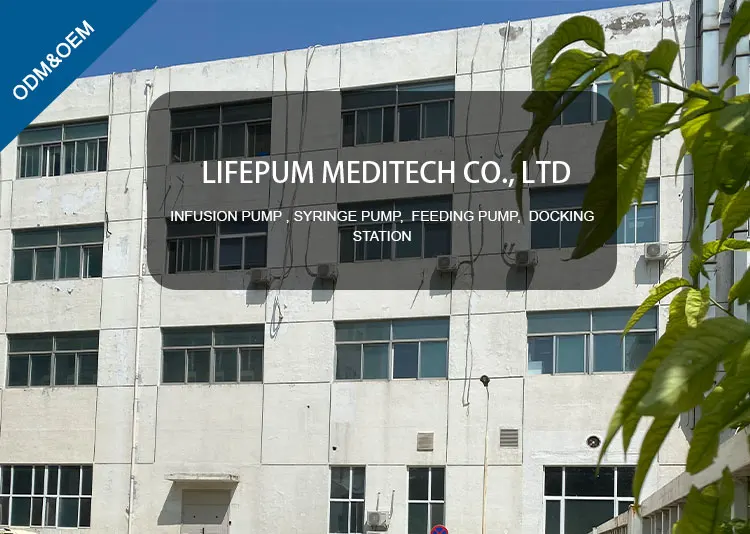

LIFEPUM MEDITECH CO., LTD is located in Beijing, the capital of China. We are High Technology company, have more than 20 years Research and Design experience, and hold the core technology of Medical pump .
Our main production line cover Syringe pump, Infusion pump, Feeding pump, Docking station, Feeding set etc. In China, we have higher market share , and became the unique sky space station supplier of Infusion device. Based on high quality and best service, our products sold Worldwide (Southeast Asia, South Asia, Middle East, Africa, South America and Europe)
Our main production line cover Syringe pump, Infusion pump, Feeding pump, Docking station, Feeding set etc. In China, we have higher market share , and became the unique sky space station supplier of Infusion device. Based on high quality and best service, our products sold Worldwide (Southeast Asia, South Asia, Middle East, Africa, South America and Europe)
