CS Electric Automatic Computer wire Stripper/Wire Cut Stripping Machine/Strip Cutting Machine
- Category: Wires, Cables & Cable Assemblies >>>
- Supplier: Wuxi Changsheng Ruiyafeng Precision Mechanism Co. Ltd.
Share on (1600332291271):
Product Overview
Description
Product Description

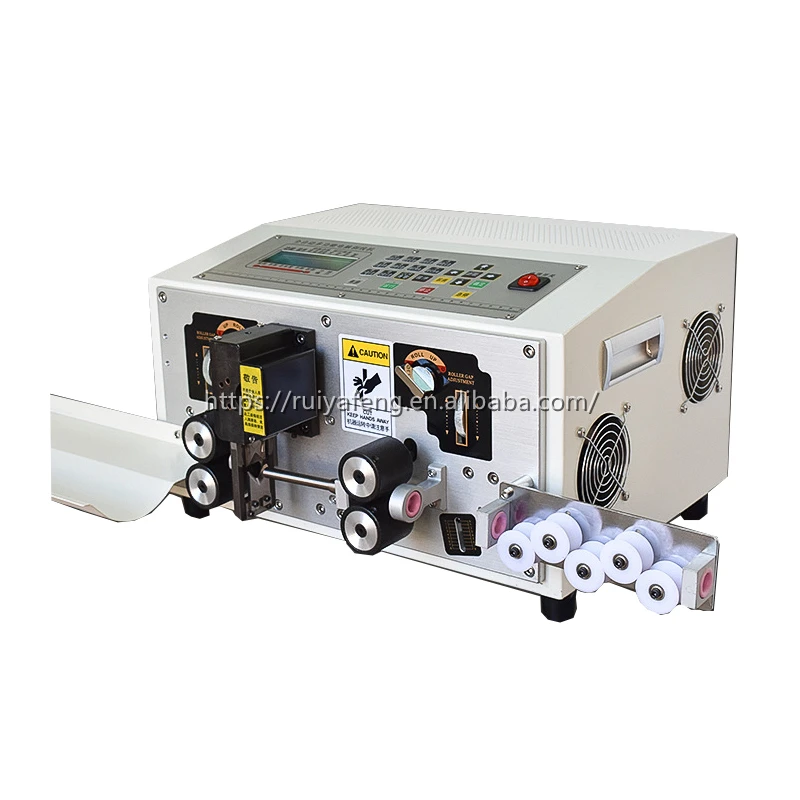

CS-S41 Automatic Wire Stripping Machine
Parameters
Model | WJ-S41 | WJ-S42 | WJ-S44 | ||
Features | One wire stripping | Two wires stripping | Four wiresstripping | ||
Conductor Cross-Section | 0.1-4.5mm² | Single 0.1-4.5mm² Double 0.1-2mm² | Single 0.1-4.5mm² Four 0.1-2mm² | ||
Stripping Length | 0-35mm | 0-35mm | 0-35mm | ||
Cutting Length | 1-9999.9mm | ||||
Cutting Length Tolerances | ±(0.002*L)mm | ||||
Intermediate Stripping | Max 15 sections | ||||
Display Screen | Chinese / English LCD Screen | ||||
Wire Feed Method | Roller feeding | ||||
Drive Method | 4 wheels drive | ||||
Power Supply | 220V/110V | ||||
Conduit Diameter | Φ5mm | Φ5mm | Φ4mm | ||
Production Rate | 3000-6000pcs/h | 5000-10000pcs/h | 5000-18000pcs/h | ||
Power | 400W | 430W | 450W | ||
Weight | 28kg | 32kg | 34kg | ||
Dimensions | 42*40*28cm | 42*40*28cm | 42*42*28cm | ||
1. LCD display, support Chinese and English, all buttons and processing program desiged based on automatic computer programming,easy to operate.

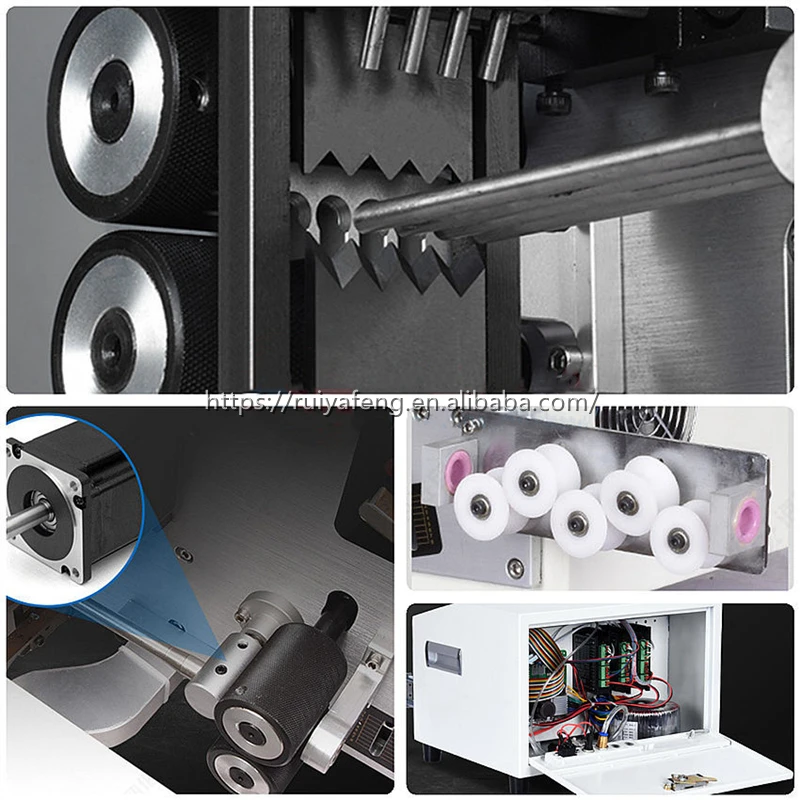

2. Four driving wheel work for wire feeding, adjustable wire pressing force, high wire feeding accuracy, no damage on wire and no press marks.
3. High-quality blades made by raw materials imported from Japan, the cut edges are burr-free, wear-resistant and can be used for longer time.
4. The pressing force of four wire feeding wheels can adjusted which can help to process various sizes of wires better.
5. Equiped with copper core stepper motor which is high precision, low noise, precise current control, low motor heating,longerservice life.
6. Intelligent control system, using 32-bit CORTEX-M3 core processor, the running speed up to 72M. It can store hundreds of parameter setting.

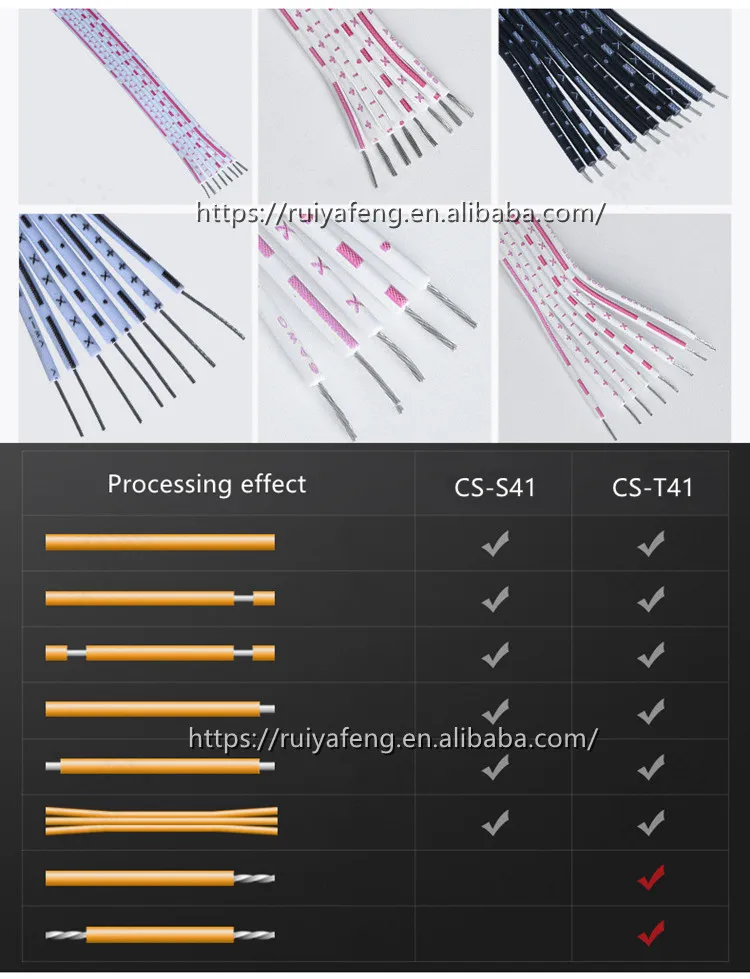

7. Multiple processing modes are suitable for electronic wire, silicone wire, PTFE wire, glass fiber cotton, isolation wire,etc.,complete material processing at one time, fully automatic cutting, half stripping, full stripping, and multi-section stripping processing can be completed at one time.

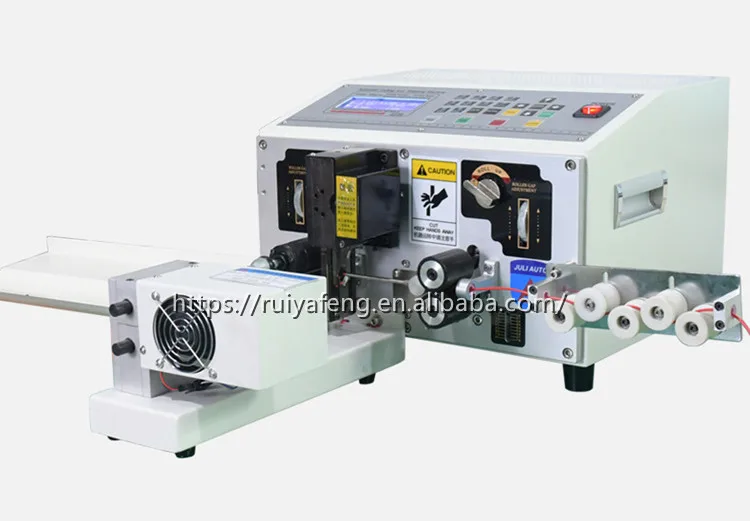

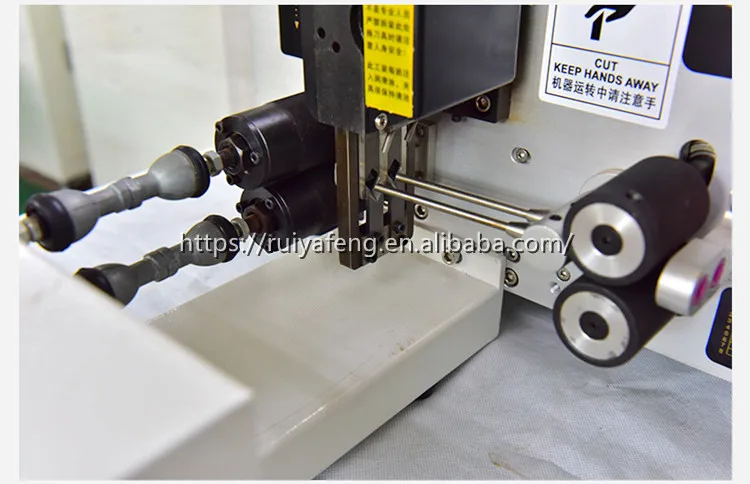

8. Configurable twisting parts for flexible wires, thin wires, multiple copper wires and other wires that are easy to loosen.Twisting can avoid wires loose or bending, easy to penetrate into the terminal or get better tinning effect.
2. Four driving wheel work for wire feeding, adjustable wire pressing force, high wire feeding accuracy, no damage on wire and no press marks.
3. High-quality blades made by raw materials imported from Japan, the cut edges are burr-free, wear-resistant and can be used for longer time.
4. The pressing force of four wire feeding wheels can adjusted which can help to process various sizes of wires better.
5. Equiped with copper core stepper motor which is high precision, low noise, precise current control, low motor heating,longerservice life.
6. Intelligent control system, using 32-bit CORTEX-M3 core processor, the running speed up to 72M. It can store hundreds of parameter setting.
7. Multiple processing modes are suitable for electronic wire, silicone wire, PTFE wire, glass fiber cotton, isolation wire,etc.,complete material processing at one time, fully automatic cutting, half stripping, full stripping, and multi-section stripping processing can be completed at one time.
8. Configurable twisting parts for flexible wires, thin wires, multiple copper wires and other wires that are easy to loosen.Twisting can avoid wires loose or bending, easy to penetrate into the terminal or get better tinning effect.
Company Profile
Wuxi Changsheng ruiyafeng precision machinery co., ltd is a high-tech enterprise specializing inresearch and development and production of fully automatic wire harness processing equipment. Themain series are: tape winding machine series, wire stripping machine series, full-automatic double-head pressing terminal machine series, full-automatic single-head pressing terminal machineseries, continuous stripping and beating terminal machine series, etc. lt is mainly used in the production of electric vehicles, automotive wire harness processing automation equipment, electricalconnector automation equipment, research and development of industrial automation technology andperipheral products, involving the automotive industry, electronic appliances, aerospace, wirelesscommunications and other fields. The company has a high-quality technology research and development team, a strong after-sales service network and a good customer reputation. We havebeen adhering to the core of customer demand, making complex work simple, saving labor andresources for enterprises, thus continuously improving the performance and quality of products.Looking forward to the future, the company will adhere to the corporate philosophy of " sincerelyserving mankind and diligently building the future" and carry forward the corporate spirit of "dedication, innovation, transcendence and dedication" to continuously create new competitiveadvantages and development momentum and wholeheartedly serve you!
Product packaging
Application& Transportation
Our Advantages
We are one of the most professional Chinese wire cable process machine manufacturers and leaders.
* Best products and factory price.
* On-time delivery and the shortest delivery time.
* 1year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* On-time delivery and the shortest delivery time.
* 1year warranty. If our products cannot function properly within 12 months, we’ll offer spare parts for free; and you need to pay for the delivery.
* OEM and customized service.
* User manuals will go with relative machines.
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we’ll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we’ll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
