Роторный испаритель R2002F типа Ex proof (20 л)
- Category: Pharmaceutical Machinery >>>
- Supplier: Wuxi Shenco Bio. Tech. Co. Ltd.
Share on (1600333051685):
Product Overview
Description
Product Overview

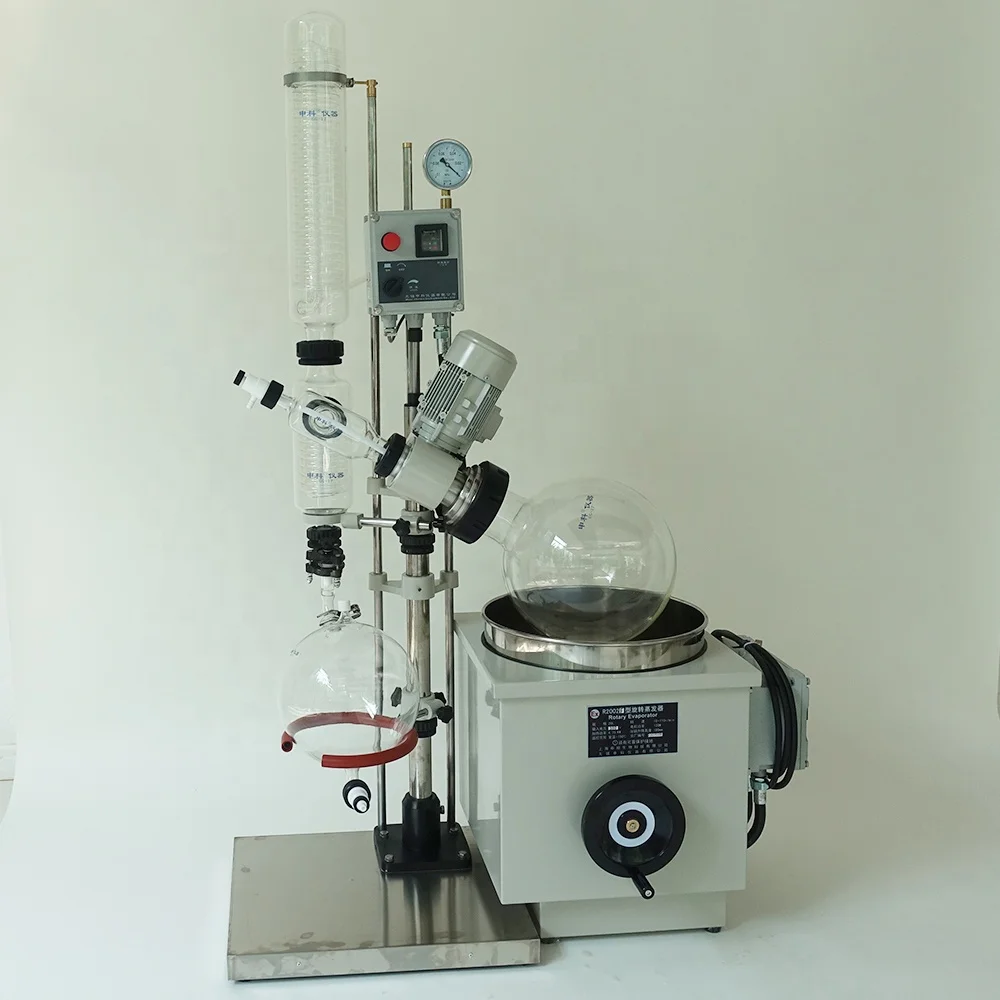

R2002F Rotary evaporator
It is the suitable and ideal instrument for pharmacy, chemistry and scientific research institutions. It is rotating with electric governor, so as let the flask rotate at the desired constant-speed. It forms membrance under the negative pressure and constant-temperature heating with rotating, vaporizing efficiently, then receives menstruum in the receiving flask by condenser.
FEATURES AT A GLANCE
Main characteristic:
1. Keeping vacuum with advanced Patented Sealing Unit with standing various organic solutions(Patented No. 022640703).
2. Equip with two condenser, it offers highly effect to separate the solvent.
3. Ex Inverter Controller & Motor, sophisticated gear driving motion, it can work for a long time without any problem.
4. Attached with constant-temperature water bath, temp. Controlling digitally.
5. Equip with second temperature sensor, when the water bath is out of water, it will cut off the heating power to protect the equipment.
2. Equip with two condenser, it offers highly effect to separate the solvent.
3. Ex Inverter Controller & Motor, sophisticated gear driving motion, it can work for a long time without any problem.
4. Attached with constant-temperature water bath, temp. Controlling digitally.
5. Equip with second temperature sensor, when the water bath is out of water, it will cut off the heating power to protect the equipment.
Products Description

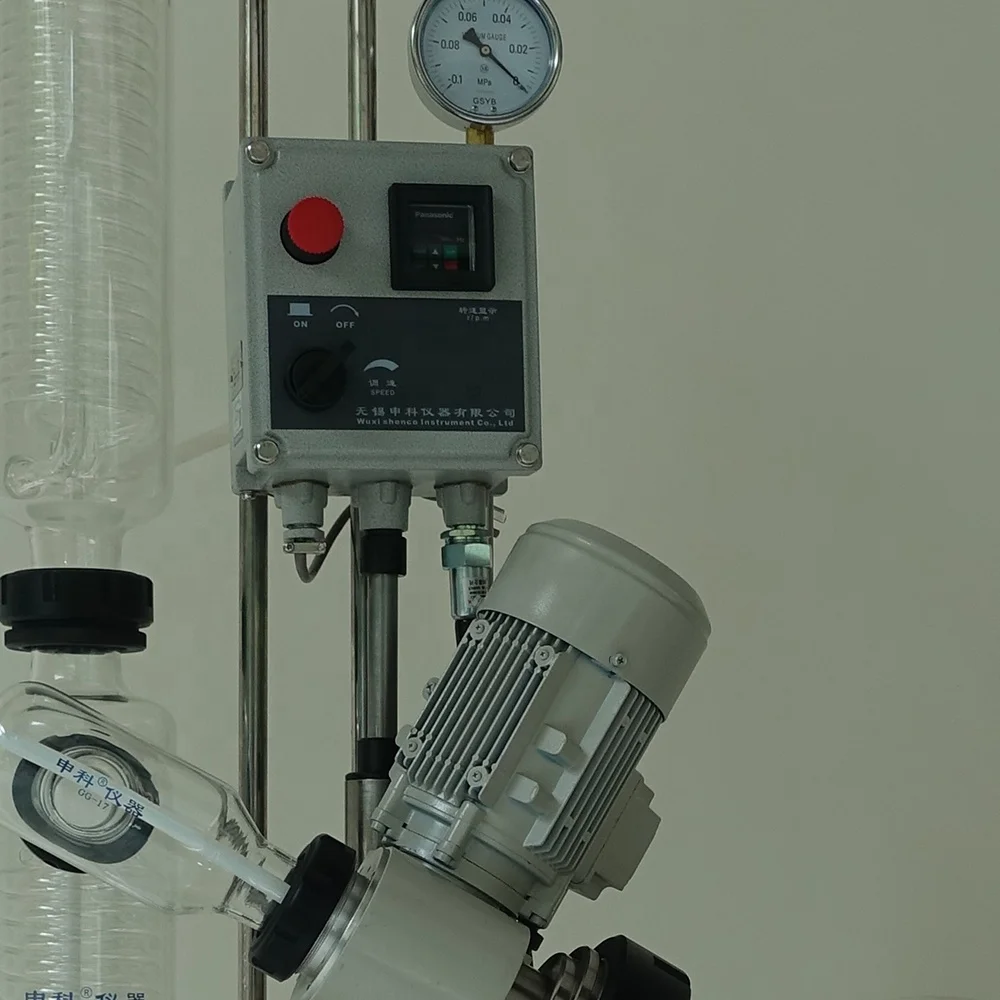

Ex Inverter Controller & Motor

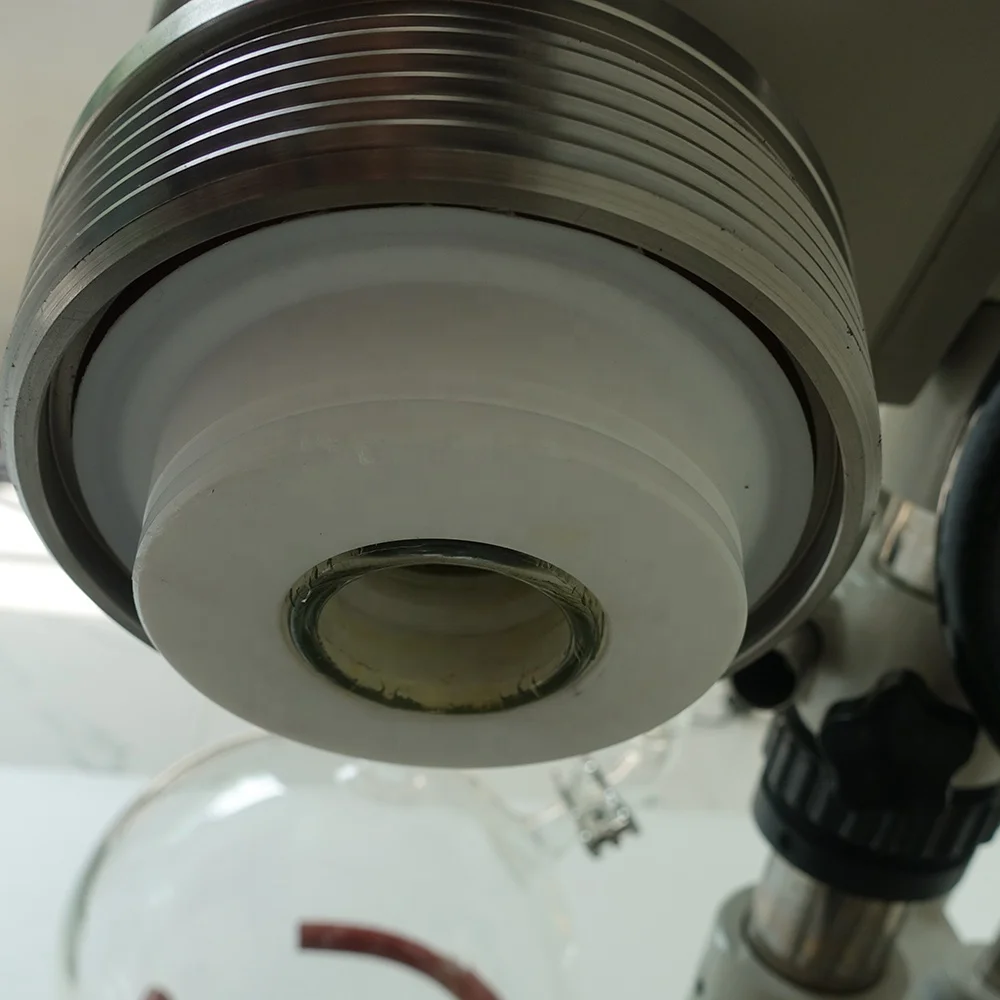

Keeping vacuum with advanced patented sealing unit with standing various organic solutions (Patented No. 022640703).

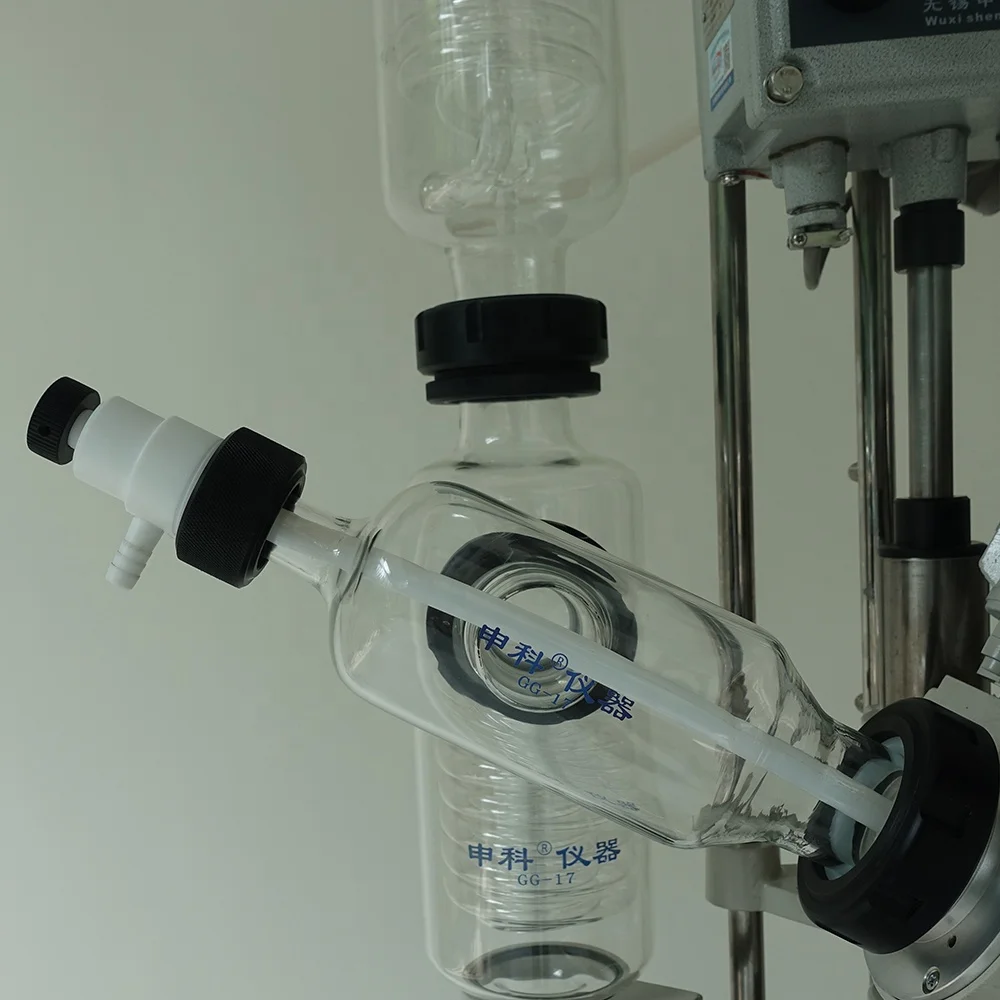

Teflon inlet valve

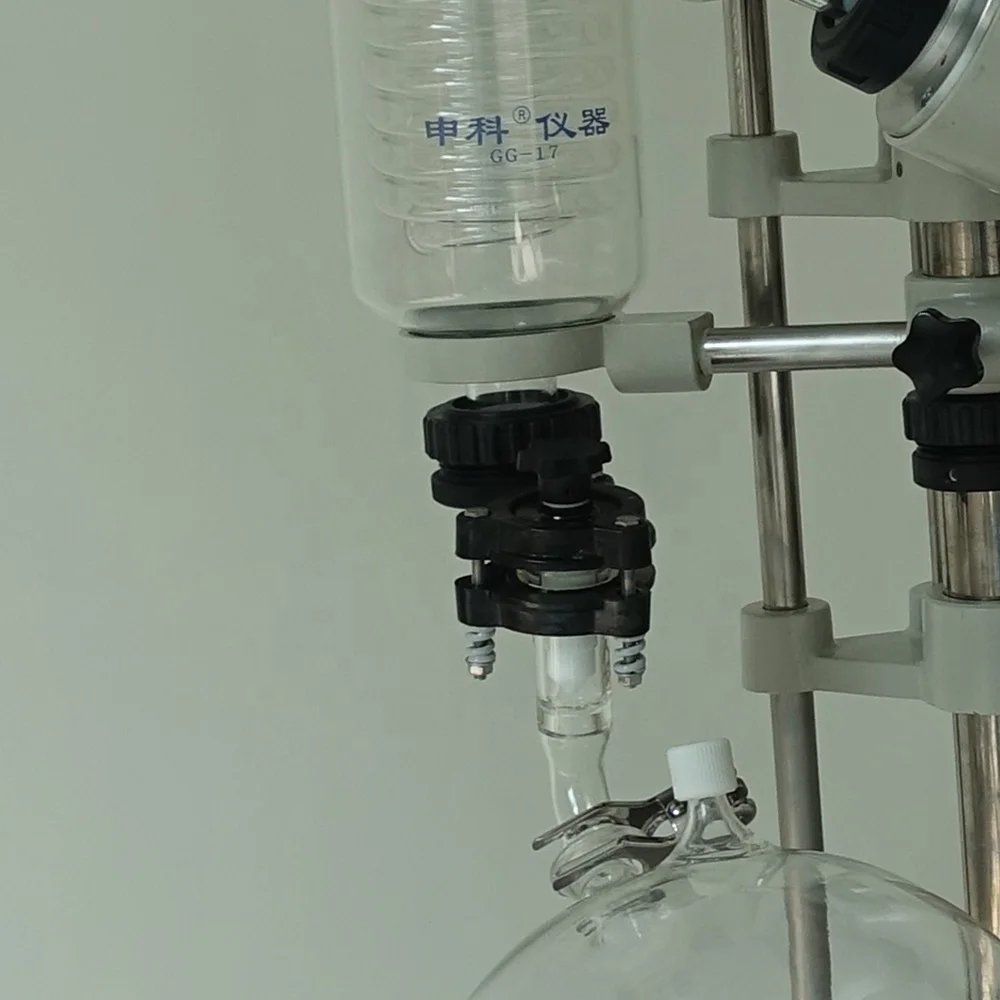

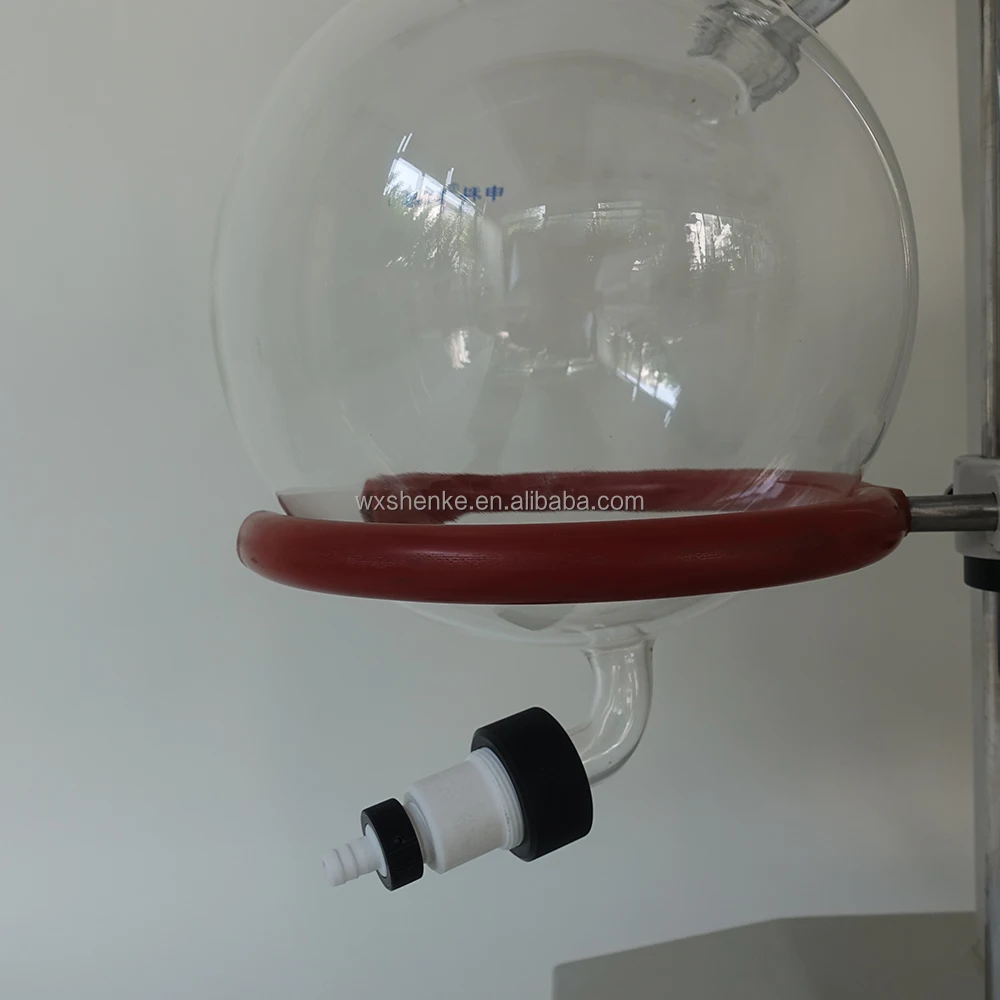

Receiving-flask with the special valves. Feeding or receiving continuously without stopping vacuum.
Equip with Teflon outlet valve.
Ex-proof heating unit
PRODUCT SPECIFICATIONS
No | Item | Data | ||||
1 | Power of motor | 250 W | ||||
2 | Votlage | 380 / 220 V | ||||
3 | Rotating speed: | 10 ~ 120 r/min | ||||
4 | Temp. control: | room temp.+5 ~ 150℃, PT-100, P.I.D control | ||||
5 | Heating power: | 5.0 KW | ||||
6 | Lifting height: | 240 mm | ||||
7 | Condenser: | 0.68M2 | ||||
8 | Rotary flask: | 20 L | ||||
9 | Receiving flask: | 10 L, ISO35 | ||||
10 | Measurement: | 1100x600×2050mm(H) | ||||
