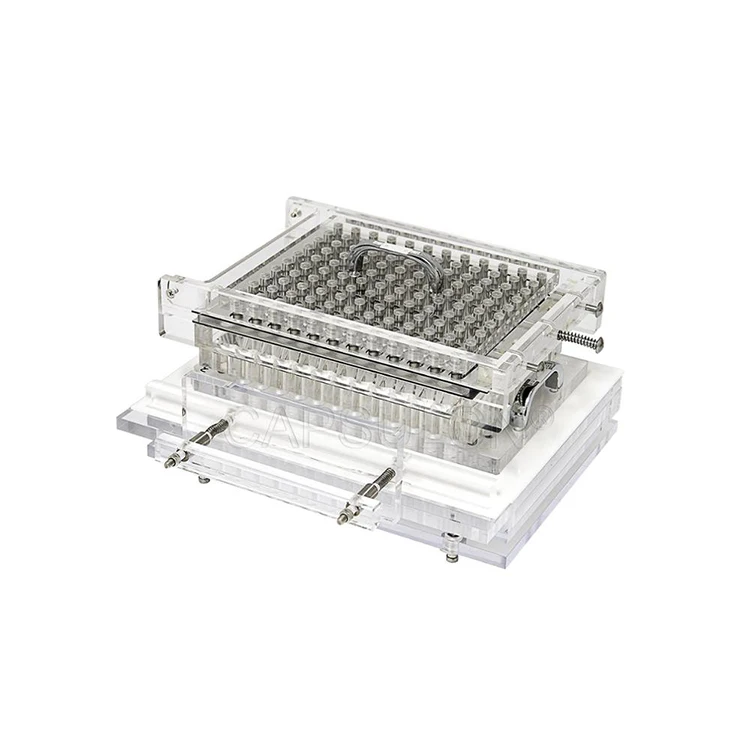

CN 120S Best quality Low price Semi Automatic Capsule Filling Machine (62268629118)

Share on:


Price:$399.00 - $499.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Product Introduction:
The advantage of our capsule filling machine:
1). Raw material is imported acrylic which is healthy, good transparency,durable, low weight
2). The screw&pins are made of stainless steel and meet the hygiene requirement GMP standards
3). The cap sheet adopts one-layer design and polished angles to prevent bleeding

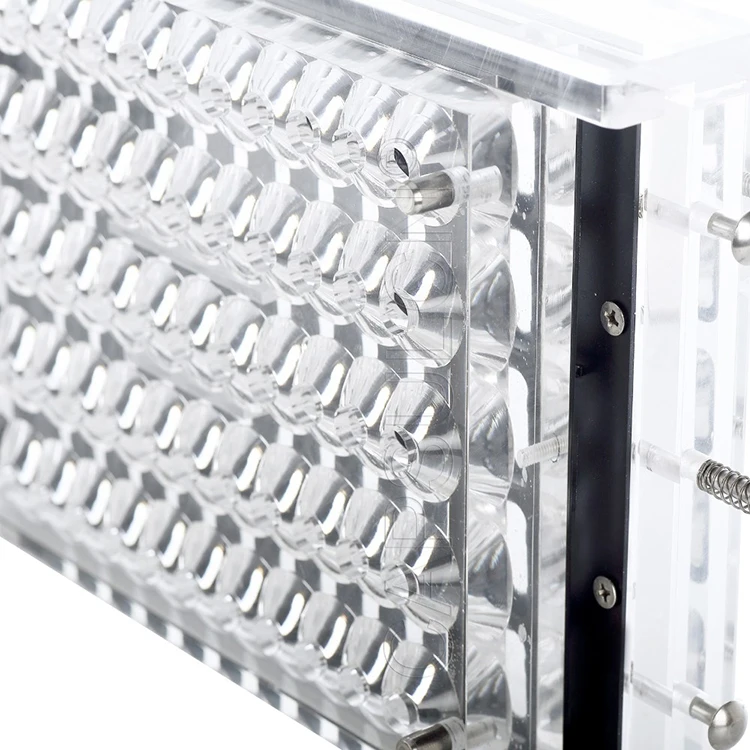

4). The middle sheet adopts special flute design of high precision, which can avoid the breakage of capsules when joining them
5). The body sheet adopts the specially-dealt screws and springs, which can make no noise when pressing downwards. The detachable and undetectable body sheet is optional
6). The encapsulation sheet adopts special design, which can increase the speed of capsules collection
7). The tamping tool is designed to one-layer, abgles and pins being polished
8). The powder guard with a u-design powder guard to avoid loss of powders


Product Application:
This product solves the problem of capsule filling in small batch processing, production and self-made capsules. It is suitable for small pharmaceutical factories, health products, hospital perparation rooms, specialist clinics, cosmetics, animal drugs and other industries, producing small batch capsule perparations and Chinese pharmacies. Pharmacies, nourishing health products stores, research institutes, laboratories, homes, etc. are used to fill hollow capsules, and are also an alternative to the capsule automatic filling machine.


Product Paramenters


Model
CN-100CL
CN-240CL
CN-400CL
CN-800CL
Capacity
100pcs/cycle
240pcs/cycle
400pcs/cycle
800pcs/cycle
Time Cost
3-5mins/cycle
3-5mins/cycle
5-7mins/cycle
5-10mins/cycle
Tamper
Included
Included
Included
Included
Capsule Size
000#-5#
000#-5#
000#-5#
000#-5#
Parts
7 Parts
7 Parts
7 Parts
7 Parts
Dimensions
23*16*23cm
43*16*23cm
43*16*32cm
48*37*29cm
Net Weight
2.5kg
5.5kg
8.5kg
11kg


Product Features:
1. Adopting high quality plastic material, which is more durable for long term use.
2. The product is surrounded by circular arc shapes, which has beautiful appearance and bring you comfortable opeartion.
3. With precise and unique design, this capsule filler is easy to operate and effective to reduce wasting.
4. Imitate automatic mechanical arrangement, you can arrange capsule cap and effective to reduce wasting.
5. Effective to deal with the problem of filling capsule, like small batch processing, production, self-made capsules.




Operational Steps:
1. Arrange the discs on the cap plate
2. Put a proper amount of capsule cap
3. Shake the capsule mouth up into the hole of the capsule plate
4. Pour out the excess capsule cap
5. Remove the alignment disk
6. Stack the notched side of the intermediate plate on the cap plate
7. Place the disc tray on the body plate
8. Put a proper amount of capsule body and shake it, so that the mouth of the capsule falls up into the hole of the capsule plate
9. Pour out the excess capsule and remove the disc
10. Pour the powder on the body board and scrape it back and forth with a scrapper
11. Flip the overlapping cap plate intermediate plate over the body plate
12. Press down firmly with both hands to lock the capsule
13. Then remove the cap plate
14.Remove the intermediate plate, at which point the filled capsules are on the middle plate
15.Gently tap the middle plate to drop the capsule out
16. Once the container is loaded, a capsule fill is completed
