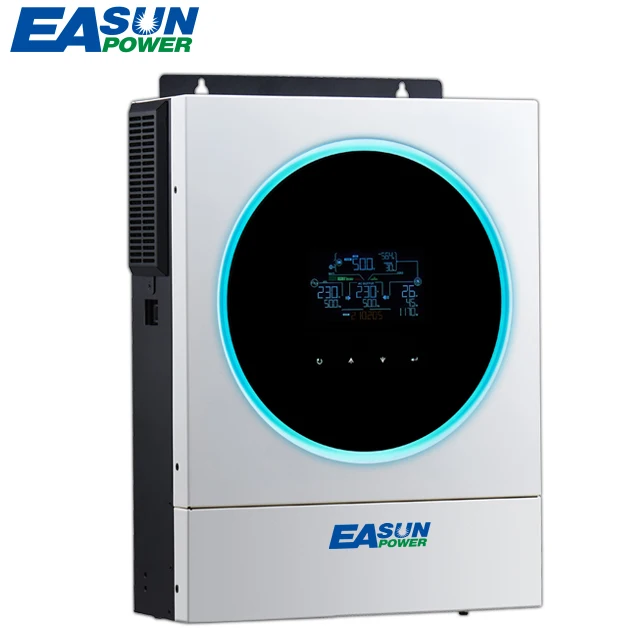

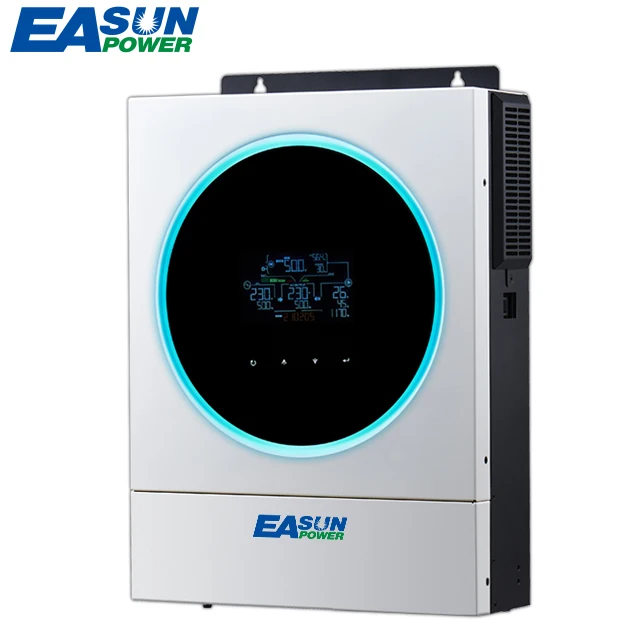

EASUN POWER 220V 48V 50Hz 500Vdc 120A 5600W Pure Sine Wave Solar Inverter with Wifi
- Category: Solar Inverter >>>
- Supplier: Easun Power Technology Corp Limited
Share on (1600334276741):

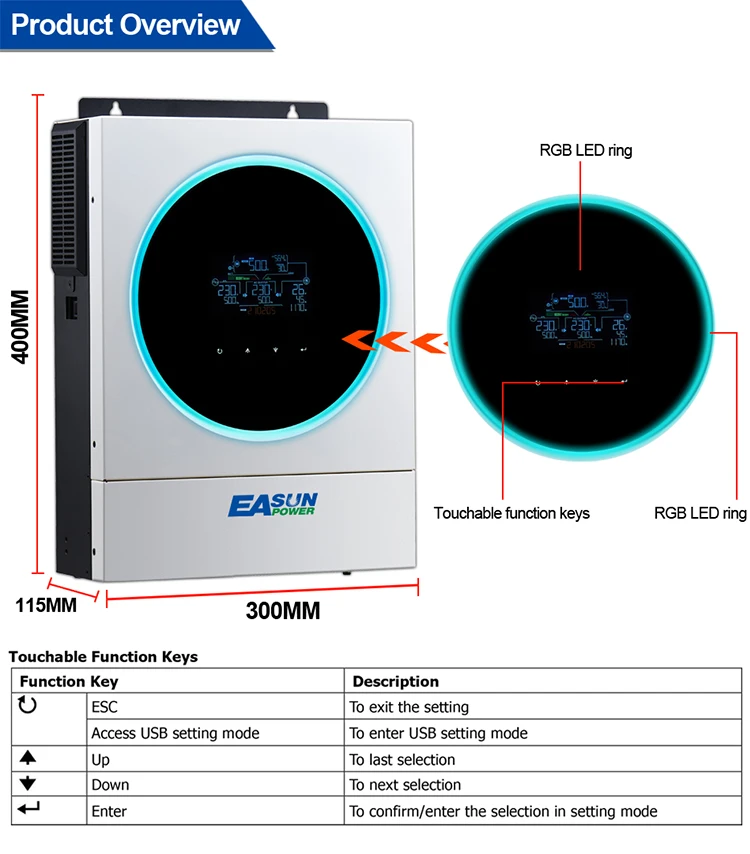

Product Overview
Description
Product Description
Main Features

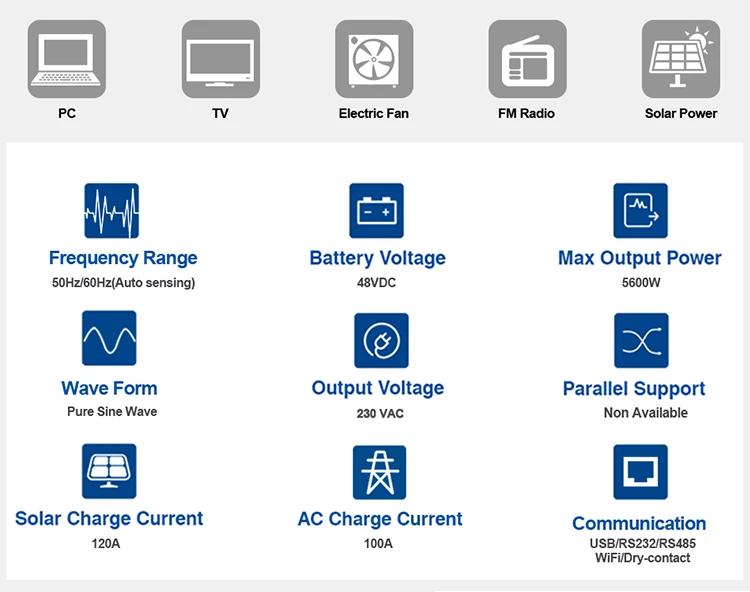

- Max 5.6KVA/5600W output solar inverter for 48VDC systems

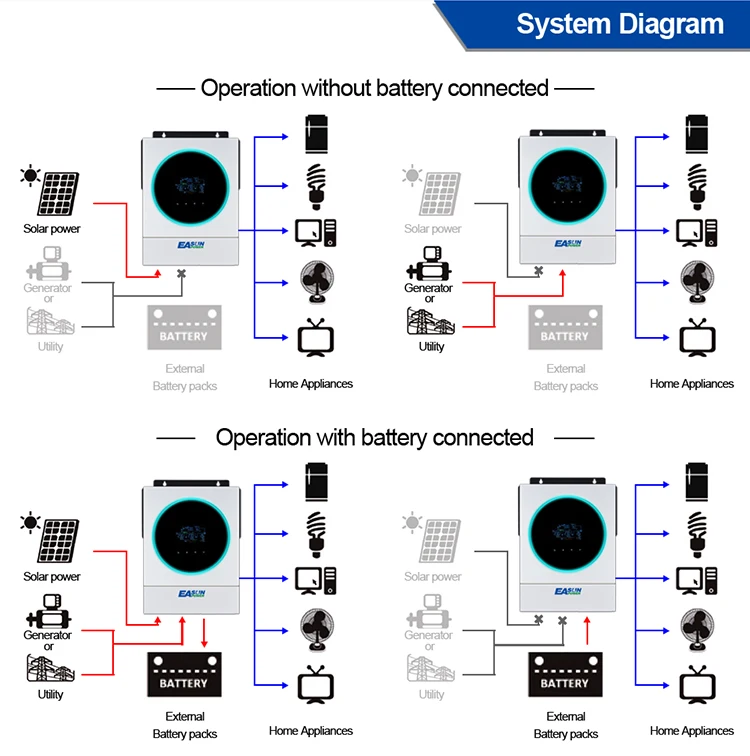

- Supports batteryless operation
- Max PV input 500Vdc
- Touchable LCD control display (4.3 Inch)
- Max 120A MPPT solar charger,Max Solar Power 4000W
- Total system max charging: 100A
- Built-in alarms and protections
Specification
MODEL | ISolar SMV IV 3600-24 | ISolar SMV IV 5600-48 |
Rated Power | 3600VA/3600W | 5600VA/5600W |
INPUT | ||
Voltage | 230 VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | |
Surge Power | 7200VA | 11200VA |
Efficiency(Peak) | 90% ~ 93% | |
Transfer Time | 15 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
Waveform | Pure sine wave | |
BATTERY | ||

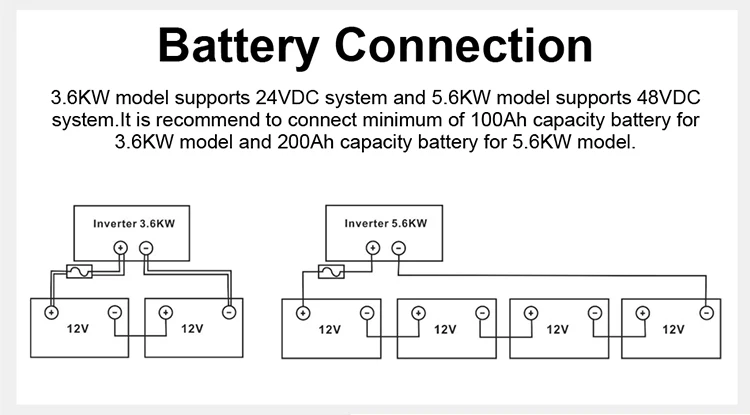

Battery Voltage | 24 VDC | 48 VDC |
Floating Charge Voltage | 27 VDC | 54 VDC |
Overcharge Protection | 33 VDC | 63 VDC |
SOLAR CHARGER & AC CHARGER | ||
Solar Charger Type | MPPT | MPPT |
Maximum PV Array Power | 4000 W | 6000 W |
MPPT Range @ Operating Voltage | 120 ~ 450 VDC | |
Maximum PV Array Open Circuit Voltage | 500 VDC | |
Maxmum Solar Charge Current | 120 A | 120 A |
Maximum AC Charge Current | 100 A | 100 A |
Maximum Charge Current | 120 A | 120 A |
PHYSICAL | ||
Dimension, D x W x H (mm) | 115 x 300 x 400 | |
Net Weight (kgs) | 11 | 12 |

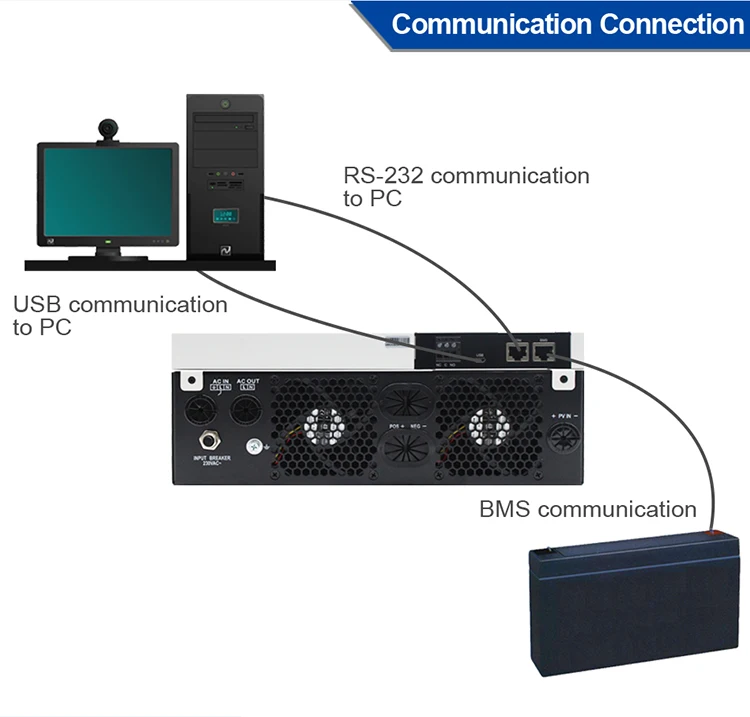

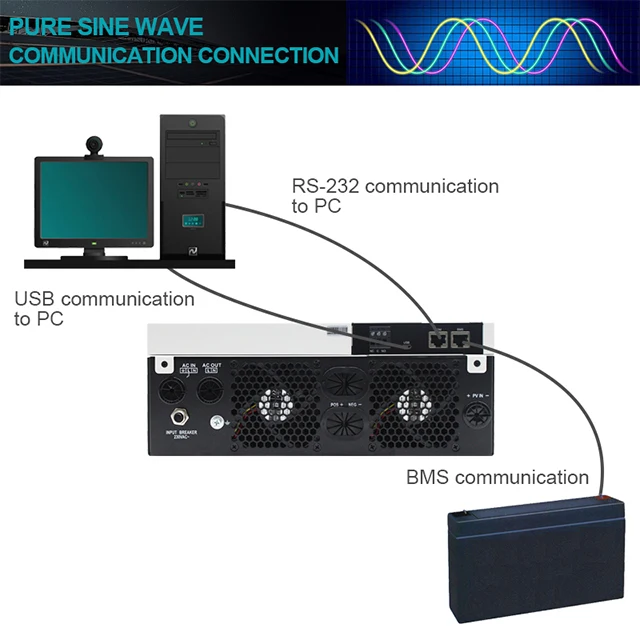

Communication Interface | USB/RS232/RS485/WiFi/Dry-contact | |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | -10°C to 50°C | |
Storage Temperature | -15°C to 60°C | |

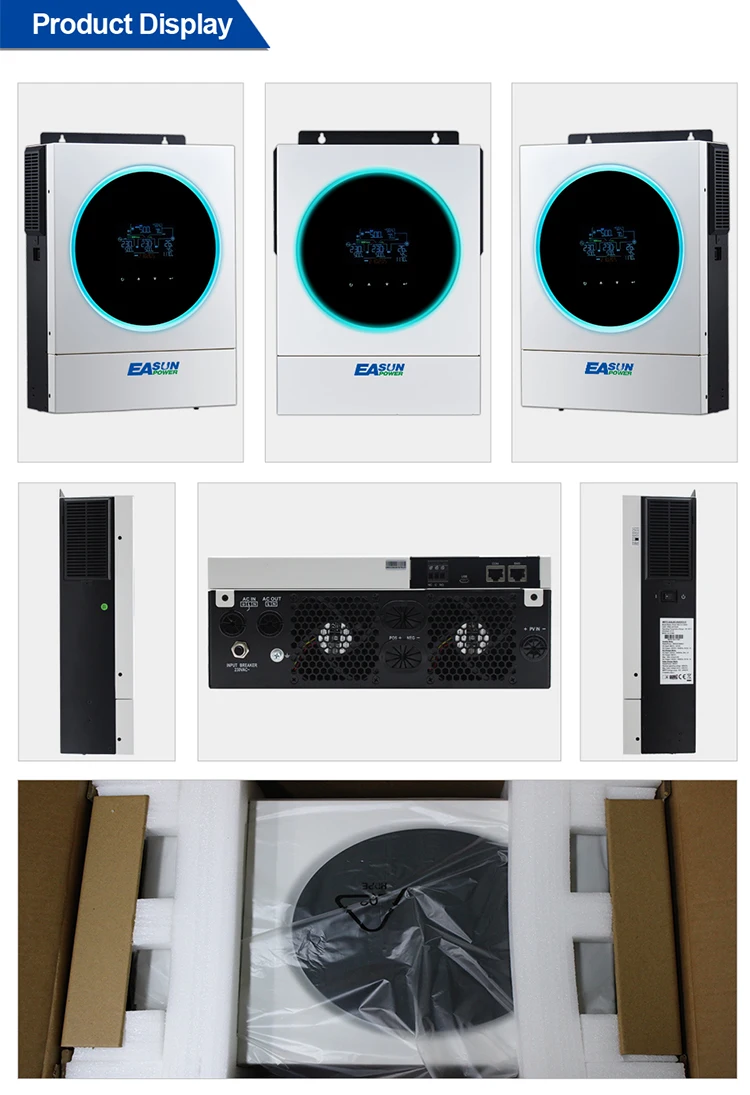

Product Details
Product Catrgories
Company Information
Easun Power Technology Corp Limited is located in Shenzhen China.
We are professional and vigorous new energy company .
We commits to offer high quality products, has a team of professional and experienced specialists in the field of inverter charger. Our products are now capable of meeting the most demanding requests, both for residential and commercial applications. With a comprehensive sales & marketing network and experienced after-service center, EASUN provides the best service for our customers.We commits to build mutual trust and make common progresses with our customers from all over the world.
We offers a full range of Solar product including :
Solar inverters/ Solar Charge Controller / Solar panels/ Battery / Solar pump inverters / Power inverters / Portable solar generator/Solar Accessories, etc
All consider with customers target price and MOQ, ship with their specified quality, to solve customer purchase problem, we are all online 24 hours for all customers.
