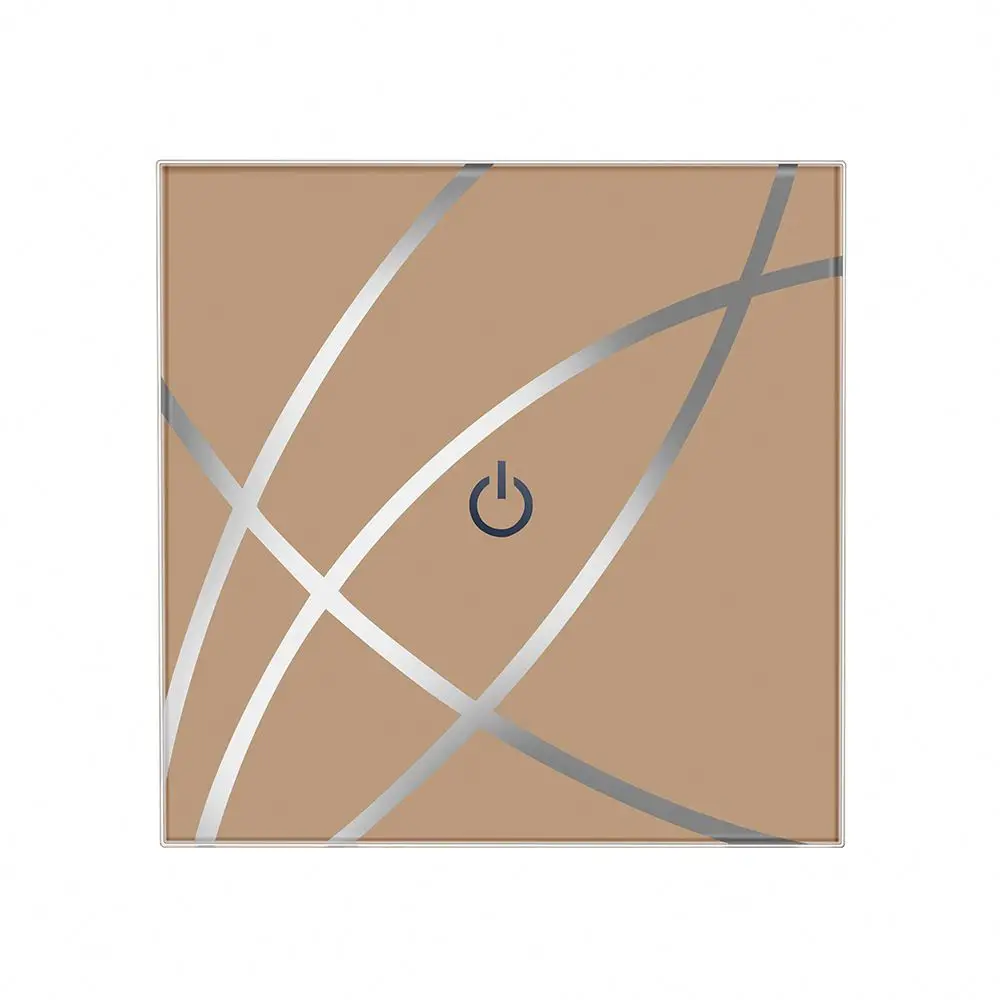

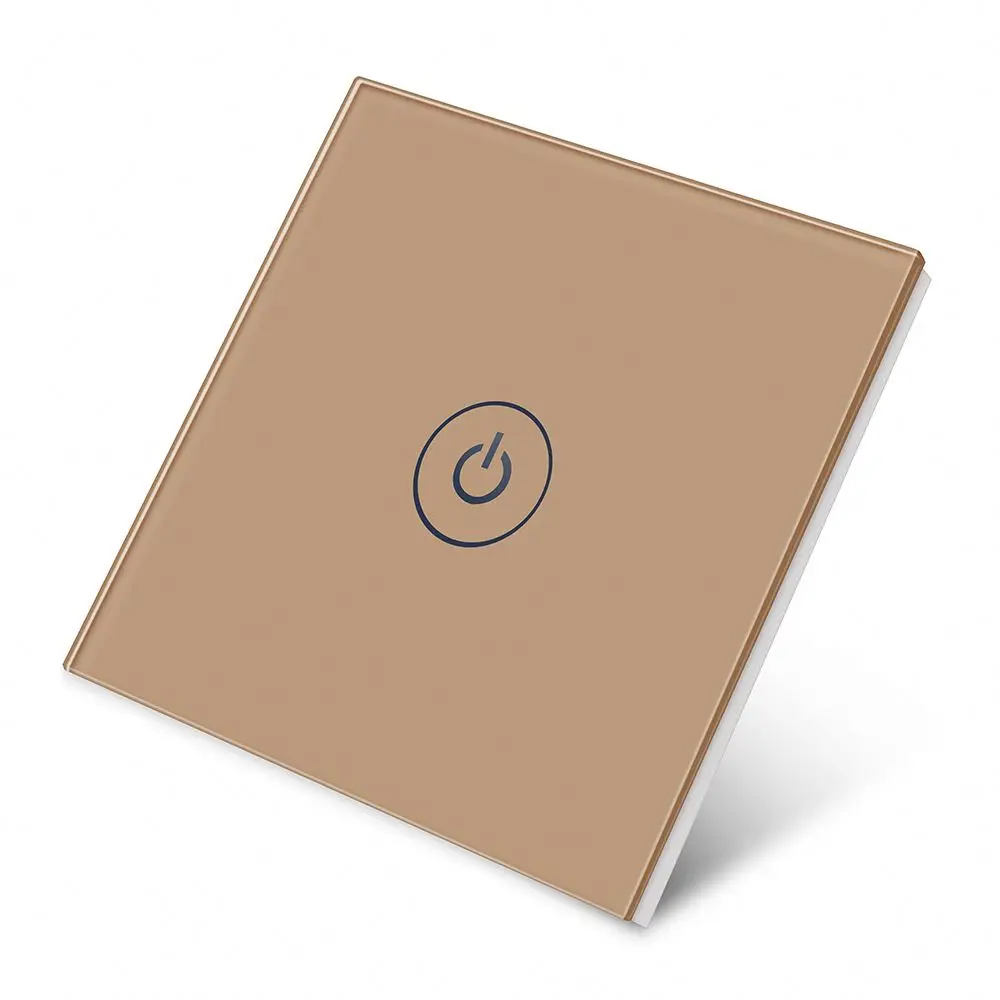

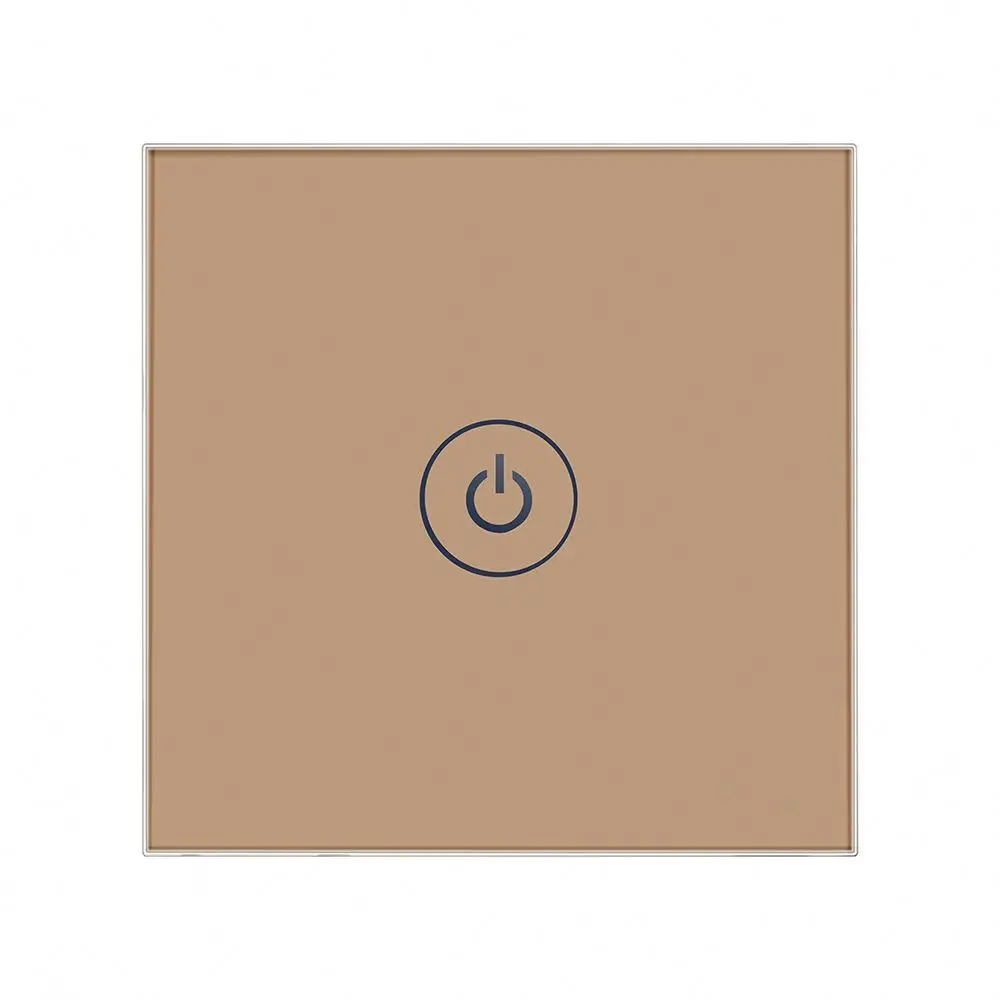

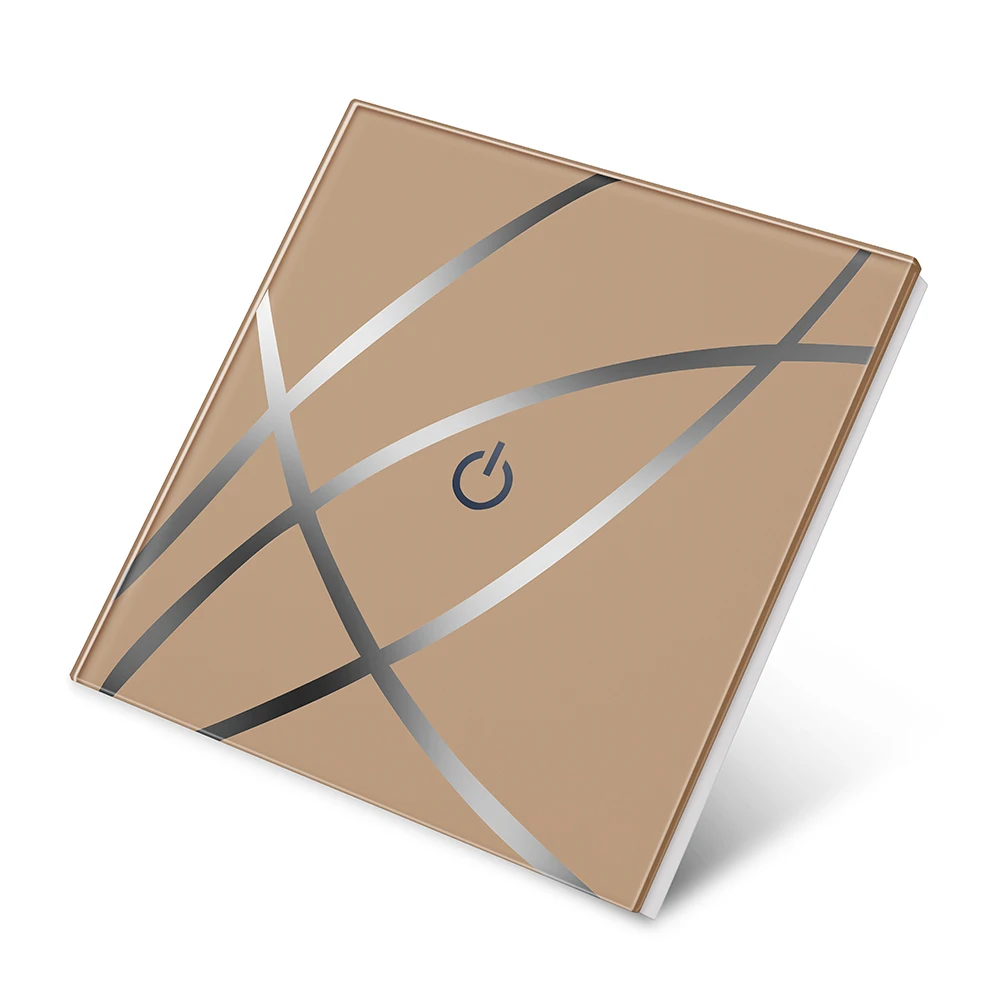

Tempered Glass Touchless Door Release Button IR Contactless Infrared No Touch Exit Button
Tempered Glass Touchless Door Release Button IR Contactless Infrared No Touch Exit Button
Tempered Glass Touchless Door Release Button IR Contactless Infrared No Touch Exit Button
Tempered Glass Touchless Door Release Button IR Contactless Infrared No Touch Exit Button
Tempered Glass Touchless Door Release Button IR Contactless Infrared No Touch Exit Button

Tempered Glass Touchless Door Release Button IR Contactless Infrared No Touch Exit Button

Share on (1600335539883):


Price:$4.00 - $5.00

Quantity:


Product Overview

Description





Product Description


Tempered Glass Touchless Door Release Button IR Contactless Infrared No Touch Exit Button

It’s a sensitive touch exit button with adaptive capacity of temperature and humidity, meanwhile, it won’t change sensitivity and stability as the weather changing. Output NO or NC signal and LED on upon touch it, Static LED is green, LED is red upon touch it.



Product Parameter
Parameter Description

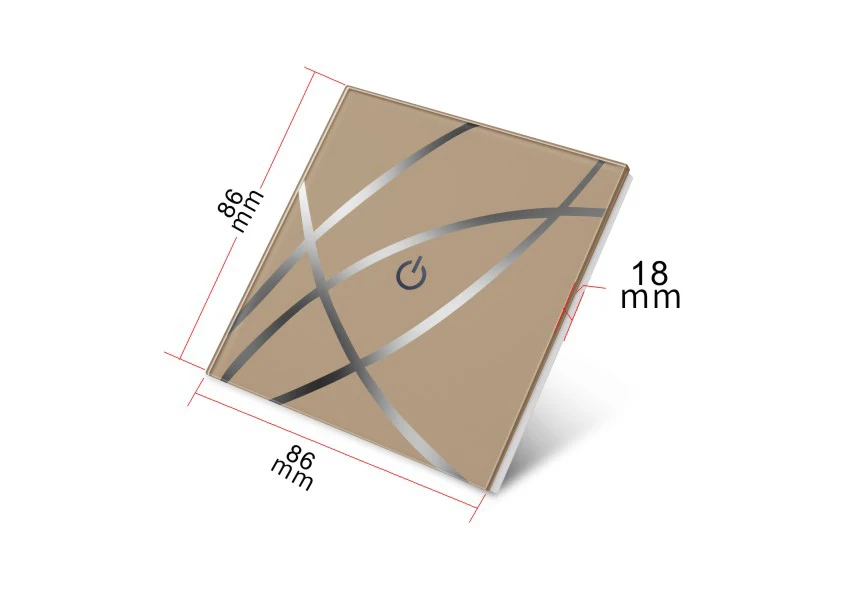

Dimensions
86*86(mm)
Input
DC9-DC12V
Current
<600mA
Output Contact
NO/NC/COM
Mechanical Life
500000 tested
Suitable for Door
Hollow Door
Operating temp
-20℃~+55℃(14-131F)
Suitable Humidity
0-95% (relative humidity)
Detection range
0.1-10cm
LED Indicator
White LED indicator: Power OFF
Blue LED indicator: Power ON(standby)
Red LED indicator: Power ON(sensation)
Weight
0.82kg


©Installation

1. Fix rear corver on about 1.2meters wall from the ground
2. Solder wire and tie insulating tape up

3. Fast the front-panel to the rearcover

4. Power on and test, in stallation finished



Detailed Images








+12V
+12V
NO
COM
NC
RED
BLACK
YELLOW
WHITE
ORANGE


Click here to order and have your FREE SAMPLE in 3 days!!!
We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below, click "Send" now!
We are looking forward to forming successful business relationships with new clients around the world in the future.





Application






Packing & Delivery


Unit Type: piece
Package Weight: 0.3kg
Package Size: 10cm x 10cm x 8cm
