A123 Высокая разрядка тока Anr26650m1b 2500mah 26650 Lifepo4 3,2 v батарея
- Category: Batteries >>>
- Supplier: MYD New Energy Technology Limited
Share on (1600337643114):
Product Overview
Description
Product category
Features:
* Lithium iron phosphate battery*The safest lithium battery material
*High energy density, 120-130Wh/kg
* Efficient and lasts up to 7000 cycles
*·Good high temperature performance
*High rate discharge performance is good
*·Excellent stability
Typical choice（ customized ）
* Cell models variety available Customization，Main cells: IFR32700, IFR26650, IFR22650, IFR18650，IFR32650
*Voltage: 3.2v
*Capacity: 1.1Ah~6.5Ah
*Output: 3.5Wh~20WH, max 3C discharge
* Multiple cells assembled with protection circuit board (PCB), wire & connector available
* Battery modules or units available for variety applications
* Cell models variety available Customization，Main cells: IFR32700, IFR26650, IFR22650, IFR18650，IFR32650
*Voltage: 3.2v
*Capacity: 1.1Ah~6.5Ah
*Output: 3.5Wh~20WH, max 3C discharge
* Multiple cells assembled with protection circuit board (PCB), wire & connector available
* Battery modules or units available for variety applications
Applications:
This battery is for industrial, commercial or residential useMultiple battery modules in series and parallel can be used in renewable energy systems
* ·Energy storage system
* ·Solar energy storage·
* Solar street light·
* Electric car ·
* medical equipment
* ups
* ·Solar energy storage·
* Solar street light·
* Electric car ·
* medical equipment
* ups
Battery Life Cycle:
* Based on discharge current of 0.5C, 25℃* 5000 cycles at 50%DOD
* 4000 cycles at 60%DOD
* 3000 cycles at 70%DOD
* 2000 cycles at 80%DOD
Product description
100% true capacity 26650 3.2V nominal lithium rechargeable battery | |||||||||
model | IFR26650 | IFR26650 | IFR26650 | IFR26650 | IFR26650 | ||||
Rated voltage | 3.2V | 3.2V | 3.2V | 3.2V | 3.2V | ||||
Rated Capacity | 4000mah | 3800mah | 3600mah | 3400mah | 3300mah | ||||
Electricity | 12.8Wh | 12.2Wh | 11.5Wh | 10.9Wh | 10.6Wh | ||||
Rated charging current | 800mA | 760mA | 720mA | 680mA | 660mA | ||||
Rated discharge current | 800mA | 760mA | 720mA | 680mA | 660mA | ||||
Maximum discharge current | 12mA | 11.4mA | 10.8mA | 10.2mA | 9.9mA | ||||
Charging voltage | 3.65V | 3.65V | 3.65V | 3.65V | 3.65V | ||||
Discharge cut-off voltage | 2V | 2V | 2V | 2V | 2V | ||||
Internal resistance | 15mΩ | 15mΩ | 15mΩ | 15mΩ | 15mΩ | ||||
The maximum diameter | 26.5mm | 26.5mm | 26.3mm | 26.3mm | 26.3mm | ||||
maximum height | 66.5mm | 66.5mm | 66.5mm | 66.5mm | 66.5mm | ||||
weight | 86g | 86g | 86g | 85g | 85g | ||||
Application scenario | The battery is used for industrial, commercial and residential purposes Multiple battery modules are connected in series and parallel. | ||||||||
High Quality:
* 100% pre-tested before leaving the factory,We will matched(capacity,voltage,resistance) all cells before delivery
* Specialized manufacturer with more than 20-years experience
* Specialized manufacturer with more than 20-years experience
* Excellent customer service and technical support
* Strict quality control system and professional R&D department.
* The QR code is intact, Grade A, Brand new.
Recommended Products
Company Profile
《《《ABOUT US》》》
As MYD NEW ENERGY TECHNOLOGY LIMITED, its former name was MYD TECHNOLOGY LIMITED, established in Shenzhen China in 2007, with rich researching &manufacturing experience on new energy rechargeable batteries. Our product mainly includes Lithium lron Phosphate (Lifepo4) battery, Lithium-ion battery, Lithium polymer battery, Nimh/Nicd battery and etc. We can also offer customize service from battery cell to finished battery pack, in order to meet the customers' requirements maximally. Our product has a wide application range, involves to emergency lighting, solar energy storage system,communication base station, electronic vehicles and different kinds of digital consumer electronics.
MYD always insist that QUALITY is the basic of enterprise development, and established and improved our own Quality Assurance System according to IS09001:2015 strictly, in order to guarantee the products' quality. At present, we own crificates includes ISO, UL,CE, ROHS, KC, IEC, CB, PSE, BIS, UN38.3, which can meet customer need from different countries, and we have R&D team of more than 20peoples support to meet customer' OEM & ODM need.
In past almost 20years, MYD won consistent positive reputation from domestic and overseas, our product was exported to more than 60 countries. "High quality product, timely dlivery, perfect service and competitive price", is the direction we are pursuing. "Integrity,teamwork, innovation, win-win", is the goal we are pursuing. MYD is one reliable supplier of battery, we are keeping high enthusiasm to treat our customers, and willing to extend
MYD always insist that QUALITY is the basic of enterprise development, and established and improved our own Quality Assurance System according to IS09001:2015 strictly, in order to guarantee the products' quality. At present, we own crificates includes ISO, UL,CE, ROHS, KC, IEC, CB, PSE, BIS, UN38.3, which can meet customer need from different countries, and we have R&D team of more than 20peoples support to meet customer' OEM & ODM need.
In past almost 20years, MYD won consistent positive reputation from domestic and overseas, our product was exported to more than 60 countries. "High quality product, timely dlivery, perfect service and competitive price", is the direction we are pursuing. "Integrity,teamwork, innovation, win-win", is the goal we are pursuing. MYD is one reliable supplier of battery, we are keeping high enthusiasm to treat our customers, and willing to extend
《《《Production workshop》》》
Certifications
Exhibition

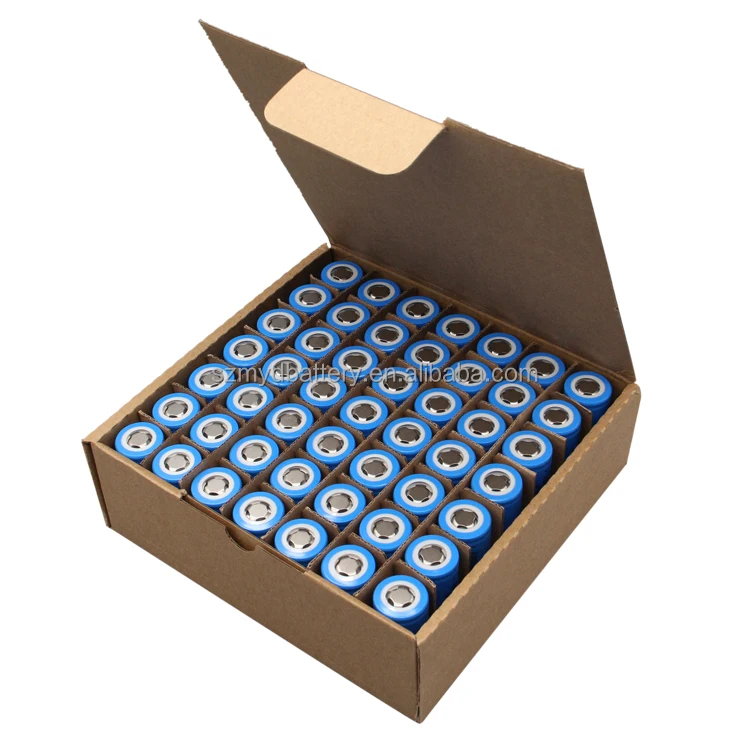

Packaging and Shipping
FAQ
Q: How about the warranty of li ion batteries?
A: Warranty of li-ion battery could be as long as 1 year.Q: Payment terms:
A: 30% in advance, the rest before shipment.
We could receive the payment via bank transfer or Western union, the bank transfer fee should be covered by buyer.
Q: How long will be the delivery?
A: Usually, batteries in stock, delivery 10-15 days. Batteries without stock, delivery 20-25 days.
Q: Could you provide OEM service?
A: Yes, we could, we could also provide blister packaging if you need.
Q: MOQ?
A: No limit for standard models.
Q: Do you have chargers for the batteries?
A: Yes, we have new chargers which could charge batteries with size AA/AAA/C/D/9V.
Q: How to contact with you?
A: You could send me a email at below email box.
