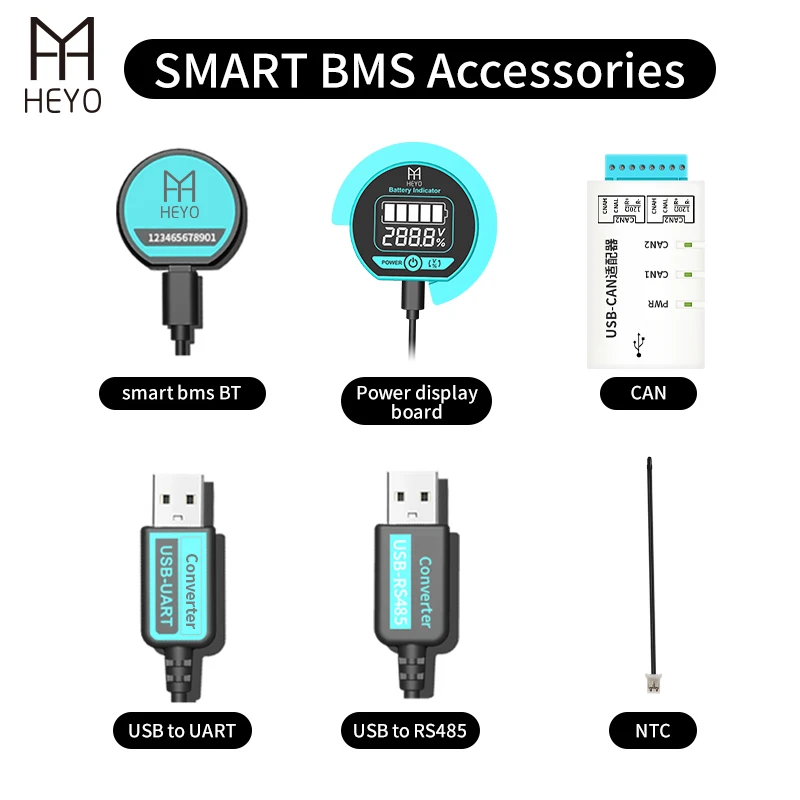

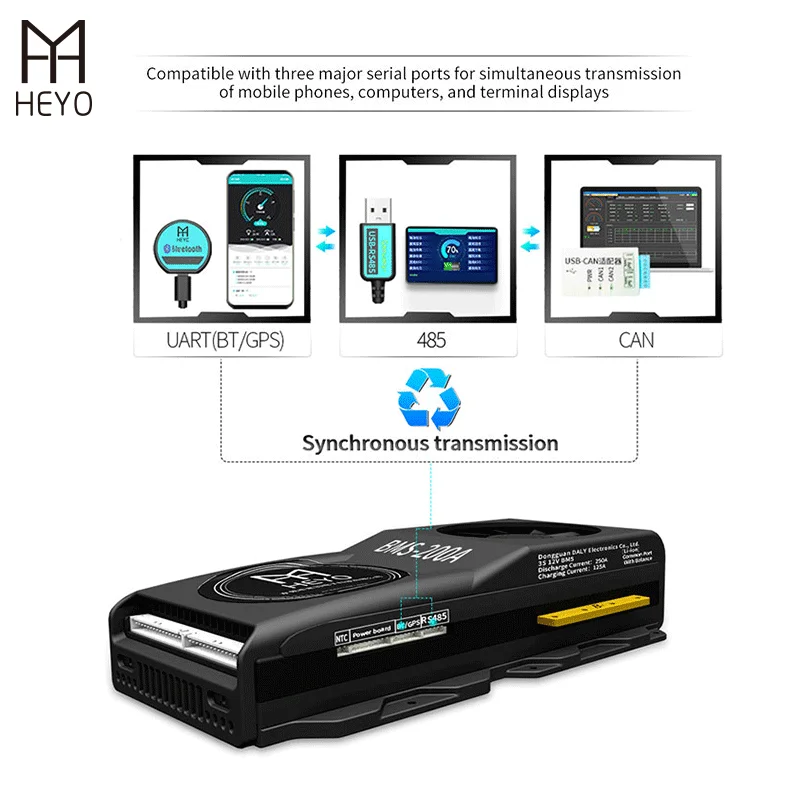

FAN smart bms 4S 80A fan~500A fan 3.2V battery Management System PCB 12V BT UART RS485 CAN communication 4S bms lifepo4
- Category: PCB & PCBA >>>
- Supplier: Dongguan Heyo Electronics Technology Co. ltd
Share on (1600338296997):

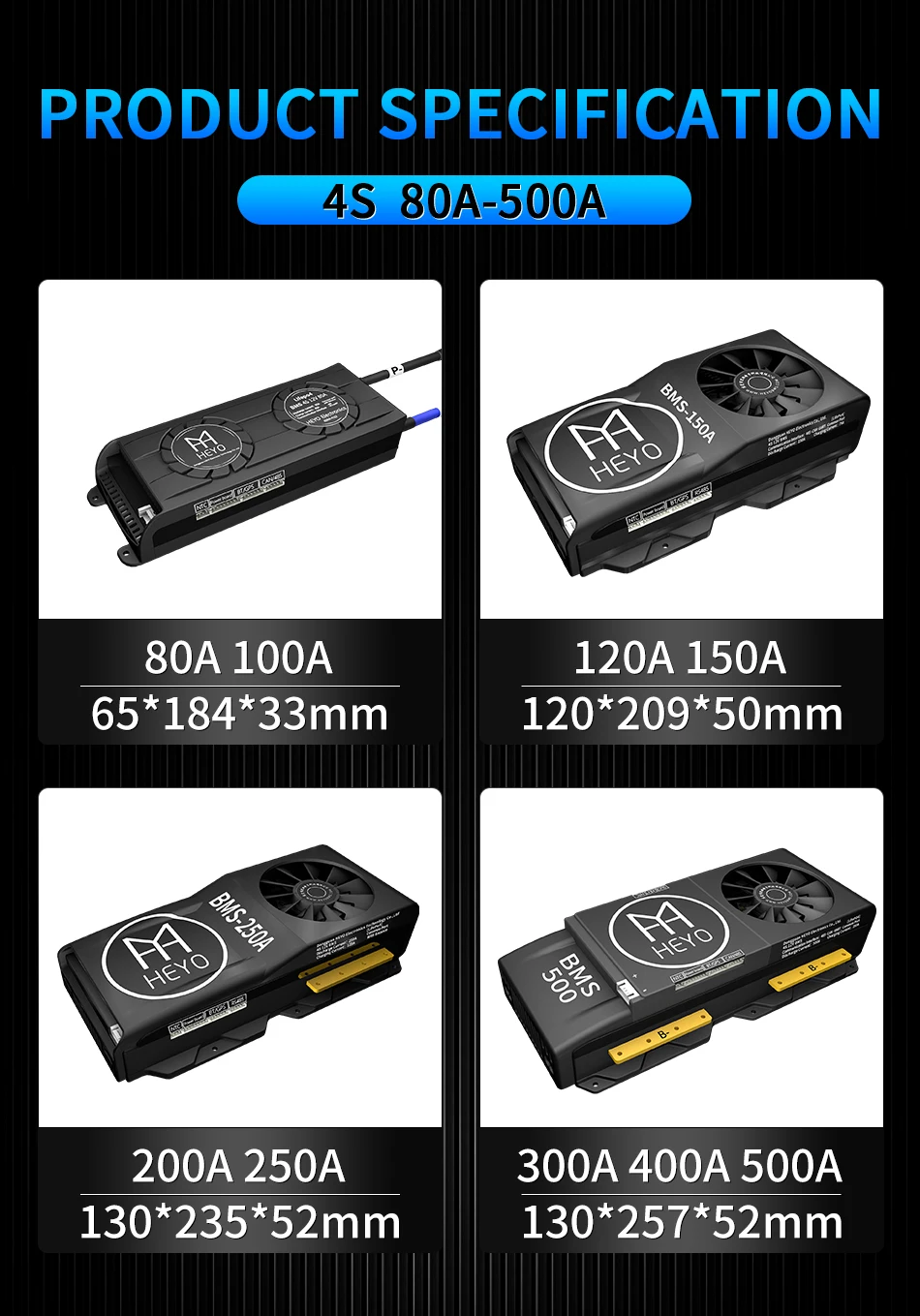

Product Overview
Description
Products Description

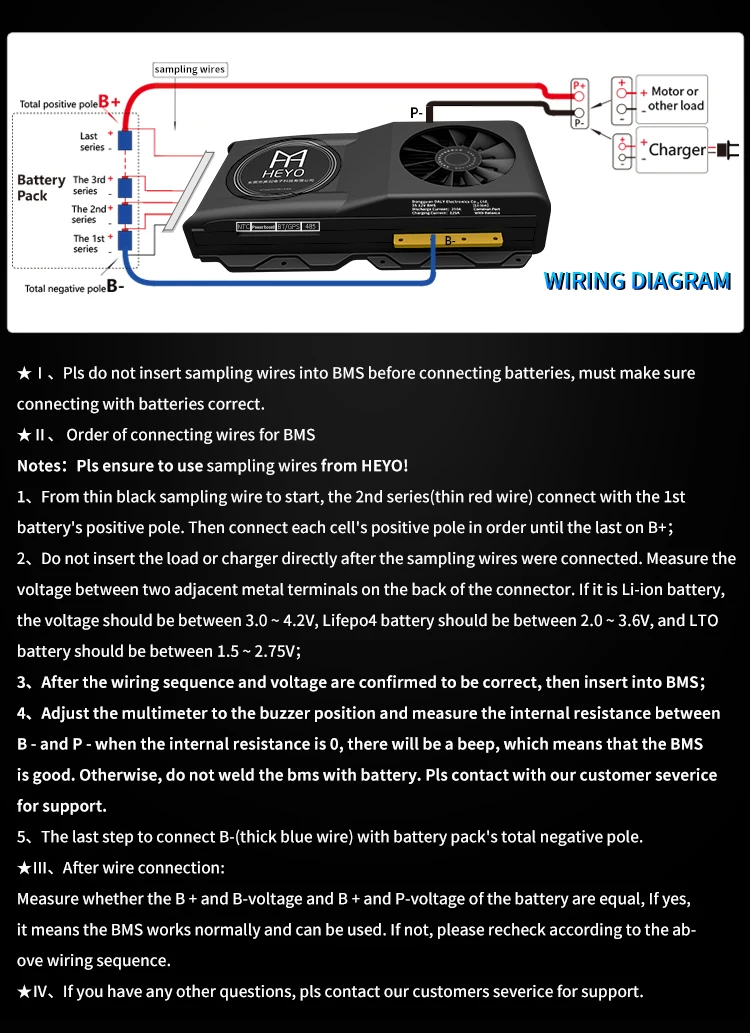

Wiring Diagram
Description | Li-ion | Unit | |
Over charge protection | Over charge detect voltage | String*4.25±0.05 | V |
Over charge protection delay | 1 | S | |
Over charge release voltage | String*4.15±0.05 | V | |
Blance | Balance detect voltage | 3.8 | V |
Balance release voltage | 3.8 | V | |
Blance current | 30±5 | mA | |
Over discharge protection | Over discharge detect voltage | String*2.7±0.05 | V |
Over discharge protection | Over discharge detect delay | 1 | S |
Over discharge re;ease voltage | String*2.8±0.05 | V | |
Over current protection | Over current detect voltage | 1 | - |
Over current detect delay | Off load | - | |
Short circuit protection | Short circuit protection condition | Short circuit of external load | - |
Short circuit protection | Short circuit detect delay | 250 | uS |
Short circuit protection release condition | Off load | - | |
Temp protect | Temperature protect | Charge:-40~65℃ Discharge: -40~70℃ | ℃ |
Self consumpton | Operating temperature | 20 | uA |
Sleeping current (when in discharge) | 200 | uA | |
Operating temperature | Temperature range | Low:-20℃ High:70℃ | ℃ |
Storage temperature | Temperature range | Low:-40℃ High:80℃ | ℃ |
Company Profile
Dongguan HEYO Electronic Technology Co., Ltd.
Dongguan HEYO Electronic Technology Co., Ltd. is located in the world''s factory in Dongguan. It is a high-tech company specializing in R&D, production, and sales of battery protection plates (BMS). " Safety is the only way" is always the quality policy of "HEYO". The company has an international standardized quality management system. For every market-oriented product, westrive to achieve"HEYO products, must be high-quality products."
Certifications
FAQ
How do I know what material OR type my battery is?
Please look at the battery body, if the normal voltage of your battery shows 3.2V, the battery is LiFePo4.If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Li-polymer battery, You can also ask the battery manufacturer for the material of the battery.
Is this BMS suit for my battery?
How many series your cell is in your battery pack? The BMS you buy must be the same series as your battery pack.
What material your battery is? Only the LiFePo4 battery has different electric parameters from other batteries, so if you need to buy the BMS for LiFePo4, Please let us know firstly.
What is the Common port and Separate port? what is the difference?
We take 13S 48V16A BMS as an example: common port 16A means your charge cathode and discharge cathode are connected in the same point end (our P-), charge cathode and discharge cathode are used in the common connection port, so the charge current and discharge current is the same as 16A. A separate port is separately connected by charge cathode (our C-) and discharge cathode (our P-), so the charge current anddischarge current are different, discharge current is 16A, charge current is 8A.
The relationship between battery capacity(AH or mAH) and BMS current(A)?
There is no direct relationship between battery capacity and BMS current, big capacity doesn''t mean big current but rely on continue current, that is to say, if your engine is powerful, you should choose a high current of BMS, it does not rely on battery capacity.
What type of charger should I choose?
Lithium battery must choose specific charger, don''t use charger for a lead-acid battery, for lead-acid charger may have MOS with high-pressure breakdown protection, which will not protect of BMS overcharge. LiFePo4 battery charger voltage = number of battery strings X 3.6V, while Li-ion battery charger voltage = number of battery strings X 4.2V.
Do you have a Minimum Order Requirement (MOQ)?
No, we don''t have MOQ. different customers have different requirements, we can provide various capacity and size as per your requirements, also ODM / OEM is welcome.
Please look at the battery body, if the normal voltage of your battery shows 3.2V, the battery is LiFePo4.If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Li-polymer battery, You can also ask the battery manufacturer for the material of the battery.
Is this BMS suit for my battery?
How many series your cell is in your battery pack? The BMS you buy must be the same series as your battery pack.
What material your battery is? Only the LiFePo4 battery has different electric parameters from other batteries, so if you need to buy the BMS for LiFePo4, Please let us know firstly.
What is the Common port and Separate port? what is the difference?
We take 13S 48V16A BMS as an example: common port 16A means your charge cathode and discharge cathode are connected in the same point end (our P-), charge cathode and discharge cathode are used in the common connection port, so the charge current and discharge current is the same as 16A. A separate port is separately connected by charge cathode (our C-) and discharge cathode (our P-), so the charge current anddischarge current are different, discharge current is 16A, charge current is 8A.
The relationship between battery capacity(AH or mAH) and BMS current(A)?
There is no direct relationship between battery capacity and BMS current, big capacity doesn''t mean big current but rely on continue current, that is to say, if your engine is powerful, you should choose a high current of BMS, it does not rely on battery capacity.
What type of charger should I choose?
Lithium battery must choose specific charger, don''t use charger for a lead-acid battery, for lead-acid charger may have MOS with high-pressure breakdown protection, which will not protect of BMS overcharge. LiFePo4 battery charger voltage = number of battery strings X 3.6V, while Li-ion battery charger voltage = number of battery strings X 4.2V.
Do you have a Minimum Order Requirement (MOQ)?
No, we don''t have MOQ. different customers have different requirements, we can provide various capacity and size as per your requirements, also ODM / OEM is welcome.
