High Quality Product Price LSB450+LST21400R Roll Feeding Square Bottom Paper Bag Making Machine
- Category: Bag Making Machines >>>
- Supplier: Ruian,Lilin,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

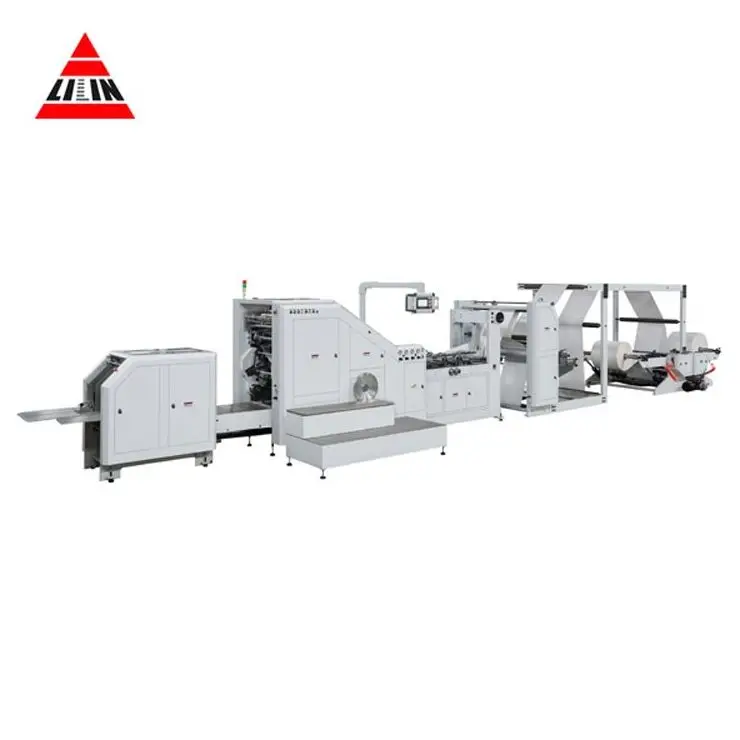

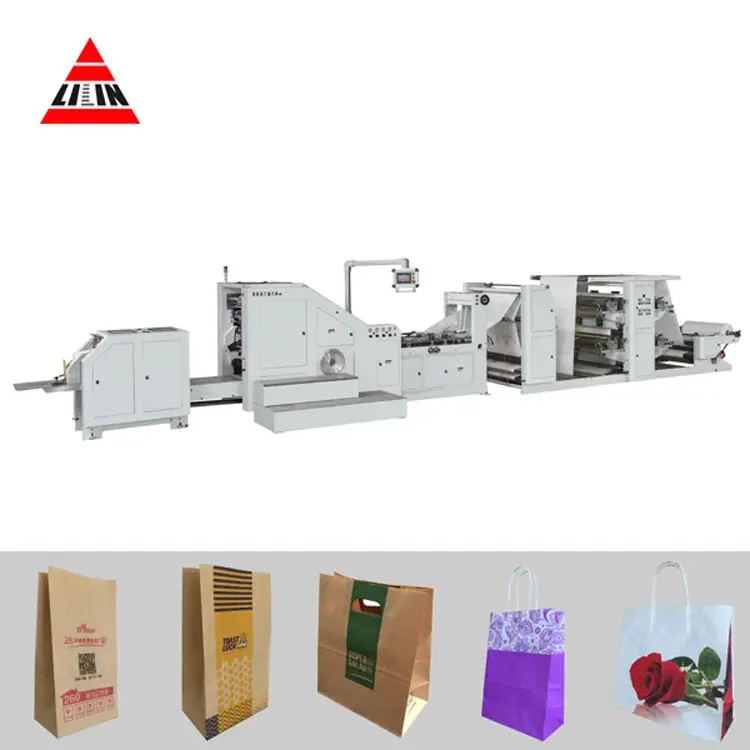

LSB450+LST21400R Roll Feeding Square Bottom Paper Bag Making Machine
Introduction:
The paper bag making machine from the roll paper to the printing, side gluing, roll folding, roll paper cutting, bottom folding,bottom gluing, bottom forming, bag formation at a stroke. This machine controls by PC programmable servo motor through the human-machine touch screen interface. It can produce various of specifications paper bags. This machine have advantages of high speed, quickly replace the paper bag specifications, more wide range adjusting etc. It is an ideal machine for producing food bag,shopping handles bag.
Features:

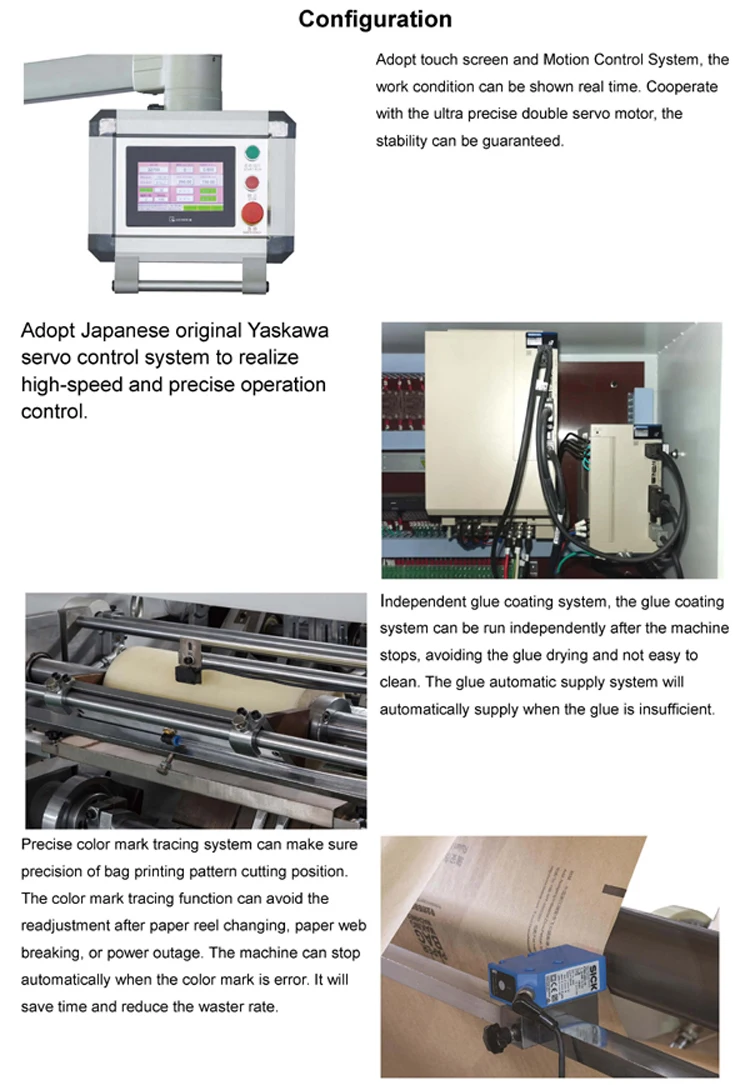

1. The human-machine touch screen interface, the work condition can be shown in real- time.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.

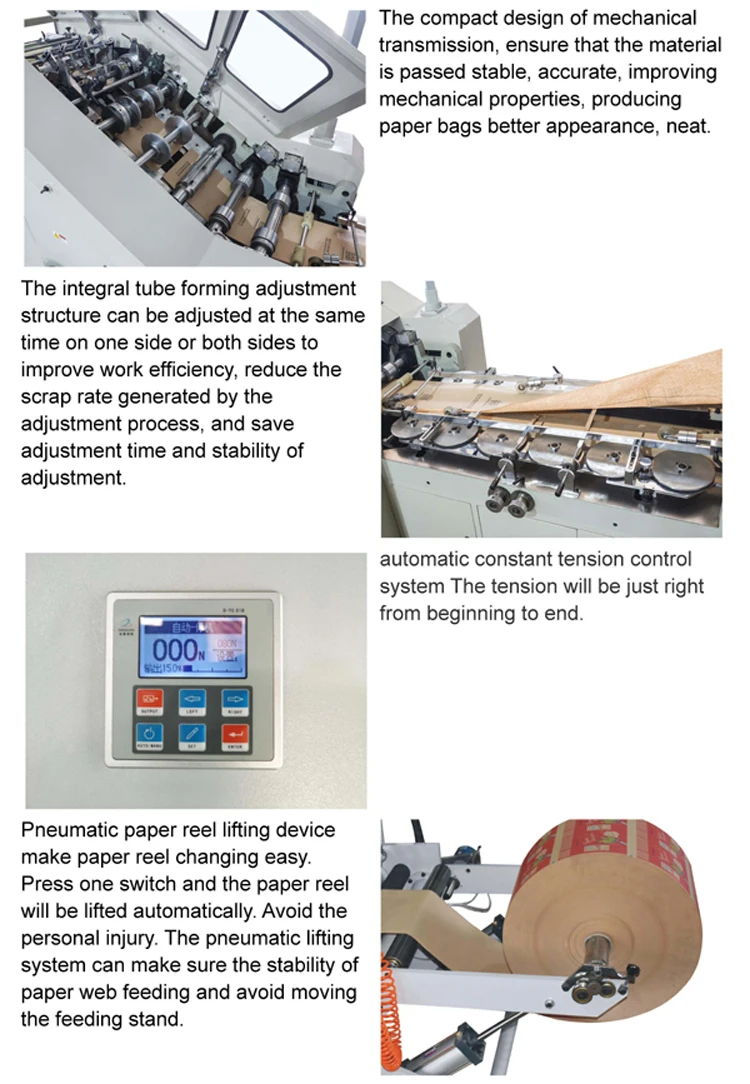

4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving,long life.
6. Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control, avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Ink-ring sealed scraping knife scraping.（Except R and J type）
11. Ink Ceramic Anilox roller, high speed dot rate, screen printed layered, stronger.（Except R and J type）
12. Using 99mm large diameter rubber roller to uniform ink and anilox roller to transfer ink.（Only R and J type）

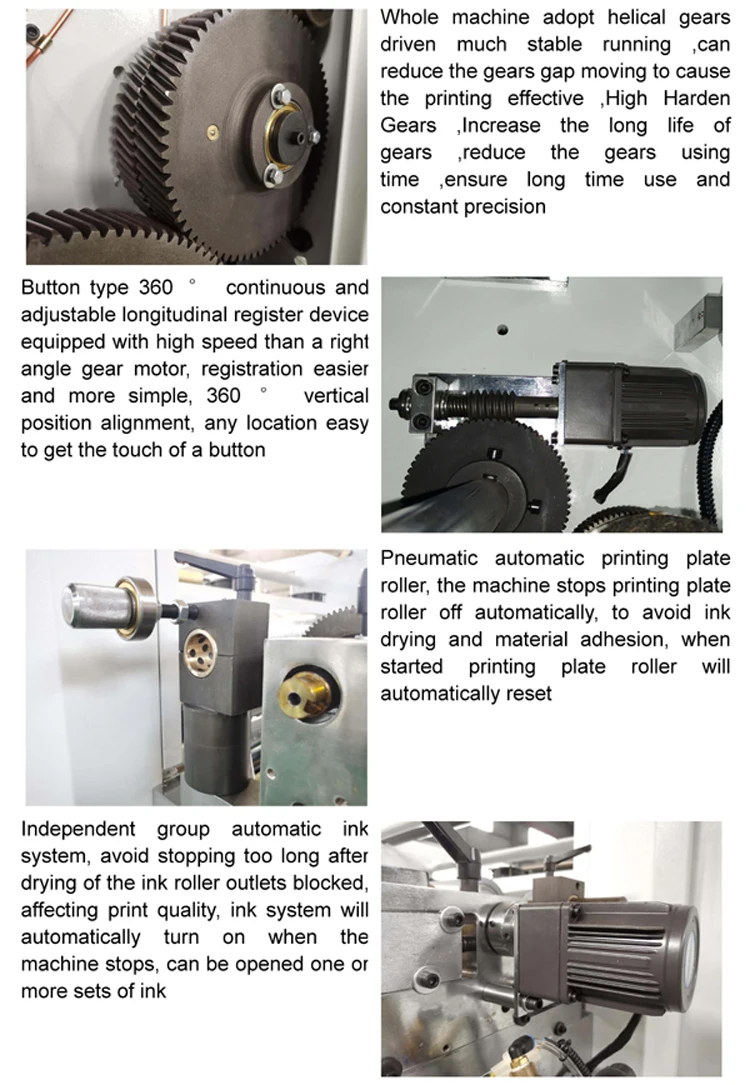

13. Button-360 ° continuous and adjustable longitudinal register device.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material loading and unloading adopts pneumatic or hydraulic lifting structure.
4. Automatic constant tension control system. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving,long life.
6. Thumb buttons, appressed bottom cutting device, bag type have many choices.
7. Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple, more time saving.
8. Glue roller air defense coating control, avoid gluing on besmear brushs hub surface directly, reduce unnecessary trouble.
9. Accurate color tracking system, automatic alarm prompt when color is wrong.
10. Ink-ring sealed scraping knife scraping.（Except R and J type）
11. Ink Ceramic Anilox roller, high speed dot rate, screen printed layered, stronger.（Except R and J type）
12. Using 99mm large diameter rubber roller to uniform ink and anilox roller to transfer ink.（Only R and J type）
13. Button-360 ° continuous and adjustable longitudinal register device.
Product Paramenters
Type | LSB450+LST21400R |
Bag Width (W) | 130-320 mm |
Bottom Size (H) | 70-180 mm |
Cutting Length (C) | 270-530 mm |
Bag Length (L) | L=C -(H+2+15~25) |
Max. Speed | 220 pcs/min |
Paper Roll Width | 400-1050 mm |
Max. reel weight | 600 Kg |
Max. Roll Diametr | 1200 mm |
Reel inner diameter | 76 mm |
Paper specification | 60-170 gsm |
Printing Color | 4Color |
Printing Width | 1100 mm |
Printing Length | 180-800 mm |
Max.Printing Speed | 80 m/min |
Overprint Precision | ±0.15 mm |
Thickness of Plate | 1.7 mm |
Web edge control system | Double photoelectric automatic correction control system |
Web tension control system | automatic constant tension control system |
Air pressure | ≥0.12cmm, 0.4~1Mpa |
Driven motor | Double servo motor |
Electric | 380V, 50Hz, 3 phase |
Power | 13.5 KW |
Weight | 8200 Kg |
Overall dimension (LxWxH) | 12200x1850x1850 mm |
Product packaging
FAQ
1.Are you trading company or manufacturer?
We are manufacturer, we have our own worker and factory.
2.How long has your factory been in this field?
In China, As one of the earliest manufacturers in paper bag machine, we have more than 10 years professional experience.
3.What types of machine do you have?
Commonly are paper bag machine V shape bottom or square bottom ,flexo printing machine,slitting machines according to clients'needs.
4.Where is your factory located? how can l visit there?
Our factory is located in ruian city.zhejiang province china.our local airport is Wenzhou Longwan Airportthe nearest international
airport is shanghai Pudong Airport about 40 minutes by plane from shanghai (4 hours by train
5.Can i get some samples? how can l get it?
Yes,we can send you some free samples, but you need to bear the courier cost by DHL, TNT etc.
sincerely welcome all clients to visit us!
We are manufacturer, we have our own worker and factory.
2.How long has your factory been in this field?
In China, As one of the earliest manufacturers in paper bag machine, we have more than 10 years professional experience.
3.What types of machine do you have?
Commonly are paper bag machine V shape bottom or square bottom ,flexo printing machine,slitting machines according to clients'needs.
4.Where is your factory located? how can l visit there?
Our factory is located in ruian city.zhejiang province china.our local airport is Wenzhou Longwan Airportthe nearest international
airport is shanghai Pudong Airport about 40 minutes by plane from shanghai (4 hours by train
5.Can i get some samples? how can l get it?
Yes,we can send you some free samples, but you need to bear the courier cost by DHL, TNT etc.
sincerely welcome all clients to visit us!
Company Profile
About us
Ruian Lilin machinery Co., LTD., is a professional paper bag machine manufacturer.It was founded in 2006, since its inception,the company has been committed to the r&d and production of paper bag making machine, constantly introducing new and high technology,combined with market demands and constantly develop new products, higher quality, higher efficiency to meet the market demands.Main products: LSB series roll paper square bottom paper bag machine,LSD series automatic high-speed paper bag machine, LMD series automatic high-speed paper bag machine, LST series flexo printing machine, and other paper bag related supporting products.The products have been sold to Southeast Asia and Europe. , Middle East, Africa, South America and more than 60 countries and regions. Since its inception, the enterprise always adhere to the "technology first, quality first" business philosophy, with honest and trustworthy operating style,excellent product quality and excellent service to win for the principle, for the user to achieve maximum value to reflect my value. Wholeheartedly welcome the domestic and foreign merchants to come to visit or inquire.
