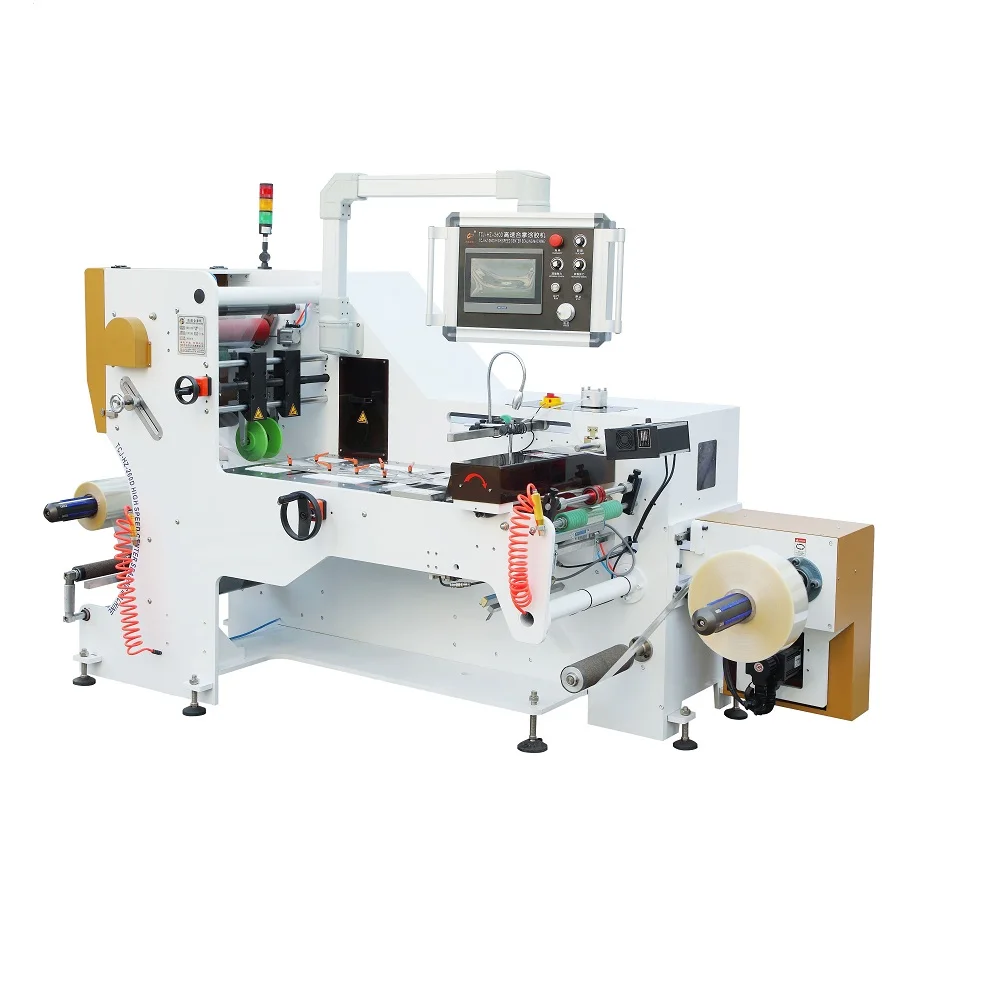

TCJ-HZ-260D High Speed Center sealing machine (moldless type)
1) Moldless type: You don't have to change the mold when you change the width of the label
2) Max speed is 450m/min
3) 5 servo motors control
4) Air release holes making function (Two)
5)Perforation lines (easy tearing lines) making function (Double lines)
5) Oscillation rewinding device is controlled by a servo motor
7) It can remember more than 100 groups of data which help you control the machine easier
Parameter : | |
Model | TCJ-HZ-260D |
Materials | OPS,PVC,PET |
Film thickness | 20-80 um |
Width of unwinding | 580mm |
Max.Unwinding diameter | Φ500mm |
Rewinding width | 25mm-240mm |
Max.Rewinding diameter | Φ900mm |
Max speed of Machine | 420m/min |
Supply Power | 7KW |
More videos:
https://www.youtube.com/playlist?list=PLHDwrtsYMHCH7Q9LbbY8f9nvtJ2_klvNN
https://www.facebook.com/Shrinksleevemachine/

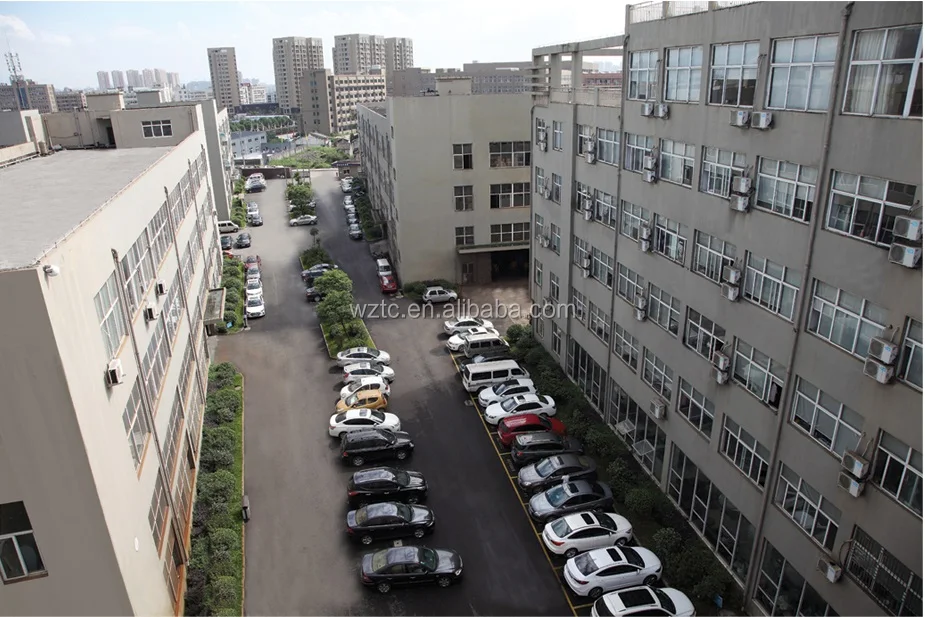

Ruian Tiancheng Packing Machinery Co., Ltd. As a professional manufacturer of packing machinery, was established in 2000.
It consists of Technical Development Department, Manufacturing Department, Sales Department and After-Sales Service Department
Our main products include: intelligent packing machine (Such as packing for paper,plastic,EPS cups,plastic/paper lids ,containers),shrink sleeve label making machines , roll rewinding and shrink wrapping machine ( Such as working for gift paper & wallpaper) ,star bow making machine.

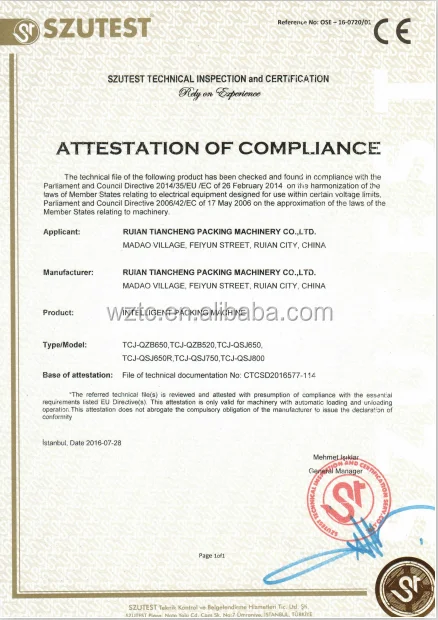

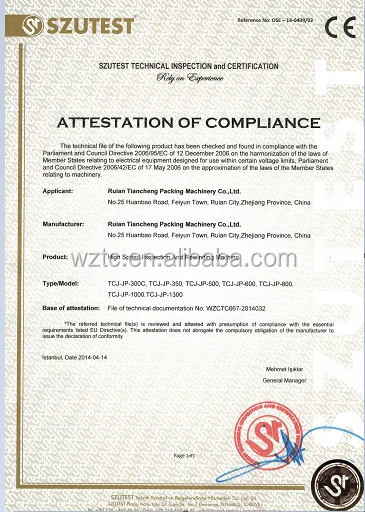

For over 20 years,our company has been the leader in Chinese packing machinery area .Almost of our machines have CE certificate.
