ZY 350P 6 Color Narrow Web Servo Motor Petal Type Intermittent Flexo Flexographic Printing Machine
- Category: Flexographic Printers >>>
- Supplier: Jinhua Ziye Technology Co. Ltd.
Share on (1600339302129):
Product Overview
Description
Product Description

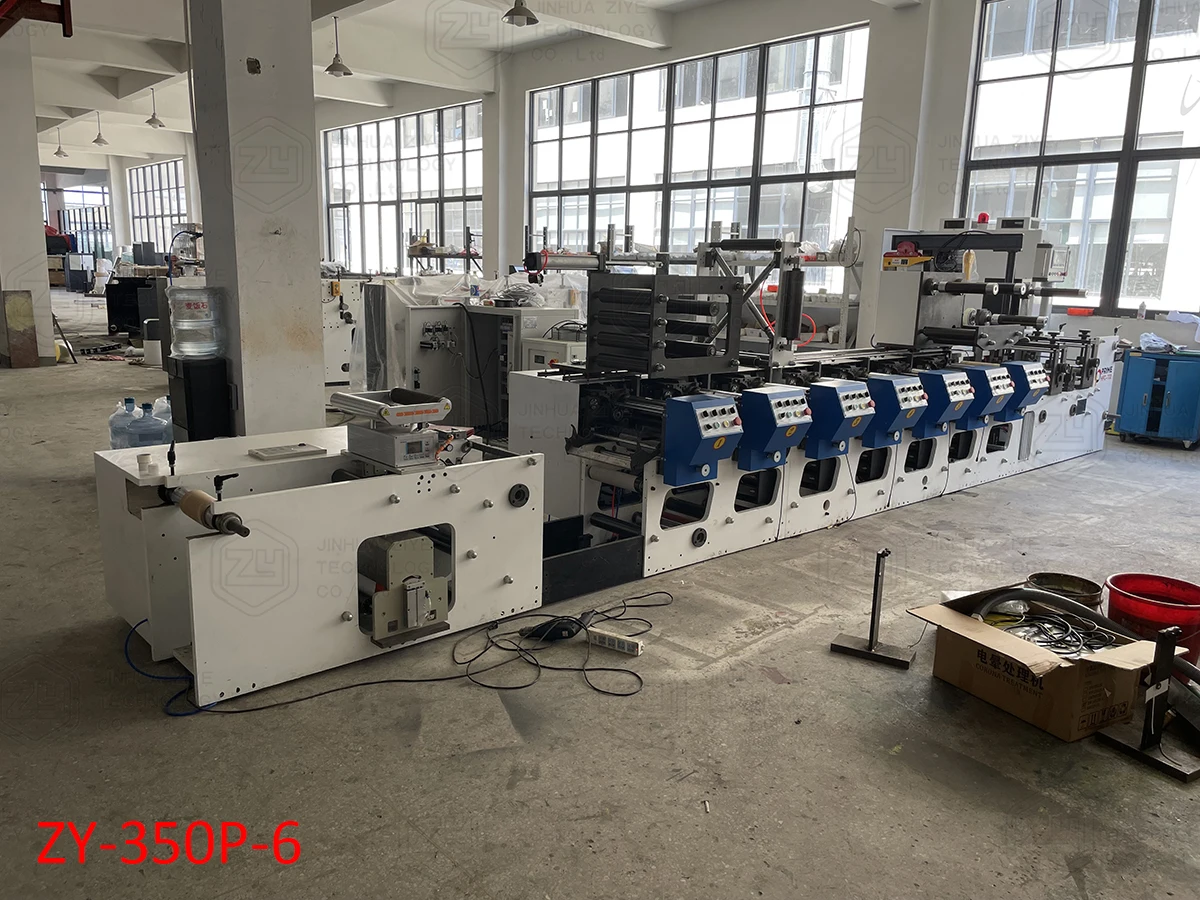

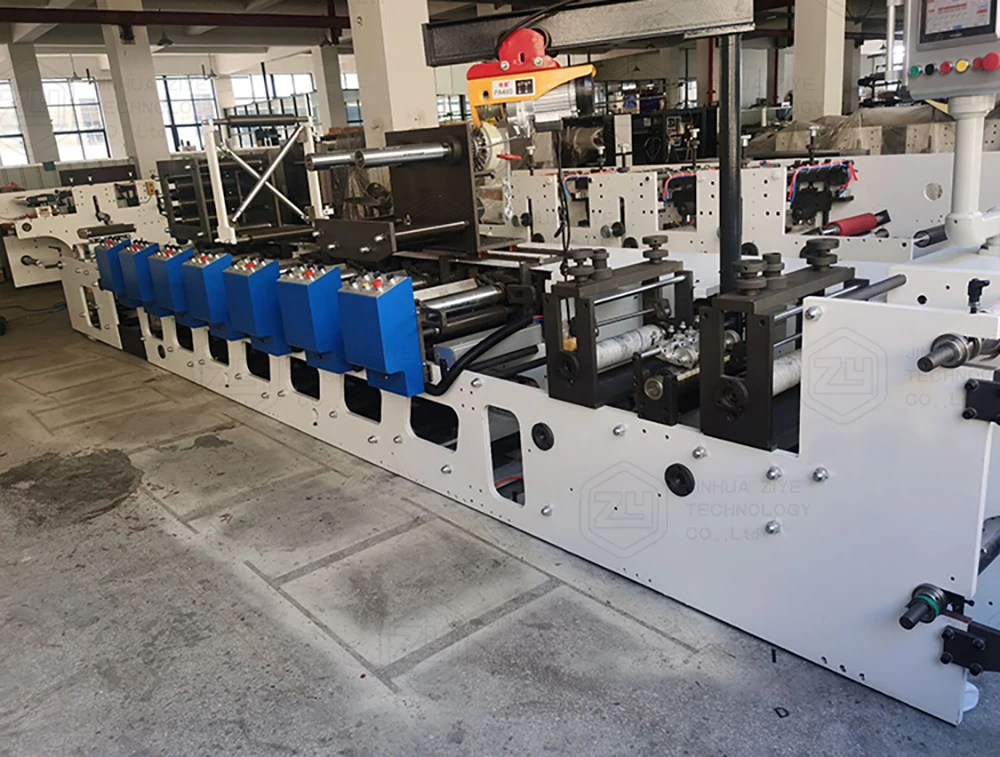

ZY-350P 6 Color Narrow Web Servo Motor Petal Type Intermittent Flexo Flexographic Printing Machine
The machine can finish material-feeding,printing, varnish, drying, laminating, rewinding and die-cutting in one process is an
ideal machine for printing note and top-grade adhesive label. And, all units will be controlled by each set SERVO MOTOR.
ideal machine for printing note and top-grade adhesive label. And, all units will be controlled by each set SERVO MOTOR.
1. The flexo printing machine adopts the anilox rollers to spread ink. which is characterized by wearable, rust-resistant and long using life, etc. It can improve the printing efficiency.
2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch. Tension controller is automatic constant type.
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier. UV dryer can be optional.
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding and rewinding shaft adopt air shaft, it's convenient to change load and unload the material.
8. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch. Tension controller is automatic constant type.
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier. UV dryer can be optional.
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding and rewinding shaft adopt air shaft, it's convenient to change load and unload the material.
8. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
Samples
Labels
All kinds of sticker labels
Plastic Films (PVC,PET...)
All kinds of Paper (below 250gsm)
Aluminum Foils
Product Paramenters
Machine Model | ZY-350P |
Printing speed | 100m/min |
Max. Web Width | 350mm |
Max. Unwinding/Rewind Diameter | 600mm |
Printing Length | 170-635mm |
Color Quantity | 6 colors |
Dimensions | 5000*1700*1700mm |
Main motor | 15 KW |
Voltage | 220V/380V |
Gear | Helical Gear |
Machine weight | 5000 kgs |
Details Images
Unwind Unit
With 1 pc 3" Air Expanding Shaft, Can accept max diameter 600mm material jumbo roll. (can be customized)

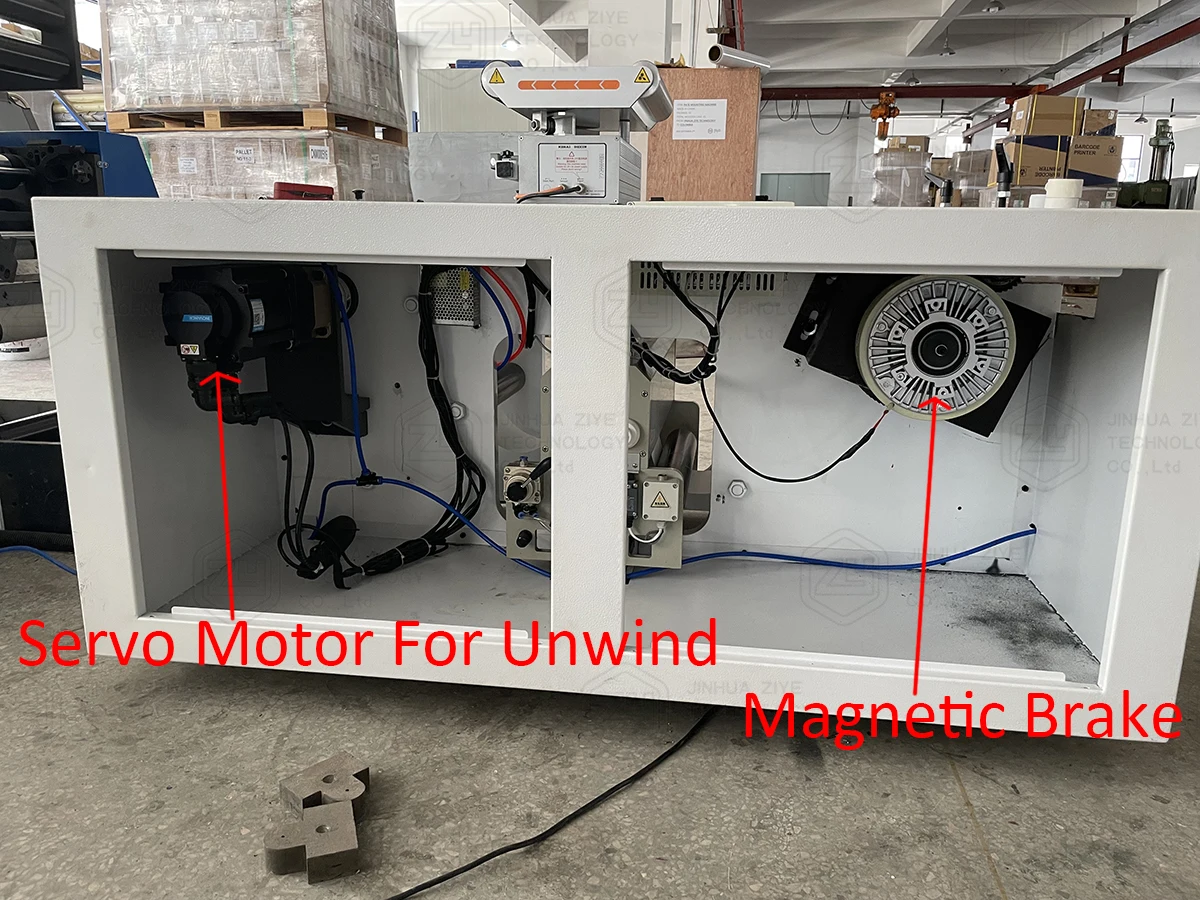

Servo Motor For Unwind & Magnetic Brake
Web Guide System
Control paper move straightly.
Tension Controller

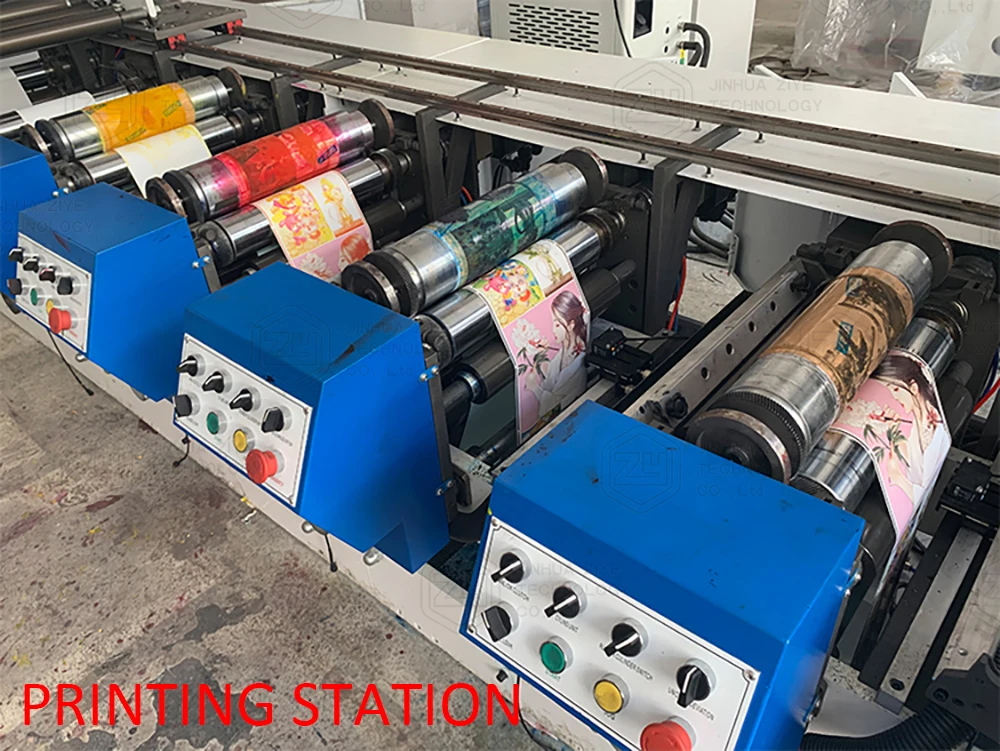

Flexo Printing Unit
Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink Container. Helical Gear

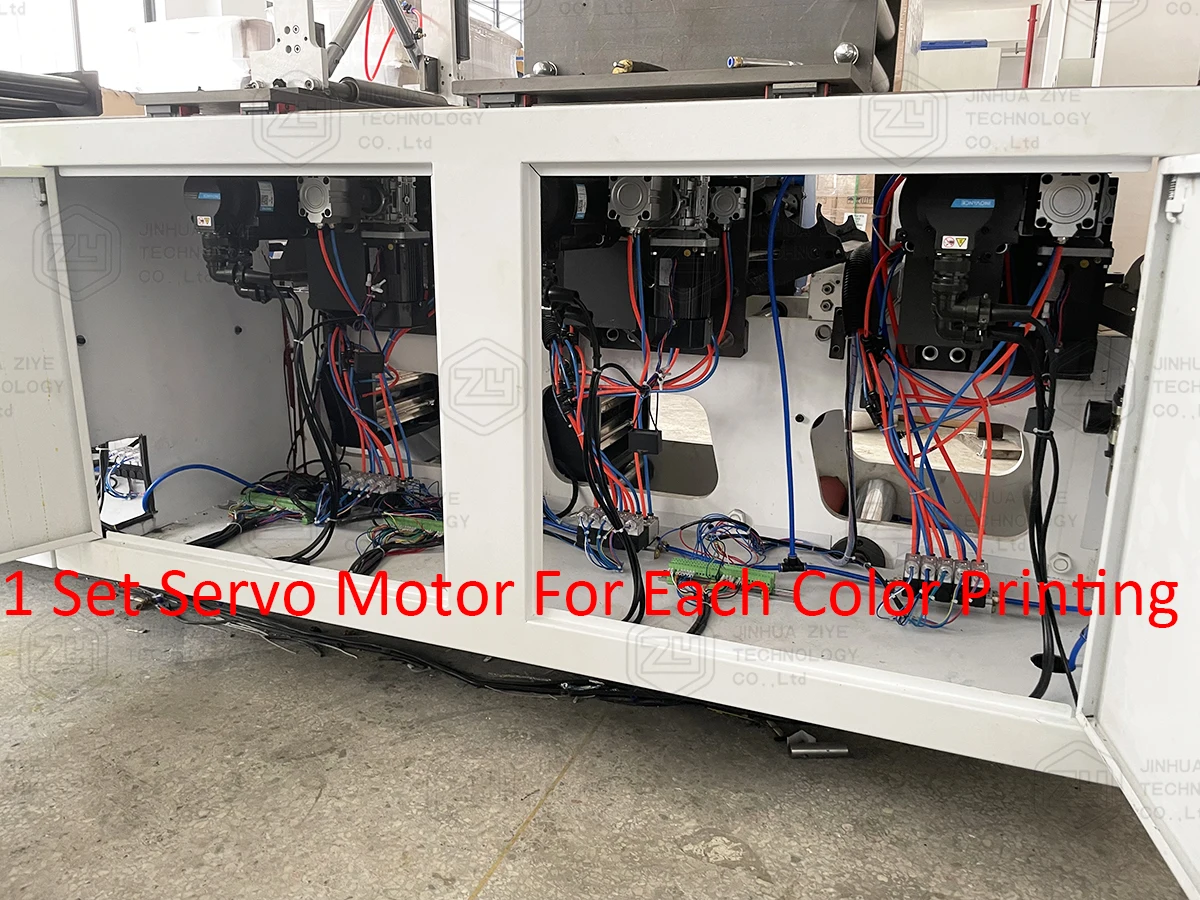

Servo Motor For Printing Stations
Each printing station will be controlled by independent servo motor.
UV Drying Unit
1).Each Printing Unit comes with 1 UV Dryer
2).It is placed on material and after each printing station.
2).It is placed on material and after each printing station.
Control Panel---PLC+Touch Screen
Power Supply, Stop Button, Start Button and Emergency Stop.
Rewind Unit
Servo Motor For Rewind Unit
Die Cut Unit
Used with magnetic cylinder and flexible die

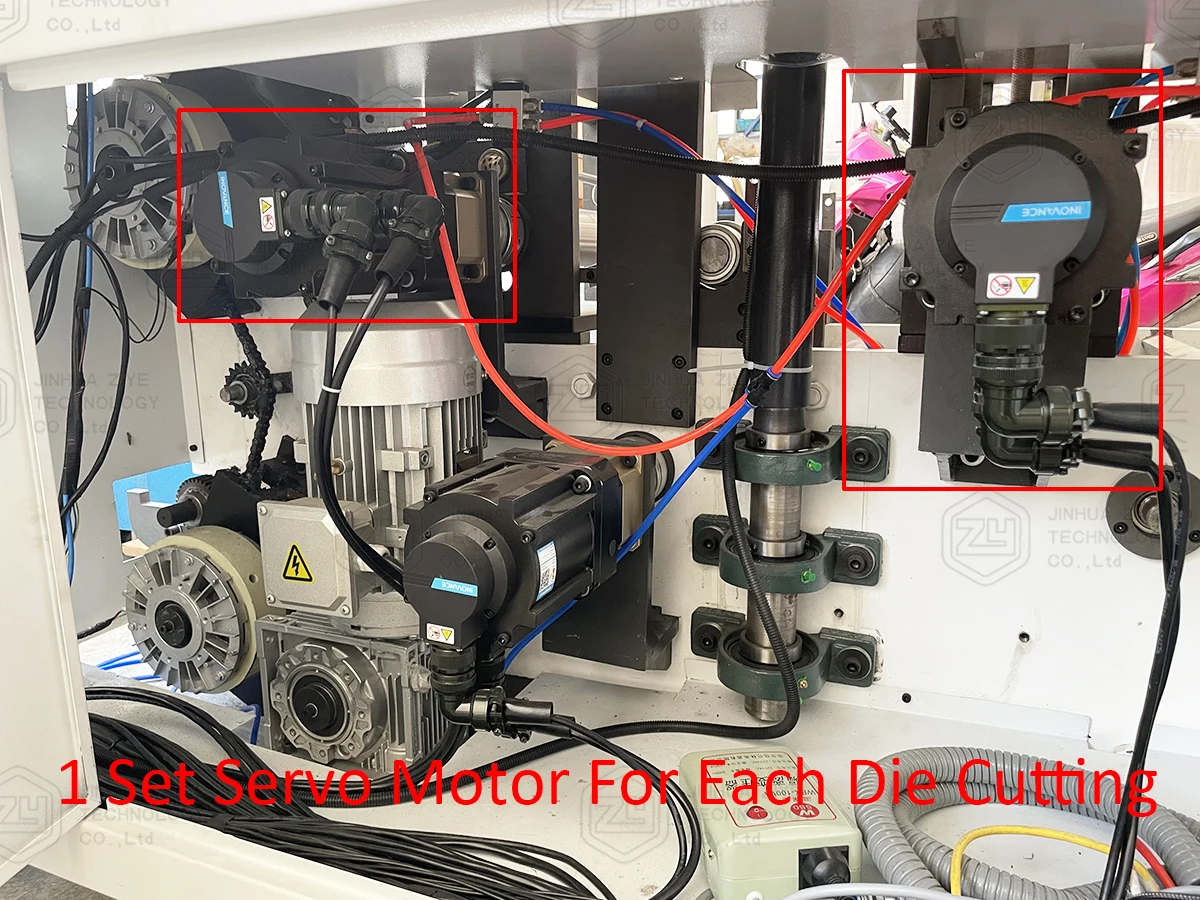

Servo Motor For Die Cutting Units
