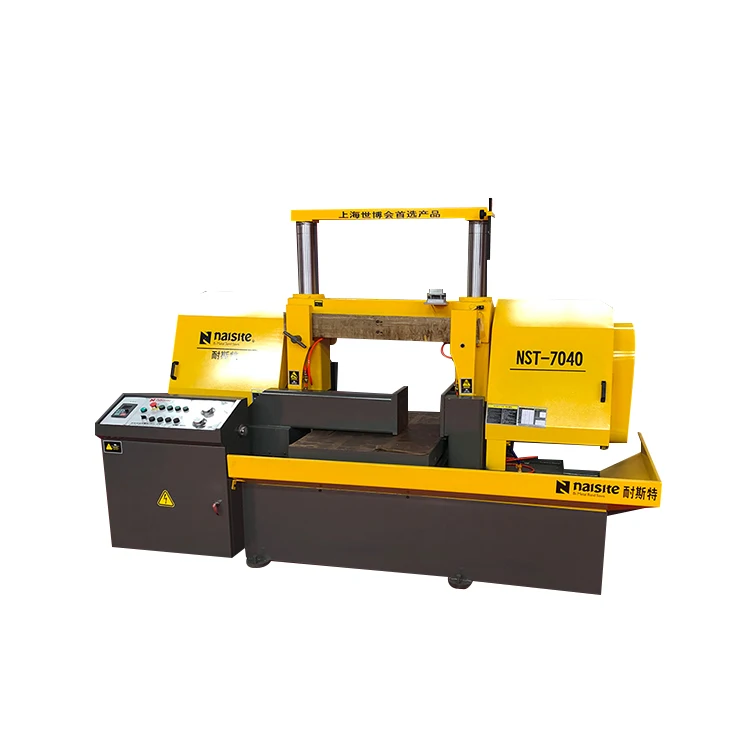

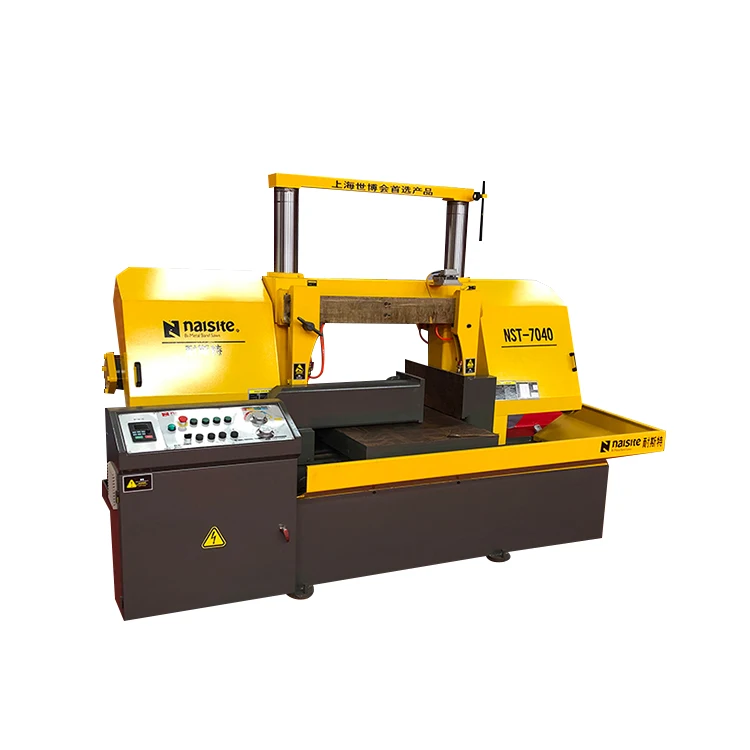

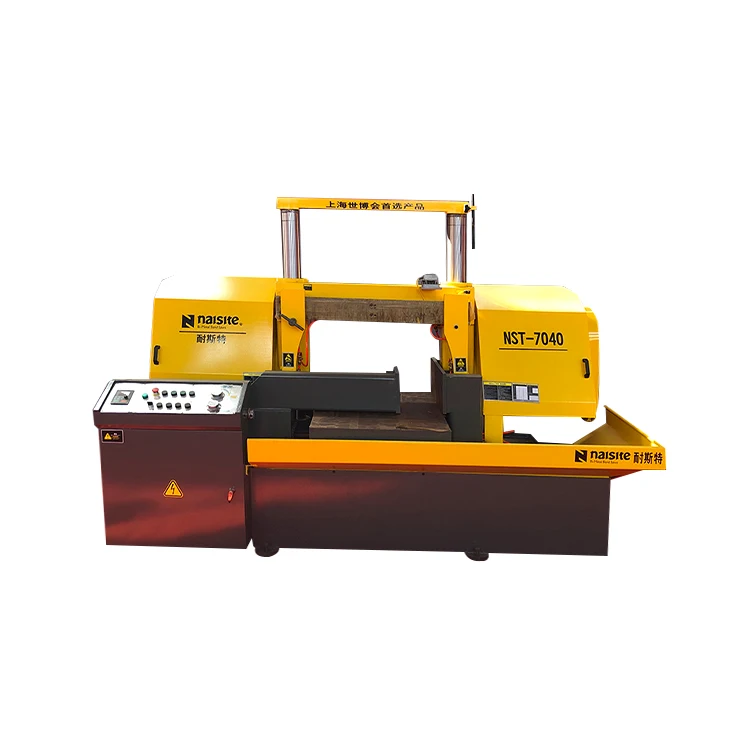

Product parameter of NST-7040
Blade process Speed
15-60 (frequency control)
Hydraulic cooling way
Feeding hydraulic platform
Feeding cut adjust way
Dual hydraulic valve governor
380V 50HZ 3Phase
Chip conveyor way
Hollow Screw style auto convey
Blade tensioning form
1. Double hydraulic control saw feed speed, stepless speed adjustment, sawing more stable.
2. Easy to install and tighten with saws, easy to operate and maintain.
3. Saw wire speed adopts frequency conversion speed adjustment, can be applied to different materials sawing.
4. Saw-cutting is stable and has high accuracy.
5. Work efficiency digital display, simple and clear work process.
6. The work CLIP adopts hydraulic pressure, hydraulic feed, and the operation is fast and convenient.
7. Chromium + grinding of guide cylindrical surface with saw beams installed. The precision of the matching gap of the guide copper sleeve is matched with the precision of the small gap at the factory to ensure that the feed is smooth when sawing.
1, ambient temperature above 0°C
2, air relative humidity not more than 85 %(equivalent medium humidity at 20 ± 5 °C)
1, the foot is a steel plate welding parts, the left is a hydraulic fuel tank and hydraulic system, the right is a combination of a cooling system equipped with a cooling pump and cooling liquid.
2, beams are steel plate welding parts, consisting of worm gear reducer, saw wheel, guide device with saw bar, shield protection, saw bar tension device.
3, the band saw bar is installed on the two wheels and the guide device. After the slave wheel is tightened, it is driven by the main motor. The band saw bar can make a circular motion around the two saw wheels to achieve the main motion of the saw. The saw beam is mounted on the cylinder to guide the upward and downward movement, thus completing the retreat and advance movement.
4, the main transmission system installed on the saw beam consists of the main motor, pulley, worm wheel speed reduction box. Change the speed of the strip blade by frequency of frequency conversion motor to meet the requirements of different materials and materials
