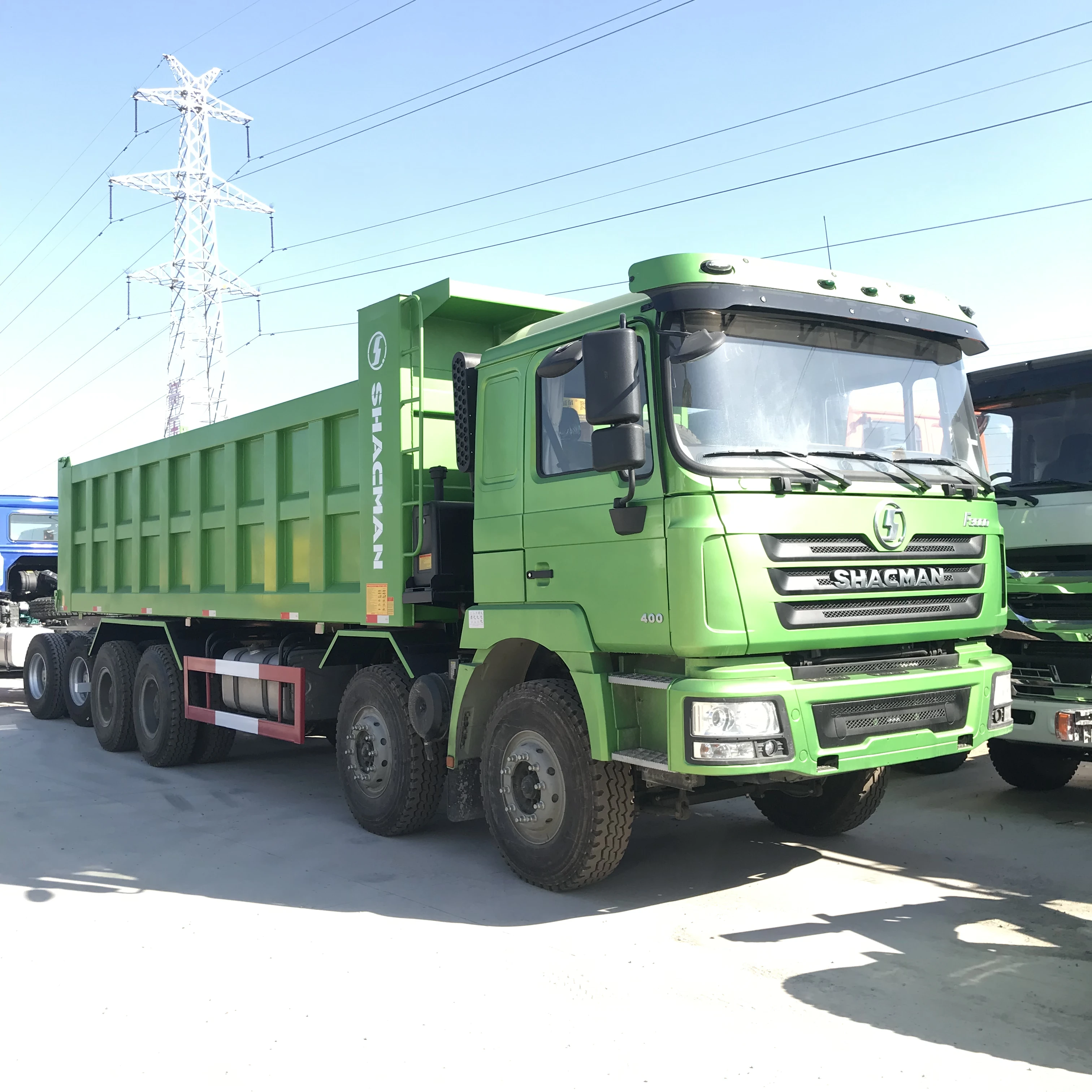

Shacman 375HP 371HP 10 колес 12 колес 6X4 8X4 LHD Rhd самосвал разгрузка
Shacman 375HP 371HP 10 колес 12 колес 6X4 8X4 LHD Rhd самосвал разгрузка
Shacman 375HP 371HP 10 колес 12 колес 6X4 8X4 LHD Rhd самосвал разгрузка
Shacman 375HP 371HP 10 колес 12 колес 6X4 8X4 LHD Rhd самосвал разгрузка
Shacman 375HP 371HP 10 колес 12 колес 6X4 8X4 LHD Rhd самосвал разгрузка
Shacman 375HP 371HP 10 колес 12 колес 6X4 8X4 LHD Rhd самосвал разгрузка
Shacman 375HP 371HP 10 колес 12 колес 6X4 8X4 LHD Rhd самосвал разгрузка

Shacman 375HP 371HP 10 колес 12 колес 6X4 8X4 LHD Rhd самосвал разгрузка

Share on (1600342901230):


Price:14 500,00 $ - 15 500,00 $

Quantity:


Product Overview

Description



Product Description

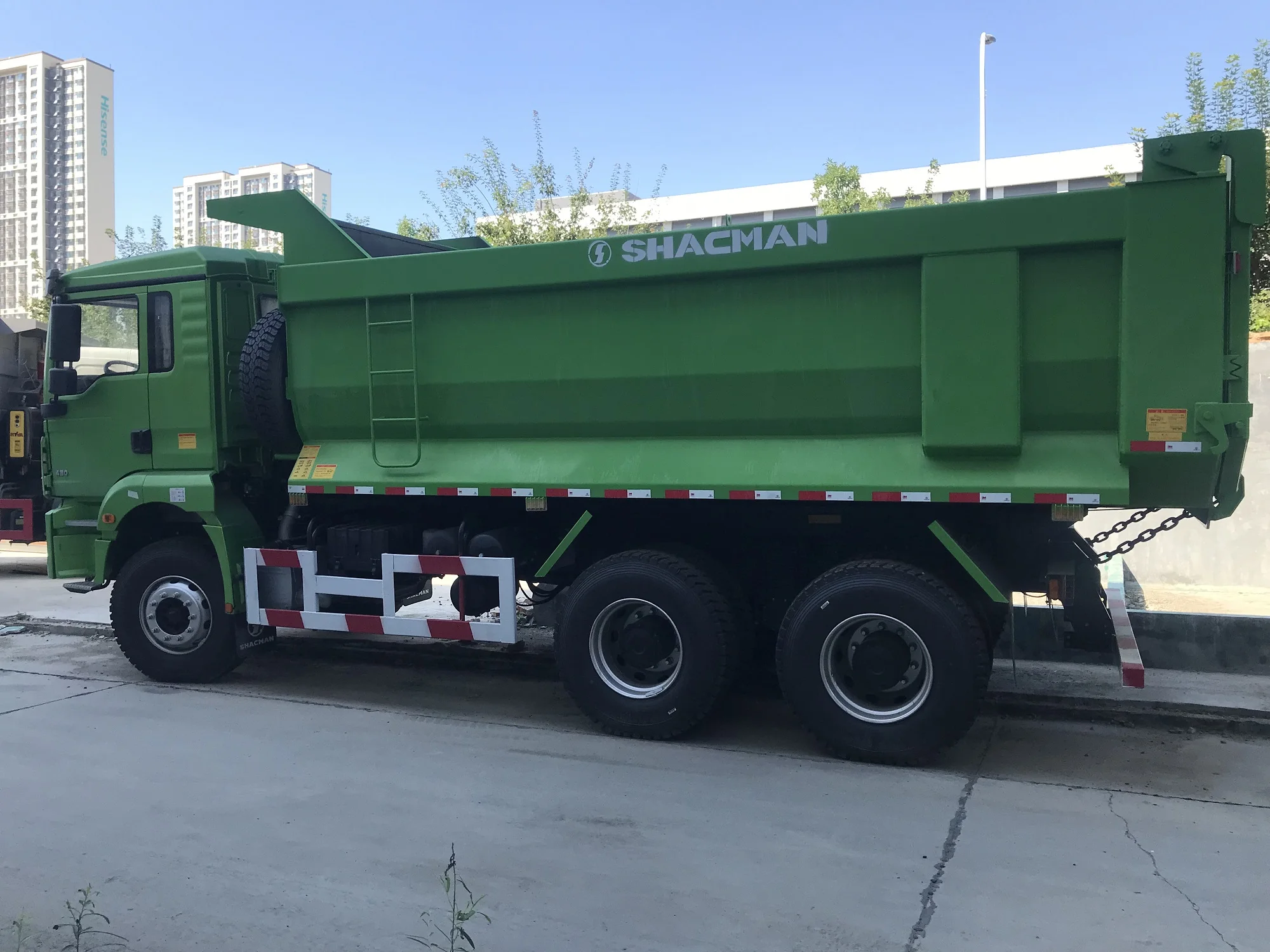

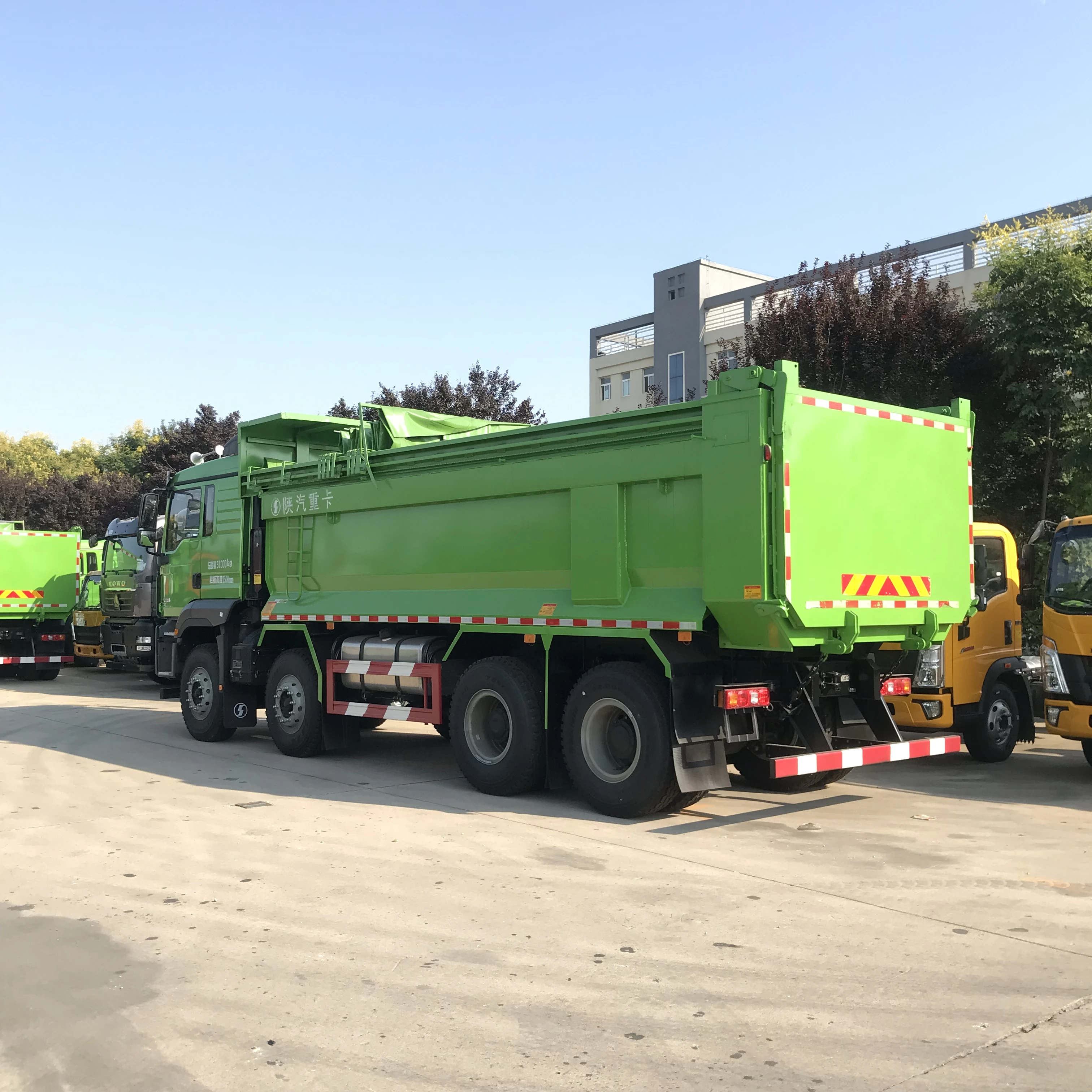

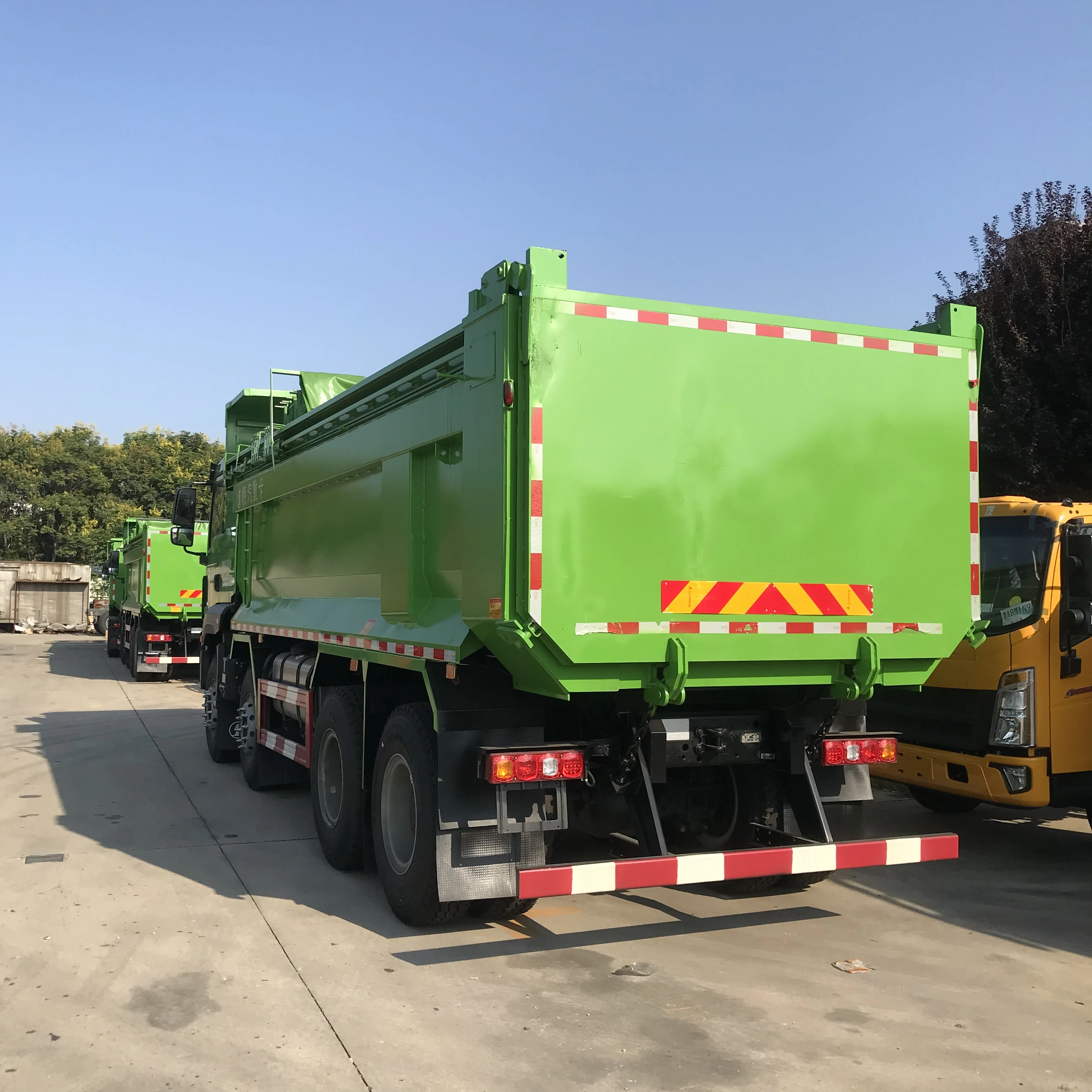

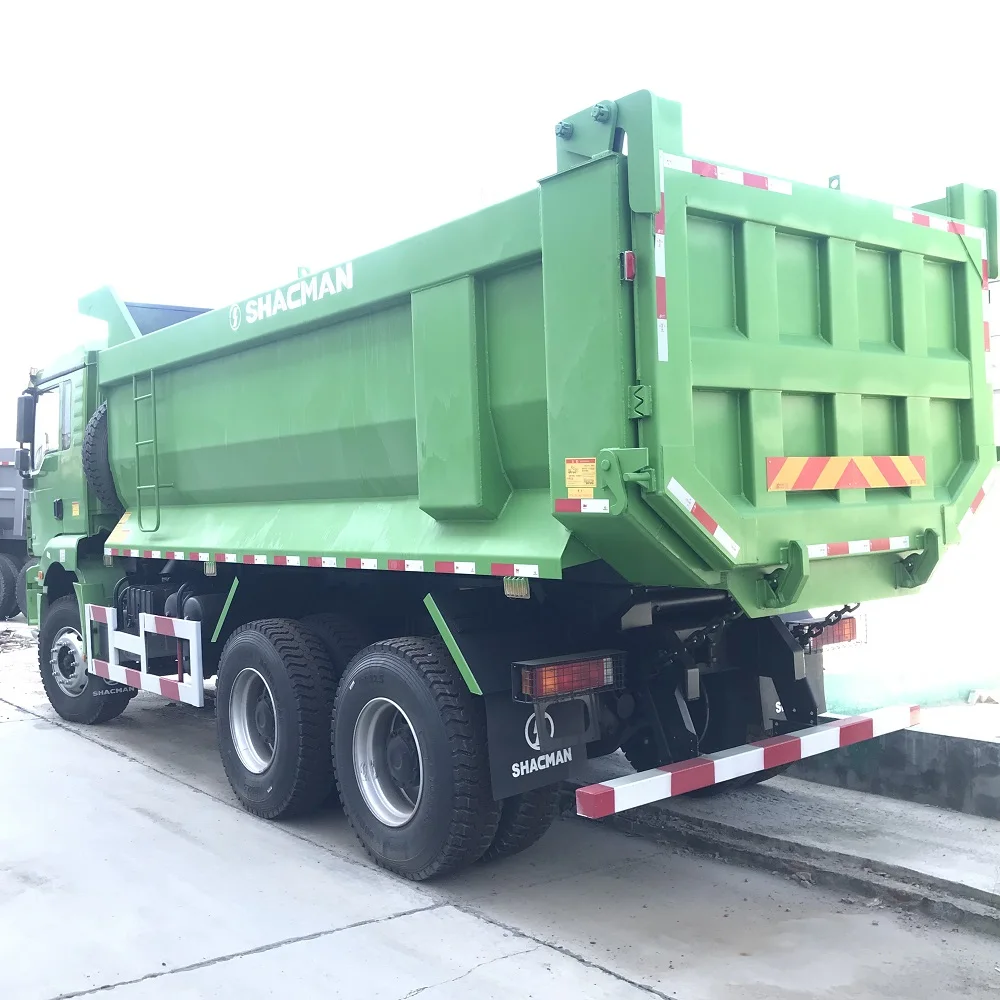

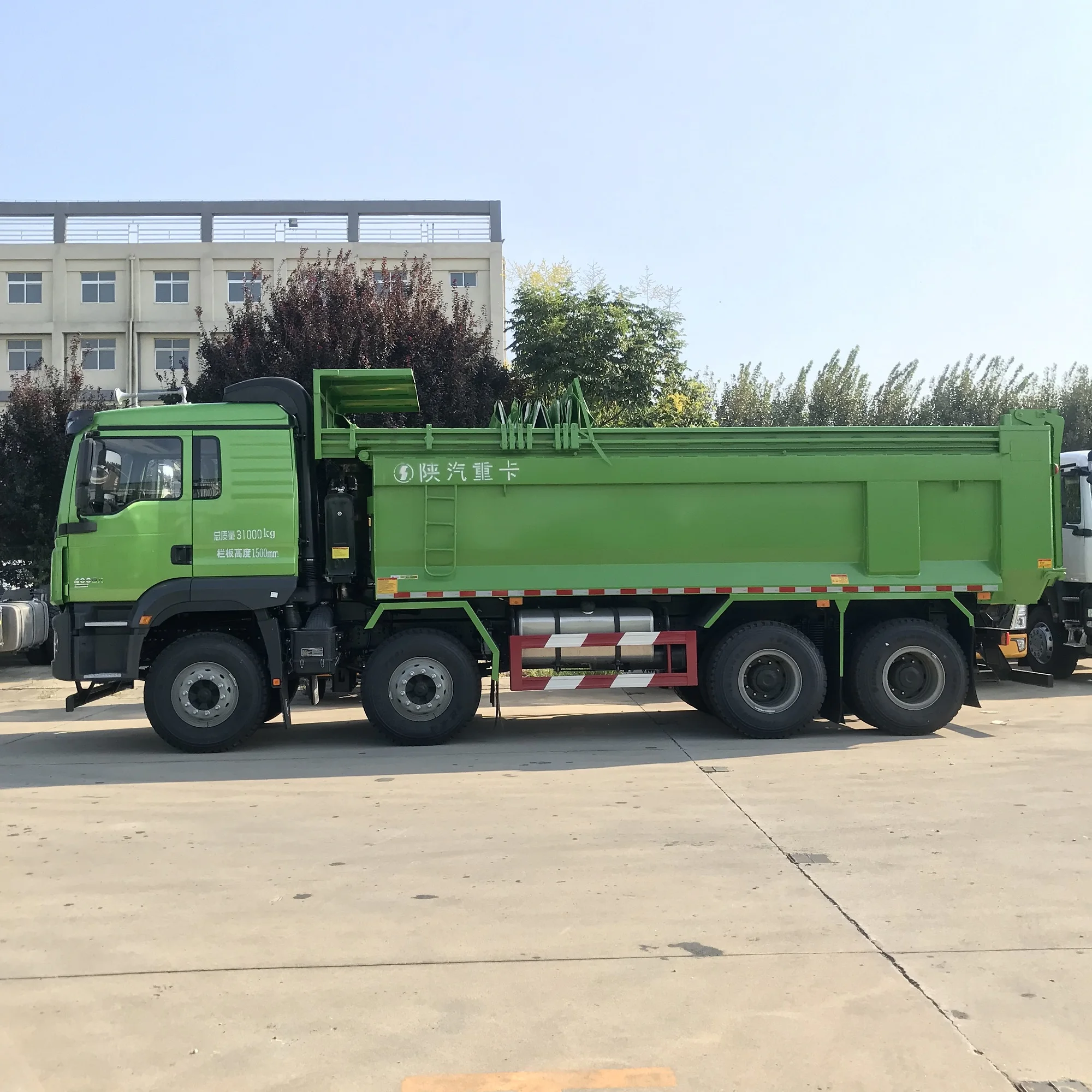

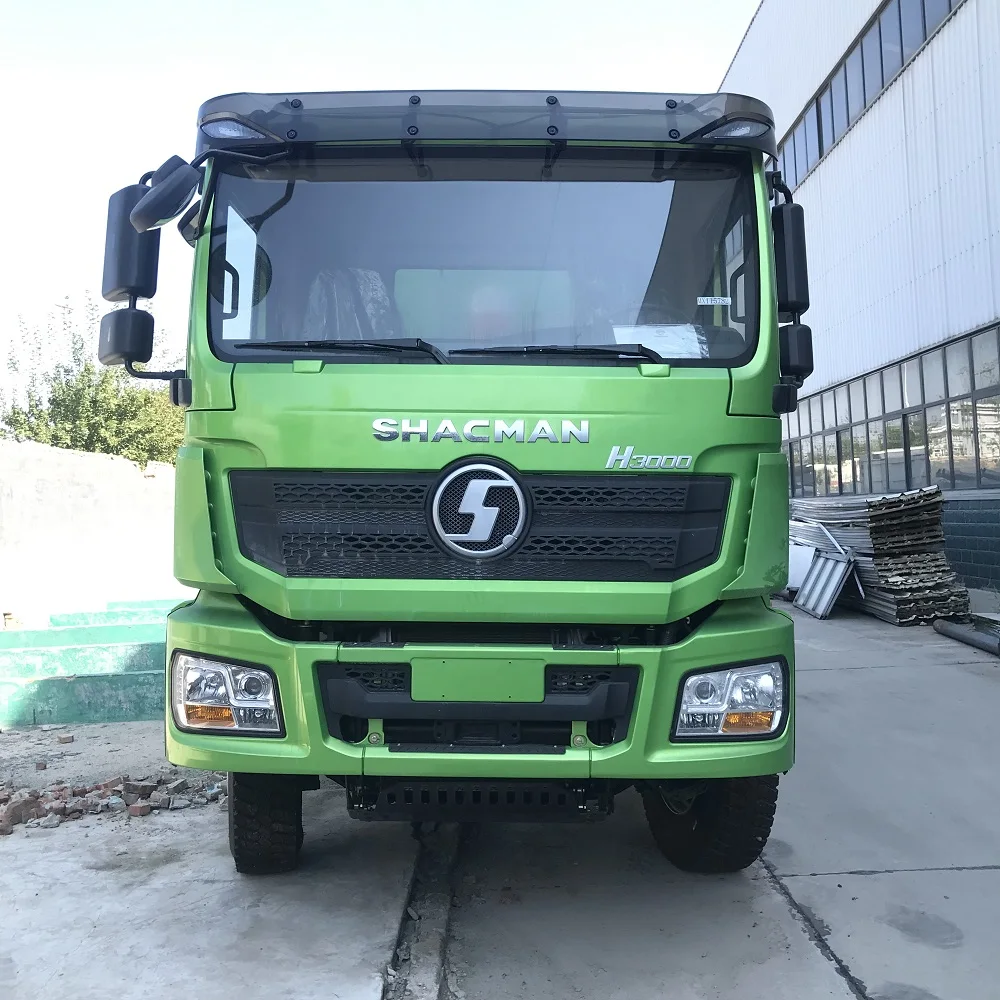

Shacman Automobile’s lightweight Delong F3000 6×4 dump truck is based on the strong R&D capabilities of “National Enterprise Technology Center and Postdoctoral Research Workstation”, and cooperates with well-known European heavy truck design companies to select the new generation of high-strength lightweight materials in China. Patented technology is designed into a large-capacity, lighter tare top box. The whole vehicle has the characteristics of lightweight, economical and practical, high strength, etc., and is especially suitable for transporting large-capacity coal, sand and gravel materials on high-efficiency roads. It has three major advantages: lighter weight, higher transportation efficiency, and safety and reliability.








Details Images

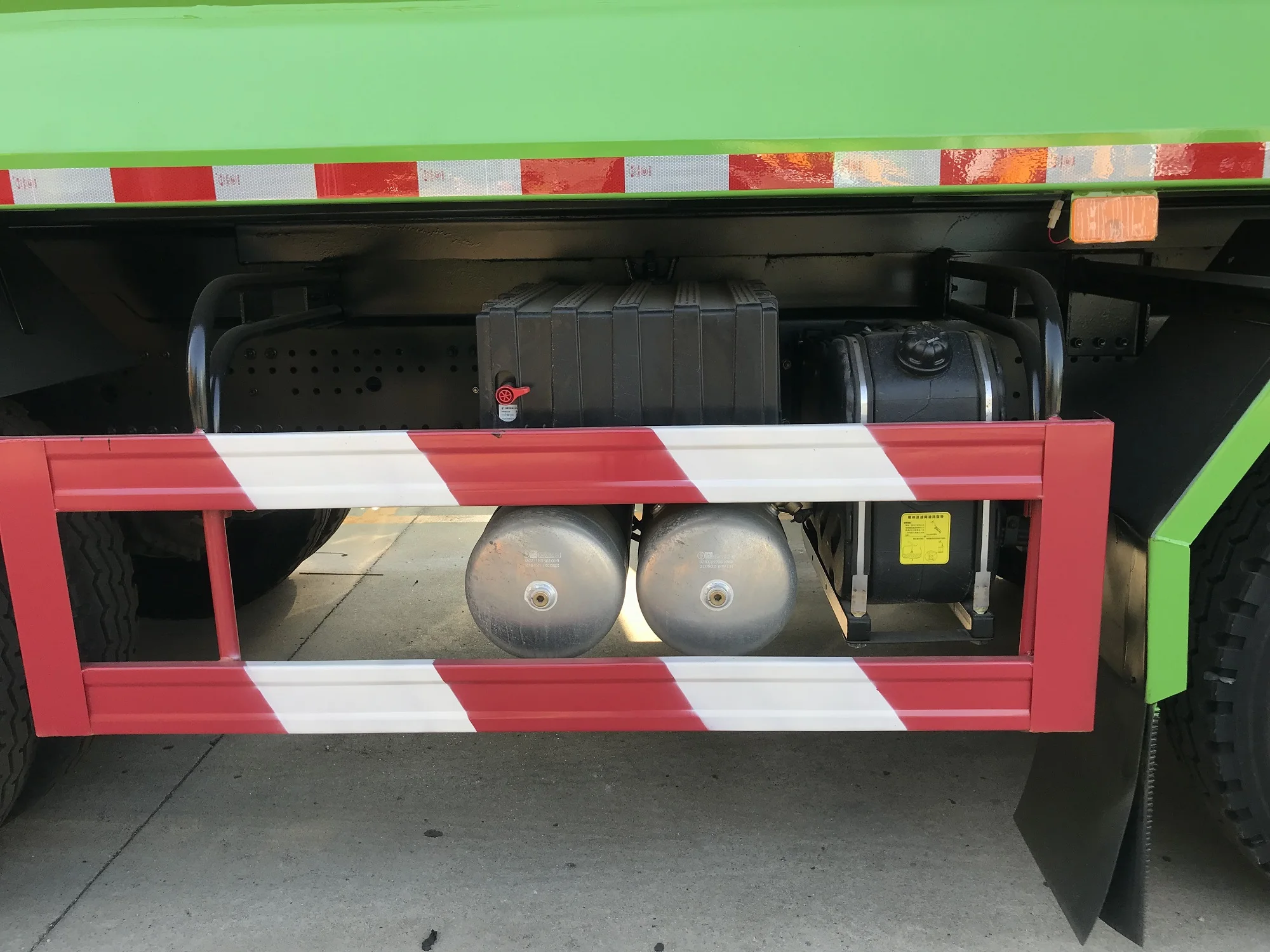

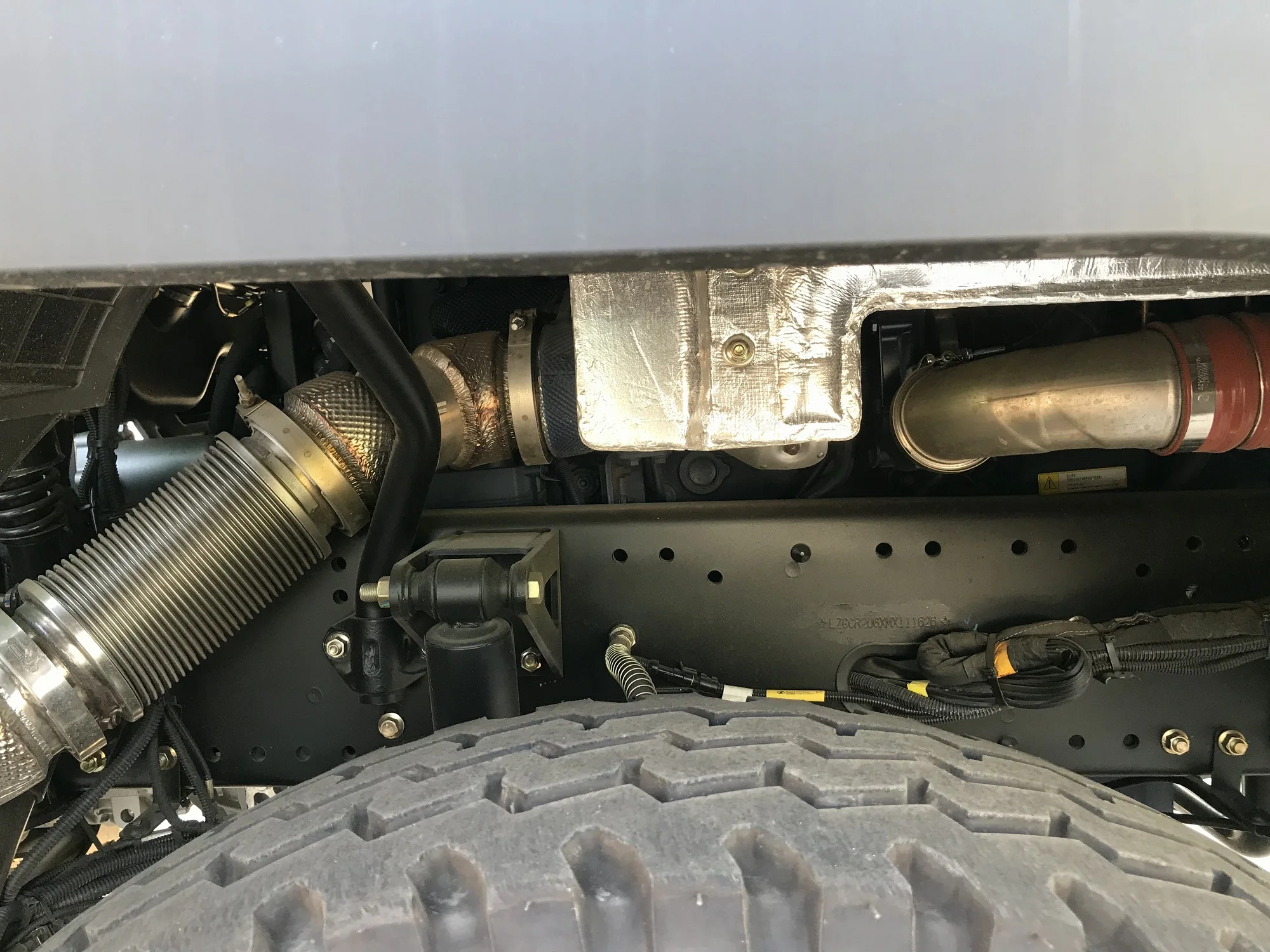

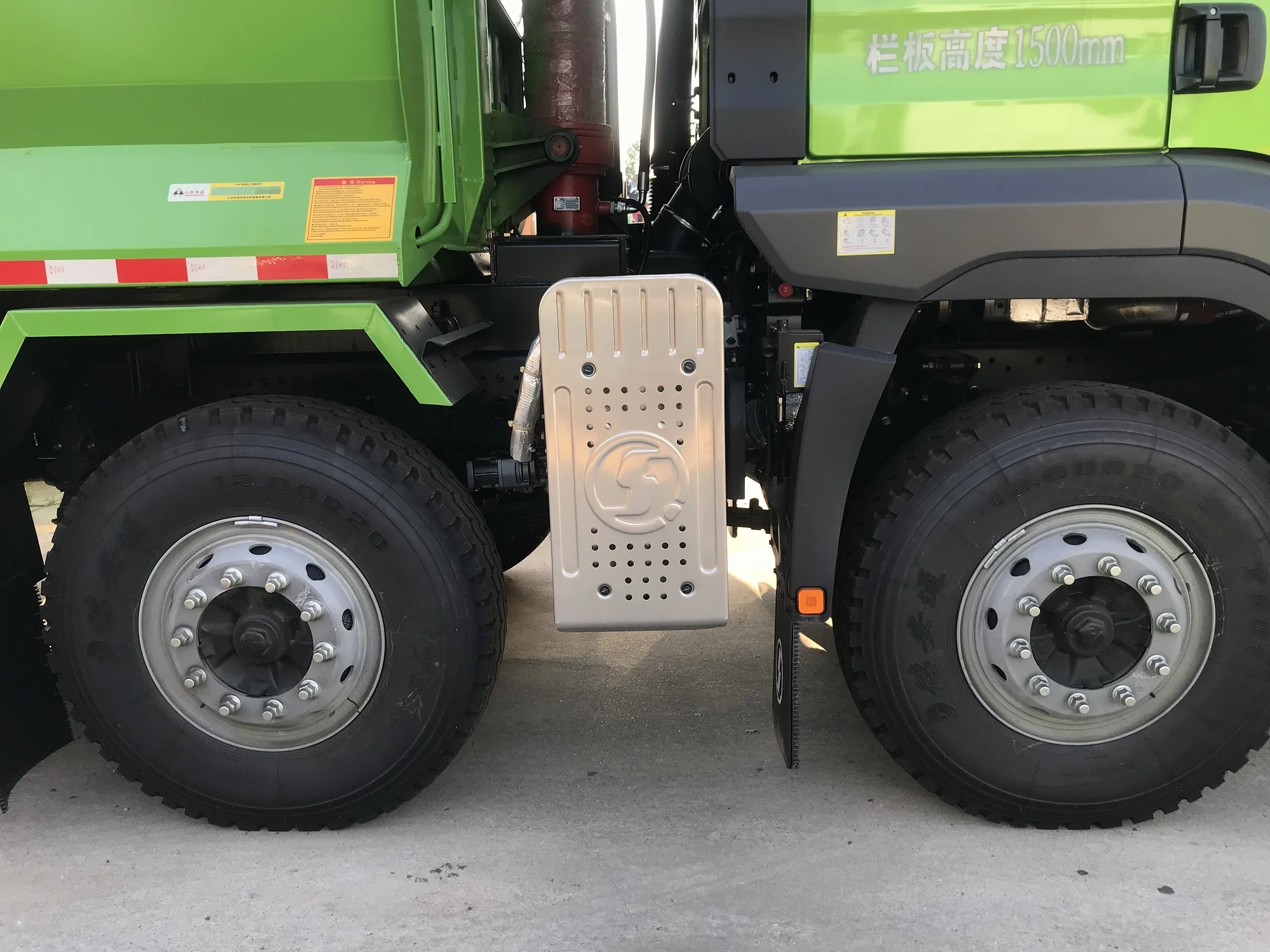

The frame of Shaanxi Automobile's lightweight Delong F3000 6×4 dump truck adopts high-strength rigid plates. It has passed the international leading CAE analysis and finite element topology optimization. The new frame structure design, double-layer pressure, one-time forming, beam lining Optimized from 7mm to 5mm, the structure is more reasonable, the center of gravity is lower, the dead weight is lighter, and the bearing capacity is stronger. Using SIS suspension system, combined with Hande MAN technology lightweight front axle and Steyr technology drive axle, the carrying capacity is far superior to the domestic lightweight dump trucks of the same level. Lightweight transmission shaft, aluminum alloy air storage cylinder and fuel tank application, lighter weight.






Specification


Announcement model
SX5250ZLJDB3842B
Drive form
6*4
Wheelbase
3975+1400mm
Engine
Weichai WP12.375E50
Gearbox
Fast 12JSD180T
Rear axle speed ratio
5.262
Body size
8.6*2.55*3.45 meters
Front track
2036mm
Rear wheelbase
1860/1860mm
Vehicle weight
12.5 tons
Rated load
12.37 tons
Total mass
25 tons
Tonnage level
heavy truck
Approach angle
17 degrees
Departure angle
23 degrees
Engine
Engine model
Weichai WP12.375E50
Number of cylinders
6
Fuel type
diesel
Displacement
11.596L
Emission standard
National V
Maximum horsepower
375 horsepower
Maximum output power
276kw
Maximum torque
1800Nm
Maximum torque speed
1000-1400rpm
Rated speed
1900rpm
Engine form
in-line, water-cooled, six-cylinder, electronically controlled high pressure common rail SCR
Cargo parameters
Cargo parameters
5.8*2.35*1.5 meters
Cab parameters
Cab
Medium and long flat roof
Gearbox parameters
Gearbox model
Fast 12JSD180T
Forward gear
12
Number of reverse gears
2
Tire

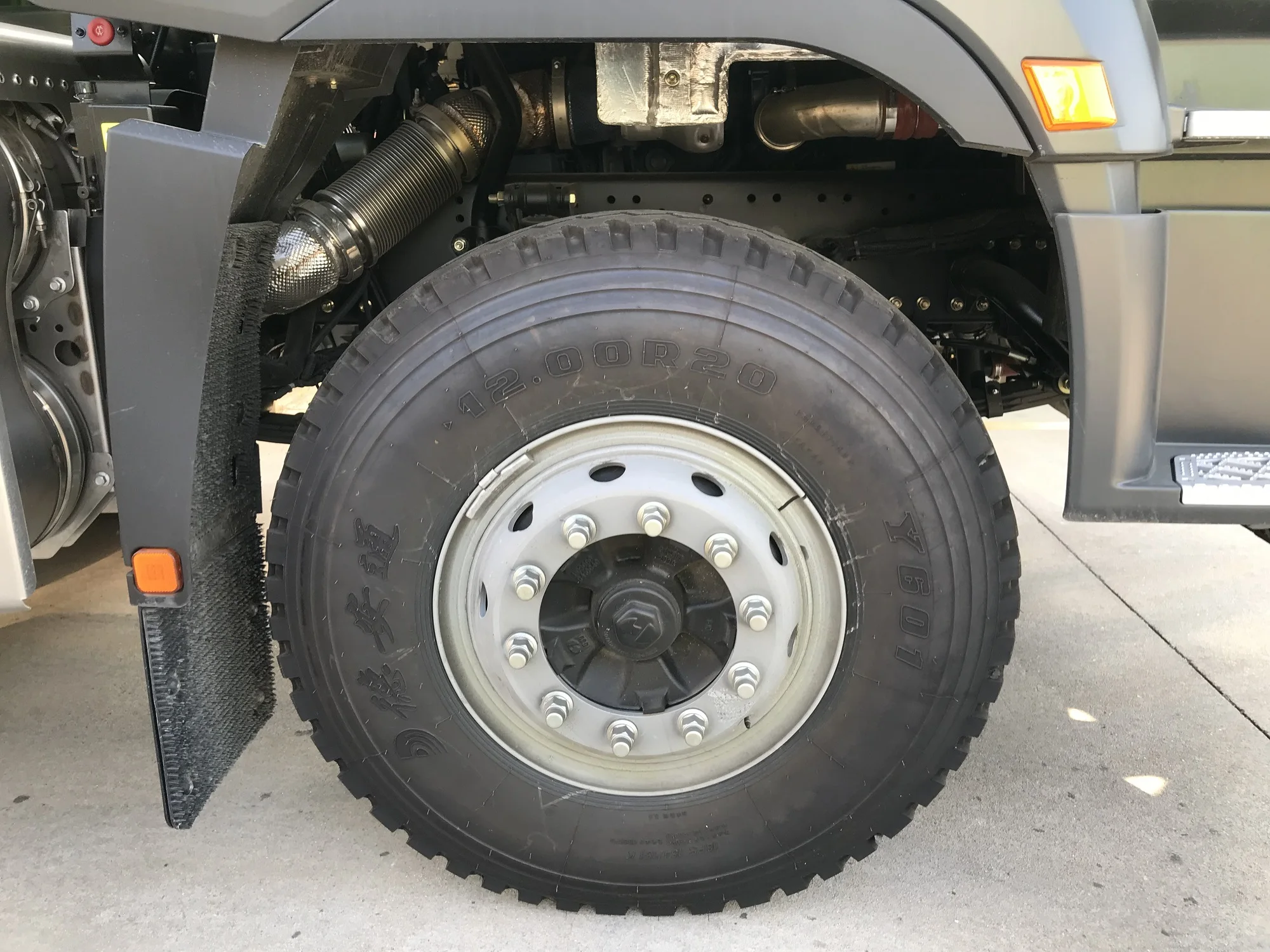

Tire specifications
11.00R20, 12.00R20 16PR
Number of tires
10
Tank
Fuel tank material
aluminum alloy
Fuel tank/gas tank capacity
400L
Chassis parameters
Frame height
850×300(8+7)mm
Front axle description
MAN9.5T
Allowable front axle load
7000kg
Rear axle description
16T MAN two-stage cast bridge
Allowable load of rear axle
18000 (two-axle group) kg
Speed ​​ratio
5.262
Suspension type (front/rear)
four main films + four riding
Number of springs
10/12
Clutch
Φ430


Recommend Products

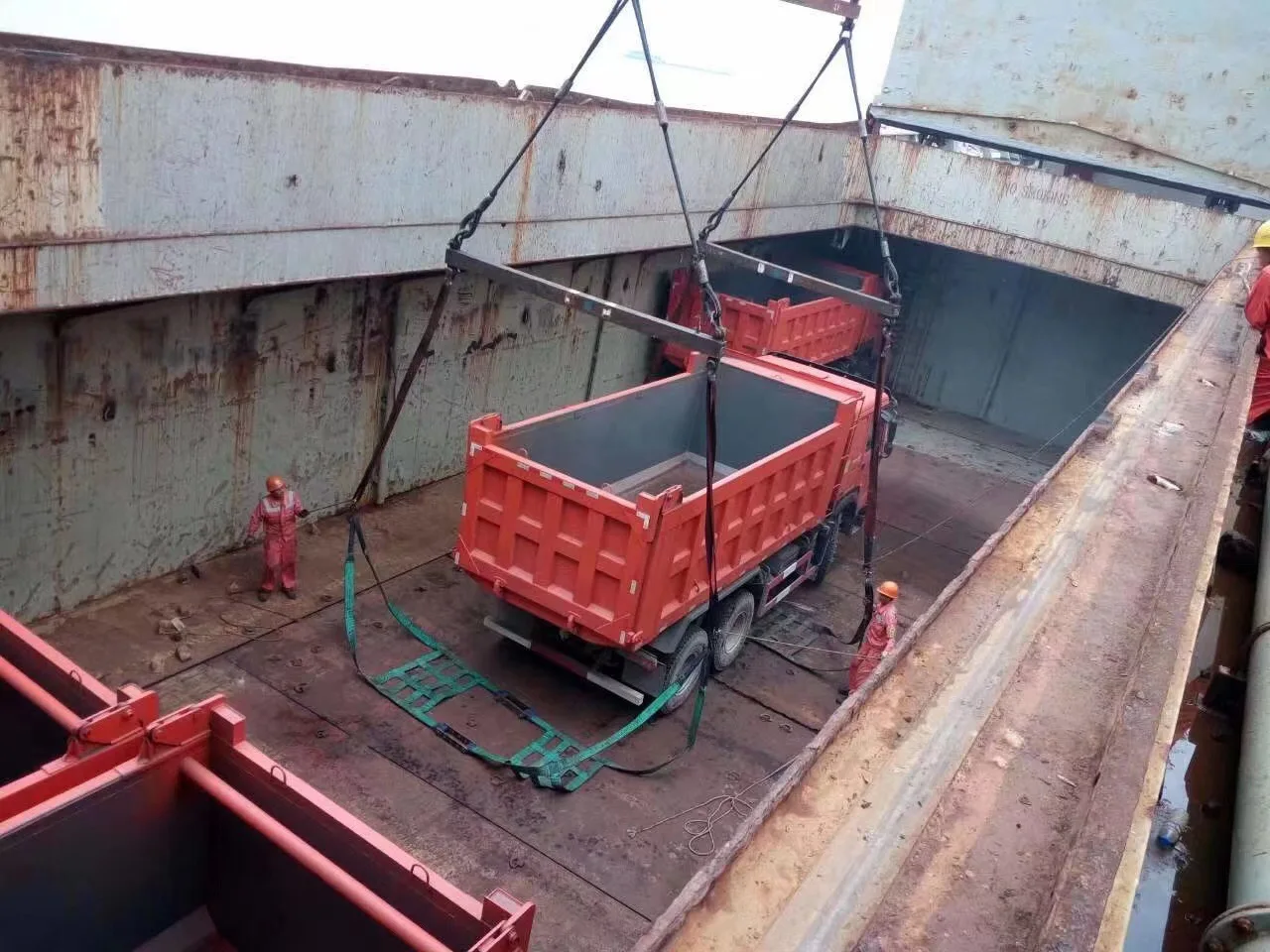

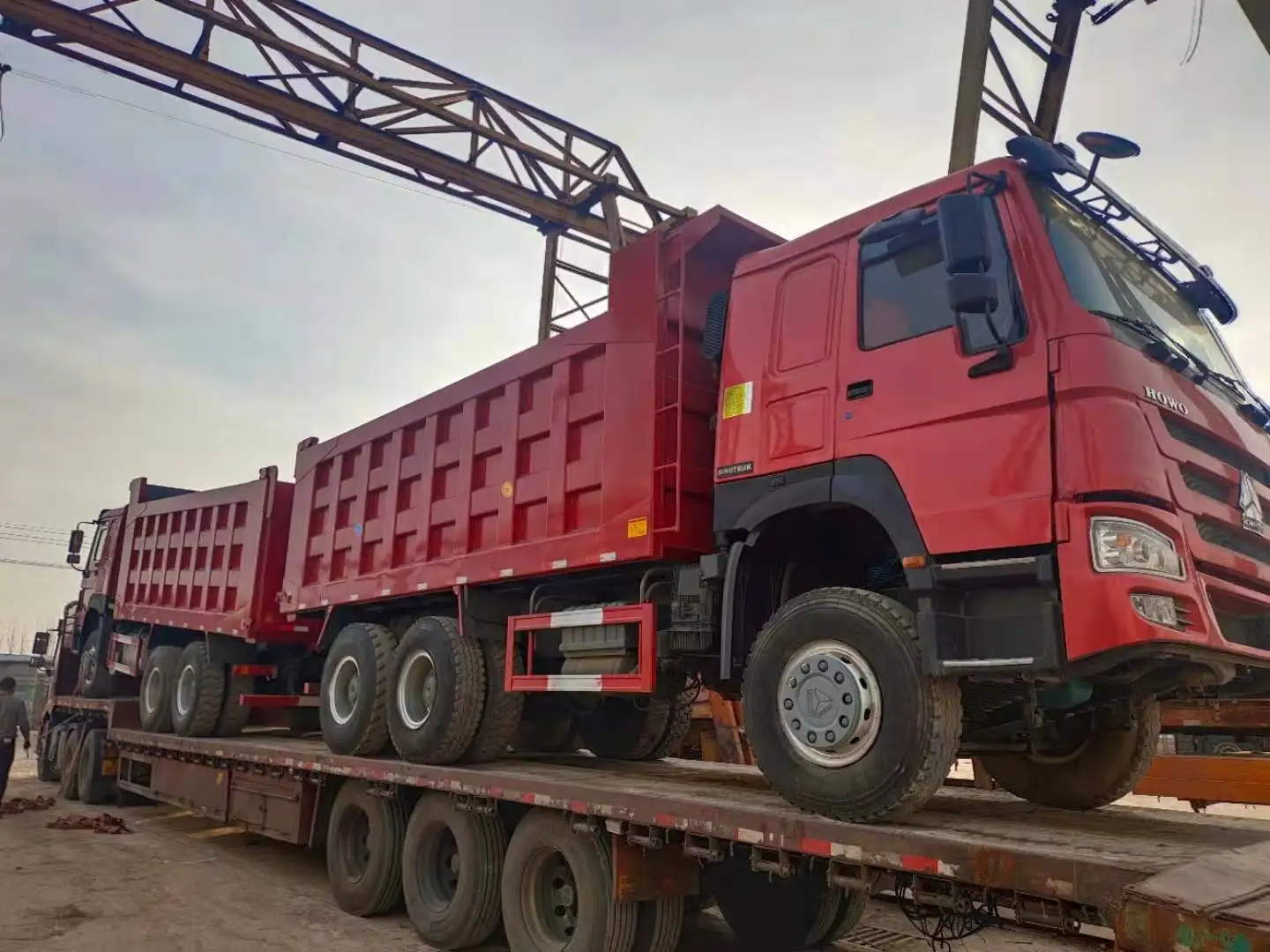

Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
We will provide video inspection before shipment, and we have a professional transportation team.




Company Profile






Our Tengfei development (Jining) Construction Machinery Co., Ltdfounded in 2000 with more than 20 years' experience. Being famous in domestic and foreign countries, we concentrate on trailer and truck's research and development. Our aim is to provide high quality and low price products for the customer. Experienced and technological team customize the best productions for customers. For any reliability& safety and economic related questions, we all have mature solutions at any time. our company are expanding and developing quickly and will be more and more strong and serve clients better !


FAQ


1. who are we?
We are based in Shandong, China, start from 2000,sell to Africa(60.00%),Domestic Market(20.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
dump truck,tractor truck,oil tank truck,sewage truck,trailer

4. why should you buy from us not from other suppliers?
Our company Tengfei development (Jining) Construction Machinery Co., Ltd has been supplying good quality dump trucks , tractor trucks , engines to clients . And we are good at building longterm business relationships with clients ! we are the champions !

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery,DAF；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Korean,German, French, Spanish.
